Astronomy > Mounts & accessories > Mounts > Equatorial with GoTo > Skywatcher > CQ350 > Skywatcher Mount CQ350 Pro Synscan GoTo Tripod
Product no.: 77373

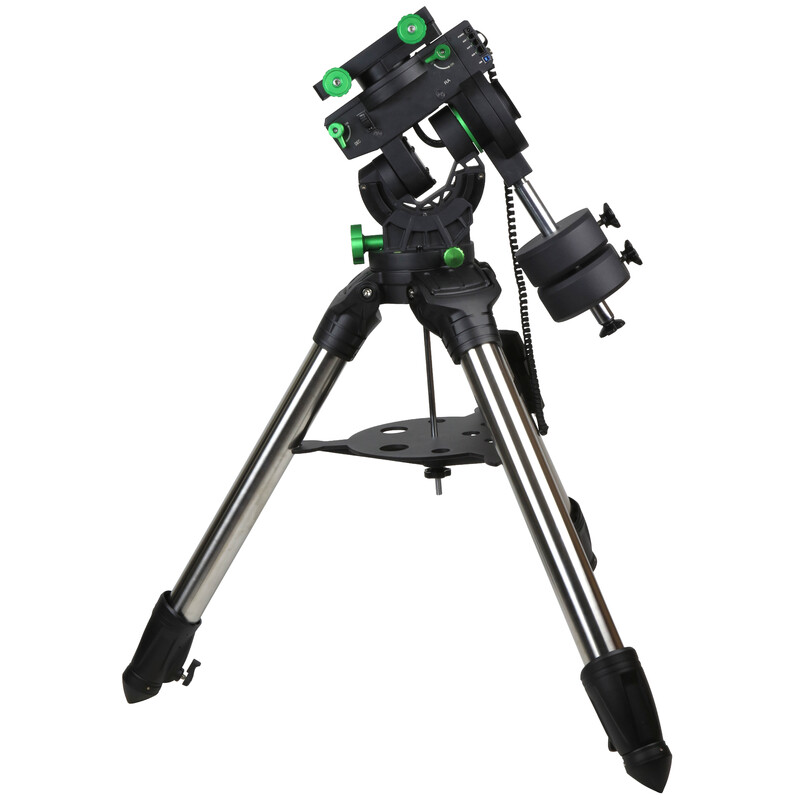

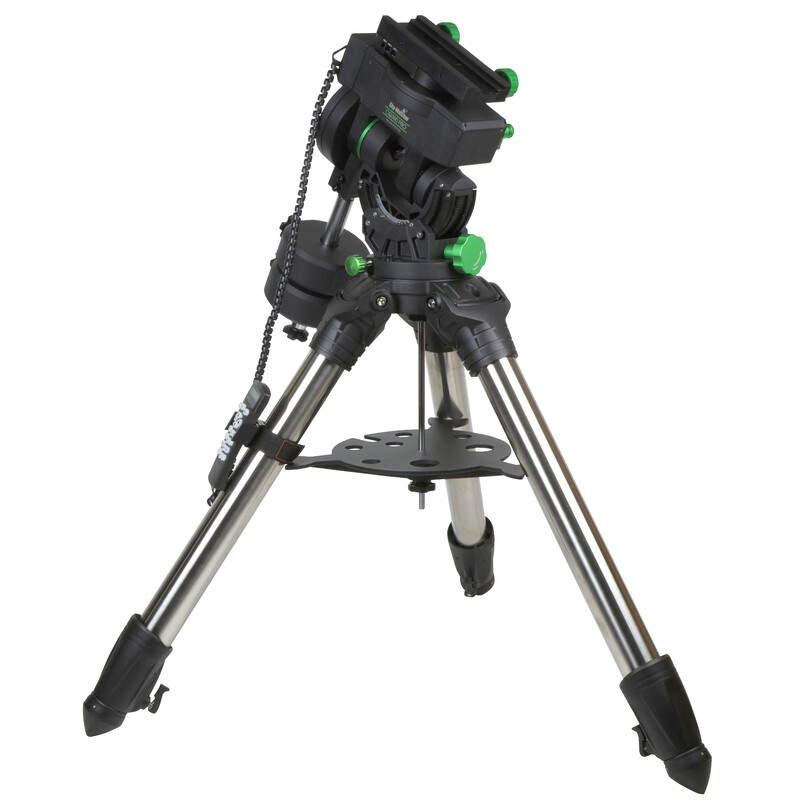

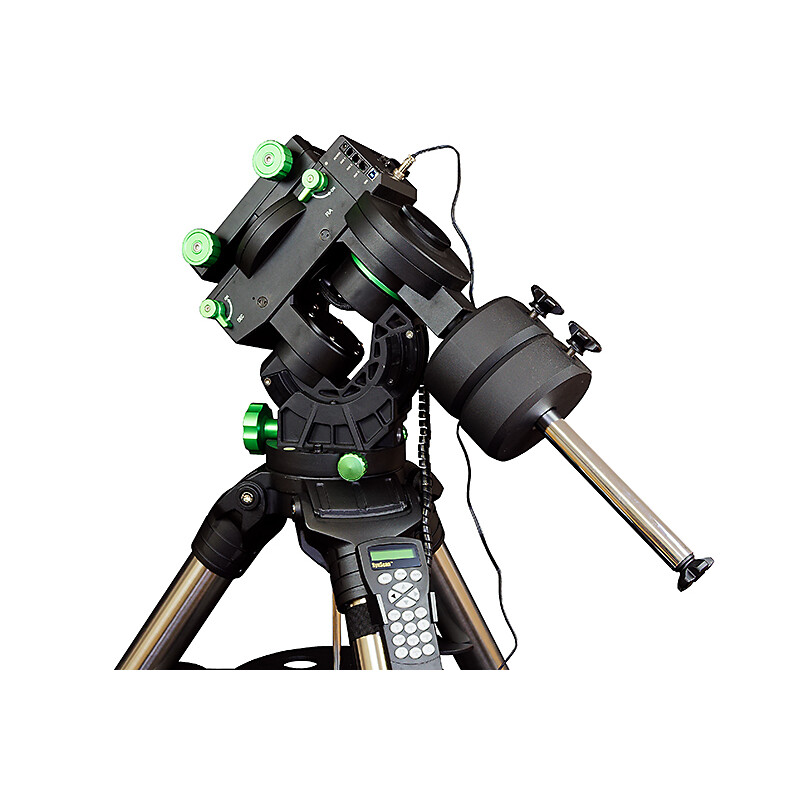

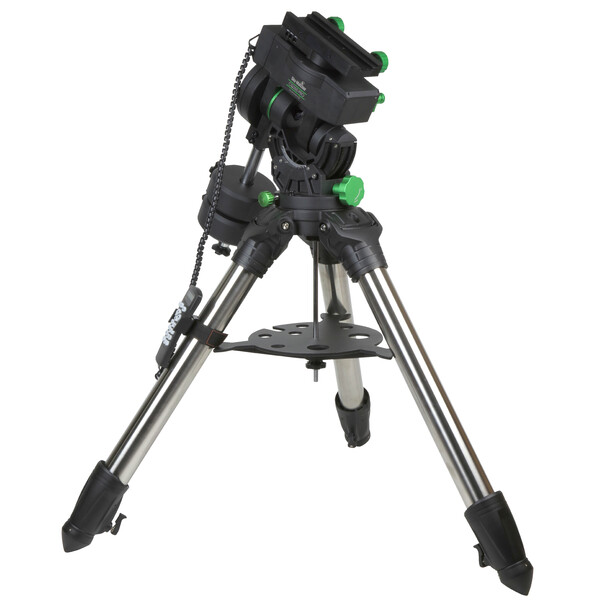

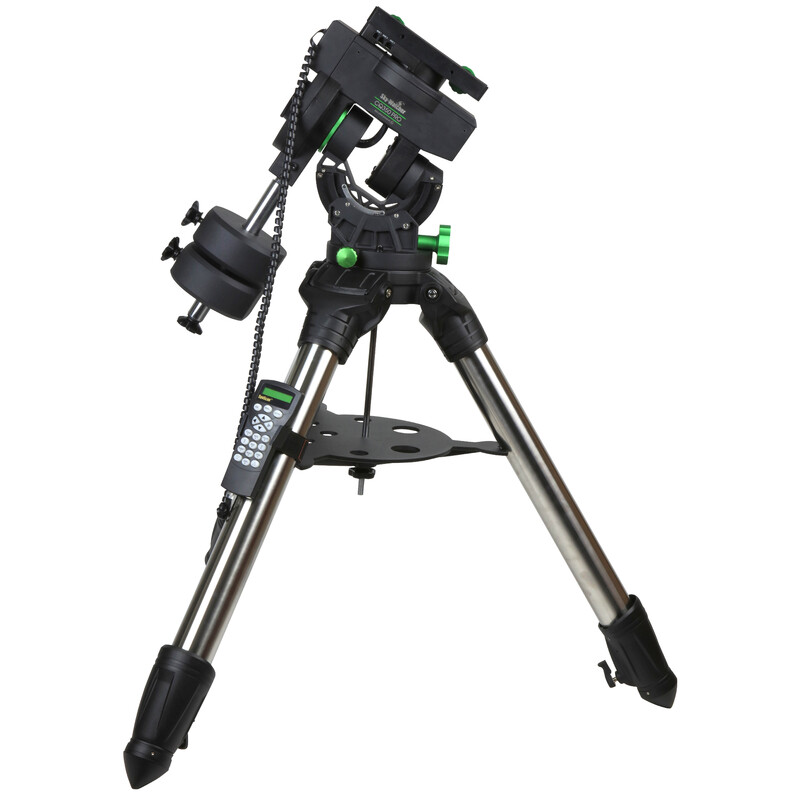

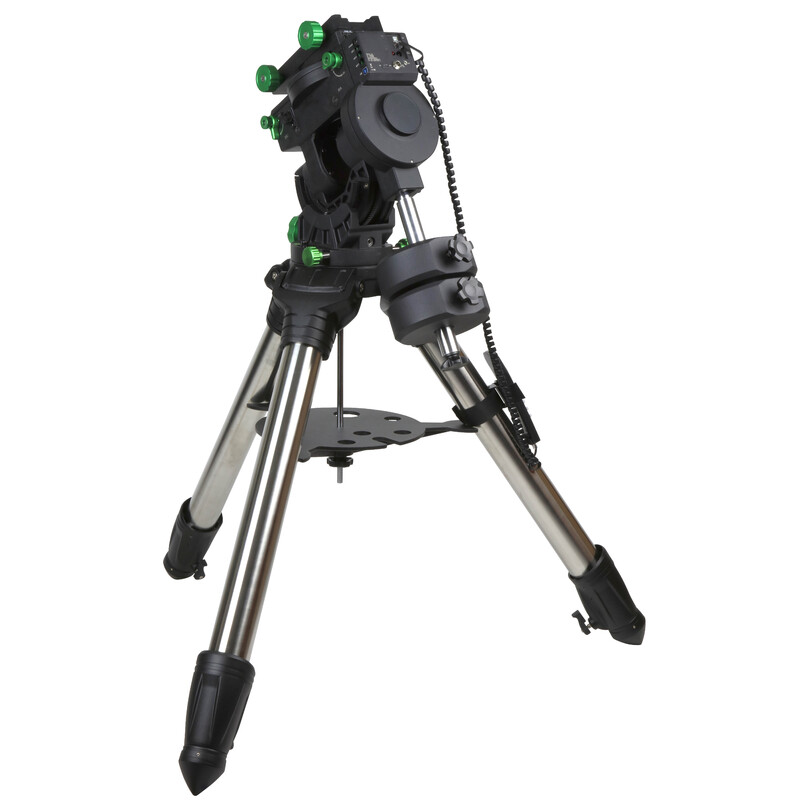

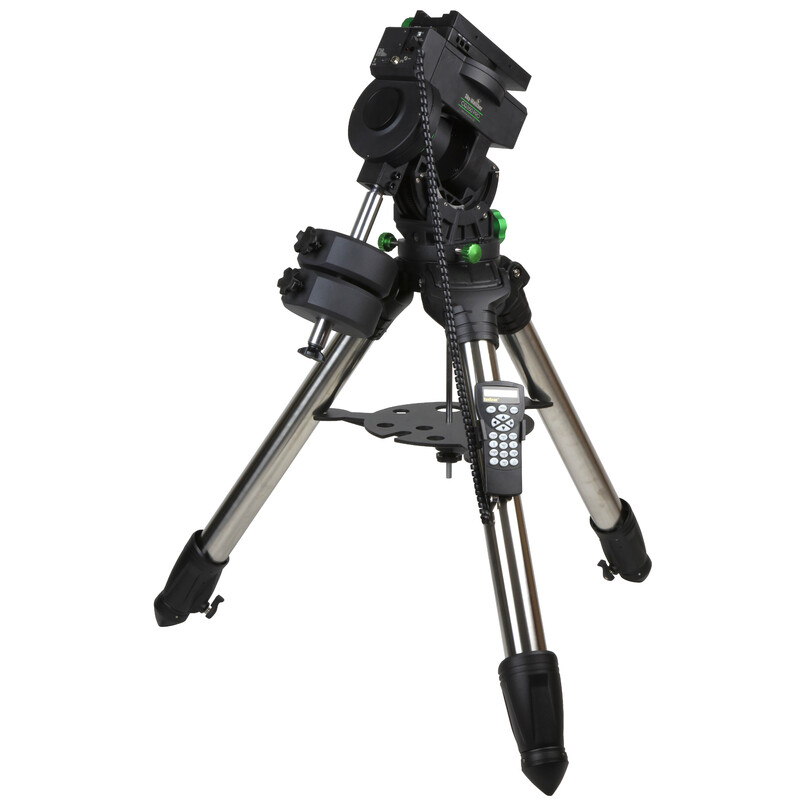

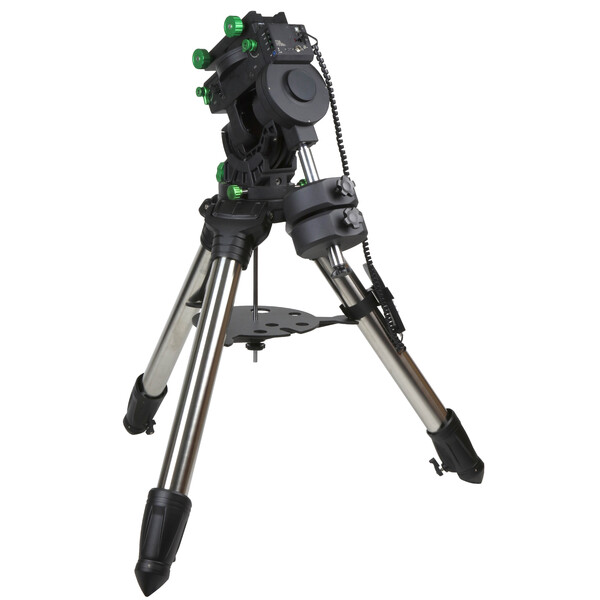

Mount CQ350 Pro Synscan GoTo Tripod

$ 4,010.00 incl. VAT plus shipping costs
too expensive?
short-term
ready for shipping in 1-2 weeks + lead time

No delivery possible before Christmas. Order a voucher coupon!


  • High load capacity up to 35 kilograms
  • Toothed belt drive for smooth operation
  • Modern computerised controls with large object database
This product is available in the following variants:
Tripod Price
Tripod $ 4,010.00
without tripod $ 3,270.00

Product description

In the CQ350, Sky Watcher presents a mount which sits between the EQ6-R and the EQ8-R. It can be used for mobile astrophotography, in the backyard or in public observatories. It is, therefore, available both with and without a tripod.

The equatorial CQ350 Pro features the well-proven SynScan™ computerised control system with 42,900 objects within its integrated database. These can be easily called up using their Messier, NGC or other catalogue number. Using an optional WiFi dongle, it is possible to control the mount via an app on iOS or Android devices.

The mount was developed for ambitious astrophotographers, its maximum load capacity is 35kg. The combined dovetail rail clamps for 45 and 75mm prism rails allows a large range of telescopes and other accessories to be connected.

This quiet mount moves using belt drives with stepper motors on both axes (encoder resolution: 55,193,600 counts/rev., approx. 0,023 arc seconds). Its quiet operation and high slewing speed make this mount appealing to observatories with public guided tours, too.

It comes with two counterweights, each weighing 10kg. An external polarscope can also be connected to facilitate quick positioning.

The CQ350 mount is compatible with the EQ8 pier.

Specifications

Capacity


Max. additional load capacity (kg)
35
Mounting saddle
Losmandy & Vixen
Polar elevation setting (°)
0-70
Slow-motion azimuth adjustment (°)
+/-15
Worm gear teeth (DEC) (piece)
288
Worm gear teeth (RA) (piece)
308
RA worm gear diameter (mm)
155
Encoder
yes
Interfaces

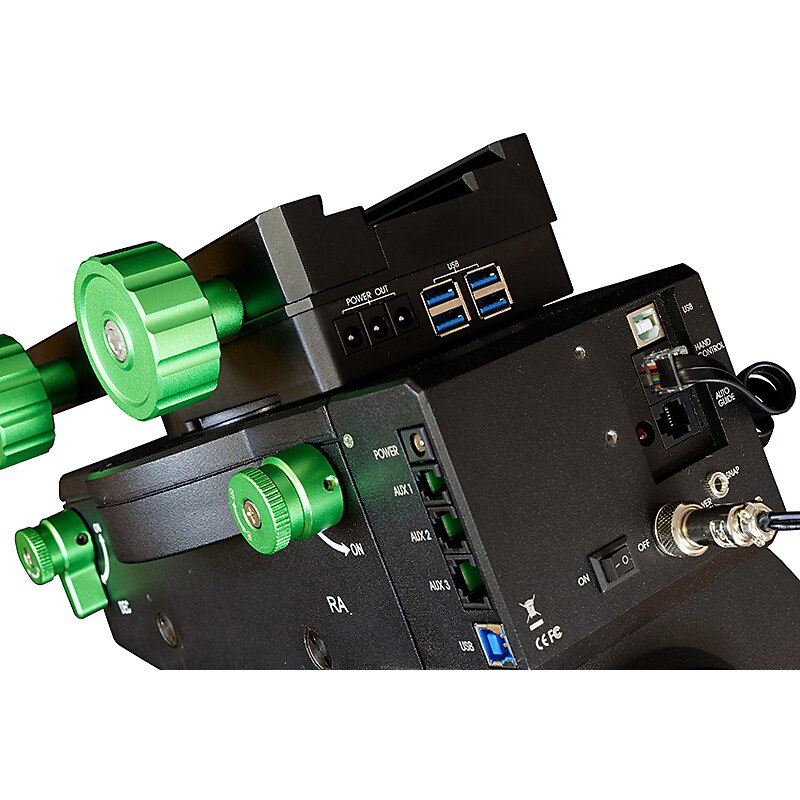

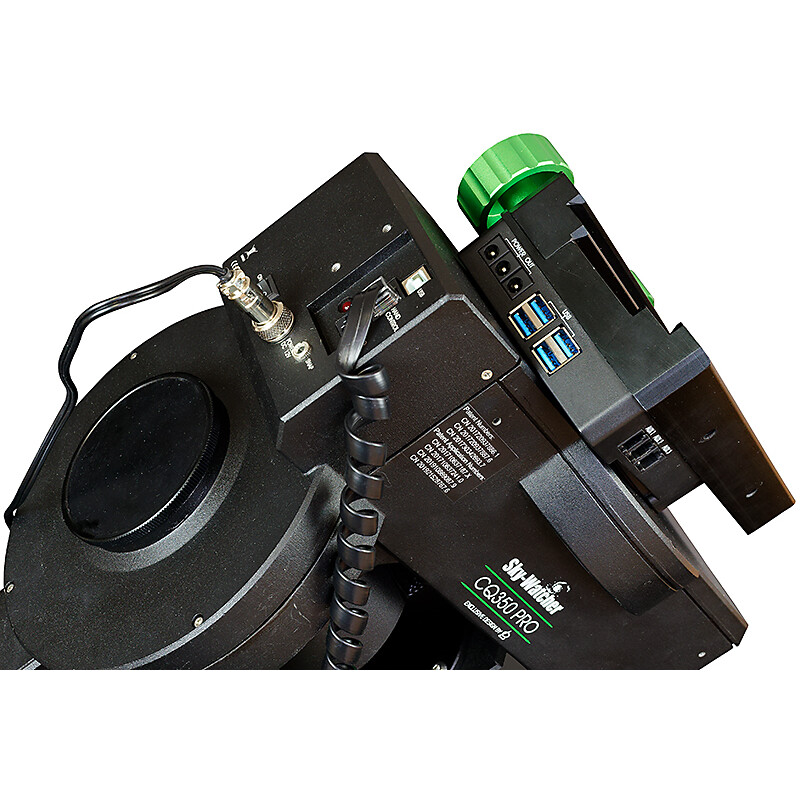

4xUSB, 1xShutter Release, 1xPower Input, 3xPower Output, 1xHandcontroller Port & 1xAutoguider Port
Cable-guide
internal
Power supply
16
Power consumption in open circuit (mA)
2000
Motor type
Stepper motors
Toothed belt drive<p>
yes
Weight mount head only (kg)
15
Slewing speeds
4
Drive type
Worm wheel

Special features


GoTo system
yes

Equipment


Pole finder
no
Motor-powered
yes
Tripod
Tripod
Transport cases
no

Tripod


Tripod material
Aluminium
Max. tripod height (cm)
108
Min. tripod height (cm)
77,5
Tripod weight (kg)
15,7
Tripod pad
Synthetic material
Tripod leg diameter (mm)
70

General


Type
Mount
Type of build
Equatorial
Series
CQ350
Total weight (kg)
50,9

GoTo control


Database
42.900
with hand paddle
yes
Hand Controller
SynScan
GPS
optional
WIFI
optional
PEC correction
yes
Tracking speeds
sideral, solar and lunar
GoTo Language
multilingual
Software
SynScan
Autoguiding
yes
