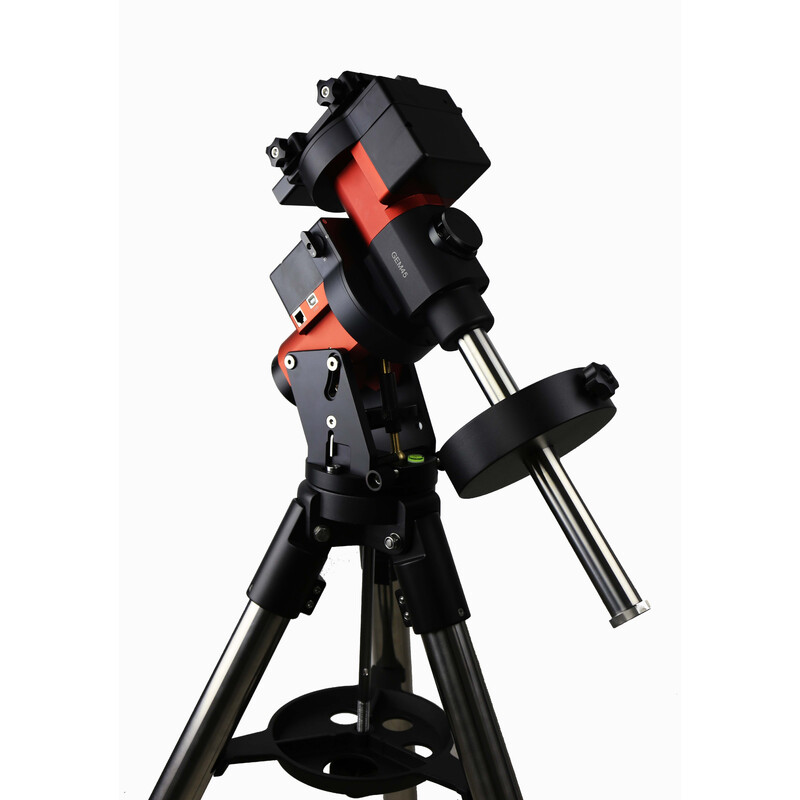

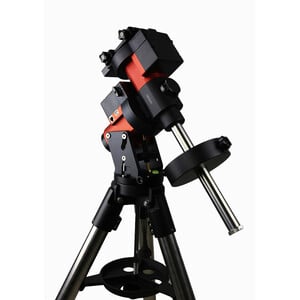

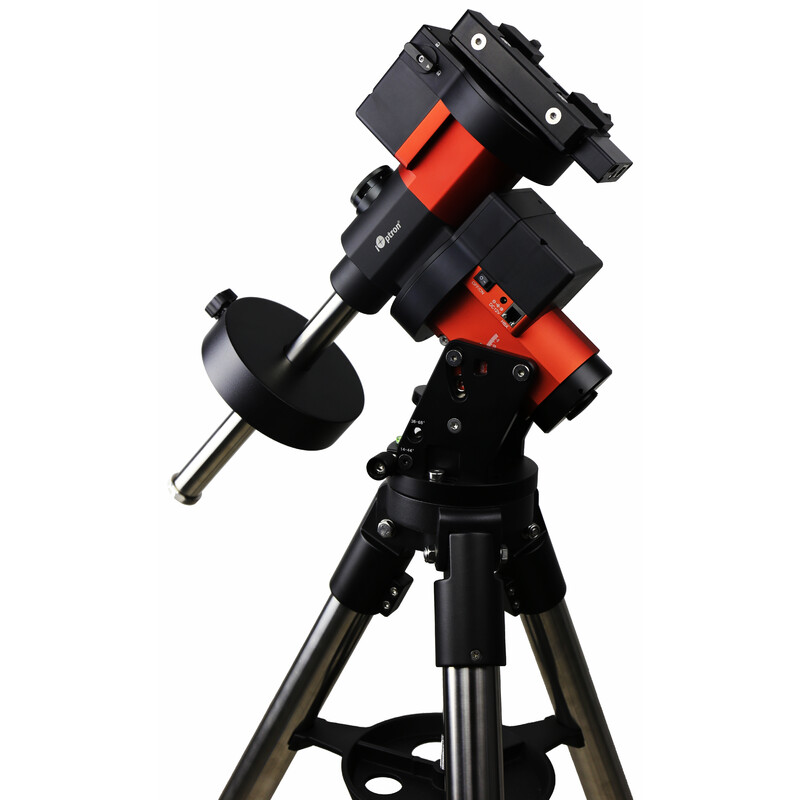

Innovative ideas applied to a time tested design, the iOptron® GEM45 next generation German equatorial mounts. A sharp looking CNC body is the first indicator the GEM45 is a top quality mount in both form and function.
- Utilizing experiences gained during development of the CEM series, iOptron were able to remove unnecessary bulk giving the GEM45 an incredible 2.8 payload to mount weight ratio. This compact 15.8lb mount can precisely GOTO an object and track with up to 45lbs of gear onboard.
- With its integrated electronic polar scope (iPolar), polar alignment is a snap, even when the pole star is obscured.
- Large levers on the quick-lock drive engagement system make it easy to snap its drive gears into place even when wearing gloves. There is little chance of your cables getting snagged with the GEM45's internal advanced cable management system.
- A new, patent pending Universal Self-Centering Saddle (USCS) accommodates Losmandy and Vixen style dovetail plates.
- GEM45 mounts utilize reliable stepper motor drive systems with low power consumption technology.
- A 212,000+ object library with star identification, GPS, optional Wi-Fi (requires iStarFi adapter) are a few of the desirable features standard on a GEM45 mount.

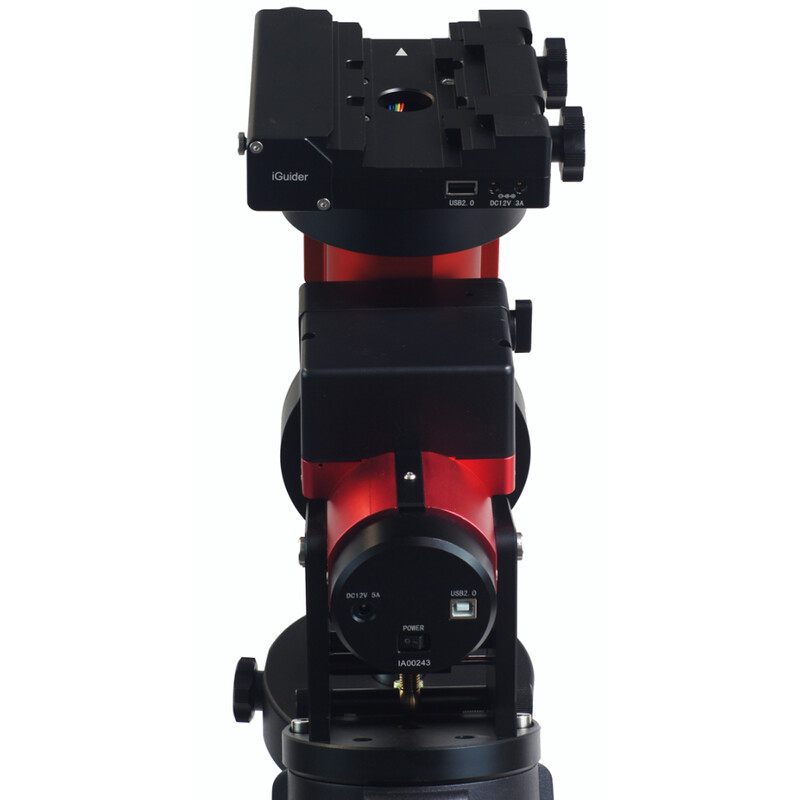

Please note: This mount is available in two variants. The mount with G in the designation also has an autoguider integrated into the mount head, the new iGuider from iOptron! So with this variant of the mount, a separate autoguider solution is no longer necessary!
The variant without iGuider can be equipped with an external solution for tracking control. Such tracking controls are only necessary for astrophotography with long exposure times.
The iOptron LiteRoc tripod is a newly developed tripod which is as light as possible but as sturdy as necessary. It, therefore, fits in well with other transportable mounts for mobile observers and astrophotographers. The LiteRoc tripod has a sturdier socket for its extending tripod legs and a larger locking lever compared to its predecessor. The upper tripod legs have a diameter of 45mm (1.75”) and the lower section, one of 38mm (1.5”). This makes the extending legs just as strong as the legs on the earlier 2” tripod. Due to the upper part’s narrower design, the LiteRoc is lighter.
Our expert comment:
The iGuider camera has a pixel size of 3.75µm and an aperture of 30mm.
The iGuider finderscope has a focal length of 120mm.
The above-mentioned pixel size and aperture also apply to the optional iPolar.
(Jan Ströher)
The GEM45’s exact colour can vary from dark red (burgundy) to pale reddish purple depending on the production period. However, these are fine, subtle nuances which are barely visible. In 90% of cases, the GEM45 is crimson like in the product photos!
(Jan Ströher)
