Product no.: 85813

Electronic Tilter ETA M54

$ 1,050.00 incl. VAT plus shipping costs
too expensive?
short-term
Product can be shipped as of 01.05.2025 + lead time

Product description

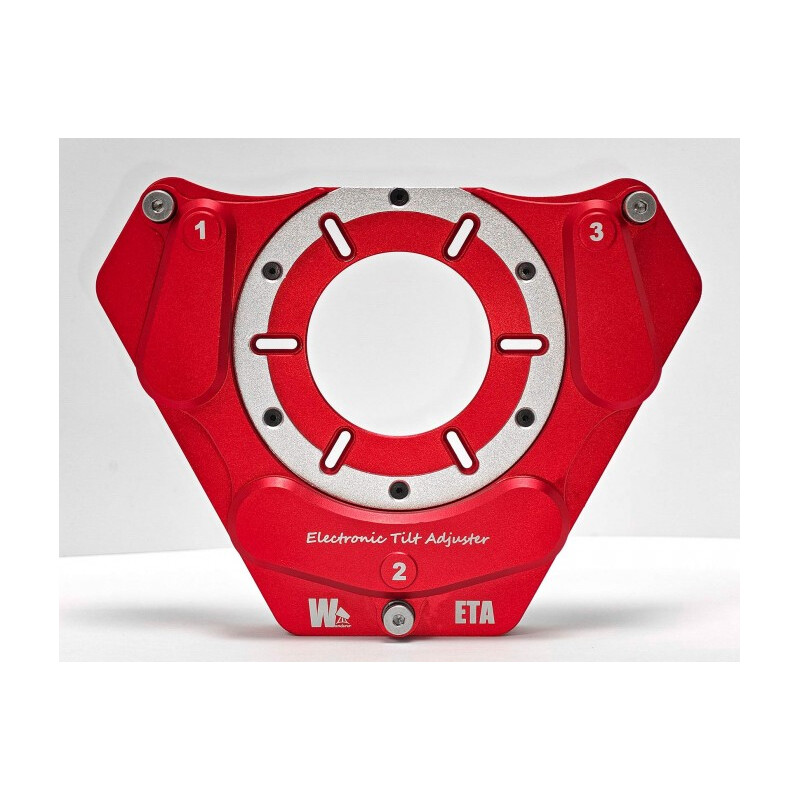

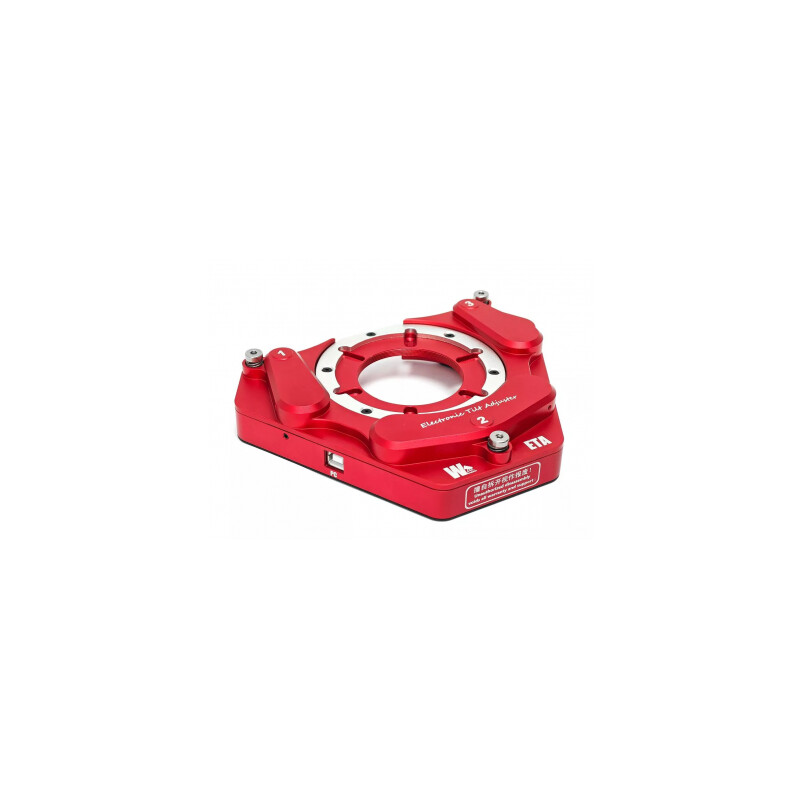

The Wanderer ETA M54 is an innovative electronic tilt and back focus adjuster with an ultra-thin 5mm thickness, designed to provide maximum precision in optical alignment. Ideal for demanding astrophotographers, it eliminates the need for difficult and imprecise manual adjustments, allowing for remote tilt and back focus correction.

Thanks to its unique structure, the Wanderer ETA M54 occupies only 5mm of back focus when directly mounted on an OAG or camera via screws. Weighing just 470g, its dual-layer nested design ensures no light leakage.

55mm Back Focus Compatibility

When installed with a compatible OAG or camera, the Wanderer ETA M54 maintains the standard 55mm back focus, ensuring compatibility with most optical systems.

Three-Point Electronic Tilt Adjustment

The system features three independent adjustment motors and three high-precision encoders, offering:

  • 1.2mm adjustment travel
  • Motor resolution of 0.005 microns per step
  • Positioning accuracy up to 2 microns

This provides unmatched precision, making it ideal for fast focal ratio systems and large-format sensors, significantly outperforming traditional manual tilters.

Specifications

Capacity


Connection (to the telescope)
M54
Optical length (mm)
5
Load capacity (kg)
3
Exactness of focusing (mm)
0,002
Draw Tube Travel (mm)
1,2
Power supply
5 (USB)
Operating temperature
-25 - +50

General


Type
Adaptors
Type of build
Camera adaptor
Weight (g)
470
Material
Aluminium
Series
M54

Product safety

Manufacturer:
Wanderer Astro Electronic Tilter ETA M54

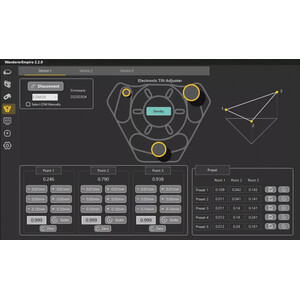

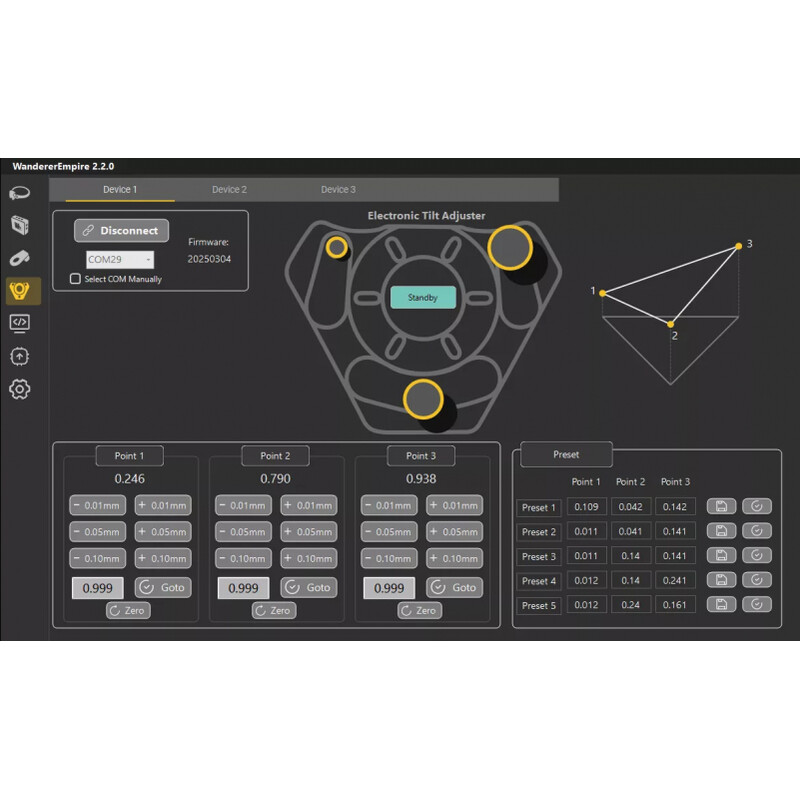

Screenshot
Wanderer Astro Electronic Tilter ETA M54

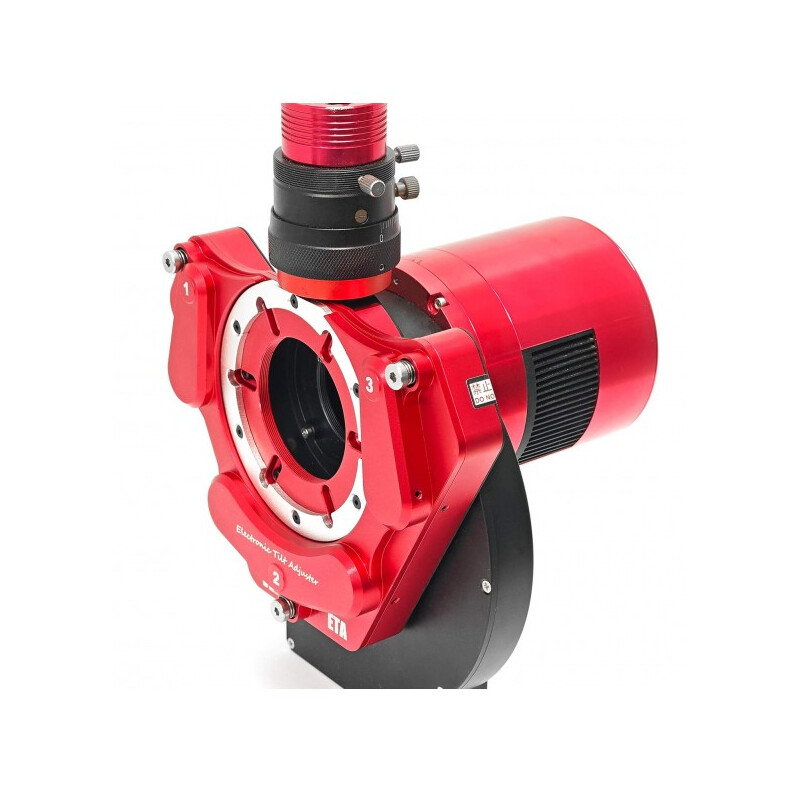

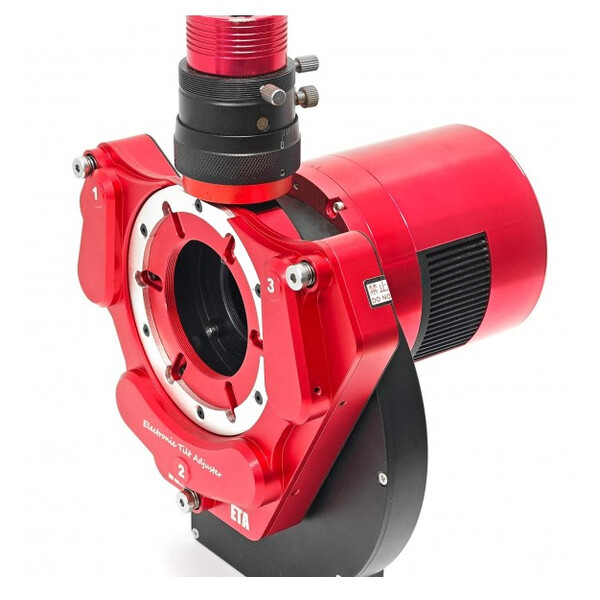

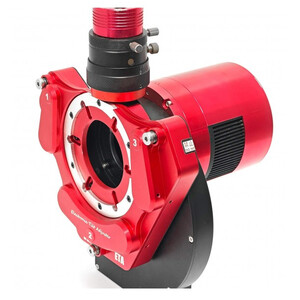

Example of use
