Night vision devices & thermal cameras > Instruments > Thermal imaging cameras > AGM > ASP > AGM Thermal imaging camera ASP-Micro TM-160
Product no.: 68824

Thermal imaging camera ASP-Micro TM-160

$ 482.00 incl. VAT, plus shipping costs
too expensive?
long-term
Product not available anymore + lead time

No delivery possible before christmas
Check alternatives on stock or order a voucher!


Product description

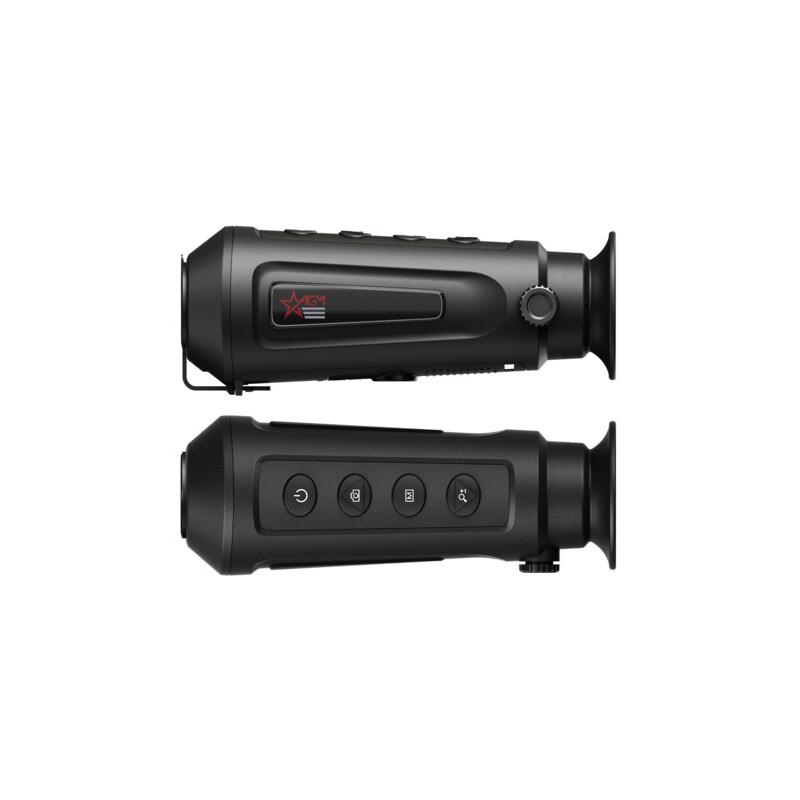

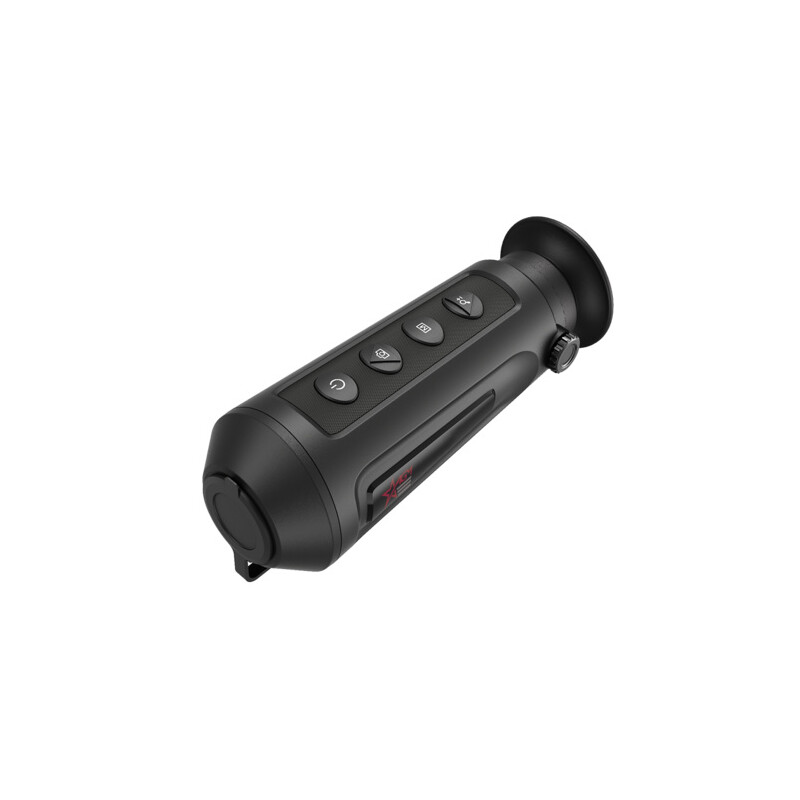

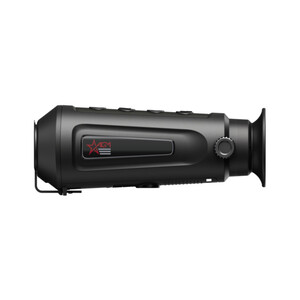

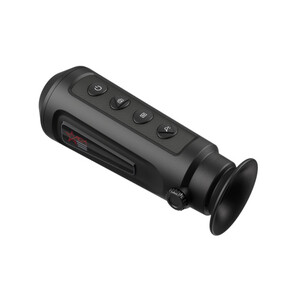

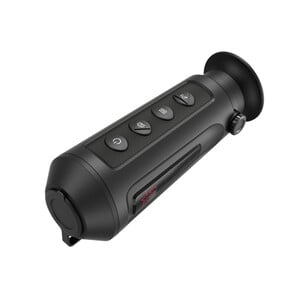

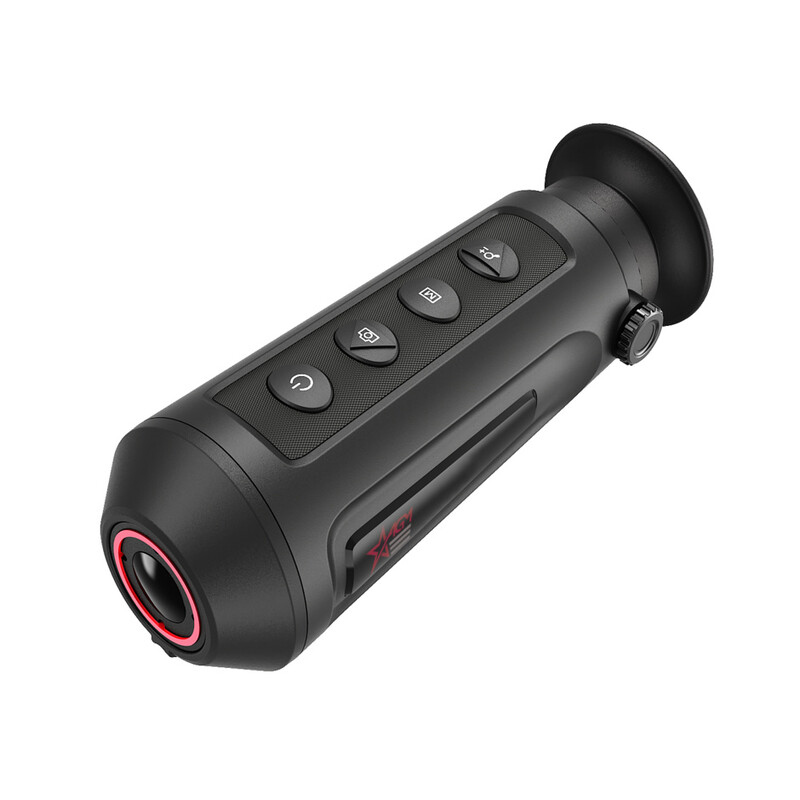

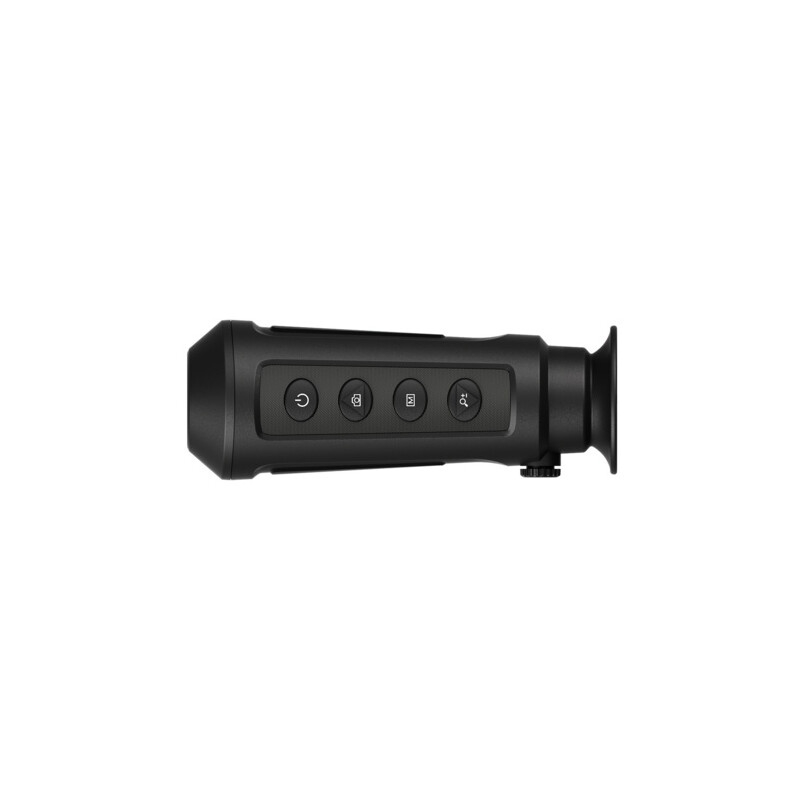

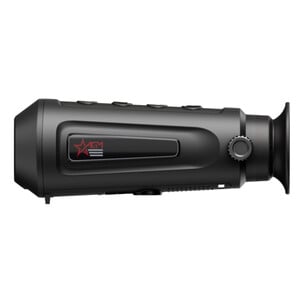

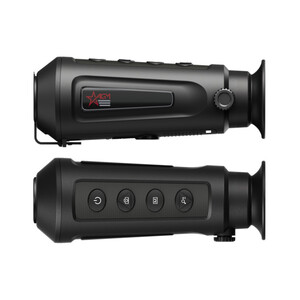

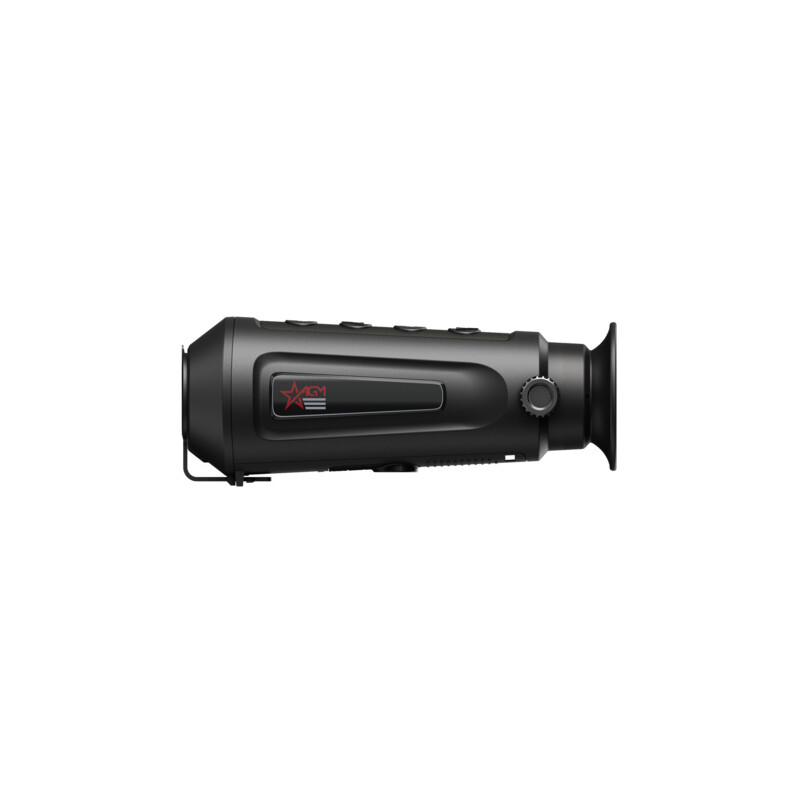

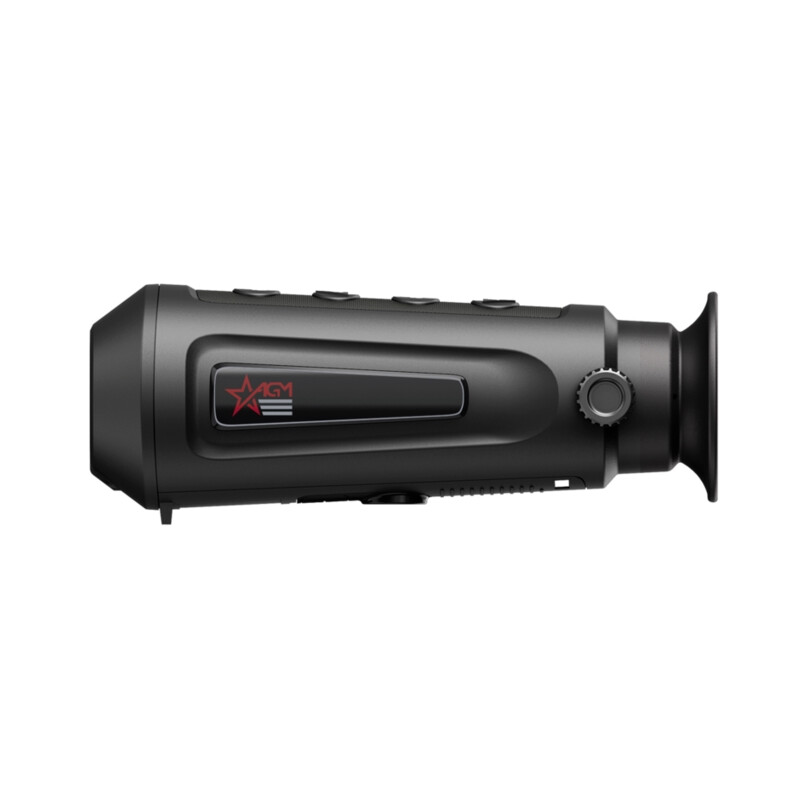

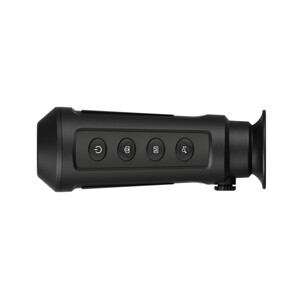

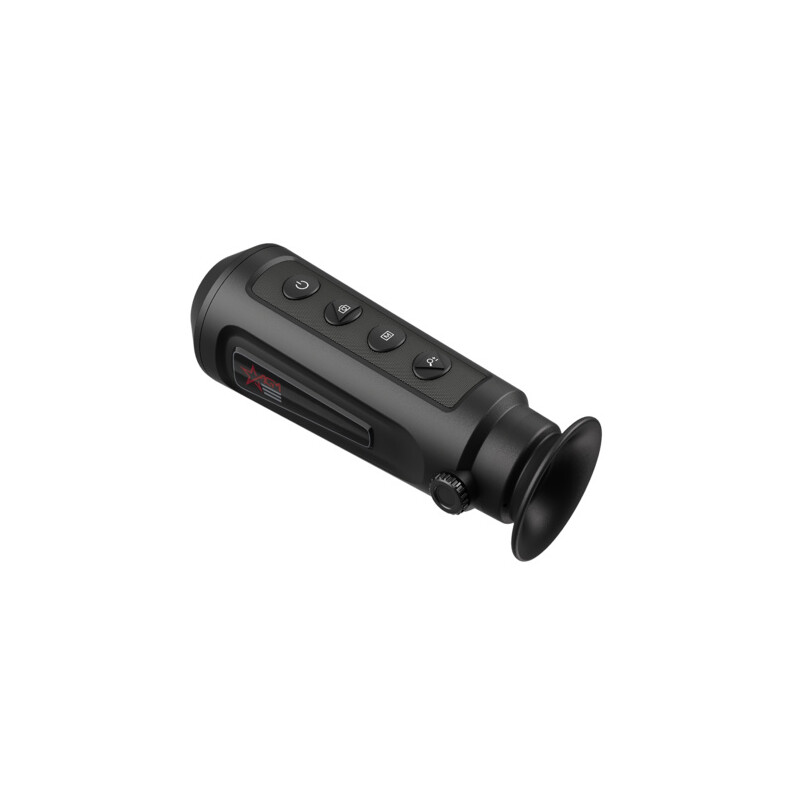

AGM ASP-Micro TM-160 Thermal Imaging Monocular

The ASP-Micro observational thermal monocular is equipped with a 160×120 infrared detector and a 720×540 LCOS display. It offers you functions such as observation, hot spot target tracking, distance measurement and WLAN hotspot. The monocular is ideal for hiking, travelling and hunting, but also for law enforcement, and search and rescue.

Features:

  • Distance Measurement: having marked the top and bottom of the target and entered the target height, the device measures the distance.
  • Hot Spot Mark: the device detects and marks the hot spot with the highest temperature.
  • Mode Switch: switch between four colour settings and distance measurement.
  • Internal Memory: the built-in memory module (8GB) supports image and video recording.
  • Digital Zoom: the device has a digital zoom with 1x, 2x and 4x magnification.
  • WiFi: you can use an app to apply settings on your camera as well as to save pictures and videos.

Specifications

Capacity


Type of build
Monocular
Technology
Thermal imaging camera
Magnification
1
Front lens diameter (mm)
6,2
Maximum operating distance (m)
182
Detection distance (m)
46
Image display
Different versions
Image cycle rate (Hz)
50
temperature resolution (mK)
35
Battery durability (h)
7
Display resolution (Pixel)
720x540
Zoom (digital)
1; 2; 4

Special features


Digital imaging
yes
Video connection
yes
Overexposure protection
yes
Day-night-system
yes
Threaded tripod connector
yes
WiFi
yes

Field of view


True field of view (°)
15,61x11,74

Area of application


Object protection & observation
yes
Hunting & and nature observation
yes
Navigation & Fishing
yes
Cave exploration & Camping
yes

General


Colour
black
Length (mm)
161
Width (mm)
61
Height (mm)
57
Weight (g)
270
Series
ASP
