Astronomy > Eyepieces > APM > Ultra Flat Field > APM Eyepiece Ultra-Flat Field 30mm 70° 2"
( 5 / 5 )
Product no.: 60560

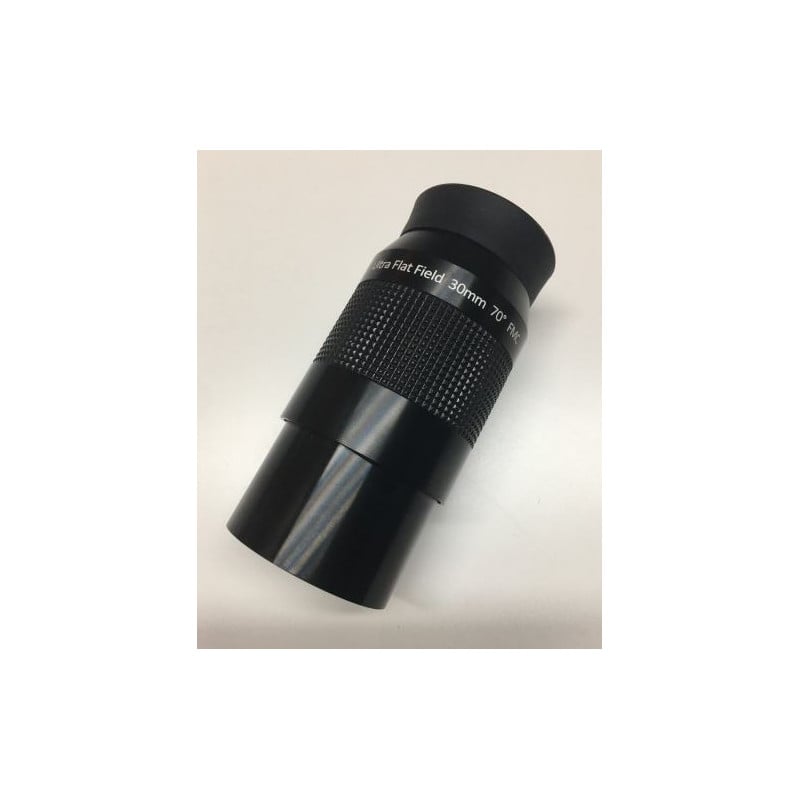

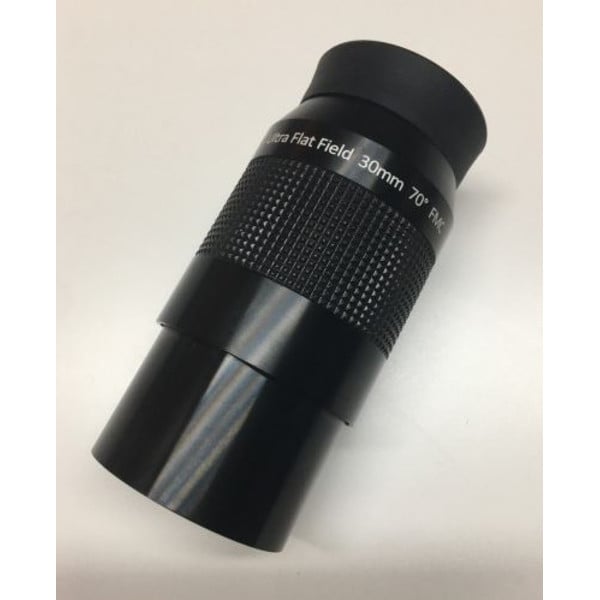

Eyepiece Ultra-Flat Field 30mm 70° 2"

$ 238.00 incl. VAT plus shipping costs
too expensive?
in stock
ready for shipping in 24 h + lead time
Compare the article with this offer: Omegon Redline SW 32mm Eyepiece 2"

No delivery possible before Christmas. Order a voucher coupon!


This product is available in the following variants:
Focal length (mm) Price
10 $ 93.00
15 $ 124.00
18 $ 124.00
24 $ 186.00
30 $ 238.00

Product description

The "UltraFlat Field Eyepiece features a high quality standard and a very compact design, which is designed to remove the field curvature at the edge, resulting in a flat, distortion-free image up to the edge of the visible field of view, even in very fast telesocpes.

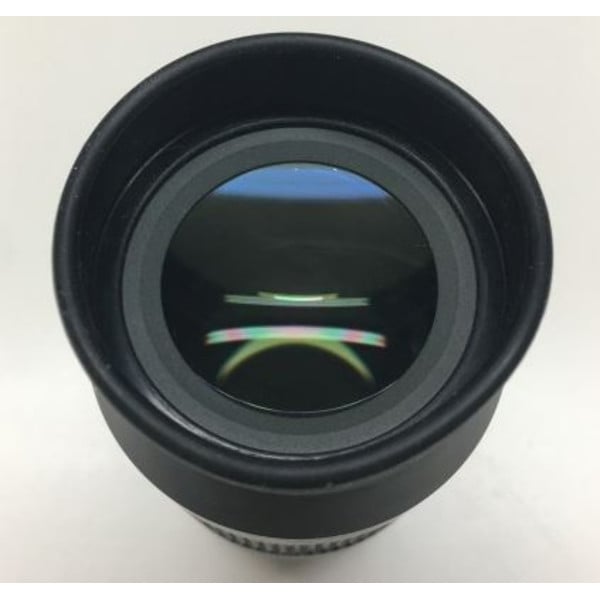

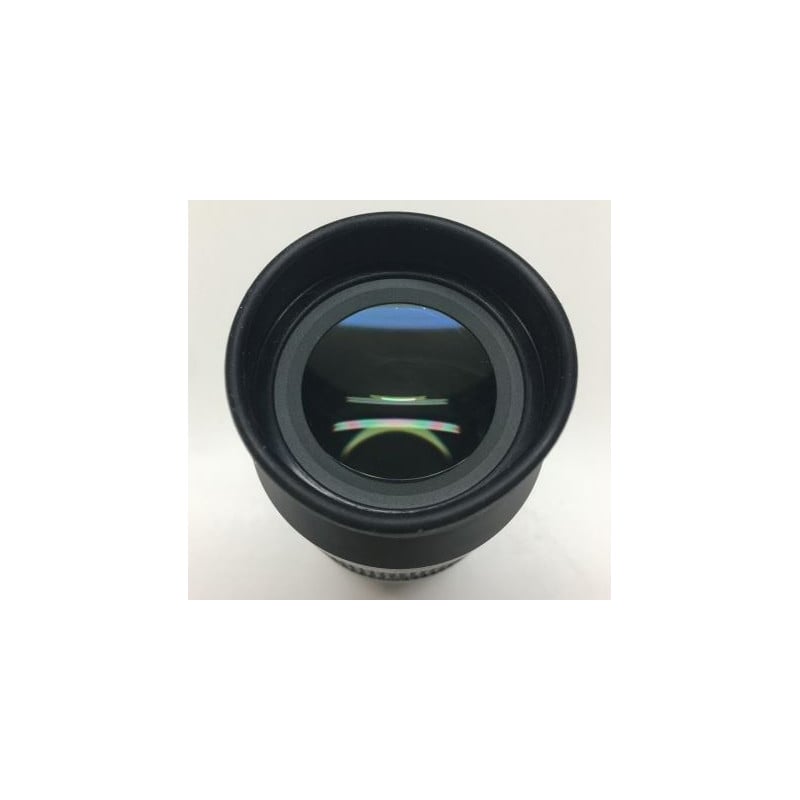

The eyepiece has over - sized eyepiece lenses for the largest possible field of view and a high eyerelief - also suitable for spectacle wearers, the eye-rubber allow a comfortable view.

All lenses have a braod-band-multicoating (FMC) and blackened lens edges. The plug-in sleeve is equipped with a thread for "filters.

Specifications

Capacity


Coating of optical system
Fully multi-coated
Focal length (mm)
30
Apparent field of view (°)
75
Eye relief (mm)
22
Number of lenses
9
Number of groups
5
Field stop (mm)
38
lens diameter (mm)
32
Connection
M45X0.75-6h
Connection (to the telescope)
2"

Special features


Filter thread
yes
Adjustable eyepiece cup
yes (folding)

General


Series
Ultra Flat Field
Weight (g)
556
Type
Eyepiece
Type of build
SWA

Downloads

Product safety

manufacturer: APM Telescopes - Markus Ludes, Quierschieder Weg 38, 66280 Sulzbach, DE, www.apm-telescopes.de

Recommended accessories

Outdoor (1)

Omegon aluminium case, large

$ 89.00*
Astronomy (2)
Carry case

Oklop Carry case for accessories

$ 41.90*

*All prices include VAT plus shipping costs.

APM Eyepiece Ultra-Flat Field 30mm 70° 2"
APM Eyepiece Ultra-Flat Field 30mm 70° 2"

Customer reviews

Unbelievably good!

Review by Kimgr on 29.12.2020 09:38:41

( 5 / 5 )

I have used this eyepiece only with an 8" f4.5 Newtonian and it was simply put impressive!! The coma at the edge was very minimal despite f4.5 the parabolic primary. Very natural in colour and really sharp on axis. It was ok with 2"2x ED barlow as well providing a 15mm equivalent with a small increase in eye relief and mininal image deterioration (not bothersome at all). Someone has said that it is like a long focal length Morpheus, I can only confirm that since I have one of 6.5mm and they feel equally crisp and comfortable. Lastly, by flipping the eye rubber down the whole field can be viewed even with glasses on (recommended if you have astigmatism).
