More about the series BioBlue...
BioBlue digital models
The digital models within the BioBlue range have the same functions as the regular models without cameras. As these cameras have an integrated camera, they provide a compact solution for viewing microscope images. The supplied software enables the user to take photos or videos, send them to a computer monitor or projector, and take various measurements.
- Monocular (45° inclined lens tube) and binocular models (30° inclined lens tube)
- WF 10x/18mm eyepieces (with pointer in monocular models)
- Inverse 4x lens revolver
- Achromatic semi-plan lenses: 4x 10x 20x S40x S60x and S100x oil (varies depending on model)
- Equipped with APL (Anti-bacterial Protection Layer)
- Stage (130x130mm) with integrated 70x28mm X-Y cross table (excluding BB.4205 model. This model has a simple 120x120mm table and is fitted with 2 non-removable object clamps)
- 1.25 N.A. height-adjustable Abbe condenser with iris diaphragm and filter holder
- 1W LED lighting (monocular), 1W NeoLED lighting (binocular and trinocular) with integrated 100-240V mains adaptor and 3 NiMH batteries.
- 5.0 MP CMOS USB-2 Camera
CAMERA
• 5.0MP CMOS
• Maximum resolution of 2560x1920, 24-bit colour depth, up to 30 frames per second
• Comes with ImageFocus Plus software, USB-2 cable and 1 mm/100 micrometer Slides
• The camera has a 2-year warranty
SOFTWARE
• Using the ImageFocus Plus software for image capture and analysis, images can be saved in JPG, TIF or BMP format and videos in AVI format.
• Images can be annotated with comments and measurements can be carried out on both live and saved images
• Compatible with Windows 7, 8, 10 and 11, 32- and 64-bit configurations
• A Mac OS light version is also available for image capture only
• Updates can be downloaded from the www.euromex.com website

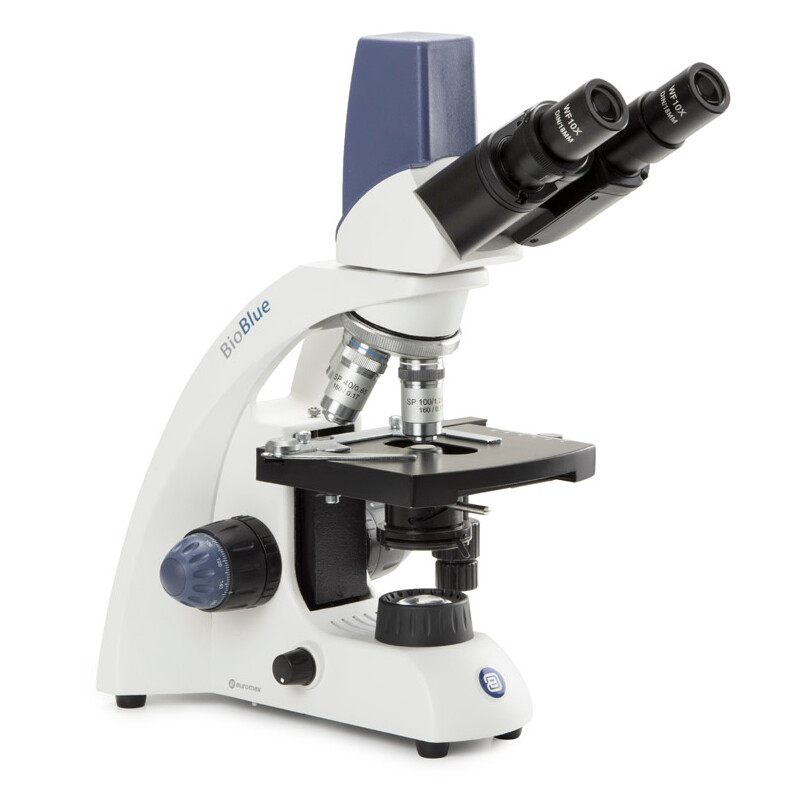

BB.4267 specification
- Binocular (30° inclined lens tube)
- WF 10x/18 mm eyepieces
- Inverse 4x lens revolver
- Achromatic semi-plan lenses: 4x, 10x, S40x+ S100x oil
- Equipped with APL (Anti-bacterial Protection Layer)
- 130 x 130mm stage with integrated 70 x 28mm X-Y cross table
- 1.25 N.A. height-adjustable Abbe condenser with iris diaphragm and filter holder
- 1W NeoLED lighting with integrated 100-240V mains adaptor and 3 NiMH batteries
- 5.0MP CMOS USB-2 Camera
