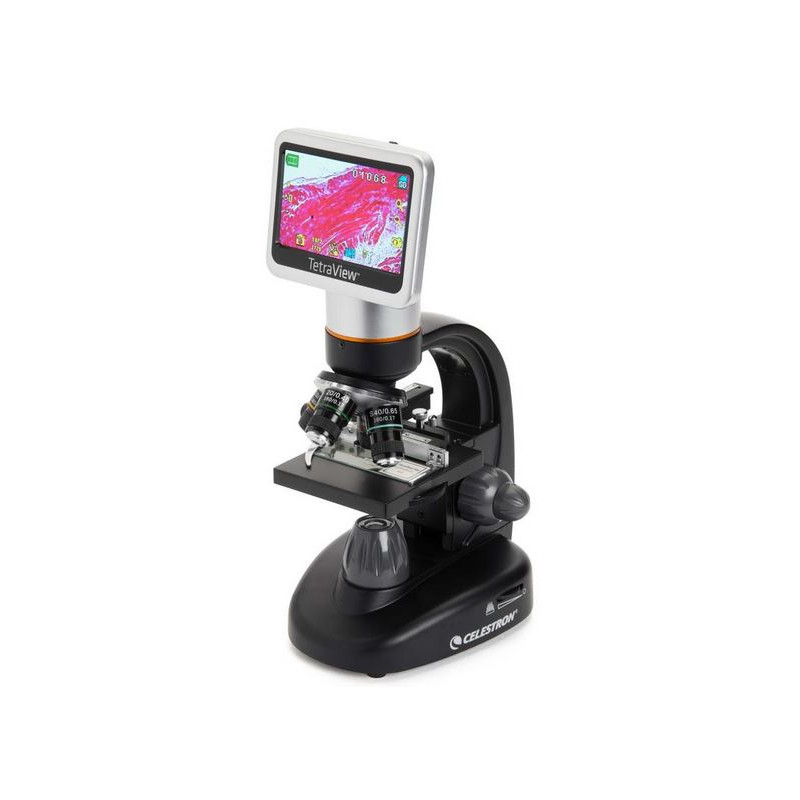

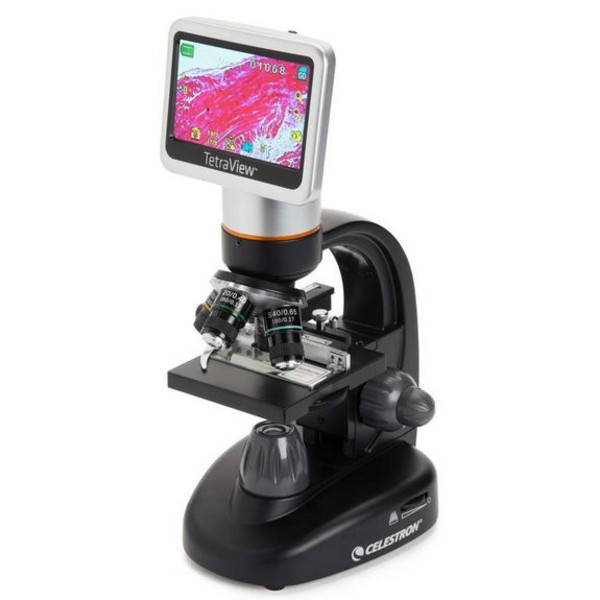

TetraView LCD Digital Microscope
The professional Celestron TetraView LCD Digital Microscope is a touch-screen LCD microscope with advanced features at a reasonable price. TetraView has four fully achromatic objectives, a fully mechanical stage, a 4.3" TFT full-colour touch screen, a 5MP CMOS sensor and a 2GB SD card to save your photos and videos to - taking high-resolution images and videos from slides has never been so easy. The LCD screen rotates 180 degrees so you can share your photos and videos with others, and for an even bigger audience, use the TV Out output to display on a TV or projector. With a range of magnifications from 40X to 400X (1600x with digital zoom), TetraView is ideal for viewing a range of cell samples on slides. The TetraView Microscope is ideal for the discerning professional or hobbyist and is an excellent tool for laboratories, schools, scientific research, and more.
- 40X to 400X magnification (up to 1600X with digital zoom)
- 4.3" LCD touch screen
- 5MP CMOS built-in digital camera

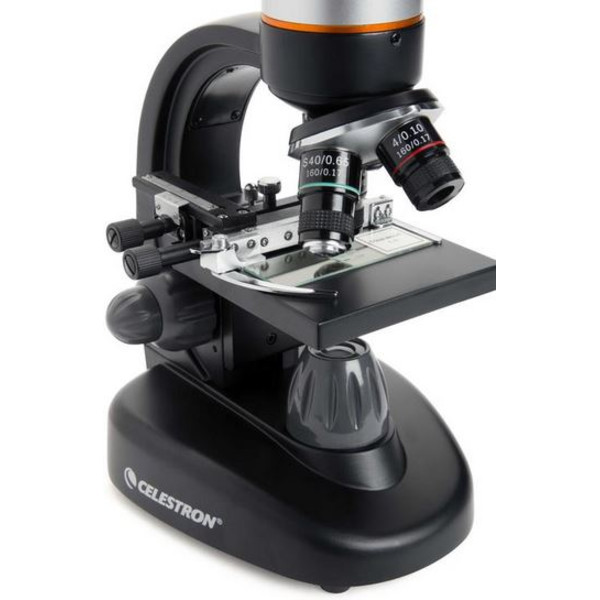

- 4 fully achromatic objectives: 4X, 10X, 20X, 40X
- adjustable LED bottom illumination
- 180° rotatable LCD screen

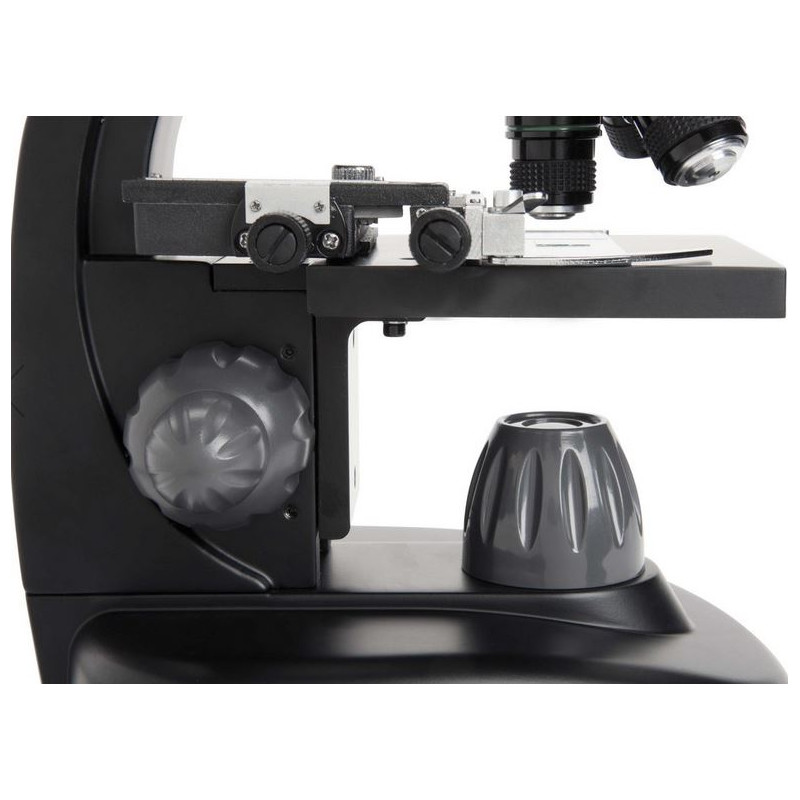

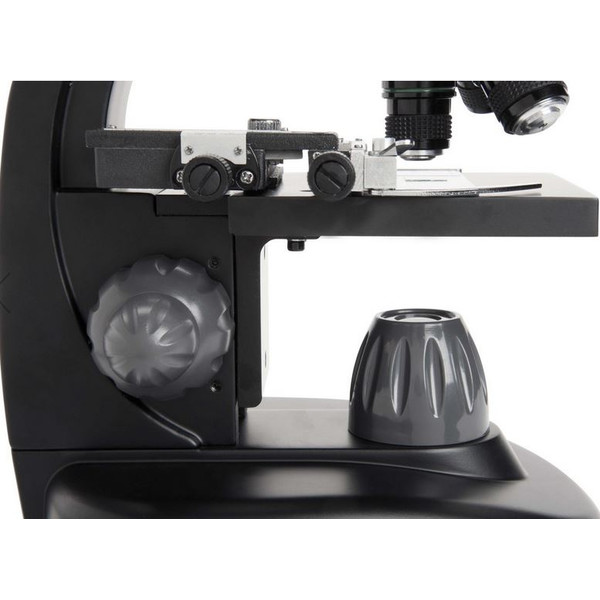

- fully mechanical stage
- coarse- and fine-focusing knobs
- filter wheel/diaphragm
- AV/TV output
- optional battery power (4 AA batteries)
- 2GB SD card included (SD card slot supports up to 32GB)
- universal power supply with multiple plugs for international use

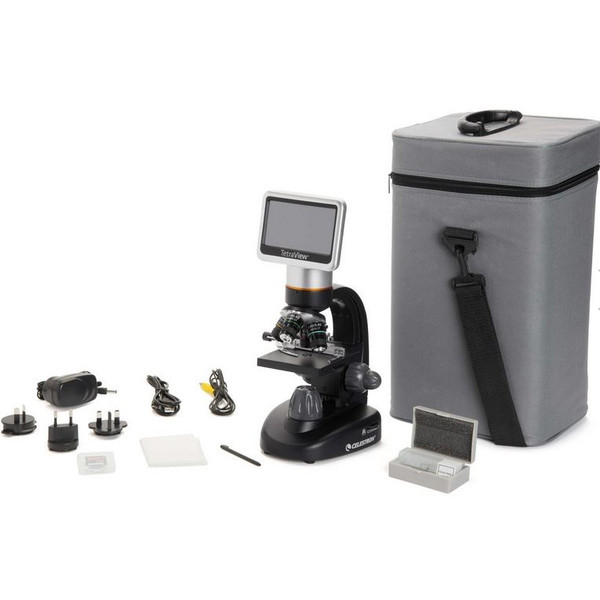

- accessories included - 7 prepared slides, hard case, dust cover, touch-pen, USB cable, AV output cable
- Specifications
- imaging Sensor 5MP CMOS ½ 5", 10X magnification in lieu of eyepiece
- AC adapter universal input 100 to 240 volts, 50/60 Hz, 4 plugs multi-country
- USB port 2.0, 1.5m cable included
- magnification (low power) 40X
- magnification (high power) 400X
- continuous video (VGA), 20fps
- 4 AA batteries (user-supplied)
- revolving objective turret - 4-position with locking stop
- objective lenses - achromatic 4X, 10X, 20X and 40X
- condenser lens - +HEADER +0.65
- built-in bottom illumination - adjustable LED
- fully mechanical stage with metal clips, 88mm x 88mm (3.5" x 3.5")
- dimensions 178mm x 140mm x 330mm (7" x 5.5" x 13")
- weight 67oz / 1.9 kg
- high definition LCD touch screen, 480x272 pixels resolution, 109mm (4.3") with 4X digital zoom, with 180° rotation
