Product description

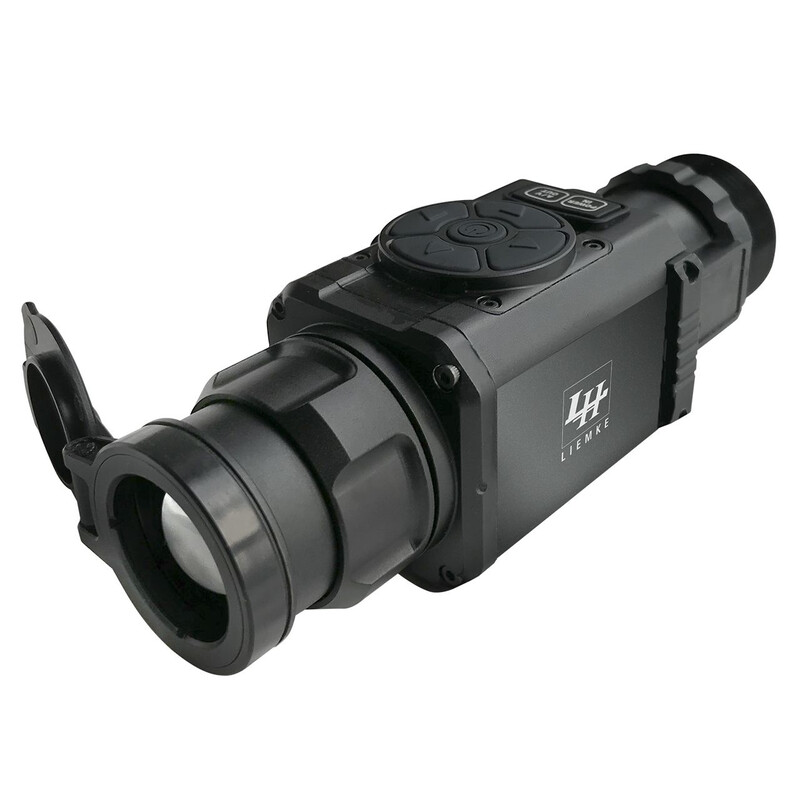

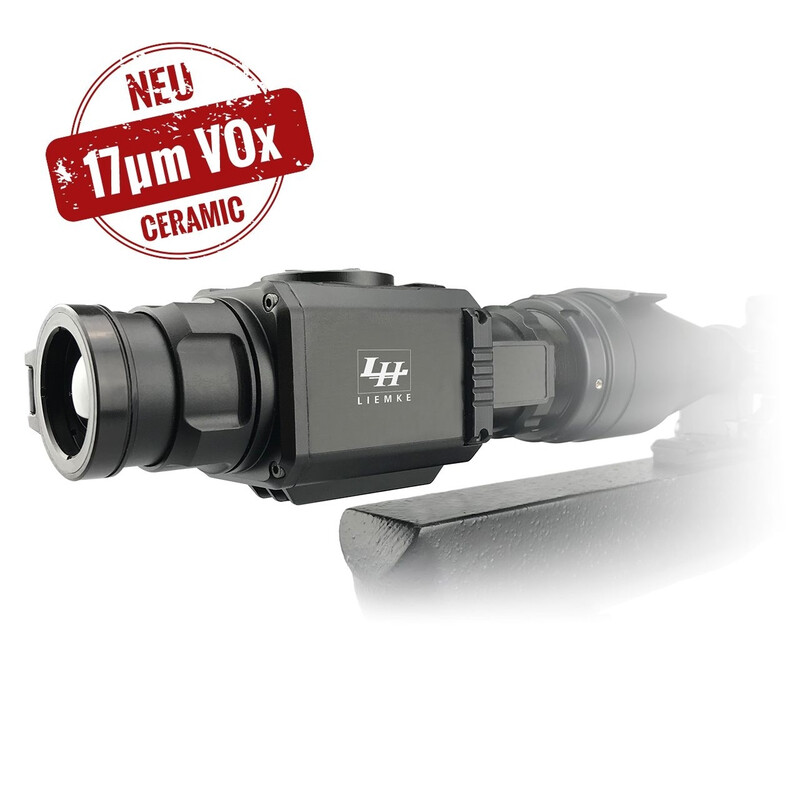

MERLIN 35 (2020)

This device impresses with its robust aluminium housing and simple operation.

Designed for use in harsh conditions, the MERLIN 35 (2020) carries an IP66 rating and is therefore protected against the heaviest rain. The VOx sensor together with a 35mm manually focusable front lens offer a wide range of applications - whether in the forest or open countryside.

Further technical features:

  • Sensor material: VOx
  • NETD: < 35mK
  • Shutter/calibration: manual
  • Pixel FOV (MRAD): 0.5
  • Image/video storage: yes (via app)
  • Wi-Fi: yes

Note

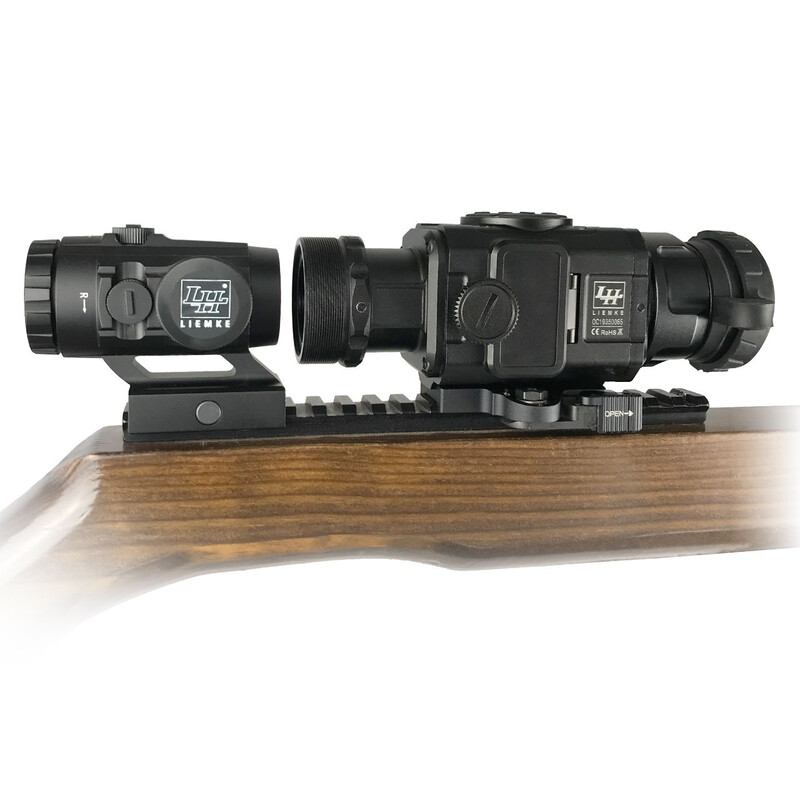

According to a recent nationwide change in the law, the mechanical adaptation of firearms with multifunctional attachable optics is permitted. Thus, a multifunctional attachable optic with a firearm mount is NOT a prohibited object. The product can therefore be freely purchased and used by anyone holding a valid hunting license. Holders of a valid hunting license are permitted to use the product at shooting ranges, e.g. for the purpose of alignment.

The use for hunting purposes is subject to the hunting regulations of the respective federal state.

Legal notice

Before attaching to weapons, check whether this is permitted in the area in the local legal regulations. The user is always solely responsible for the attachment of a weapon.

Note the legal regulations in your country!

Specifications

Capacity


Type of build
attachment
Technology
Thermal imaging camera
Magnification
2,5
Front lens diameter (mm)
35
Maximum operating distance (m)
1235
Sensor resolution (Pixel)
384x288
Image cycle rate (Hz)
50
Battery durability (h)
4
Zoom (digital)
2/4
Display resolution (Pixel)
1024x768
Pixel size
17

Special features


Digital imaging
yes
Video connection
yes
Overexposure protection
yes
Day-night-system
yes
Splash-proof
yes
Threaded tripod connector
yes
attachment
yes

Field of view


True field of view (°)
13
Field of view at 100 m (m)
19

Area of application


Object protection & observation
yes
Hunting & and nature observation
yes
Navigation & Fishing
yes
Cave exploration & Camping
yes

General


Weight (g)
410
Series
Merlin

Miscellaneous


Battery type
CR123
Battery type
CR123
