Astronomy > Telescopes > TS Optics > Photoline > TS Optics Apochromatic refractor AP 72/432 FPL53 Photoline OTA
Product no.: 56139

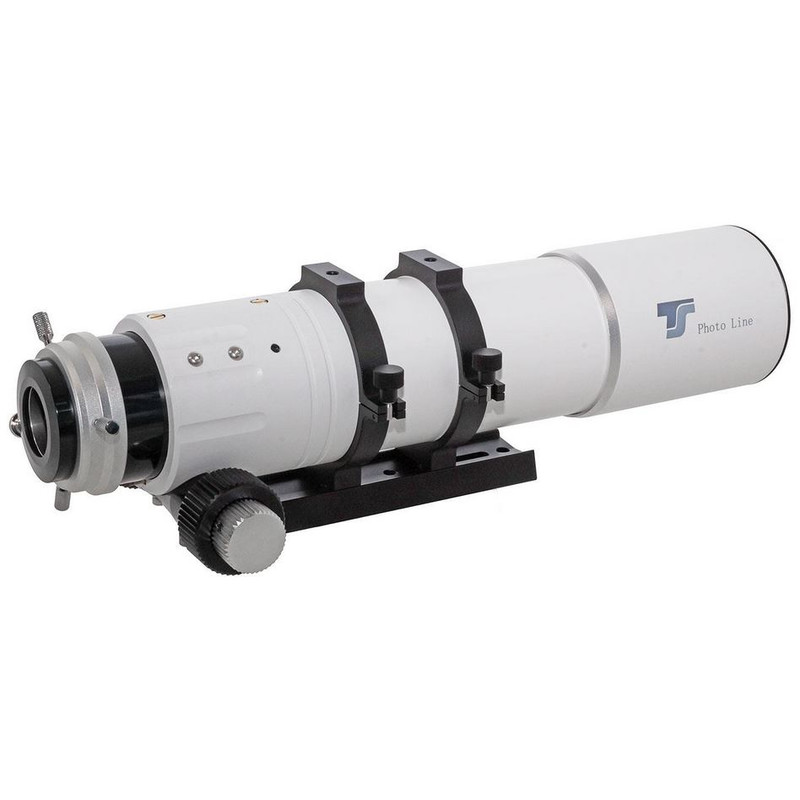

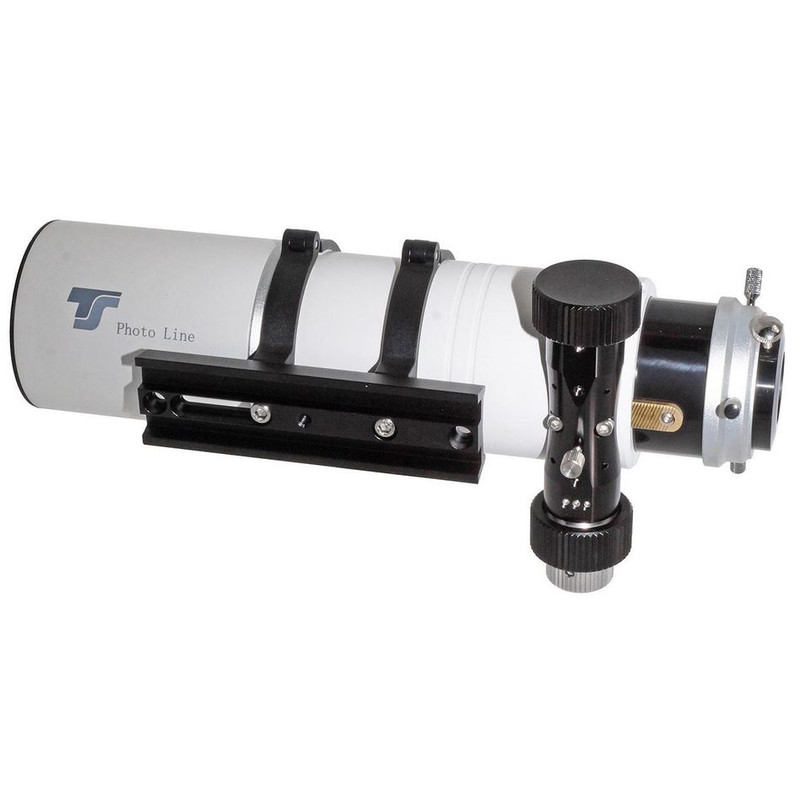

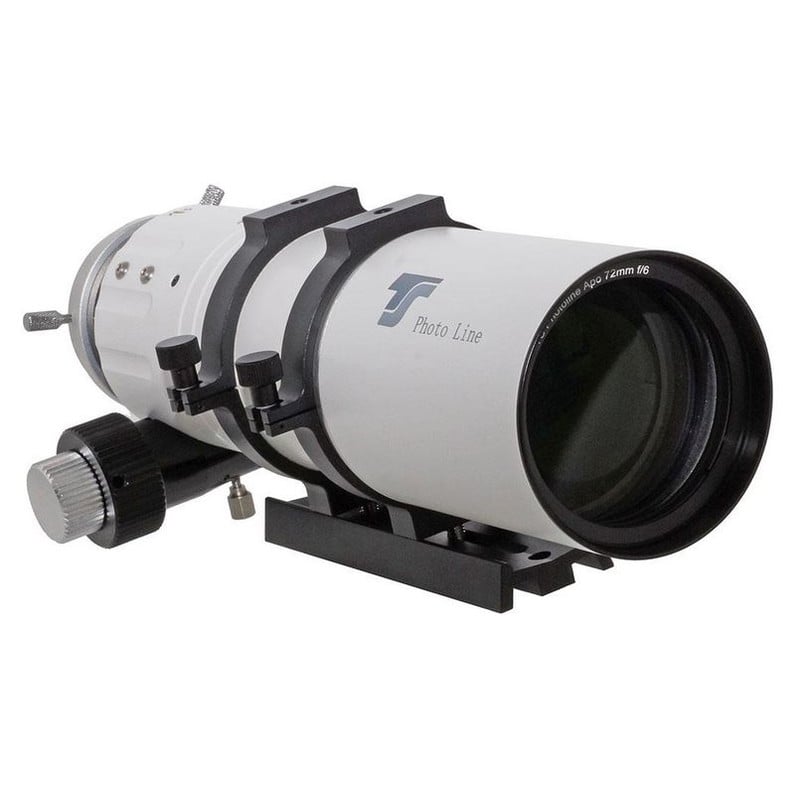

Apochromatic refractor AP 72/432 FPL53 Photoline OTA

$ 630.00 incl. VAT plus shipping costs
too expensive?
short-term
ready for shipping in 3-7 days + lead time

No delivery possible before Christmas. Order a voucher coupon!


Product description

Compact apochromat with high-speed focal ratio: An ideal travel telescope for observation and astrophotography.

This high-quality refracting telescope with an apochromatic doublet lens constructed from a FPL53 element and lanthanum glass is compact and powerful. Of course, the air-spaced lens is adjustable. Every lens features the manufacturer’s best possible multi-coating for maximum contrast.

The telescope is fitted with a focuser which can even support heavy accessories. Even with the apochromat’s excellent stable mechanics, it is a true lightweight and so compact that it can even fit into your hand luggage.

  • Astrophotography: The apochromat has a large back focus of 135 mm from the focuser’s 2” socket. This enables optional field flatteners to be used without difficulty (look under “Recommended Accessories”). A corrector like this is always required for achieving sharp focus right to the edges.
  • Visual observation: The apochromat’s generous working distance even makes it possible to use 2” eyepieces with full illumination. This opens up a enormous visual field to you. Twilight landscape and wildlife observations with maximum image brightness or observations of extended nebula areas with narrowband filters are also possible. The pure-colour 72mm lens allows magnifications up to 200-fold. Spot fine details on the surface of the Moon or observe the planets in our solar system. This apochromat’s contrast performance in this area will also surprise you.

This apochromatic refracting telescope is a universal telescope for all areas of observation and photography, and for astronomy, of course.

TS Optics is a brand of Teleskop-Service.

It not only matters which telescope you buy but also where you buy it. Our additional services:

  • We are a leading telescope dealer and know the devices we sell. Our customer service team will gladly help you after your purchase if you have problems with assembly or operation.
  • We provide a copy of the 80-page Telescope ABC beginners handbook with every telescope.

Specifications

Optics


Type
Refractor
Type of build
Apochromat
Coating
multiple
Tube material
Aluminium
Aperture (mm)
72
Aperture ratio (f/)
6
Resolving capacity
1,60
Limit value (mag)
11,1
Light gathering capacity
110
Max. useful magnification
144
Focal length (mm)
432
Tube weight (kg)
2,18
dew cap diameter (mm)
88,5
tube diameter (mm)
77
Carrying length (mm)
315
Tube construction
Full tube
lens design
Doublet

Focuser


Backfocus (mm)
135
Type of build
rack and pinion
Free aperture (mm)
64
Connecting thread (telescope side)
M82
Connecting threaded socket (camera-side)
M63
Connection ( to eyepiece)
2
Gear reduction
1:10 fine focusing
Load capacity (kg)
5
Adjustment range (mm)
73
Ring clamp
yes
Rotating
no
Motorized
no

Mount


GoTo control
no
Mounting type
no mount
Type of build
OTA

Included accessories


Prism rail
Vixen-Style
Tube clamps
yes
Transport cases
no
Dew Shield
yes
Deviating optics
no
Finder scope
no
Eyepiece adaptor
2" / 1.25"
Corrector
without
Thread for camera tripod
yes
finder base
Vixen/Skywatcher Level

General


Series
Photoline

Area of application


Astrophotography
yes
Nebulae & galaxies
yes
Nature Observation
yes
Moon & Planets
yes

Recommended for


Beginners
no
Advanced
yes
Observatories
no

Product safety

manufacturer: Teleskop-Service Ransburg GmbH, Von-Myra-Straße 8, 85599 Parsdorf, DE, www.teleskop-express.de
