Astronomy > Telescopes > TS Optics > Photoline > TS Optics Apochromatic refractor AP 60/360 PhotoLine FPL53 Red OTA
Product no.: 56055

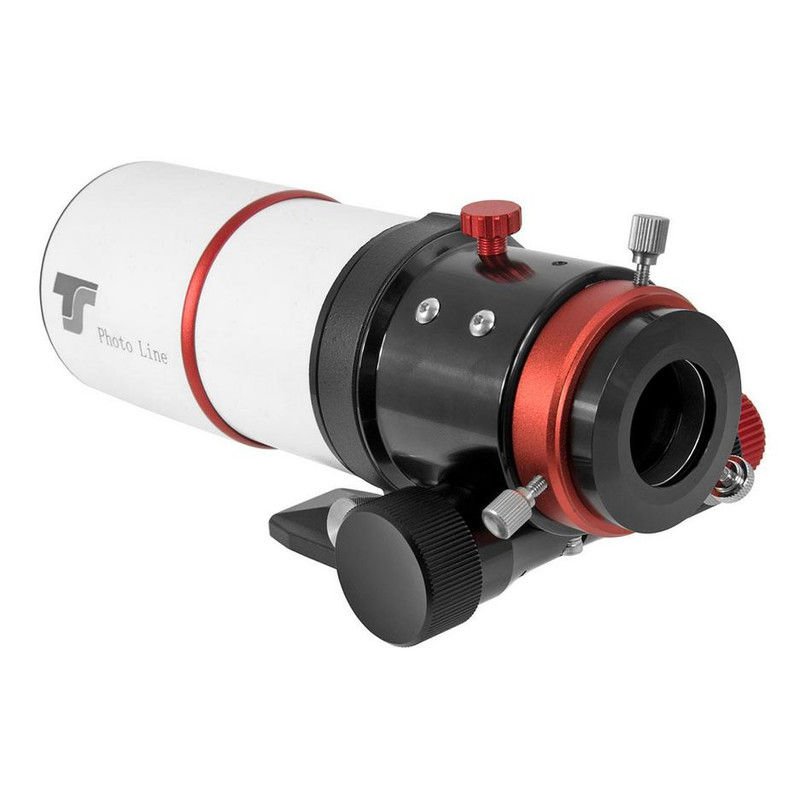

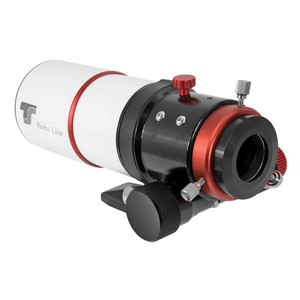

Apochromatic refractor AP 60/360 PhotoLine FPL53 Red OTA

RRP: $ 640.00 Our price:
$ 496.00 incl. VAT, plus shipping costs
too expensive?
in stock
ready for shipping in 24 h + lead time
Express shipment possible for delivery the day after tomorrow, 23.11.2024!

Delivery possible before Christmas (European destinations) - when you order by 18.12.!
Right of return up to January 31 2025!


Product description

The AP 60/360 lens is an exceptional travel telescope!

Thanks to its adjustable dew cap, the telescope has a transportation length of only 23 centimetres. This means it can fit in almost all hand luggage. Mount the apochromat on a tripod or an astronomical camera mount, such as the Skywatcher’s Star Adventurer. And you have an extremely lightweight and compact astrophotography system!

Some of the apochromat's features:

  • Clear, high-contrast images with no colour errors. These are almost completely corrected by the FPL53 (Ohara, Japan) and the lanthanum partner glass.
  • 2" toothed focuser with ball bearings and reduction: Even heavy equipment, such as CCD cameras, can be precisely focused and securely held!
  • M54x0.75 threaded connector for screw-on astrophotography adaptations.
  • Practical L-bracket with multi-functional plate and tripod thread (1/4"). This means the apochromat fits on all tripods and, with optional prism rails, on astronomical mounts.
  • Always balanced, even when holding heavy equipment - you can simply offset the mount by up to 180°. So the apochromat can even balance out a large camera.

This apochromat provides all sorts of possibilities for astrophotography, landscape or wildlife photography. The telescope provides an alternative to expensive apochromatic telephoto lenses. However, a corrector is required. Links to suitable correctors can be found in the accessories section

The compact apochromat is also well suited to observation - the image is brighter and higher in contrast than with most spotting scopes and the usable field is larger. A 10-fold magnification range for an optimum overview and up to 15-fold for detail observations is available to you.

Due to the generous working distance of 135mm from the 2” slot, you always require a zenith mirror or an Amici prism for observations.

Specifications

Optics


Tube weight (kg)
1,5
Resolving capacity
1,92
Type of build
Apochromat
Focal length (mm)
360
Limit value (mag)
10,7
Light gathering capacity
70
Max. useful magnification
120
Aperture (mm)
60
Aperture ratio (f/)
5,9
Tube material
Aluminium
Type
Refractor
Tube length (mm)
300
Carrying length (mm)
230
Tube construction
Full tube
lens design
Doublet
dew cap diameter (mm)
80
tube diameter (mm)
76

Focuser


Gear reduction
1:10 fine focusing
Type of build
Gear rack
Free aperture (mm)
51
Connecting threaded socket (camera-side)
M54
Connection ( to eyepiece)
2
Backfocus (mm)
135

Mount


Mounting type
no mount
Type of build
OTA

Included accessories


Dew Shield
yes
Corrector
without
Tube clamps
yes
Prism rail
L-bracket
Finder scope
no
Deviating optics
no
Eyepiece adaptor
1,25" - 2"
Transport cases
no
Thread for camera tripod
1/4" & 3/8"

General


Total weight (kg)
1,5
Series
Photoline

Area of application


Astrophotography
yes (very good)
Nature Observation
yes

Recommended for


Beginners
no
Advanced
yes
Observatories
no
