Astronomy > Telescopes > TS Optics > TS Optics Apochromatic refractor AP 102/714 ED OTA
( 5 / 5 )
Product no.: 51026

Apochromatic refractor AP 102/714 ED OTA

RRP: $ 850.00 Our price:
$ 740.00 incl. VAT, plus shipping costs
too expensive?
in stock
ready for shipping in 24 h + lead time
Express shipment possible for delivery tomorrow, 22.11.2024!

Delivery possible before Christmas (European destinations) - when you order by 18.12.!
Right of return up to January 31 2025!


Product description

The 102mm F/7 Extra-Low Dispersion (ED) refractor from TS Optics is portable "allround telescope" for observing and astrophotography. The very well corrected optics with moderate focal ratio and special glass offers an almost color-free image.

Use the apo refractor for astrophotography or impressing observations. The goot optics, the "photo friendly" focuser and the good workmanship will guarantee joy, success and marvelous experience under the starry sky.

The advantages of the TS 102mm f7 ED refractor:

  • very good corrected ED optics - adjustable
  • stable and precise 2" Crayford focuser with the option for screwing in photo adaptions, 360° rotation

The hand-made lens is mounted into an adjustable and temperature compensated cell. It is a doublet with an ED element for a good correction of the chromatic error. On every glass/air surface, we use the best multi-coating the manufacturer offers to ensure maximum contrast.

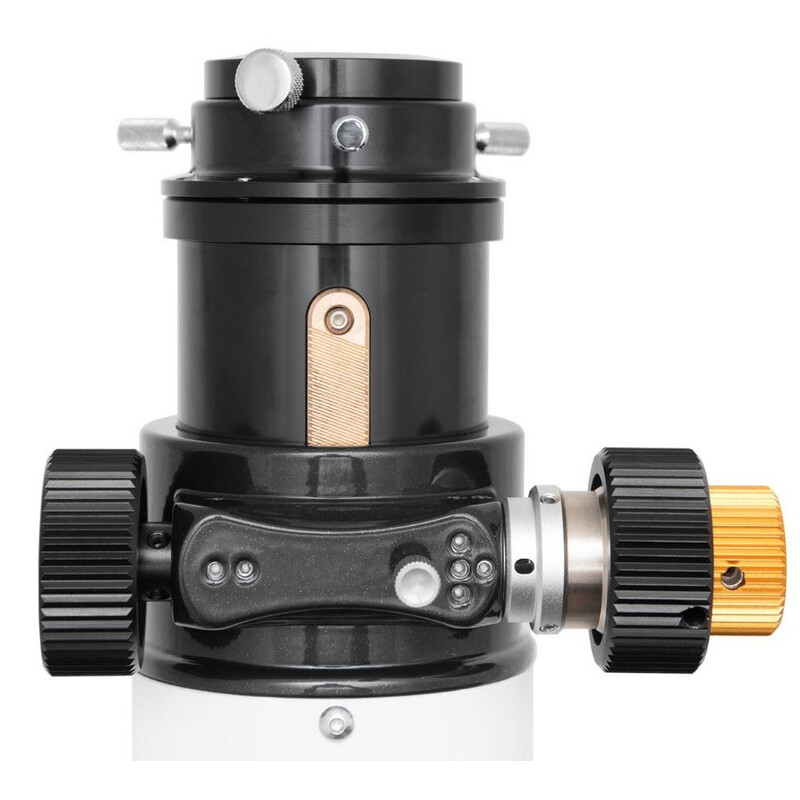

Der TS Linear Power 2" Crayford Focuser:

  • Reeinforced ball bearings - no tilting
  • Stainless steel running for smooth adjusting even under maximum load
  • 2" adaption with ring clamping can be screwed off, afterwards, photo adaptors can be screwd in via a female 54 mm thread.

TS Optics is a brand of Teleskop-Service.

It not only matters which telescope you buy but also where you buy it. Our additional services:

  • We are a leading telescope dealer and know the devices we sell. Our customer service team will gladly help you after your purchase if you have problems with assembly or operation.
  • We provide a copy of the 80-page Telescope ABC beginners handbook with every telescope.

Specifications

Optics


Type
Refractor
Type of build
Apochromat
Aperture (mm)
102
Focal length (mm)
714
Aperture ratio (f/)
7
Resolving capacity
1,13
Limit value (mag)
11,8
Light gathering capacity
210
Max. useful magnification
204
Tube weight (kg)
3,98
Tube length (mm)
733
tube diameter (mm)
105
Tube material
Aluminium
Tube construction
Full tube
lens design
Doublet
Coating
multiple

Focuser


Type of build
Gear rack
Gear reduction
1:10 fine focusing
Motorized
no
Connection ( to eyepiece)
2
Rotating
yes
Connecting threaded socket (camera-side)
M68 & M63
Free aperture (mm)
64

Mount


Mounting type
no mount
GoTo control
no
Type of build
OTA

Included accessories


Tube clamps
yes
Prism rail
Vixen-Style
Dew Shield
yes
Eyepiece adaptor
1,25" - 2"

Area of application


Astrophotography
yes

Recommended for


Beginners
no
Advanced
yes
Observatories
no

Recommended accessories

Media (3)
Star chart

Omegon Star chart Planisphere

$ 14.90*
Outdoor (3)
Headlamp

Omegon LED headlamp

$ 13.90*
Astronomy > Telescope accessories (39)

TS Optics TS Field Flattener 2''

$ 285.00*
Astronomy > Eyepieces (13)
Reticle eyepieces

Omegon Reticle eyepieces Illuminated crosshair eyepiece, 12.5mm

$ 89.00*
Astronomy > Filters (16)
Filters

Omegon Filters Moon filter 1.25"

$ 19.90*
Astronomy > Other (1)

TS Optics Losmandy level dovetail rail - 330 mm long - flat surface

$ 84.00*
Maintenance & Cleaning > Lens cleaners (3)

Omegon 7-in-1 lens cleaning set

$ 19.90*
Maintenance & Cleaning > Other (2)

Omegon microfibre cleaning cloth 20cm x 20cm

$ 4.90*

*All prices include VAT plus shipping costs.

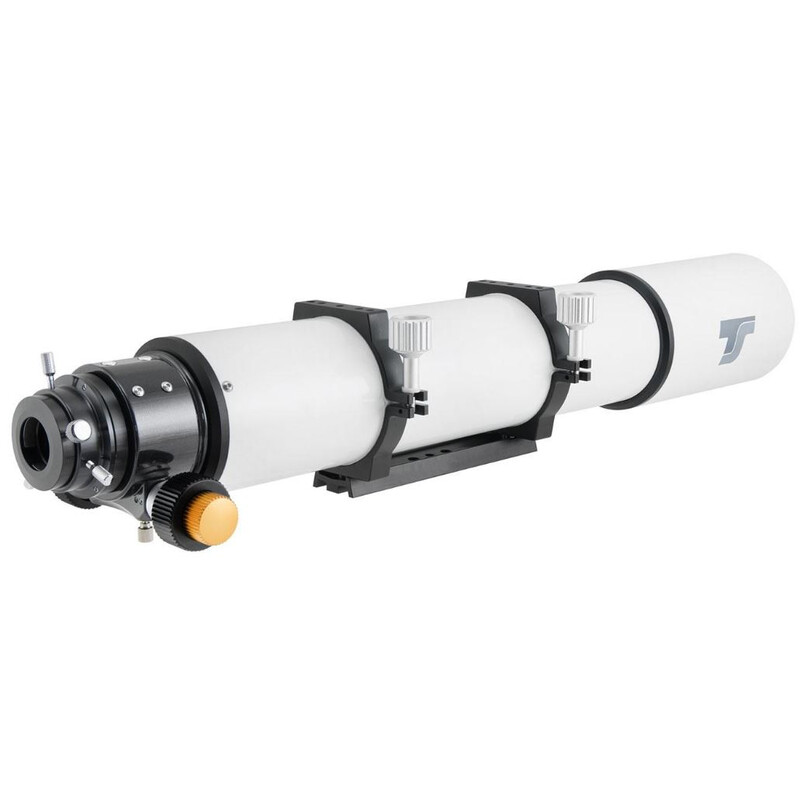

TS Optics Apochromatic refractor AP 102/714 ED OTA

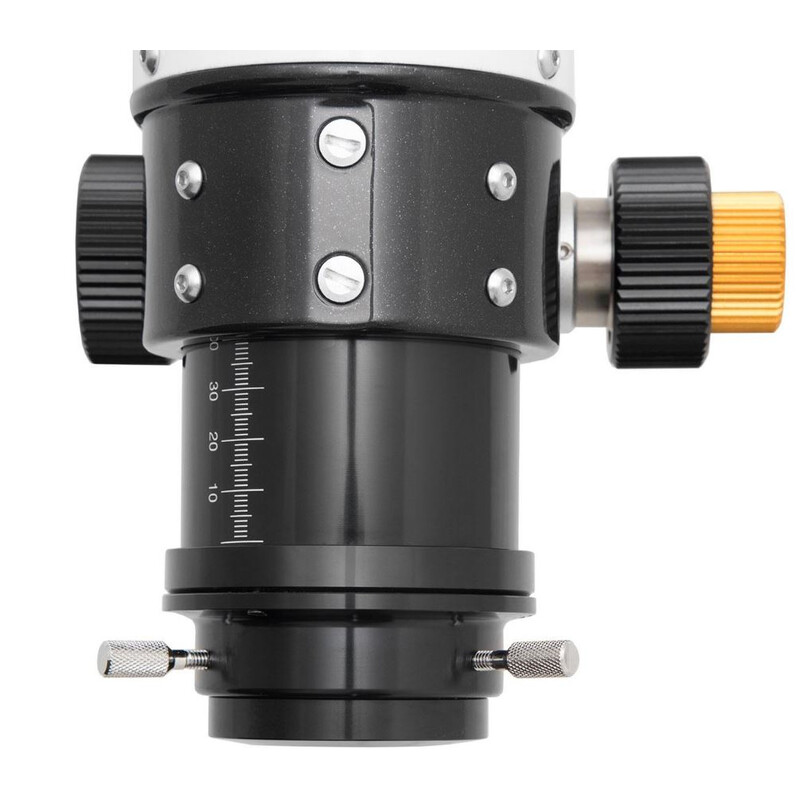

Focuser
TS Optics Apochromatic refractor AP 102/714 ED OTA

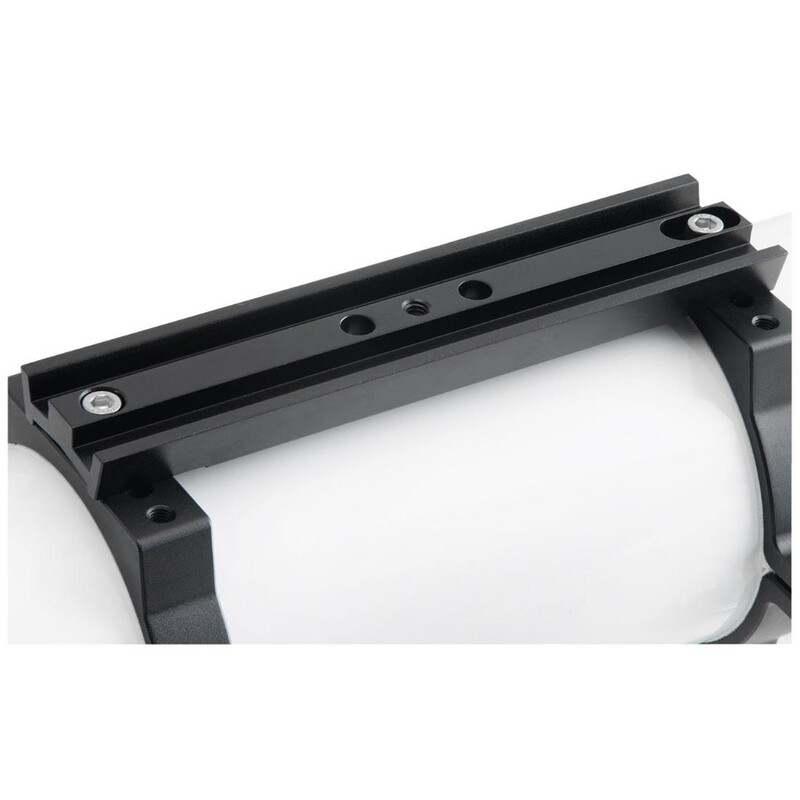

Prism rail
TS Optics Apochromatic refractor AP 102/714 ED OTA

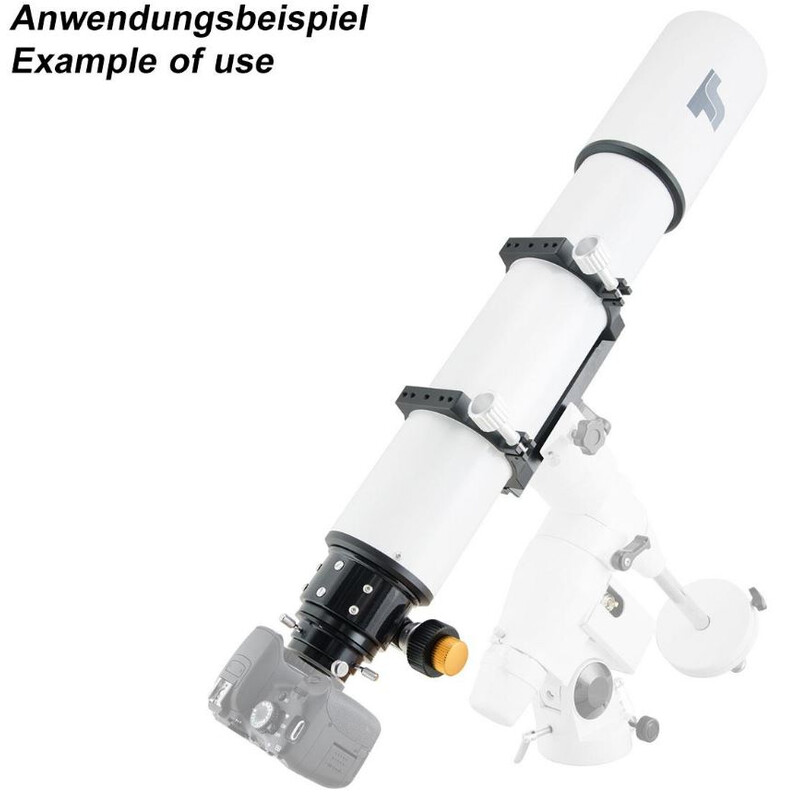

Example of use

Customer reviews

Amazing!

Review by H. H. on 29.01.2021 14:24:09

( 5 / 5 )

I was hesitant to purchase a Doublet APO of this size becuase I hear alot of people saying they can't be corrected well with only two elements. This scope proved to me they are dead wrong. The optics are pristine. Even when imaging the full moon there is zero noticable chromatic aberration. I am truly blown away at the build quality of this scope. Very light weight, rock solid Focuser and a dream to image through. I highly recommend this to anyone looking for a good imaging scope. I wish I could post some images here but I don't see an upload button.
