Astronomy > Telescopes > Sharpstar > EDPH > Sharpstar Apochromatic refractor AP 61/270 EDPH III OTA
( 5 / 5 )
Product no.: 63320

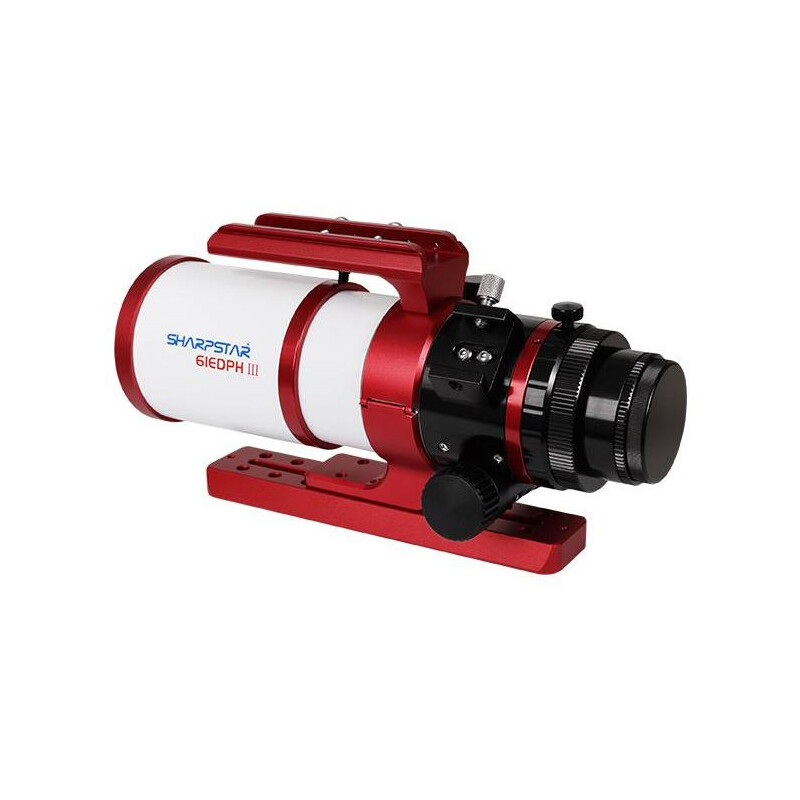

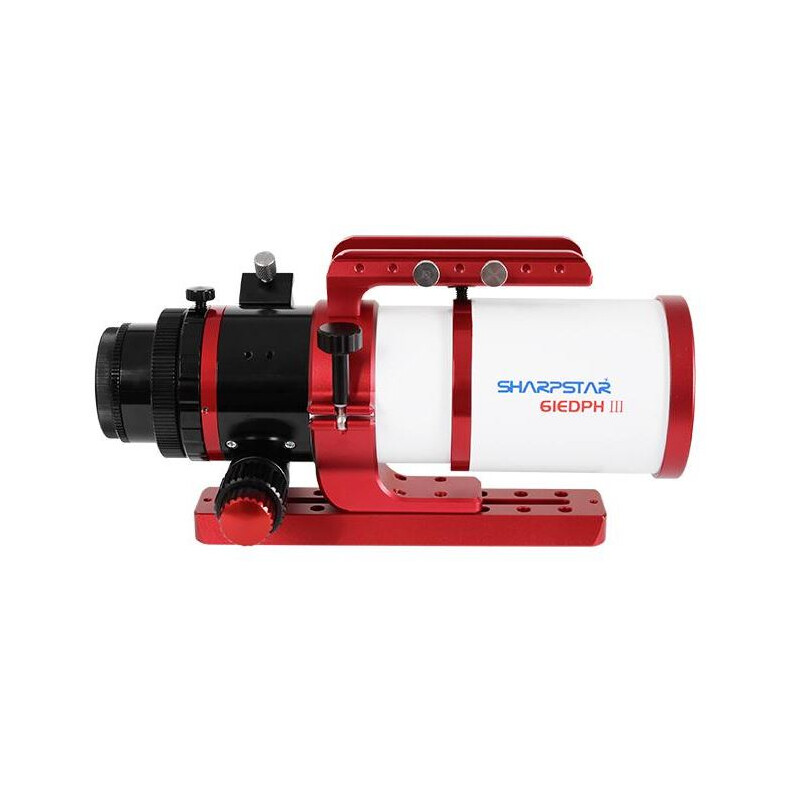

Apochromatic refractor AP 61/270 EDPH III OTA

$ 1,240.00 incl. VAT plus shipping costs
too expensive?
in stock
ready for shipping in 24 h + lead time

No delivery possible before Christmas. Order a voucher coupon!


  • Integrated high-quality corrector
  • Stable focuser, 360° rotatable

Product description

The 61EDPH-III is designed for astrophotographers and nature photographers. It convinces with its compact dimensions and its high-quality 2-element FPL53 lens (glass from Ohara - Japan). The 3-element corrector has been specially developed for this apo and produces a corrected image field with 44 mm diameter and without chromatic aberration, ideal for full-frame cameras. The fast aperture ratio of f/4.5 allows short exposure times.

  • Connecting cameras to the apo: An M48x0.75 thread is available on the back of the sturdy 2.5" focuser. The working distance from this thread to the camera sensor is exactly 55 mm. This is ideal for all astro cameras and DSLR / SLR cameras. Matching T-rings can be found in the accessories section.
  • The TS 61EDPH provides a convenient connection for 2" nebula filters. Simply unscrew the corrector from the focuser and you will find the M48x0.75 female thread on the telescope side. Simply screw in the nebula filter and then screw the corrector back into the focuser. The working distance of 55 mm does not change. You can continue to use your adaption, whether with or without a filter.
  • Attaching the TS 61EDPH to mounts: The CNC tube ring has a GP/EQ5 style level dovetail bar at the base. You can attach the telescope to the appropriate quick couplings of mounts and travel mounts such as the Skywatcher Star Adventurer. Matching saddle plates can be found in the accessories section. In addition, the dovetail also has a 1/4" photo thread. The apo fits, like a telephoto lens, directly on every photo tripod.
  • The carrying handle is a real multifunctional part: The handle not only facilitates the mounting on the photo tripod, it is also the base for further adaptions. The handle has a long hole and a 1/4" photo thread. For example, you can mount a ball head on it and mount a second camera in parallel. Next to the grab handle there is a viewfinder shoe for finder scopes, mini telescopes or sighting devices.
  • Observation with the TS 61SDQ: Although the apochromat was developed for astrophotography, it also allows observation. Unscrew the photo corrector. You have an M63x1 female thread available. With an optional 2" adapter, like M63-2 (see accessories), you can adapt a zenith mirror or an Amici prism and make beautiful nature, landscape and astro observations. You can use both 2" and 1.25" accessories.

The 61EDPH is a fast and portable travel apo for astrophotography.

It not only matters which telescope you buy but also where you buy it. Our additional services:

  • We are a leading telescope dealer and know the devices we sell. Our customer service team will gladly help you after your purchase if you have problems with assembly or operation.
  • We provide a copy of the 80-page Telescope ABC beginners handbook with every telescope.

Specifications

Optics


Type
Refractor
Type of build
Apochromat
Aperture (mm)
61
Focal length (mm)
270
Aperture ratio (f/)
4,5
Resolving capacity
2,26
Limit value (mag)
10,7
Light gathering capacity
80
Max. useful magnification
122
Tube weight (kg)
2,4
tube diameter (mm)
75
Tube length (mm)
272
Tube material
Aluminium
Carrying length (mm)
272
dew cap diameter (mm)
83
lens design
Triplet

Focuser


Type of build
Gear rack
Connecting threaded socket (camera-side)
M48
Backfocus (mm)
55
Free aperture (mm)
48
Motorized
no
Gear reduction
yes
Rotating
yes

Mount


Type of build
OTA
Mounting type
no mount

Included accessories


Finder scope
no
Dew Shield
yes
Deviating optics
no
Carrying handle
yes
Prism rail
Vixen-Style
Tube clamps
yes
Corrector
0.75x Reducer
finder base
Vixen/Skywatcher Level

General


Series
EDPH

Area of application


Astrophotography
yes (very good)
Moon & Planets
yes
Nature Observation
no (only with appropriate accessories)
Nebulae & galaxies
yes
Sun
no (Only with appropriate Sun filter)

Recommended for


Beginners
no
Advanced
yes
Observatories
no

Product safety

manufacturer: Teleskop-Service Ransburg GmbH, Von-Myra-Straße 8, 85599 Parsdorf, DE, www.teleskop-express.de

Recommended accessories

Media (2)
Star chart

Omegon Star chart Planisphere

$ 14.90*
Outdoor (3)
Headlamp

Omegon LED headlamp

$ 13.90*
Astronomy > Telescope accessories (38)
Carry case

Oklop Carry case Padded Bag For Small Telescopes

$ 62.00*
Astronomy > Eyepieces (6)
Reticle eyepieces

Omegon Reticle eyepieces Illuminated crosshair eyepiece, 12.5mm

$ 89.00*
Astronomy > Filters (9)
Filters

Omegon Filters Moon filter 1.25"

$ 19.90*
Astronomy > Mounts & accessories (4)
Mount

iOptron Mount SkyGuider Pro

$ 520.00*
Maintenance & Cleaning > Lens cleaners (3)

Omegon 7-in-1 lens cleaning set

$ 19.90*
Maintenance & Cleaning > Other (2)

Omegon microfibre cleaning cloth 20cm x 20cm

$ 4.90*

*All prices include VAT plus shipping costs.

Sharpstar Apochromatic refractor AP 61/270 EDPH III OTA

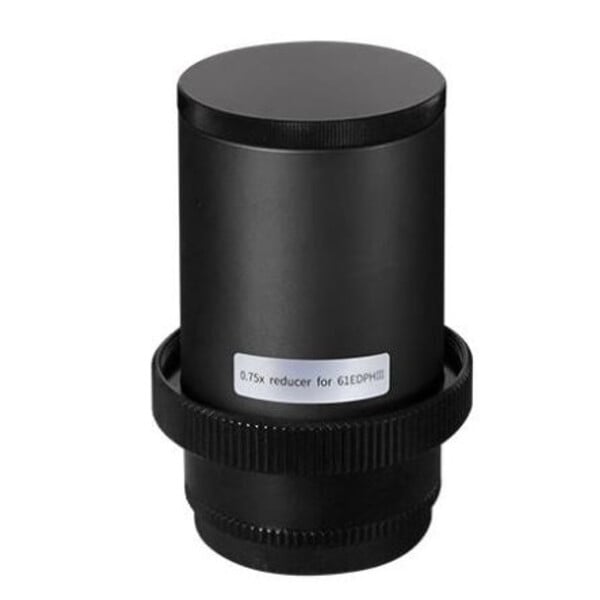

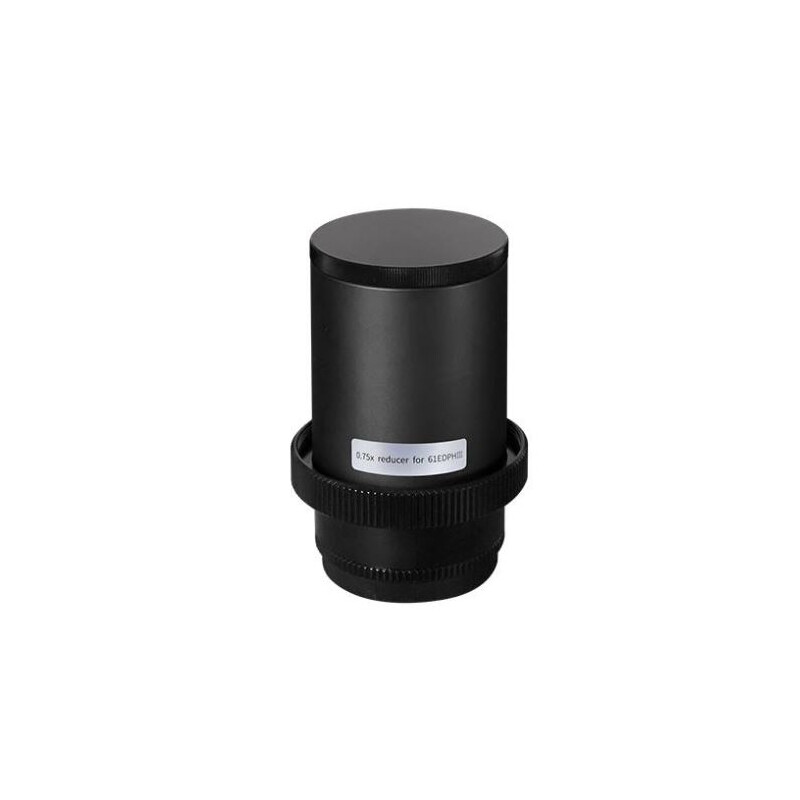

Corrector
Sharpstar Apochromatic refractor AP 61/270 EDPH III OTA

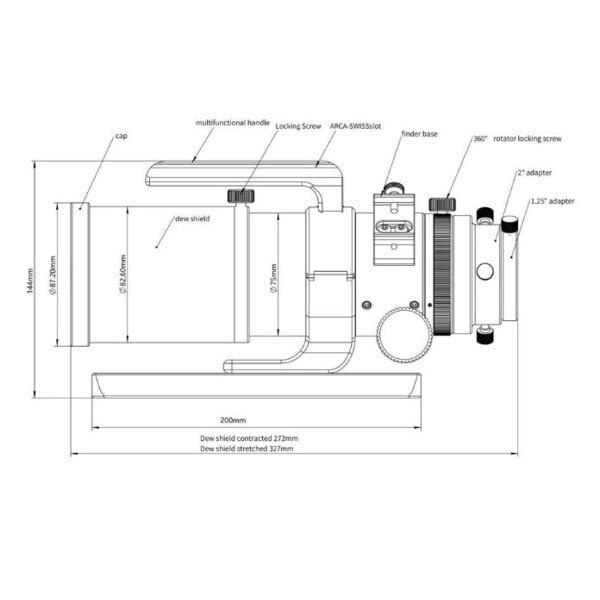

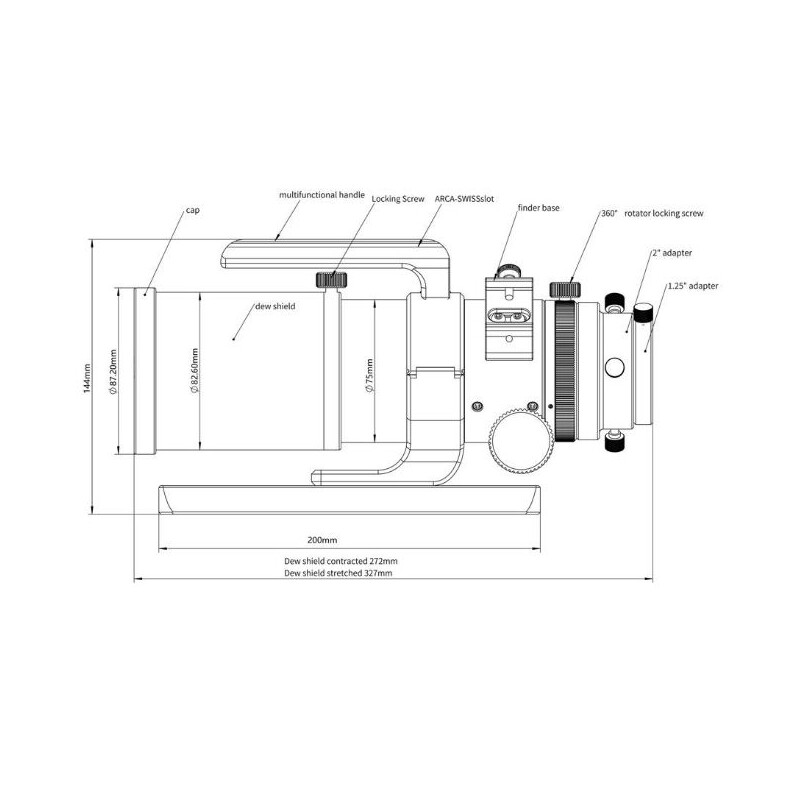

Dimensions
Sharpstar Apochromatic refractor AP 61/270 EDPH III OTA

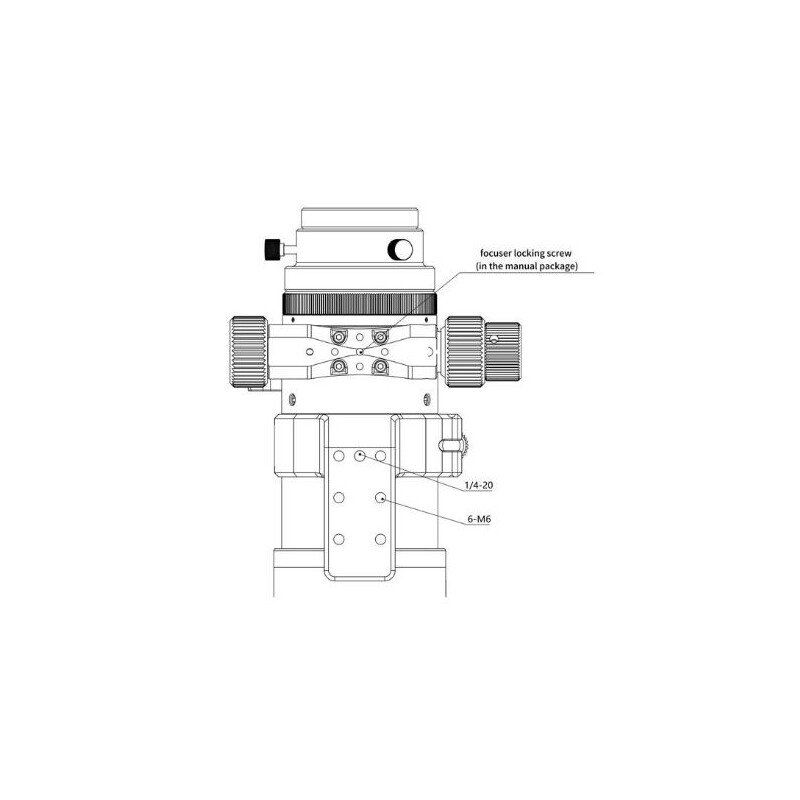

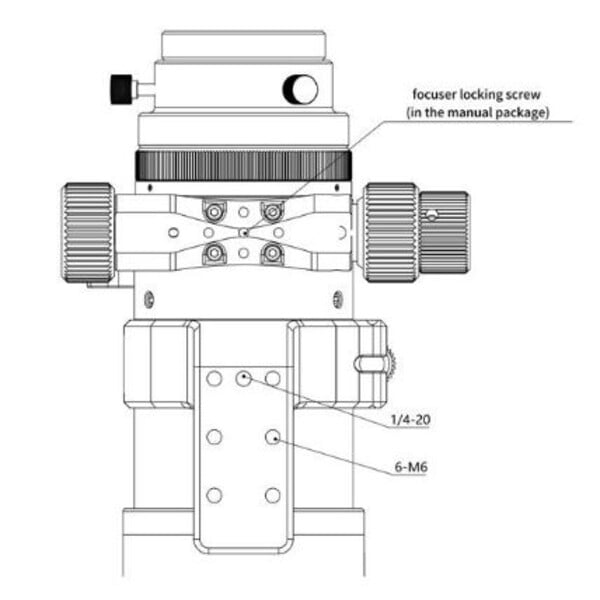

Drawtube

Customer reviews

Amazing!

Review by H. H. on 09.04.2021 22:22:06

( 5 / 5 )

Absolutely fantastic optics! I am loving this Scope!
