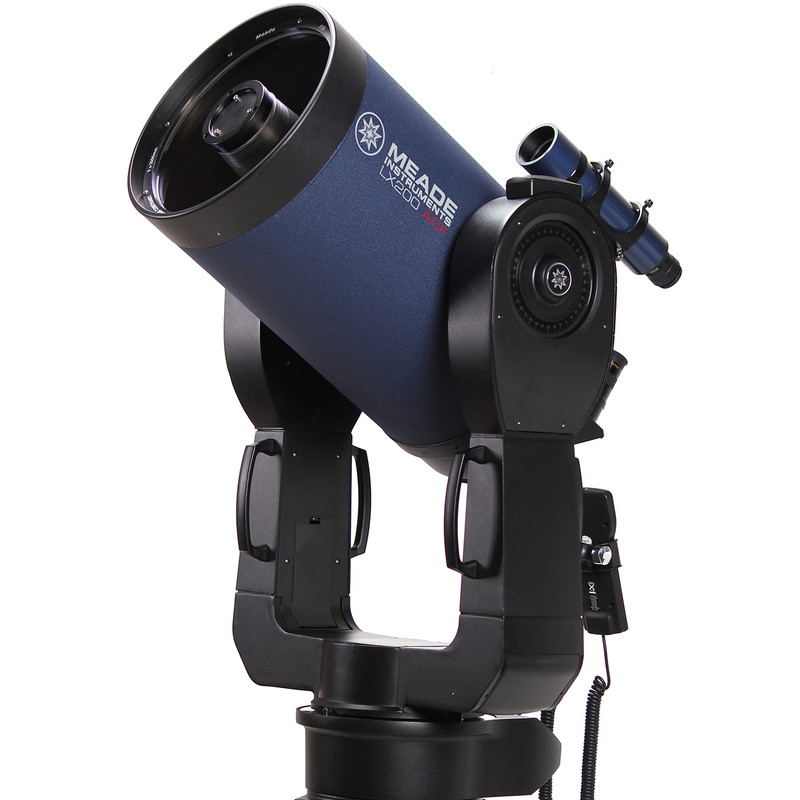

Astronomy > Telescopes > Meade > LX200 > Meade Telescope ACF-SC 254/2500 10" UHTC LX200 GoTo
Product no.: 17653

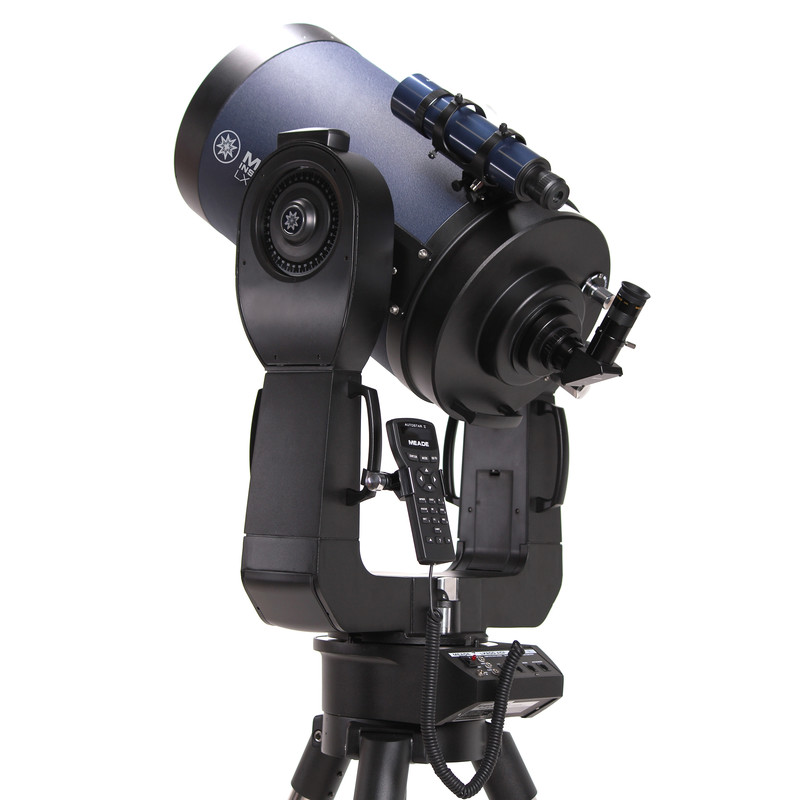

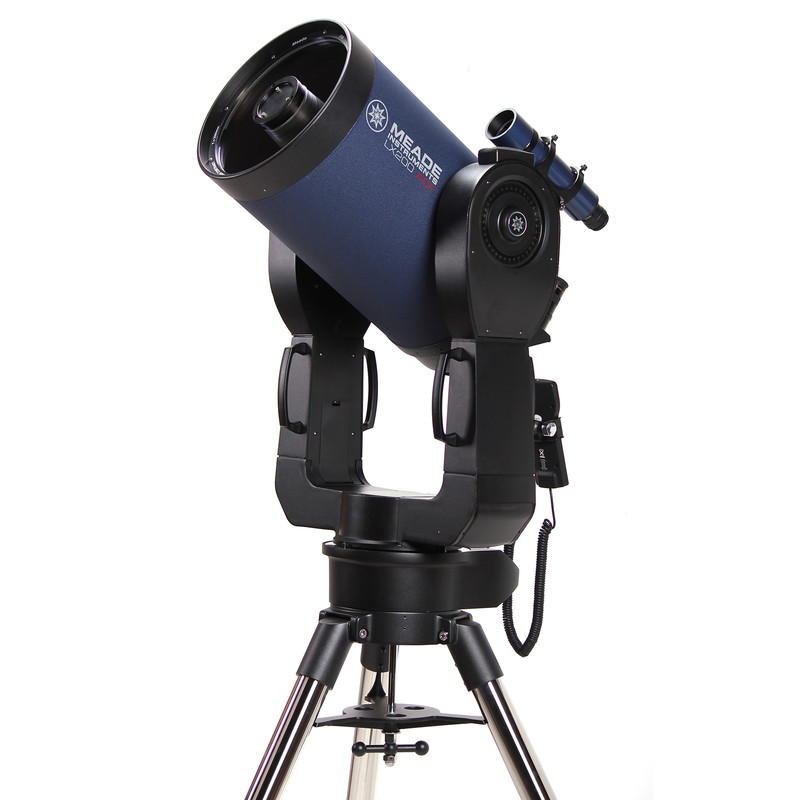

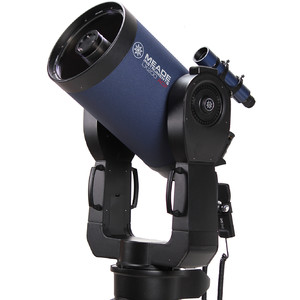

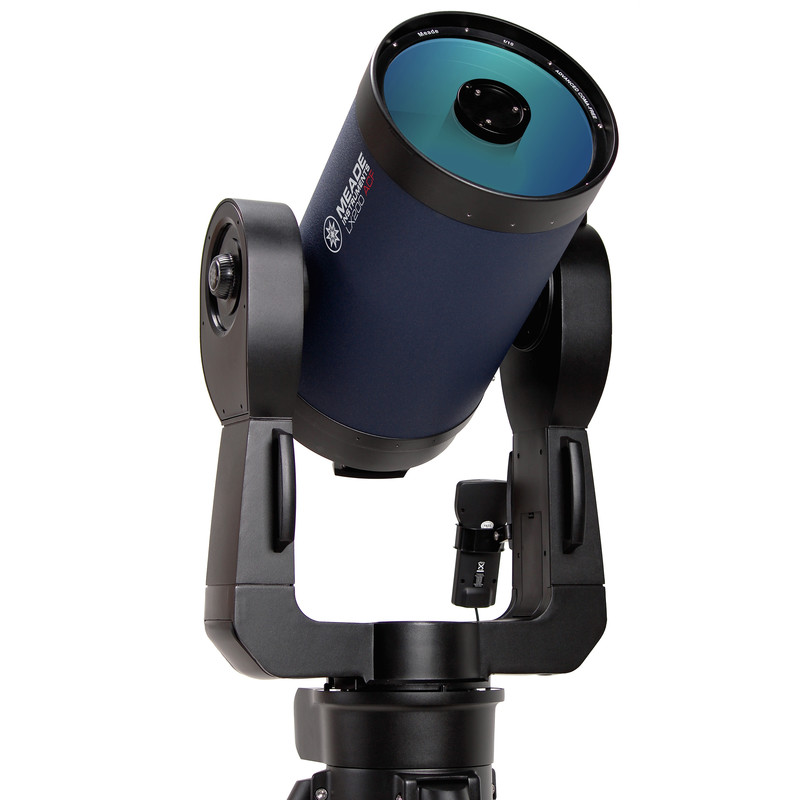

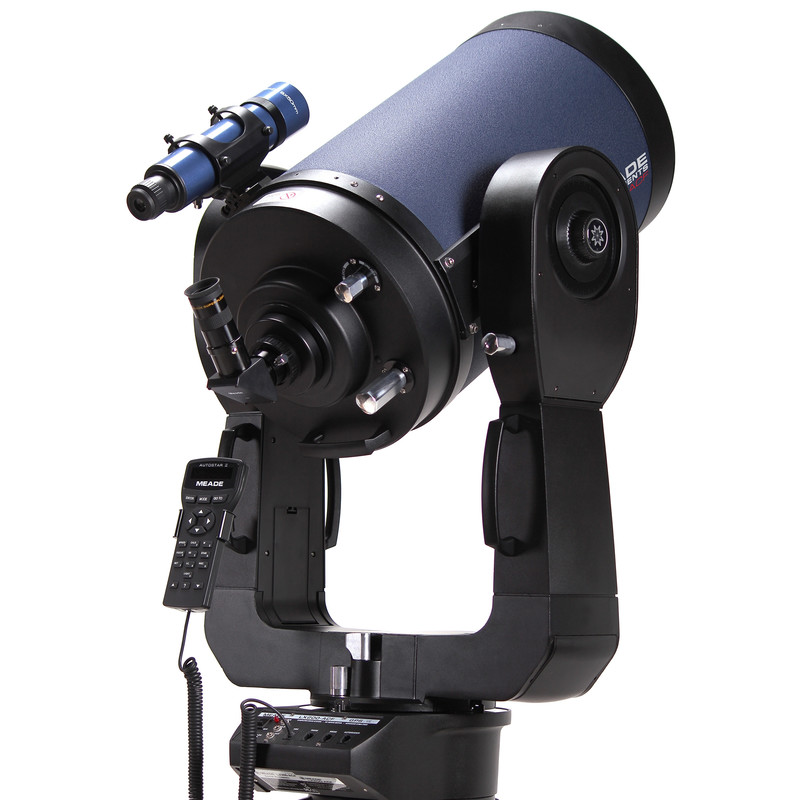

Telescope ACF-SC 254/2500 10" UHTC LX200 GoTo

RRP: $ 6,900.00 Our price:
$ 5,200.00 incl. VAT plus shipping costs
too expensive?
in stock
ready for shipping in 24 h + lead time

No delivery possible before Christmas. Order a voucher coupon!


Product description

More about the series LX200...

Meade ACF-SC telescopes:

Almost every large telescope worldwide is a Ritchey-Chrétien, including NASA's Hubble space telescope. The technology used by the pros can now belong to you too. Meade's new Advanced Coma-Free System - powerful and high-precision - is within the reach of all ambitious amateur astronomers, astrophotographers and CCD photographers! It provides perfectly sharp star images, at the highest professional observatory level, over the entire field of view. The secret of coma-free system is - as the name says - the complete absence of coma, an optical aberration in which starlight is distorted and pulled into comet-like tails outside the central part of the image. Whether for observing or photography, the ACF Cassegrain optics from Meade is way ahead of conventional mass produced telescopes. It offers fantastic image quality, previously only available from Ritchey Chrétien telescopes and other exotic systems costing several times as much as the Meade system.

Advanced Coma-free Optics (ACF): Meade's ACF optical design eliminates the typical aberrations of all mirror optics. Thanks to ACF, the stars are also point-shaped right out to the edge of the image field, displaying no elongated comet-like distortions. The image field is flatter than that of classic Schmidt-Cassegrain telescopes. ACF optical systems show their strengths especially in astrophotographic applications.

Ultra-High Transmission Coatings (UHTC): This special multi-layer coating on the front correction plate provides up to 15% more light transmission. The result -brighter star clusters, finer details in nebulae and more surface detail on planets!

The Meade LX200 mount:

This stable high performance GoTo mount simplifies finding objects in the night sky, both for beginners and experienced observers, and also for photographers The Sony GPS receiver with its Level North Technology (LNT) assists in a rapid and accurate alignment process that uses automatic acquisition of the precise time, date, and location. The AutoStar II software then puts about 145,000 objects of the night sky at your disposal. Observe planets, stars, galaxies, nebulae and comets - simply by pressing a button! Perhaps you don't know the night sky very well? Then simply let the pre-programmed 'Tonight's Best' tour take you to the most rewarding objects! Astronomy was never this easy and convenient.

This mount is available with a tripod and steel pier and is hence adaptable to the intended use and personal preference.

Included in delivery:

  • heavy duty LX200 mount with a 102mm taper bearings
  • 146mm LX worm gears on both axes
  • multifunction port with two RS-232 interfaces
  • manual and electrical control functions on both axes
  • AutoStar II hand box with 3.5MB of flash memory and digital display
  • 9 speed, programmable Smart Drive on both axes
  • GoTo function with over 144,000 selectable objects
  • AutoStar software suite
  • German instruction manual

It not only matters which telescope you buy but also where you buy it. Our additional services:

  • We are a leading telescope dealer and know the devices we sell. Our customer service team will gladly help you after your purchase if you have problems with assembly or operation.
  • We provide a copy of the 80-page Telescope ABC beginners handbook with every telescope.

Specifications

Optics


Type
Reflector
Type of build
ACF-Cassegrain
Aperture (mm)
254
Focal length (mm)
2500
Aperture ratio (f/)
9,8
Resolving capacity
0,45
Limit value (mag)
13,8
Light gathering capacity
1320
Max. useful magnification
510
Coating
UHTC
Tube construction
Full tube

Reflector


Primary mirror - Diameter (mm)
263,5
Correction plate - Material
Float glass
Primary mirror - Material
Pyrex glass
Secondary mirror material
Pyrex glass

Focuser


Connection ( to eyepiece)
2

Mount


Mounting type
Azimuthal
GoTo control
yes
Tracking speed
128 - 64 - 16 - 8 - 2 - 1 down to 0.01 in 0.01x steps
Tracking speed
8 to 1 in 0.1°/s steps
Power consumption (mA)
2500
Power supply
12
Type of build
LX200
Encoder
no

GoTo control


Database
147541
Software
AutoStar II
GPS
yes
Precision
1
Alignment method
AutoAlign, 2-star
GoTo Language
English

Tripod


Type
Tripod
Height (cm)
76-112
Material
Steel

Included accessories


1.25'' eyepieces
PL 26mm S4000
Finder scope
8x50
Deviating optics
1.25", 90° star diagonal
Software
AutostarSuite

General


Series
LX200
Special recommendation
yes
Total weight (kg)
43,5

Area of application


Nebulae & galaxies
yes
Nature Observation
yes
Astrophotography
yes
Sun
not recommended (Only with appropriate Sun filter)

Recommended for


Beginners
yes
Advanced
yes
Observatories
no
