Astronomy > Telescopes > Meade > OTA > Meade Telescope ACF-SC 152/1524 UHTC OTA
Product no.: 66030

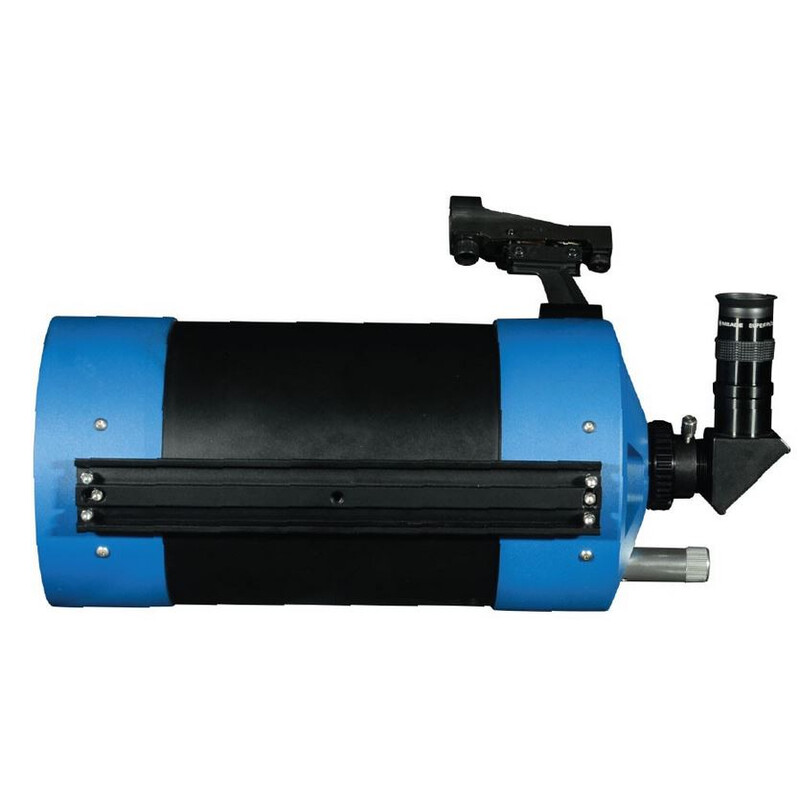

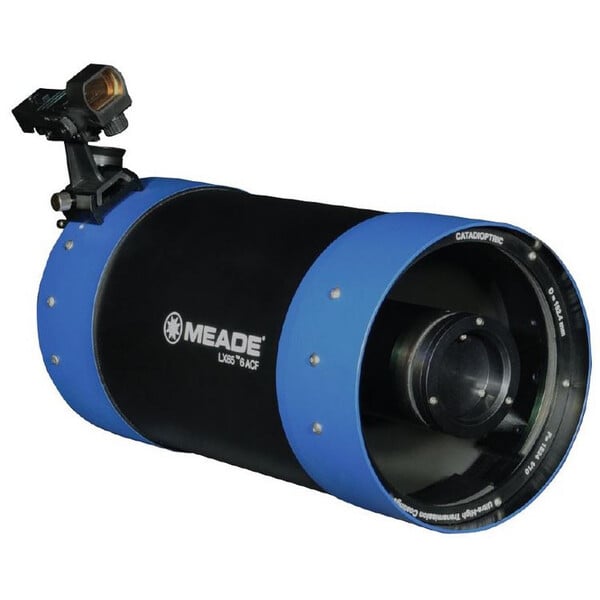

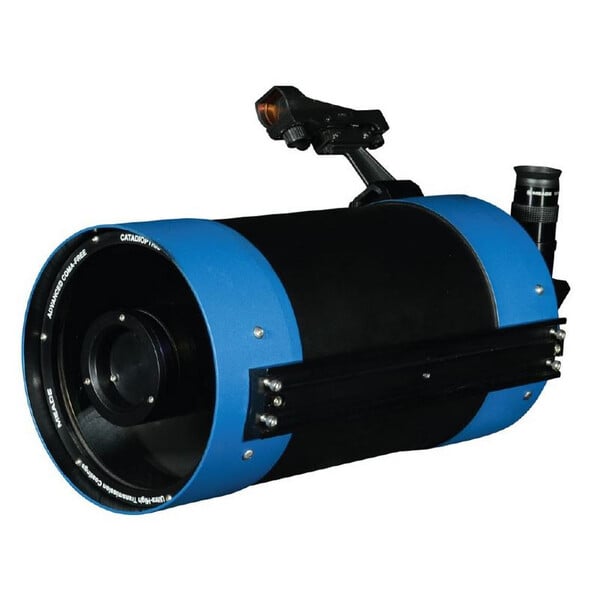

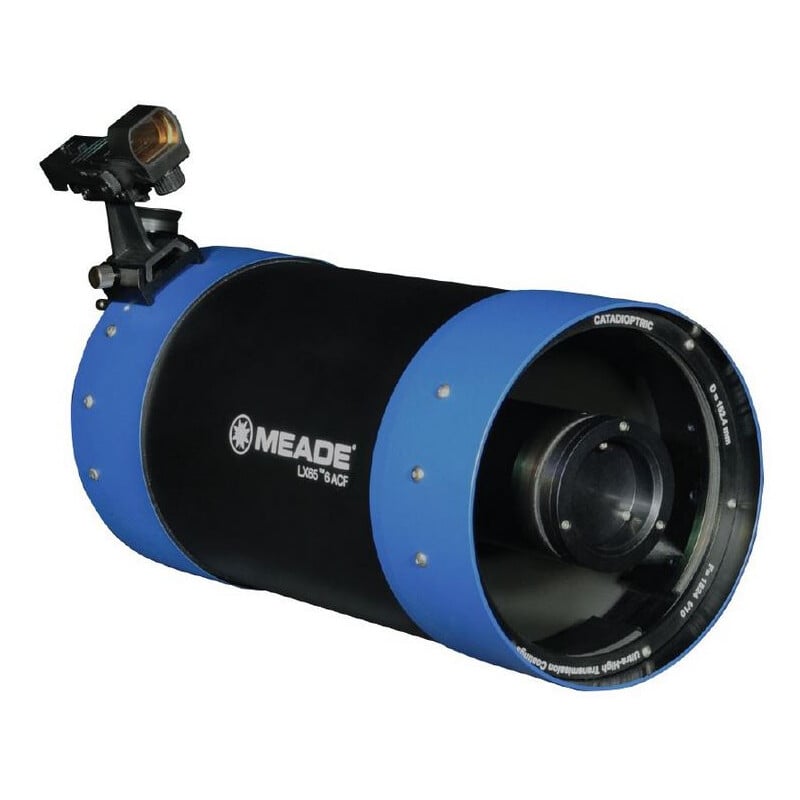

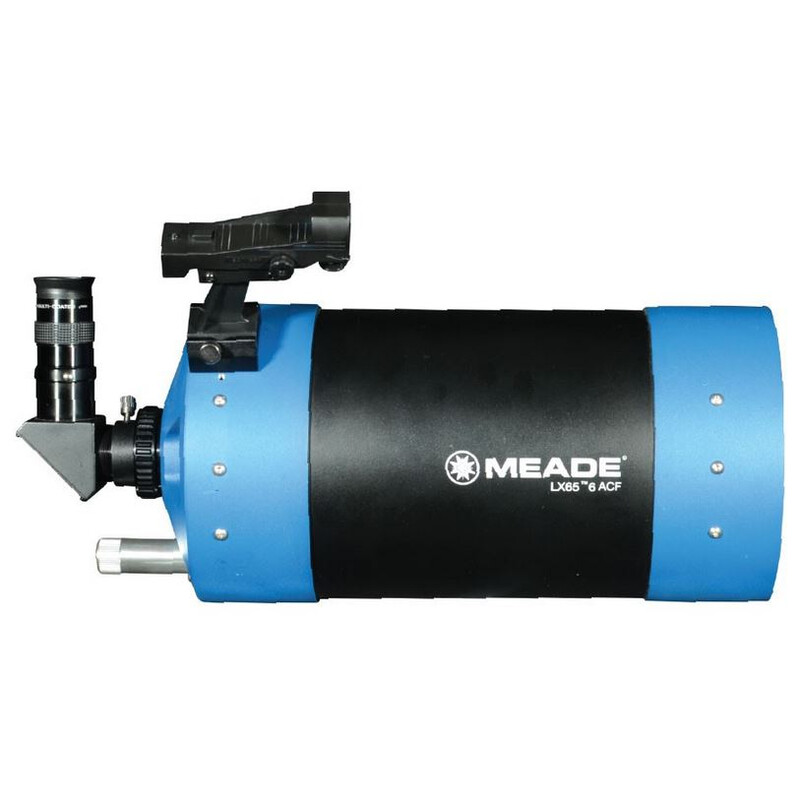

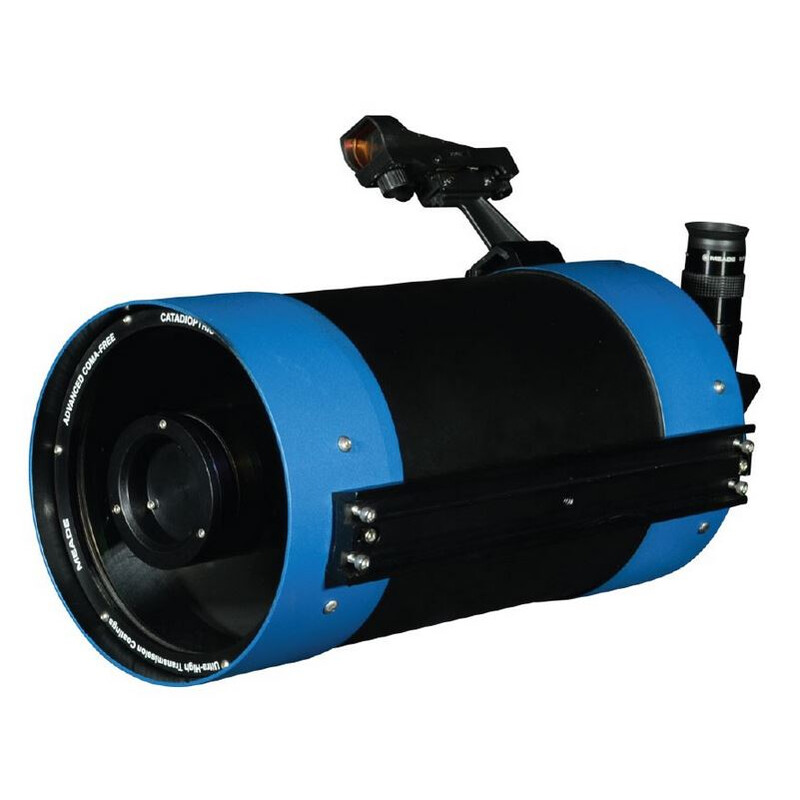

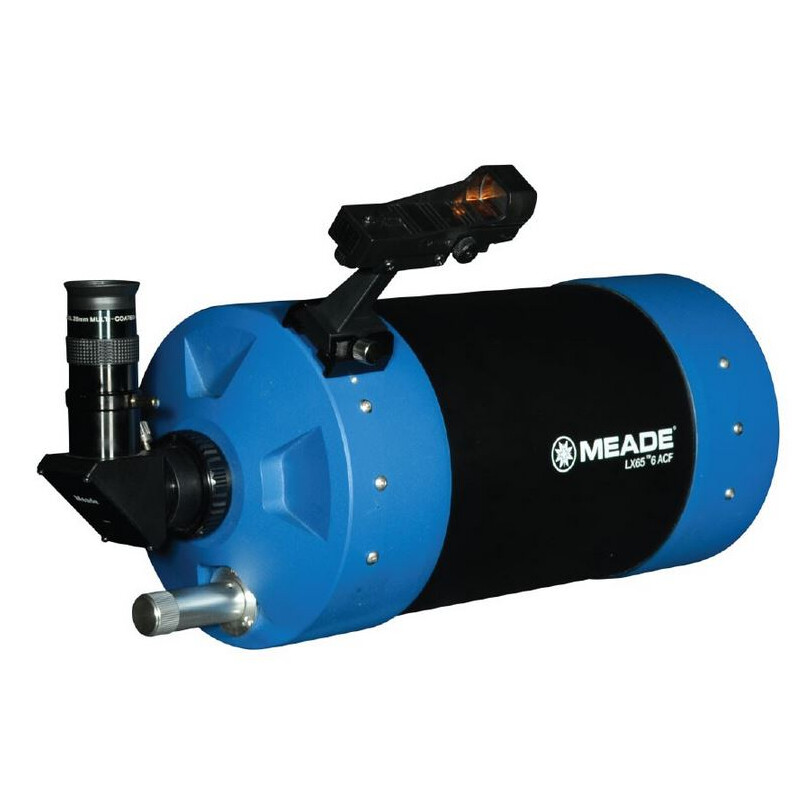

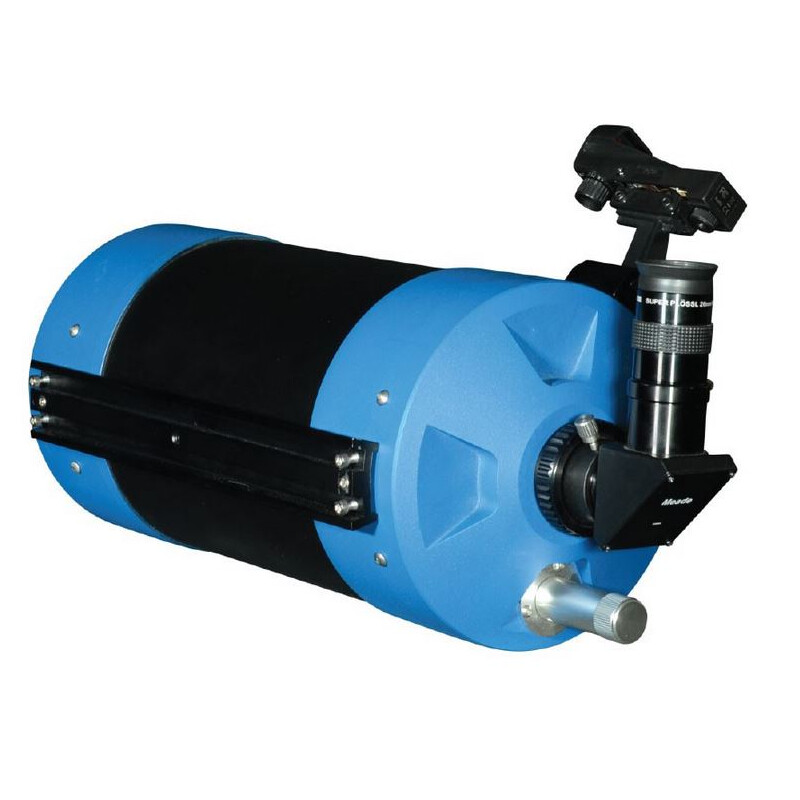

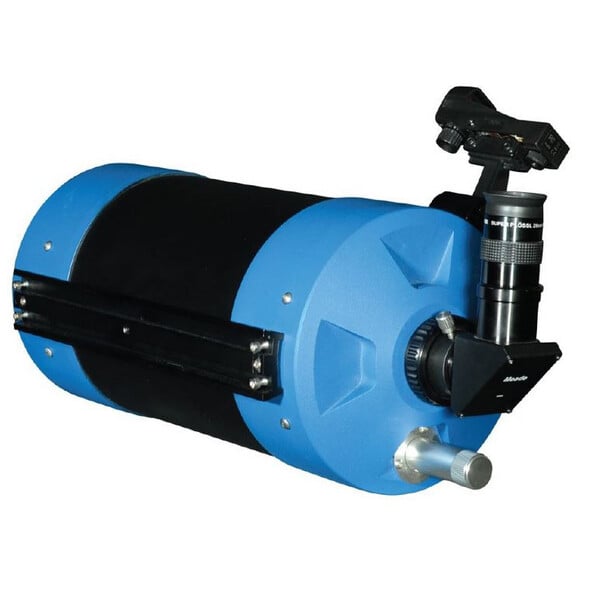

Telescope ACF-SC 152/1524 UHTC OTA

$ 1,370.00 incl. VAT, plus shipping costs
too expensive?
in stock
ready for shipping in 24 h + lead time
Express shipment possible for delivery tomorrow, 22.11.2024!

Delivery possible before Christmas (European destinations) - when you order by 18.12.!
Right of return up to January 31 2025!


Product description

Meade ACF-SC telescopes:

Almost every large telescope worldwide is a Ritchey-Chrétien, including NASA's Hubble space telescope. The technology used by the pros can now belong to you too. Meade's new Advanced Coma-Free System - powerful and high-precision - is within the reach of all ambitious amateur astronomers, astrophotographers and CCD photographers! It provides perfectly sharp star images, at the highest professional observatory level, over the entire field of view. The secret of coma-free system is - as the name says - the complete absence of coma, an optical aberration in which starlight is distorted and pulled into comet-like tails outside the central part of the image. Whether for observing or photography, the ACF Cassegrain optics from Meade is way ahead of conventional mass produced telescopes. It offers fantastic image quality, previously only available from Ritchey Chrétien telescopes and other exotic systems costing several times as much as the Meade system.

Advanced Coma-free Optics (ACF): Meade's ACF optical design eliminates the typical aberrations of all mirror optics. Thanks to ACF, the stars are also point-shaped right out to the edge of the image field, displaying no elongated comet-like distortions. The image field is flatter than that of classic Schmidt-Cassegrain telescopes. ACF optical systems show their strengths especially in astrophotographic applications.

Ultra-High Transmission Coatings (UHTC): This special multi-layer coating on the front correction plate provides up to 15% more light transmission. The result -brighter star clusters, finer details in nebulae and more surface detail on planets!

It not only matters which telescope you buy but also where you buy it. Our additional services:

  • We are a leading telescope dealer and know the devices we sell. Our customer service team will gladly help you after your purchase if you have problems with assembly or operation.
  • We provide a copy of the 80-page Telescope ABC beginners handbook with every telescope.

Specifications

Optics


Type
Reflector
Type of build
ACF-Cassegrain
Aperture (mm)
152
Focal length (mm)
1524
Aperture ratio (f/)
10
Resolving capacity
0,91
Limit value (mag)
12,7
Light gathering capacity
470
Max. useful magnification
304
Tube weight (kg)
4,2
tube diameter (mm)
216
Tube length (mm)
460
Carrying length (mm)
419
Coating
UHTC
Stray light baffles in the OTA
yes
Tube construction
Full tube

Reflector


Primary mirror - Diameter (mm)
152
Primary mirror - Material
Borosilicate glass
corrector plate coatings
UHTC
Main mirror´s construction
spherical
secondary mirror design
hyperbolic
Ventilation for central mirror
no

Focuser


Type of build
Internal
Connection ( to eyepiece)
1,25"
Connecting threaded socket (camera-side)
SC
Gear reduction
without

Mount


Type of build
OTA
Mounting type
no mount

Included accessories


1.25'' eyepieces
26mm
Finder scope
Red dot finder
Deviating optics
1.25", 90° star diagonal
Eyepiece adaptor
1,25"-SC
Prism rail
Vixen-Style

General


Series
OTA
Total weight (kg)
4,8

Area of application


Astrophotography
yes
Moon & Planets
yes
Nature Observation
no
Nebulae & galaxies
yes
Sun
no (Only with appropriate Sun filter)

Recommended for


Beginners
no
Advanced
yes
Observatories
no
