Astronomy > Telescopes > Askar > Askar Apochromatic refractor AP 60/360 80/500 V OTA
Product no.: 81995

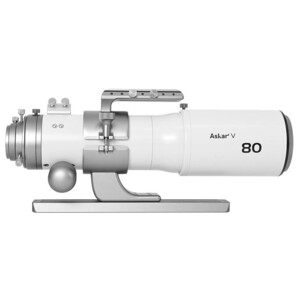

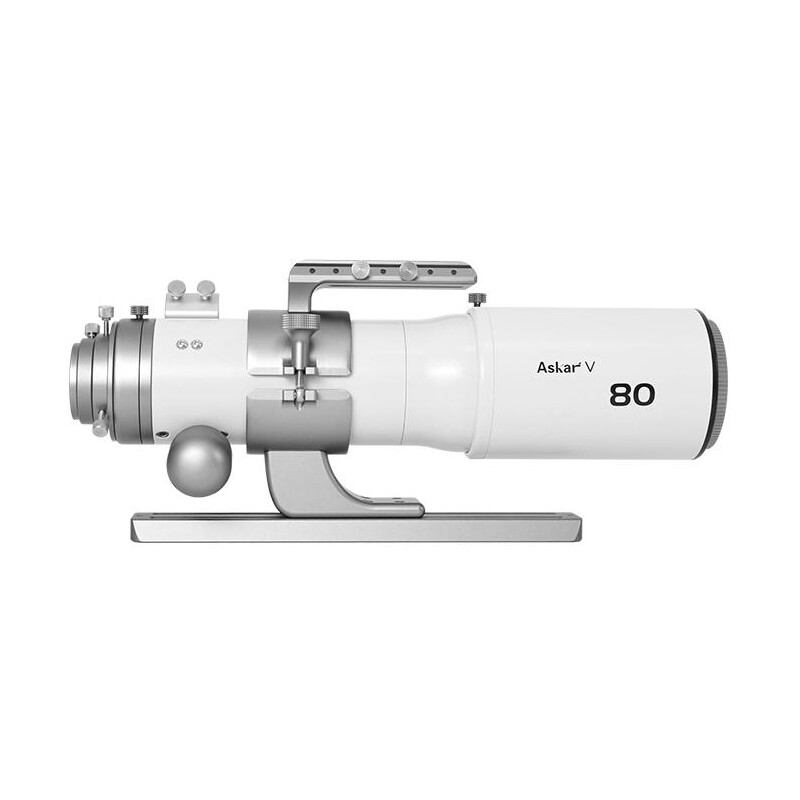

Apochromatic refractor AP 60/360 80/500 V OTA

$ 2,080.00 incl. VAT plus shipping costs
too expensive?
short-term
ready for shipping in 3-7 days + lead time

No delivery possible before Christmas. Order a voucher coupon!


  • Also suitable for visual observations with optional diagonal mirror

Product description

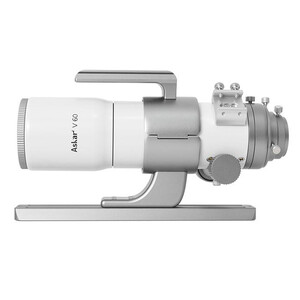

The interchangeable lenses of the V60 and V80 are both triplet apochromats with two ED elements.

The V60 has a focal ratio of f/6 and a focal length of 360 mm, the V80 has a focal ratio of f/6.25 and a focal length of 500 mm.

At the rear end there are M48 and M54 adapters with a built-in 2" filter thread, and the flange focal distance is 55 millimetres, which is ideal for connecting most DSLR cameras.

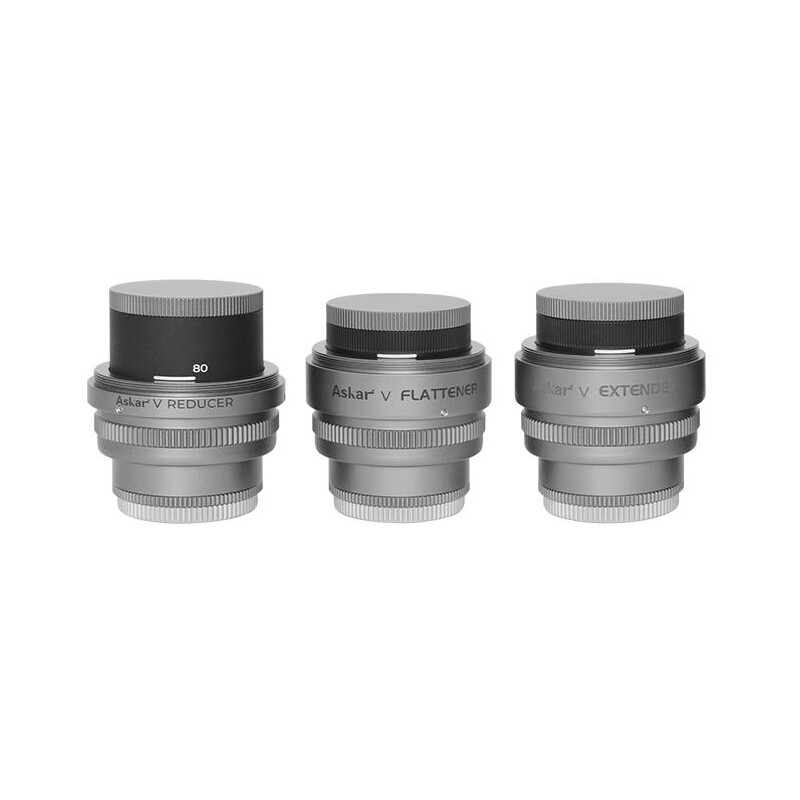

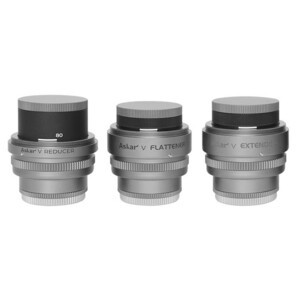

By using the reducer, the exposure time can be effectively shortened and the field of view extended.

The flattener reduces the curvature of the image field. It therefore improves the edge sharpness. The flattener is an indispensable aid for high-quality astrophotos.

The extender increases the focal length so that more details can be seen. This is particularly useful for close-up photography, but also for photographing the moon, planets and planetary nebulae.

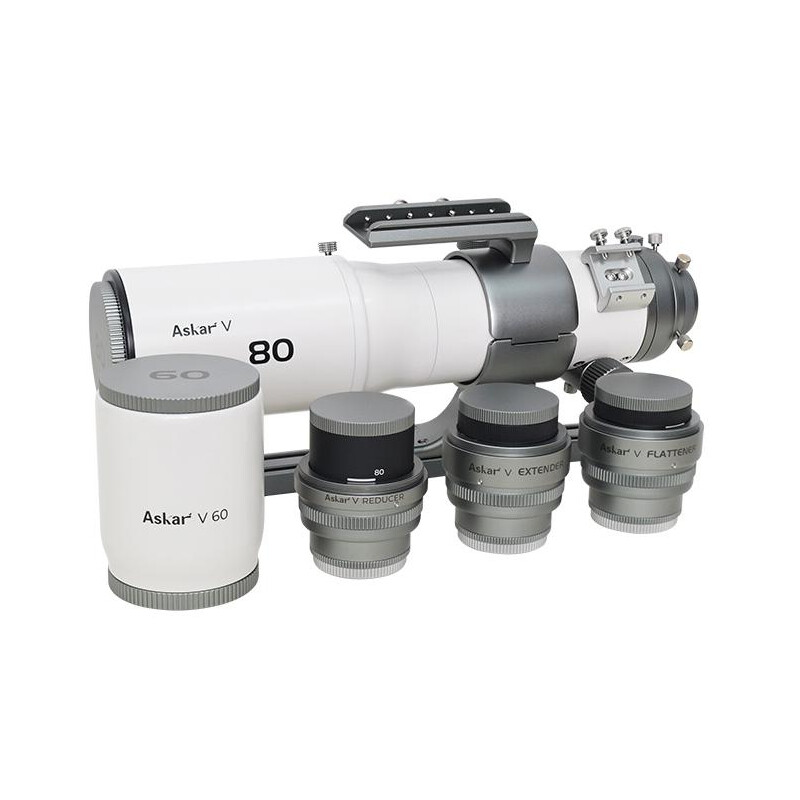

The Askar-V-Apo is supplied with a 360° rotator and a finder shoe as well as 1.25" and 2" eyepiece adapters to enable visual observation. The multifunctional handle facilitates the connection of accessories.

It not only matters which telescope you buy but also where you buy it. Our additional services:

  • We are a leading telescope dealer and know the devices we sell. Our customer service team will gladly help you after your purchase if you have problems with assembly or operation.
  • We provide a copy of the 80-page Telescope ABC beginners handbook with every telescope.

Specifications

Optics


Type
Refractor
Type of build
Apochromat
Aperture (mm)
80
Focal length (mm)
500
Aperture ratio (f/)
6,3
Resolving capacity
1,73
Limit value (mag)
11,3
Light gathering capacity
130
Max. useful magnification
160
lens design
Triplet
Tube weight (kg)
3,44

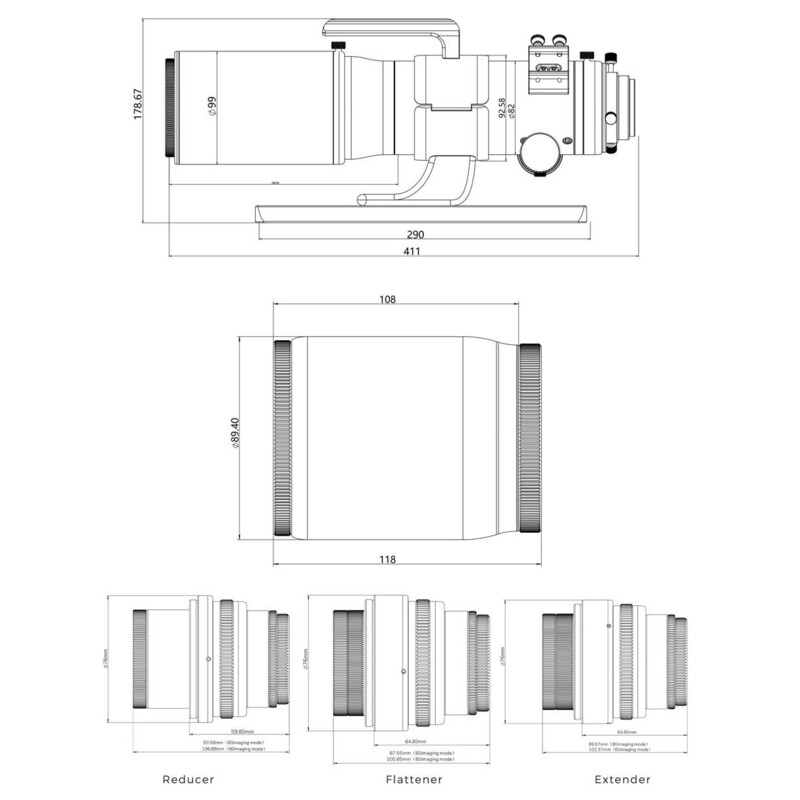

Tube length (mm)
479
Carrying length (mm)
411
dew cap diameter (mm)
100

Focuser


Connection ( to eyepiece)
2
Connecting threaded socket (camera-side)
M54 & M48
Backfocus (mm)
55
Gear reduction
yes
Rotating
yes

Mount


Type of build
OTA
Mounting type
no mount

Included accessories


Dew Shield
yes
Deviating optics
no
Corrector
Flattener
Reducer
yes
Extender
yes
Prism rail
Vixen-Style
Solar Filters
no
Carrying handle
yes
Extension tubes
no
Carry case
yes
finder base
Vixen/Skywatcher Level
Eyepiece adaptor
2" / 1.25"
Tube clamps
yes

General


Total weight (kg)
7,8

Area of application


Astrophotography
yes
Moon & Planets
yes
Nature Observation
yes
Nebulae & galaxies
yes
Sun
no (Only with appropriate Sun filter)

Recommended for


Beginners
no
Advanced
yes
Observatories
no

Product safety

manufacturer: SHARPSTAR OPTICS CO.,LTD, 3/F, No.5 building , Science and Technology Center, No.79 Jin-Sui Road,, 314001 Zhe-Jiang, CN, http://www.sharpstar-optics.com
resp_person: NIMAX GmbH, Otto-Lilienthal-Str. 9, 86899 Landsberg am Lech, DE, [email protected]

Recommended accessories

Media (2)
Star chart

Omegon Star chart Planisphere

$ 14.90*
Outdoor (3)
Headlamp

Omegon LED headlamp

$ 13.90*
Astronomy > Telescope accessories (41)
Camera adaptor

TS Optics Camera adaptor M48/Nikon

$ 33.90*
Astronomy > Eyepieces (16)
Reticle eyepieces

Omegon Reticle eyepieces Illuminated crosshair eyepiece, 12.5mm

$ 89.00*
Astronomy > Filters (14)
Filters

Omegon Filters Moon filter 1.25"

$ 19.90*
Maintenance & Cleaning > Lens cleaners (3)

Omegon 7-in-1 lens cleaning set

$ 19.90*
Maintenance & Cleaning > Other (2)

Omegon microfibre cleaning cloth 20cm x 20cm

$ 4.90*

*All prices include VAT plus shipping costs.

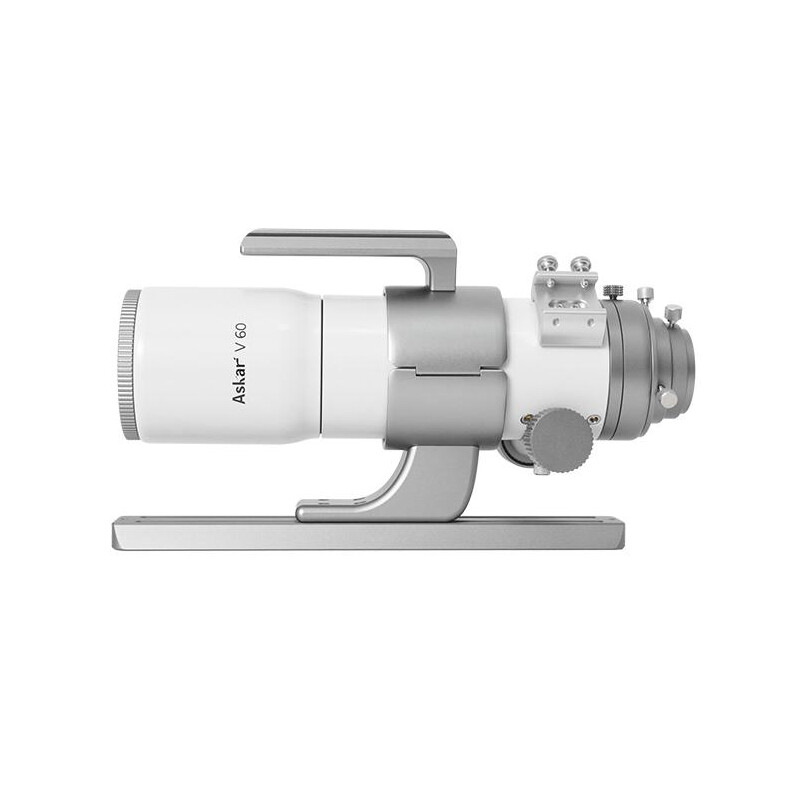

Askar Apochromatic refractor AP 60/360 80/500 V OTA

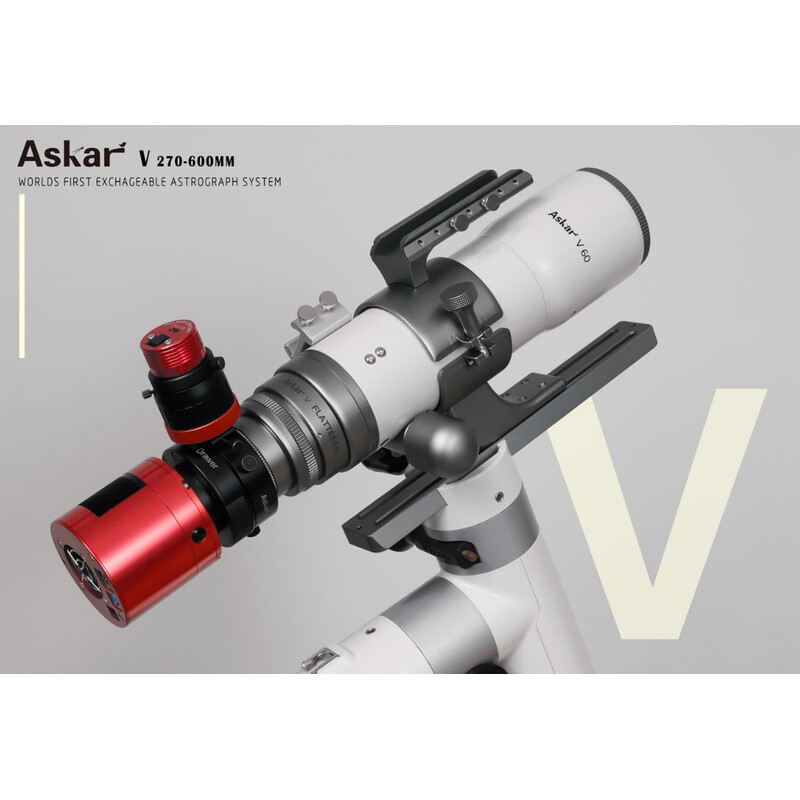

Example of use
Askar Apochromatic refractor AP 60/360 80/500 V OTA

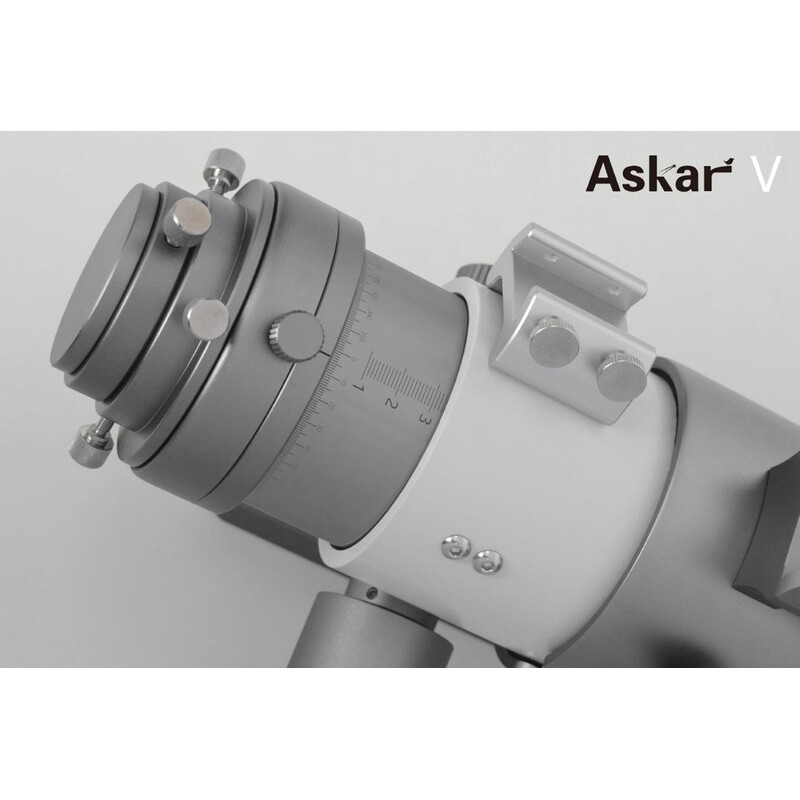

Focusing
