Optika zoom stereo microscope SLX-3, 7-45x zoom, LED, w.d.100mm, trino
(SLX-3)
Valuable configurations of cordless and modern stereo & stereozoom microscopes ideal for a variety of applications, including dissection, biology, entomology, anatomy, chemistry, material science among the others and even industrial purposes.
Head: Trinocular (split ratio: 50/50), 45° inclined; 360° rotating
- Type: Trinocular
- Construction material: Aluminum & Plastic molds / Aluminum gears
- Split ratio: Fixed. 50 (eyepiece) / 50 (photo)
- Inclination: 45°
- 360° rotating: Yes
- Interpupillary distance (mm): 51-75
- Dioptric adjustment: On both tubes
- Head holder internal diameter (mm): 76
- Tube inner diameter (mm): 30
Eyepieces: WF10x/21 mm, high eyepoint, secured by screw and with rubber cups.
- Field number (mm): 21
- Dioptric adjustment: Both eyepieces.
- Magnification: 10x
- Micrometric scale: As optional
- Diameter of micrometer glass (mm): 23
- High eyepoint (for glass wearers): Yes
- Rubber cup: Yes
- Retractable protections: Yes
Objective: Parfocal achromatic zoom 0.7x…4.5x (6.43:1 ratio) with anti-fungus treatment.
- Optical system: Greenough
- Anti-fungus treatment: Yes
- Objective Type: Achromatic
- Zoom type: Parfocal achromatic
- Working distance (mm): 100
- Standard magnifications: 7x-45x
- Zoom ratio: 6.43
Focusing: Rack and pinion focusing mechanism.
- Type: Coarse
- Coarse total travel (mm): 110
- Adjustable tension: Yes
- Head holder internal diameter (mm): 76
Stand: High-grade, precision fixed with handle and focus
- Type: Fixed arm
- Handle: Yes
Stage:

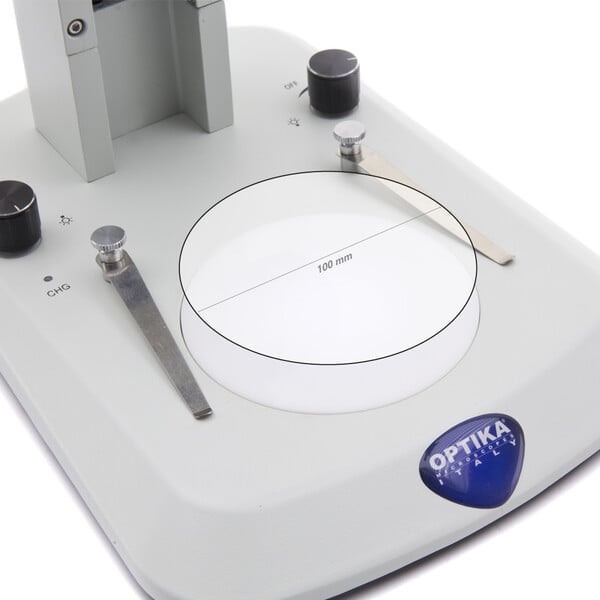

- White diffusion plate for transmitted ill.: Yes, diameter 100 mm
- Black/white contrast plate for incident ill.: As optional
- Specimen clips: Yes
Illumination: EcoLED™ swiveling incident and transmitted, with brightness control, rechargeable batteries. Color temperature: 6,300 K. Multi-plug 100-240Vac/5Vdc external power supply
- Observation Method - Transmitted Light: Brightfield - Yes
- Observation Method - Incident Light: Brightfield - Yes
- Type: EcoLED
- Brightness control: Manual
- Lifetime (hours): > 65,000
- Temperature (K): 6,300
Power Supply for Illumination:
- Type: External
- Microscope connector: Jack, 2.1 mm
- Power plug type: Multi-plug (EU, UK, US)
- Input voltage: 100/240 Vac, 50/60 Hz
- Output voltage: 5 Vdc 500 mA
- LED indicator: Yes
- Rechargeable batteries: Yes
- Battery type: Ni-MH (3x, AA size)
- Working time of batteries (hours): 12
- Charging time of batteries (hours): 8
Additional Information
- Maximum sample height (mm): 100
Included components:
- SLX-3
- Dust cover
- User Manual: Digital version (downloadable)
