Microscopy > Microscopes > Stereo microscope > Stereo zoom sets > Motic > GM > Motic Stereo zoom microscope GM-161, bino, fluo, 7.5-45x, wd 110mm
Product no.: 66094

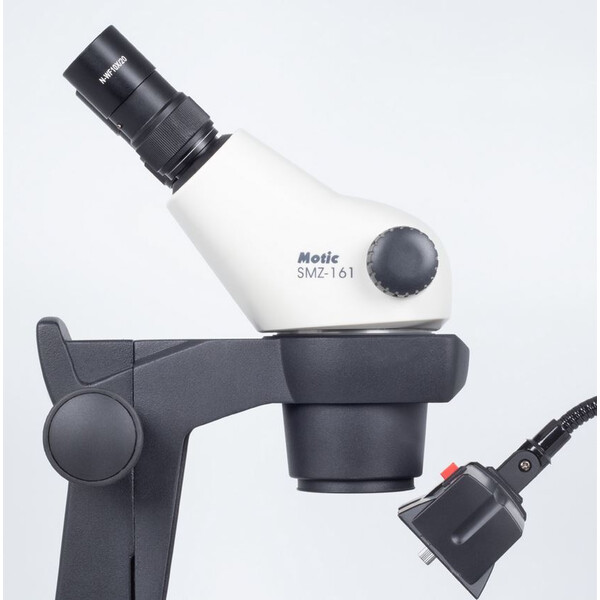

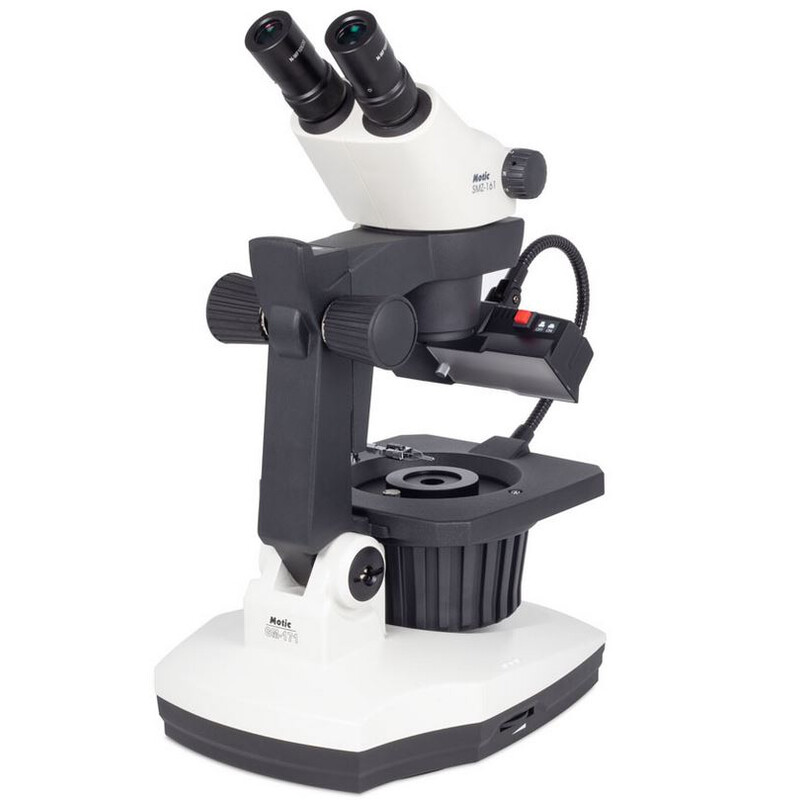

Stereo zoom microscope GM-161, bino, fluo, 7.5-45x, wd 110mm

$ 2,730.00 incl. VAT plus shipping costs
too expensive?
short-term
ready for shipping in 1-2 weeks + lead time

Delivery not guaranteed until Christmas.
Show alternatives
Right of return up to January 31 2025!


Product questions?
advice for Microscopy

Product description

Optical system Greenough

Inclination 45º inclined

Interpupillary distance 50-75mm

Diopter adjustment On both tubes, +/- 5 diopter

Eyepieces Widefield WF10X/20mm

Objectives system Zoom, ratio 6:1

Objectives 0.75X~4.5X

Working distance 110mm

Stand type 360º rotary base

Diaphragm Iris diaphragm, adjustable aperture Ø41mm - Ø2mm

Head holder For Ø76mm head

Focus mechanism Coarse focusing system with tension adjustment

Focusing stroke 125mm

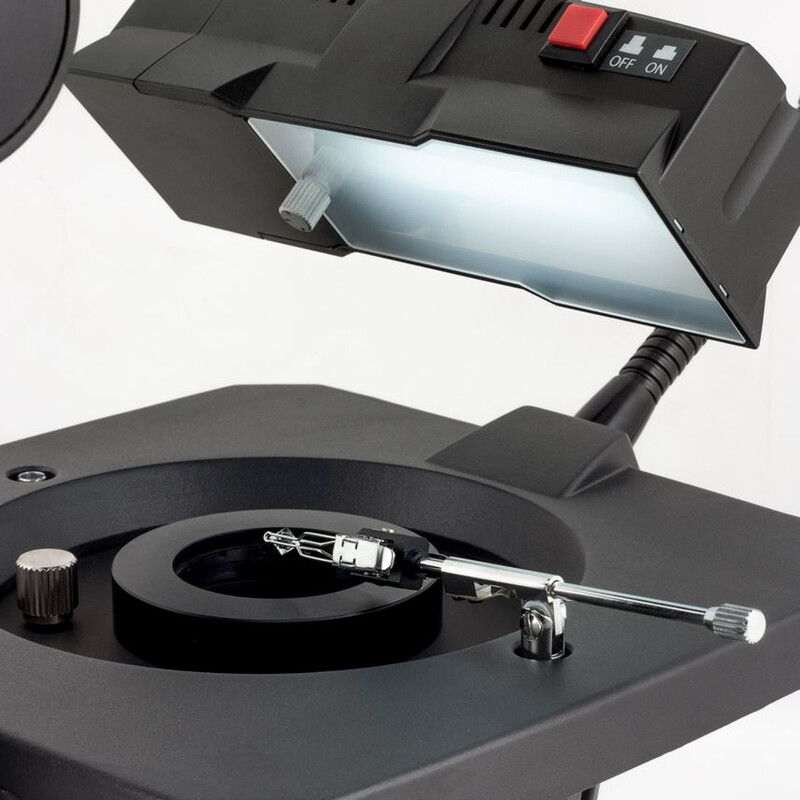

Incident illumination Fluorescent 7W with Gooseneck adjustable

Transmitted illumination Quartz Halogen 6V/30W with intensity control

Illumination features Darkfield illuminator

Transformer Internal

Power supply 100-240V (CE)

Accessories included

  • dust cover
  • stainless steel

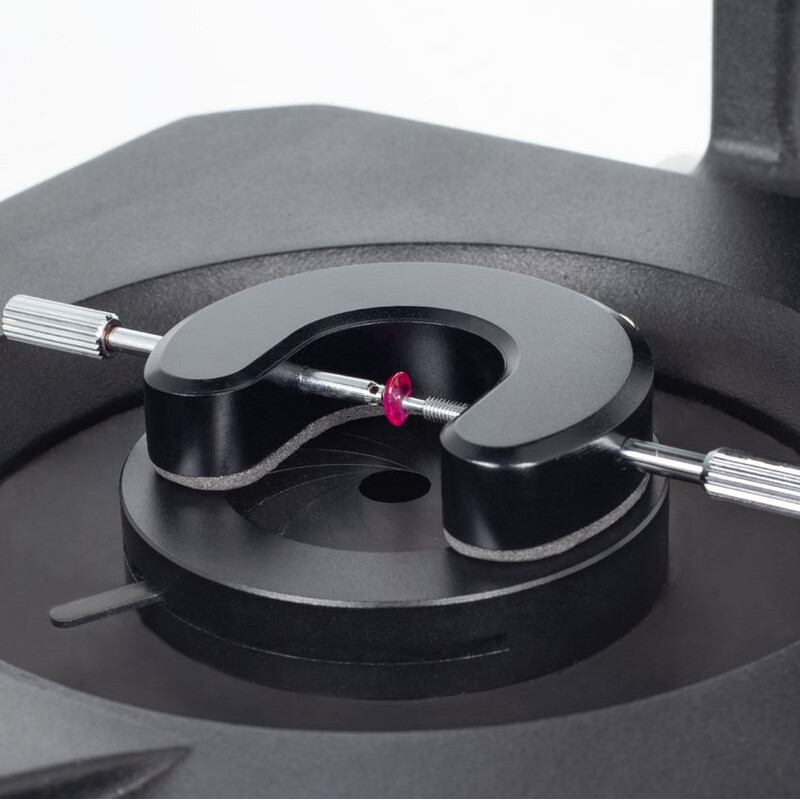

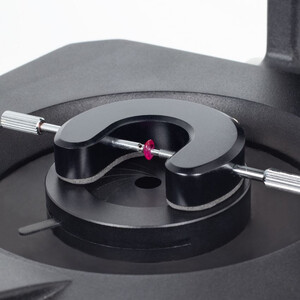

  • wire stone holder
  • aluminium carrying case

Dimensions LxWxH 391x236x500mm

Base 306x236mm

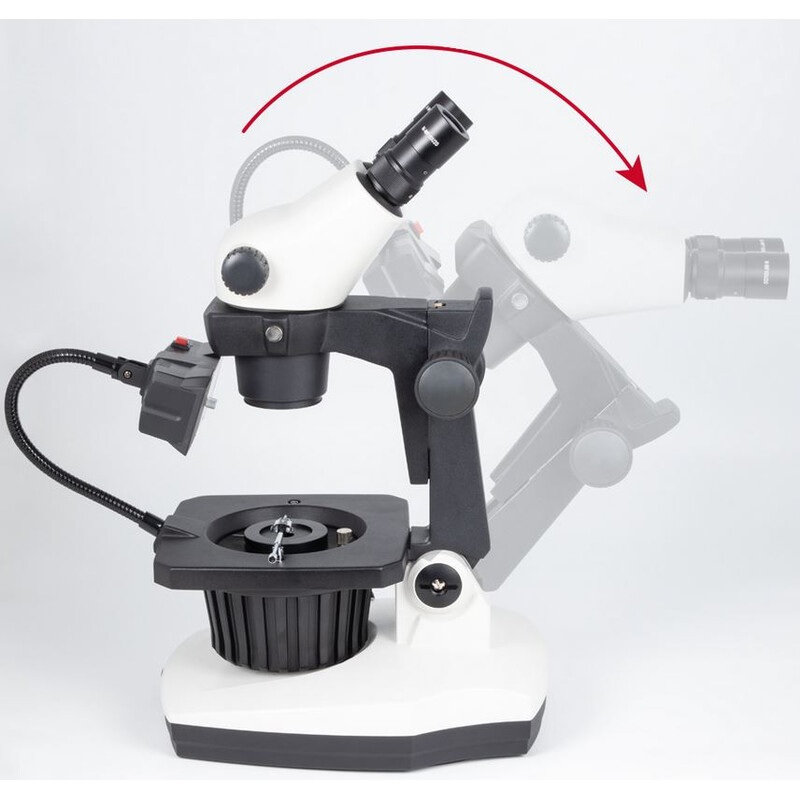

Column/Arm Height 268mm, 45º tilting arm

Net weight 8.2kg

Specifications

Optics

Magnification
7,5-45
Eyepiece
10/20
Lighting
Incident light and transmitted light
Lamp type
Halogen
Power supply
100-240V, VDE plug (CE) mains adaptor
Optical system
Greenough

Capacity

Brightness control
yes

Mechanics

Type of build
binocular
Focusing
Coarse movement
Viewing posture (°)
35° viewing angle, 360° rotatable
Specimen stage
Specimen stage

Special features

Centering stage
-
Dust cover bag
yes
Wide-angle eyepiece
yes

General

Colour
grey/black
Series
GM

Field of application

Industry
yes

Area of application

Mineralogy
yes
Microbiology
yes
show more...

Product safety

manufacturer: Motic Deutschland GmbH, Christian-Kremp-Straße 11, 35578 Wetzlar, DE, http://www.moticeurope.com/
