NexiusZoom ESD series
Specifications
- Eyepieces: Pair WF 10x/22 mm eyepieces, both eyepieces with ± 5 diopter adjustments
- Head: Bino- or trinocular heads with 45° inclined tubes, interpupillary distance adjustable between 54 mm and 75 mm
- Objective: Zoom 1:6.7 objective with 0.67x to 4.5x magnifications, field of view from 33 mm to 4.9 mm, working distance 110 mm
- Auxiliary: 0.5x / 0.75x / 1.5x and 2.0x lenses available
- Stands: Ergonomically designed pillar or rack and pinion stand with LED illumination and 2 object clamps, ergonomically designed universal one arm or double arm stands without illumination, alloy metal cast, hardened off-white painted Focusing adjustment:Coarse adjustment
- Illumination: The 3 W transmitted and incident LEDs illuminators can be used simultaneously, both light intensities are adjusted separately
All optical parts are anti-fungus treated

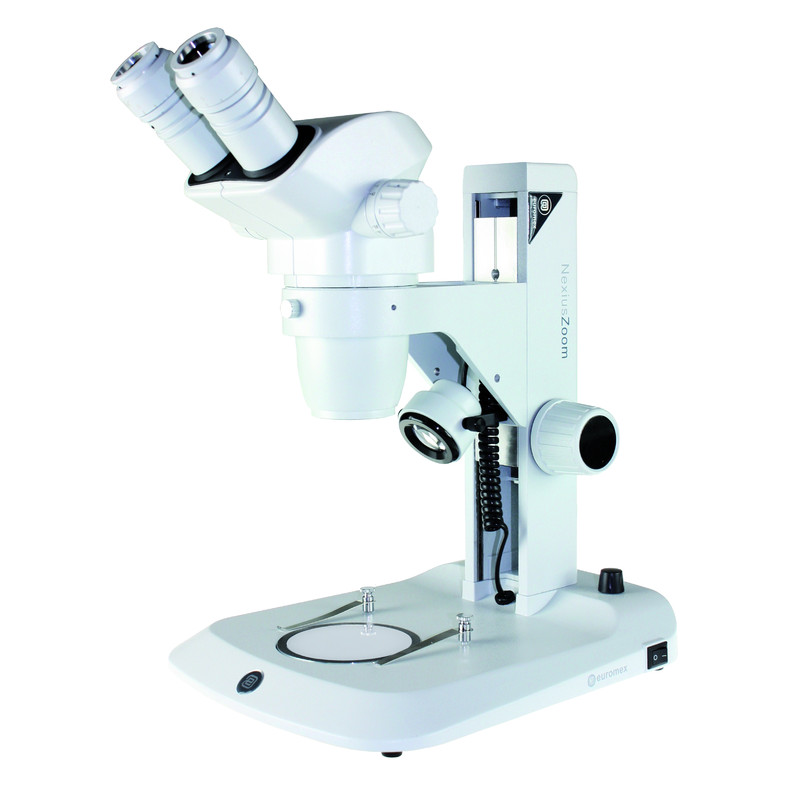

NexiusZoom binocular zoom stereo microscope NZ.1902-S
NexiusZoom Binocular Greenough Zoom stereo microscope
Binocular stereo head with 0.67x to 4,5x stereo objective
WF10x/22 eyepieces in 45° inclined tubus with diopter adjustment
Total standard magnification from 6.67x to 45x
Field of views: 33mm to 4,9mm
Working distance: 110mm
Stand: Rack and pinion stand
Illunimation: Translucend and incident 3 W LED illumination
Delivered with object plate and 2 object clamps
Packed in styrofoam box
