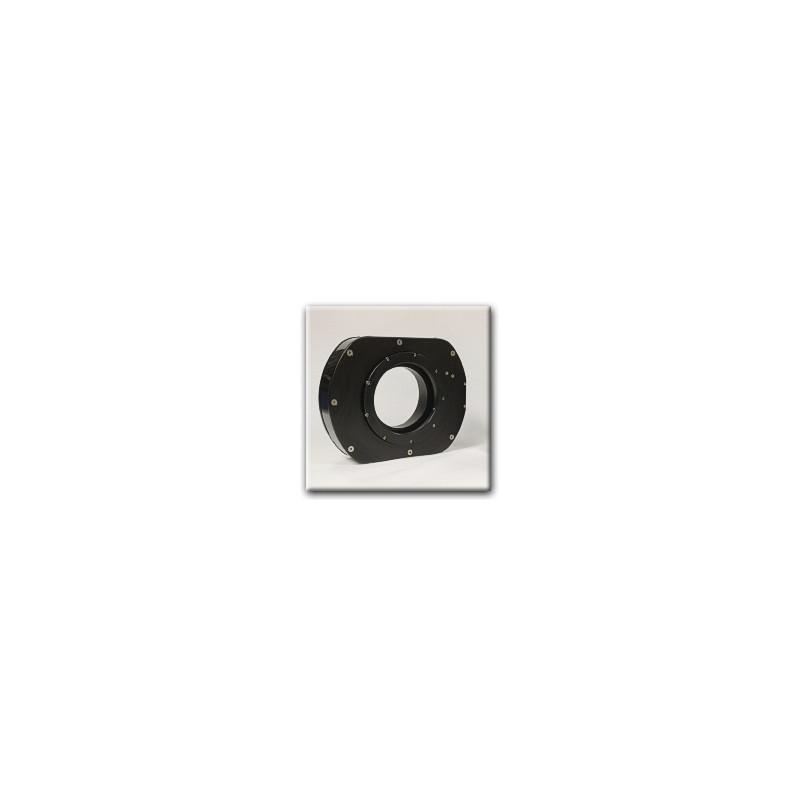

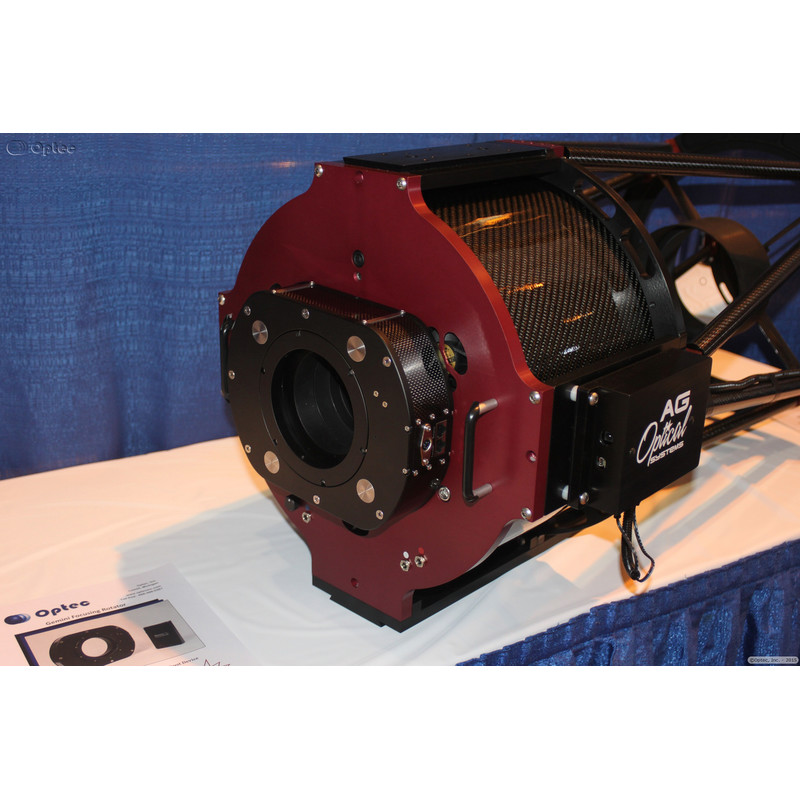

Optec engineers have developed a completely new concept for combining telescope focus and camera rotation functions into a single robust, yet compact package. Rather than simply adding a rotator onto the end of a focuser drawtube, Gemini was designed from inception with a rotating drawtube providing superior strength and rigidity for heavy camera payloads. Featuring four lead-screws and four linear bearings, Gemini can easily handle 10kg payload packages without flexure. Full 360-degree rotation is a built-in function of the Gemini with a full 1/2" of linear travel. At the midpoint, Gemini measures a mere 2.5" in thickness.
- Temperature Compensation: Like all Optec focuser products, Gemini includes a remote temperature probe for automatic temperature compensation. Simply attach the temperature probe anywhere in the linear response zone of your OTA (usually the tube or truss assembly) and Gemini will automatically keep the camera package in sharp focus. The Gemini Commander software provides a convenient wizard to help determine your telescope's TC or temperature coefficient.

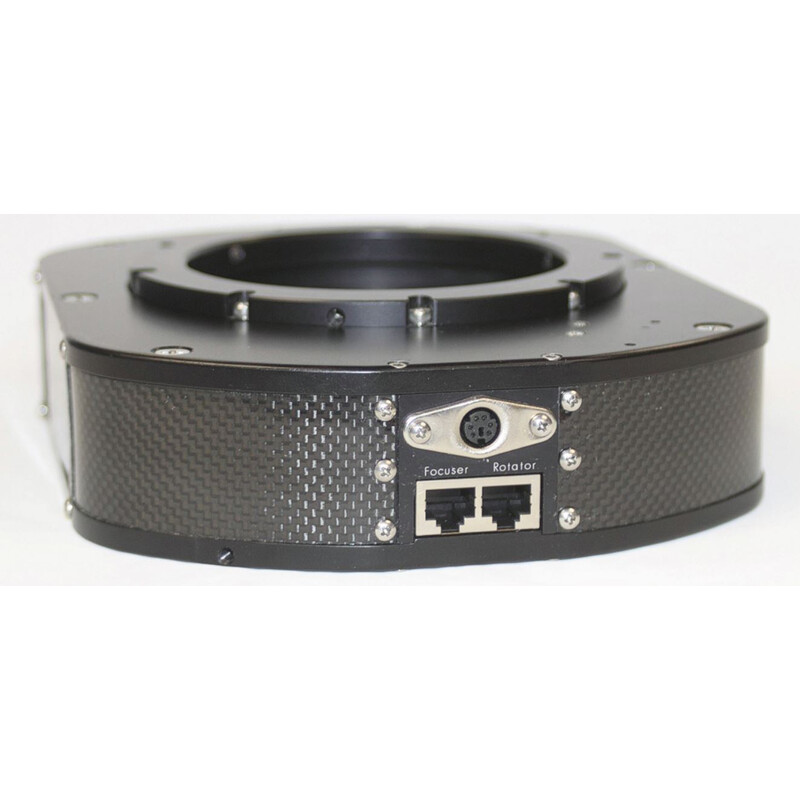

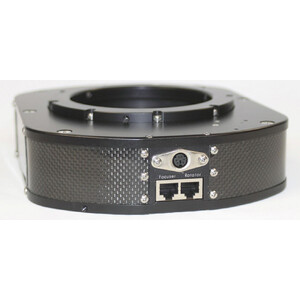

- Robust Compact Design: To maintain a flat, rigid base for heavy camera packages, Gemini's shell consists of two parallel plates machined from MIC-6 tool plate providing flatness within 0.001" (25 microns). Seven precise stand-off spacers maintain the 2.25" separation of these plates. The rotating drawtube is moved linearly with 1/2" of total travel using a premium timing belt driven by a high torque stepper motor. The entire package is accented with a beautiful carbon fiber wrap. Dual RJ45 connectors provide connection to the Gemini Control hub. The independent rotating drawtube is supported by a custom X-cage bearing system supported by large, 6mm chrome ball bearings.

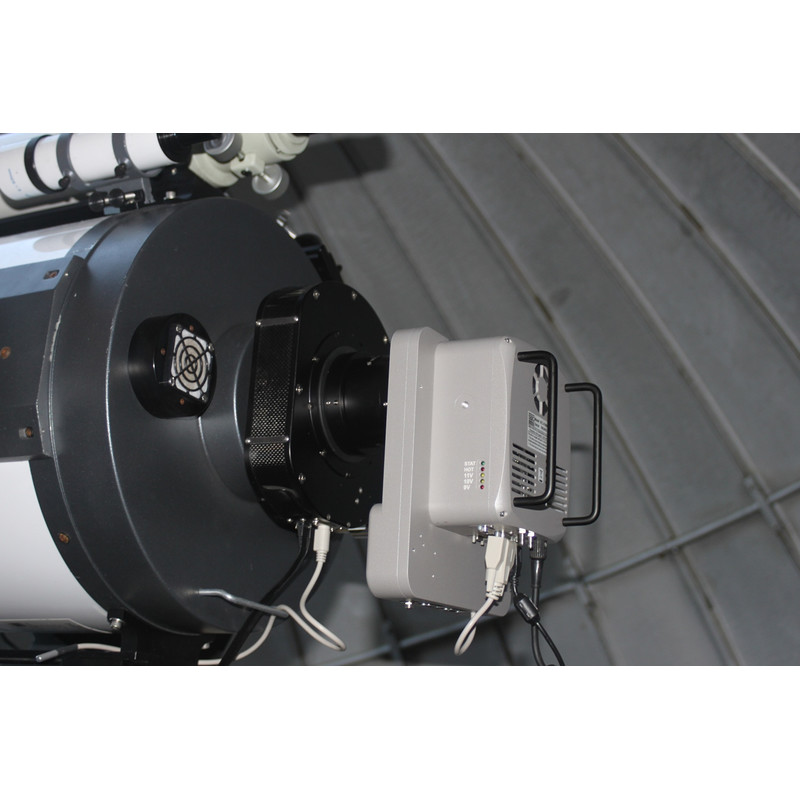

- Support for Multiple Telescopes: Featuring identical OPTEC-4300 mechanical interfaces front and back, the Gemini can be easily fitted to most any large telescope OTA. Recessed oval point setscrews provide three-point direct contact with the heavy wall OPTEC-4300 dovetail mount. Gemini's clear aperture of 3.75" is maintained through each adapter, passing even large light cones through to the camera image plane without vignetting. On the camera side, a typical configuration might include a 4300 receiver for the Optec-DSI 3.5 High Performance spacer sets configurable to 1/4" increments when additional spacing is needed. Currently designed telescope adapters include support for the AG Optical iDK's, Ceravolo Optical Systems Astrographs, Meade 16-inch class SCT, and Plane Wave Secure-Fit.

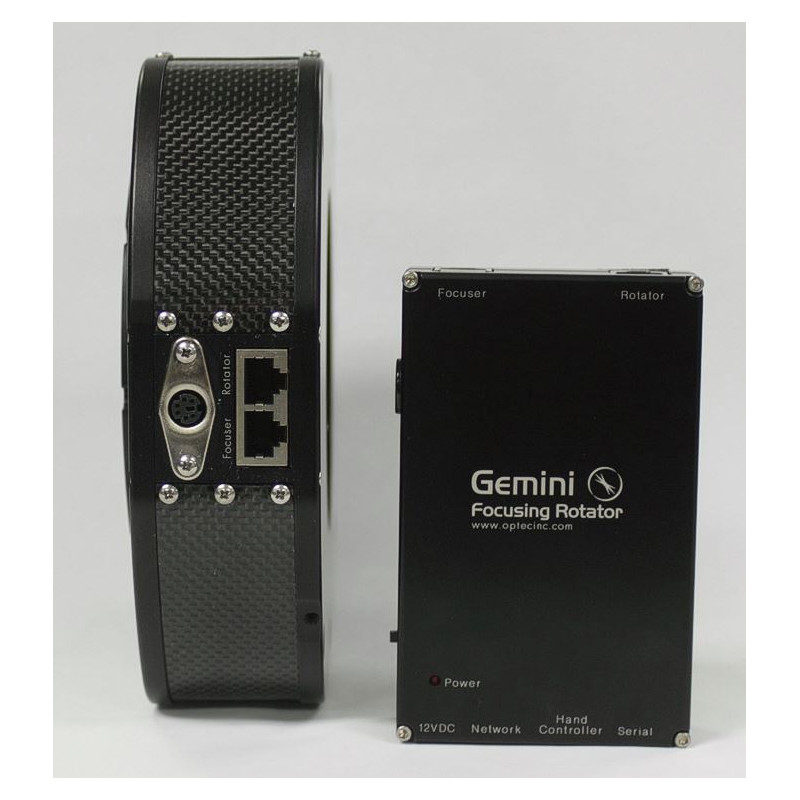

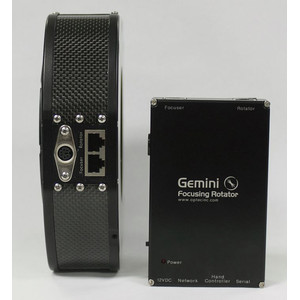

- Multiple Ways to Connect: The Gemini Control hub acts as the central controller to link both focuser and rotator to any control PC. The hub includes communication ports for Serial and USB (using Optec's USB/Serial cable) and wired Ethernet Network protocols as standard. An optional WiFi board and antenna can be added and installed at any time. Focuser and Rotator ports are available at the top of the Gemini hub with 12VDC Power, Network, optional Hand Control, and Serial connection ports available at the bottom.

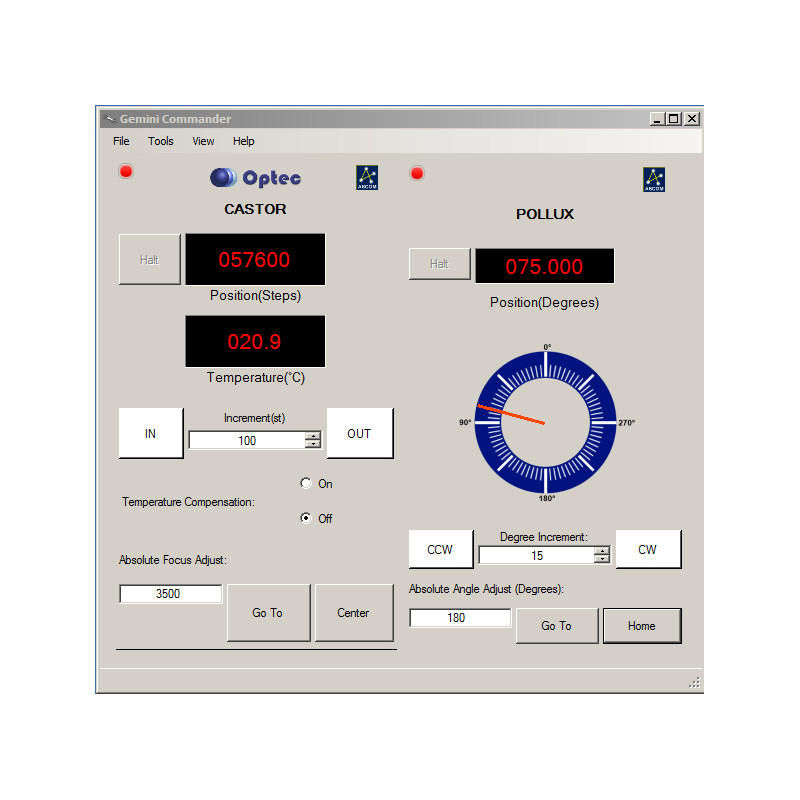

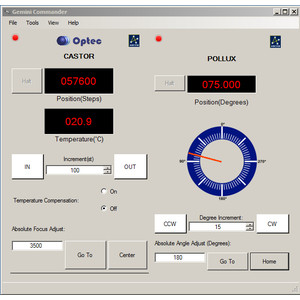

- Gemini Commander Software: Gemini Commander creates an ASCOM Local Server or hub to allow multiple clients access for communication and control of the attached focusers. By using the local server model, Gemini offers an easily configurable user experience for all Windows ASCOM programs.
Package includes Gemini Focusing Rotator, Gemini controller hub, 12VC power supply with wall cord, and all cables.
