Astronomy > Telescope accessories > Adaptors > Extension & reduction adaptors > Reduction rings & adaptors > Baader > ClickLock > Baader Adapter 2" ClickLock SCL clamp (C11-C14) for large SC telescopes
Product no.: 15428

Adapter 2" ClickLock SCL clamp (C11-C14) for large SC telescopes

$ 106.00 incl. VAT, plus shipping costs
too expensive?
short-term
ready for shipping in 1-2 weeks + lead time

Delivery possible before Christmas,
when your order by 04.12.!
Right of return up to January 31 2025!


Product description

More about the series ClickLock...

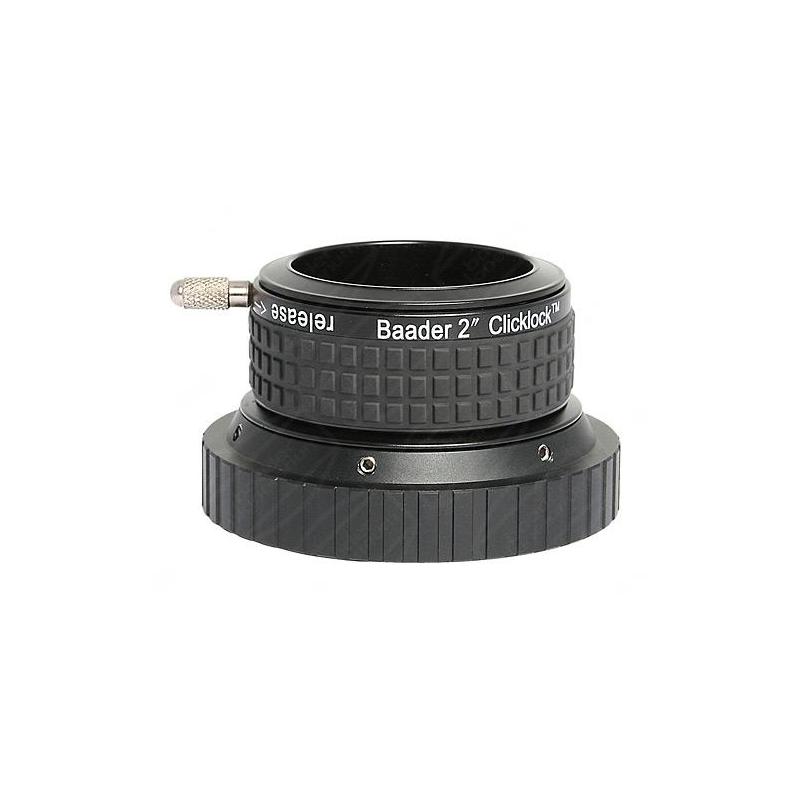

Baader 2" ClickLock SCL clamp for large SC telescopes

Suitable for all Celestron C11/C14 telescopes with a large 3.25" threaded connector.

The standard Celestron adapter has a clear inner diameter of only 38mm! The CL SCL clamp lets you eliminate this bottleneck and take full advantage of the full light output of the SC system.

Small change big effect!

Overview of the Baader 2" ClickLock system

The Baader 2" ClickLock system is a further development of the 1.25" ClickLock clamp.

The experience gained from years spent testing the 1.25" ClickLock clamp has allowed further improvements to be made to the effectiveness and robustness of the mechanics of the ClickLock system.

The 2" ClickLock system has therefore been built to be even more solid.

The features of Baader 2 "ClickLock system in a nutshell:

  • rotating the ClickLock just 20°suffices to firmly and securely fix accessories.
  • the built-in ratchet indicates the position of the clamp both acoustically and by feel. So even in the dark and without looking, you know whether the clamp is open or closed.
  • the heavy duty locking ring holds your expensive accessories absolutely securely, causing no scratches or pressure marks.
  • the extensive range available enables Baader 2" ClickLock clamps to be used on a wide range of telescopes.(ClickLock clamps for Vixen and other brands are in preparation)
  • 6 camera slotted screws / 6 Allen screws allow the position of rotation to be adjustable with a hex key -> CL clamps for left and right-handers are optionally usable!

You will never again want to attach your 2" accessories using any other system!

Specifications

Capacity


Connection (to the telescope)
3,25"
Connector (other end)
2"
Optical length (mm)
40
Ring clamp
yes

General


Material
Aluminium (anodised)
Length (mm)
40
Diameter (mm)
51,8
Weight (g)
208
Series
ClickLock
Colour
black
Type of build
Extension & reduction adaptors
Type
Adaptors
Baader Adapter 2" ClickLock SCL clamp (C11-C14) for large SC telescopes

The heaviest load tested up to now:

A complete C14 with SCL clamp and 2" Click-Lock star diagonal.

(It is not recommended following this test setup)

Baader Adapter 2" ClickLock SCL clamp (C11-C14) for large SC telescopes

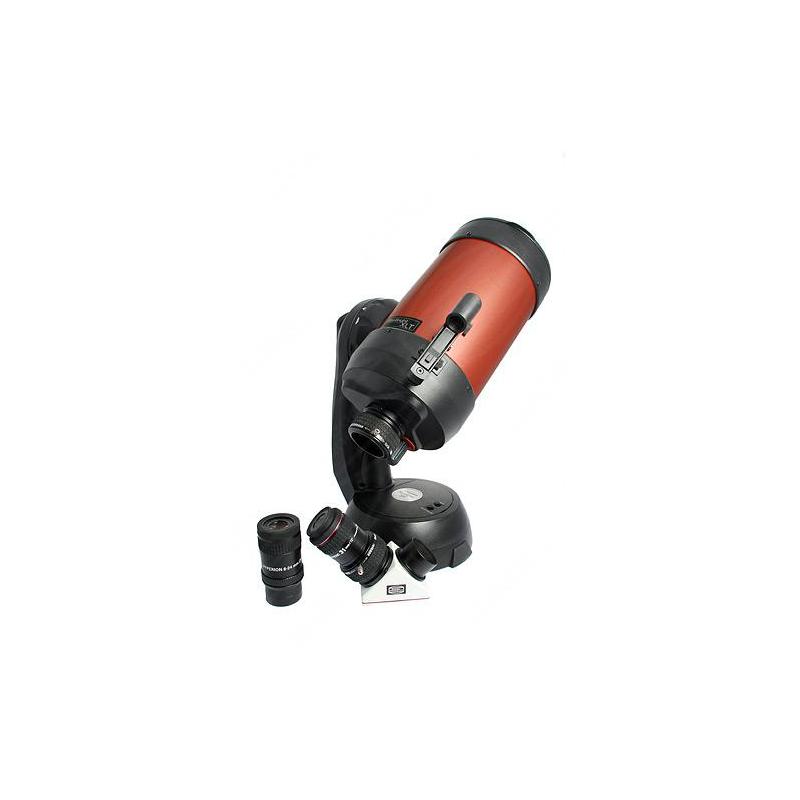

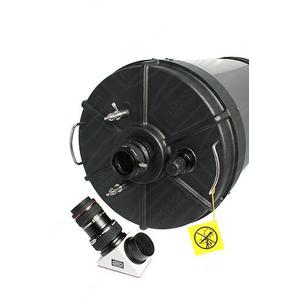

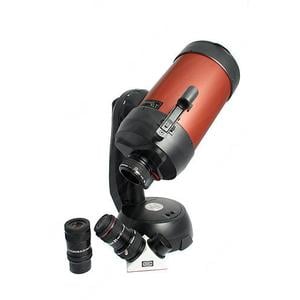

Example of use
