Microscopy > Microscopes > Upright microscopes > Phase contrast microscopes > Motic > BA-310 > Motic Microscope BA310, trino, infinity, phase, EC-plan, achro, 40x-1000x, LED 3W
Product no.: 67720

Microscope BA310, trino, infinity, phase, EC-plan, achro, 40x-1000x, LED 3W

$ 3,700.00 incl. VAT plus shipping costs
too expensive?
short-term
ready for shipping in 1-2 weeks + lead time

No delivery possible before Christmas. Order a voucher coupon!


Product questions?
advice for Microscopy

Product description

More about the series BA-310...

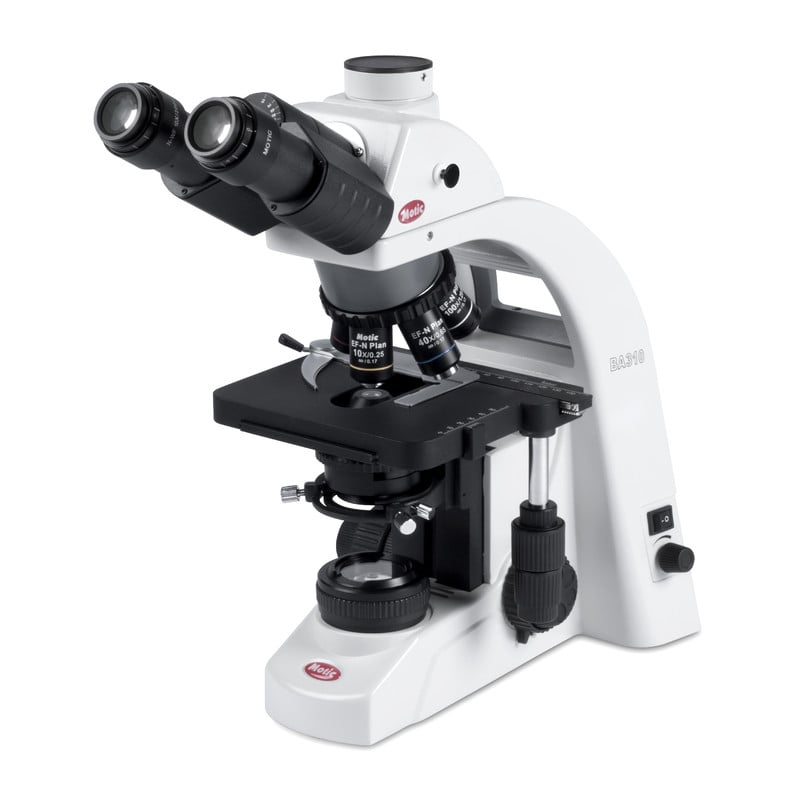

BA310 LED TRINOCULAR

Spezifikation

  • Optical system Colour Corrected Infinity Optical System (CCIS®)
  • Observation tube Trinocular head, Siedentopf type, 360º swiveling
  • Trinocular light split 100:0/20:80 (optional 100:0/0:100)
  • Optical system Colour Corrected Infinity Optical System (CCIS®)
  • Observation tube Trinocular head, Siedentopf type, 360º swiveling
  • Inclination 30º inclined, 360º rotating
  • Trinocular light split 100:0/20:80 (optional 100:0/0:100)
  • Interpupillary distance 48-75mm
  • Diopter adjustment On both eyepieces, +/- 5 diopter
  • Eyepieces Widefield N-WF10X/20mm with diopter adjustment
  • Nosepiece Reversed quintuple
  • Objective classification CCIS® EC Plan Achromatic, DIN
  • Objectives

-4X/0.10 (WD 15.9mm)
-10X/0.25 (WD 17.4mm)
-40X/0.65/S (WD 0.5mm)
-100X/1.25/S-Oil (WD 0.15mm)

  • Objective mounting thread W 4/5"x1/36" (RMS standard)
  • Stand type Upright
  • Stage Mechanical stage with built-in low position coaxial stage control with tension adjustment
  • and 2-sample holder
  • Stage size 175x140mm
  • Travel range X&Y 76x50mm
  • Condenser Focusable and centerable Abbe condenser N.A. 0.90/1.25 with slot for contrast sliders
  • Diaphragm Iris diaphragm
  • Focus mechanism Coaxial coarse and fine focusing system with tension adjustment
  • Fine focus precision 2μm
  • Focusing stroke 20mm
  • Upper limit stop Upper limit stop preset but adjustable
  • Filter holder On top of the illuminator
  • Transmitted illumination Koehler LED 3W with intensity control
  • Transformer Internal
  • Power supply 100-240V (CE)
  • Accessories included

  1. Dust cover
  2. power cord
  3. Hex key
  4. Immersion oil (5ml)
  5. spare fuse
  6. cord hanger
  7. thumb screw

  • Dimensions LxWxH 400x220x400mm
  • Net weight 8.6kg
  • Contrast: phase contrast

Specifications

Optics

Eyepiece
10
Lens type
Plan, achromatic
Lamp type
LED
Condensor
Abbe condenser (NA 1.25), with slider slot, centering and iris
Lighting
Transmitted light
Magnification
1000
Optical system
infinity
Objective 1
4x/0.10 wd 15.9 mm
Objective 2
10x/0.25 wd 17.4 mm phase
Objective 3
40x/0.65/S wd 0.5 mm phase
Objective 4
100x/1.25/S-Oil wd 0.15 phase

Capacity

brightfield
yes
Contrast methods
Phase contrast

Mechanics

Type of build
Trinocular
Focusing
Coarse and fine movement (0.002mm graduation, with locking function as object protection)
Viewing posture (°)
30° oblique viewing, 360° rotating head
Specimen stage
Cross table (175x140 mm, Translation: 76x50 mm)

Special features

Dust cover bag
yes
Filter holder
yes
Wide-angle eyepiece
yes

General

Width (mm)
220
Colour
grey/black
Weight (g)
8600
Height (mm)
400
Series
BA-310
Length (mm)
400

Contrast methods

Phase contrast
yes

Field of application

Medicine
yes
Biology
yes
Education
yes

Area of application

Interference contrast
-
Metallurgy
-
Veterinary medicine
yes
Gynecology
yes
Central laboratories
yes
Botany
yes
Microbiology
yes
Cytology & Pathology
yes
University
yes
Marine Biology
yes

Miscellaneous

supplier product number
1200100401512
show more...

Product safety

manufacturer: Motic Deutschland GmbH, Christian-Kremp-Straße 11, 35578 Wetzlar, DE, http://www.moticeurope.com/
Product safety

Recommended accessories

Microscopy > Microscopy accessories (62)

Motic rotateable phase-contrast condenser, 5-fold (light field, dark field, PH1, PH2, PH3)

$ 540.00*
+ Show more accessories in this category: 61
Microscopy > Other (2)

Bresser Immersion oil, 5ml, refractive index=1.515

$ 10.90*
Baseprice: $ 2,180.00/L
+ Show more accessories in this category: 1
Maintenance & Cleaning > Lens cleaners (3)

Omegon 7-in-1 lens cleaning set

$ 19.90*
+ Show more accessories in this category: 2
Maintenance & Cleaning > Other (2)

Omegon microfibre cleaning cloth 20cm x 20cm

$ 4.90*
+ Show more accessories in this category: 1

*All prices include VAT plus shipping costs.

show more...
Motic Microscope BA310, trino, infinity, phase, EC-plan, achro, 40x-1000x, LED 3W

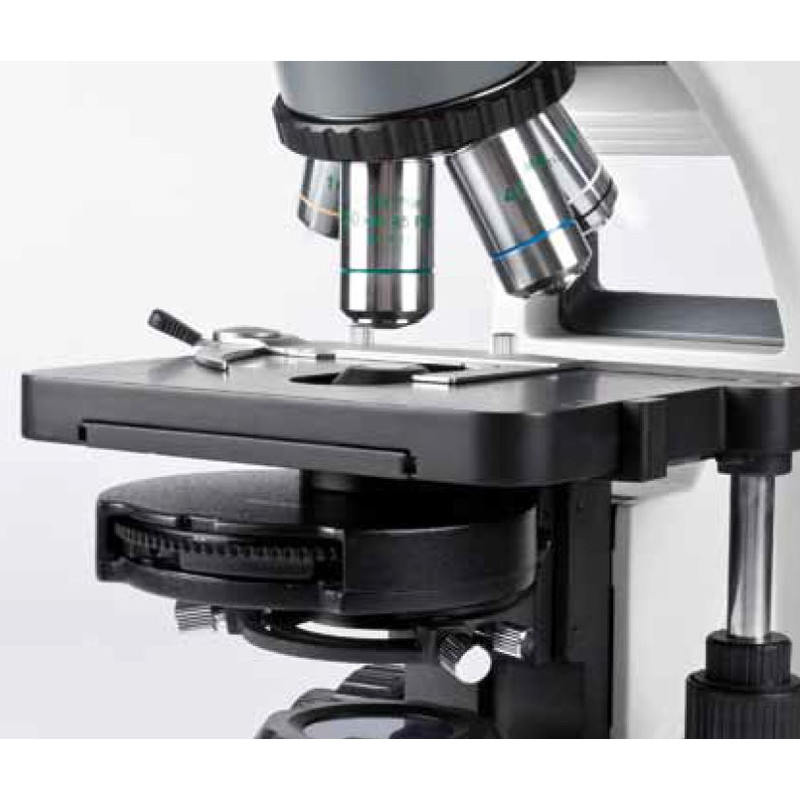

Phase Contrast - Turret condenser
