Riflescopes > Instrumenten > Vixen > Artes > Vixen Richtkijker 5-30x56 Artes ED, SF, ISC20
Artikelnummer: 56306

Richtkijker 5-30x56 Artes ED, SF, ISC20

lange termijn
Klaar voor verzending in 6-10 weken + verzendtijd

Productomschrijving

Helaas is deze beschrijving nog niet in het Nederlands vertaald. U vindt hier dus een Engelse artikelbeschrijving.

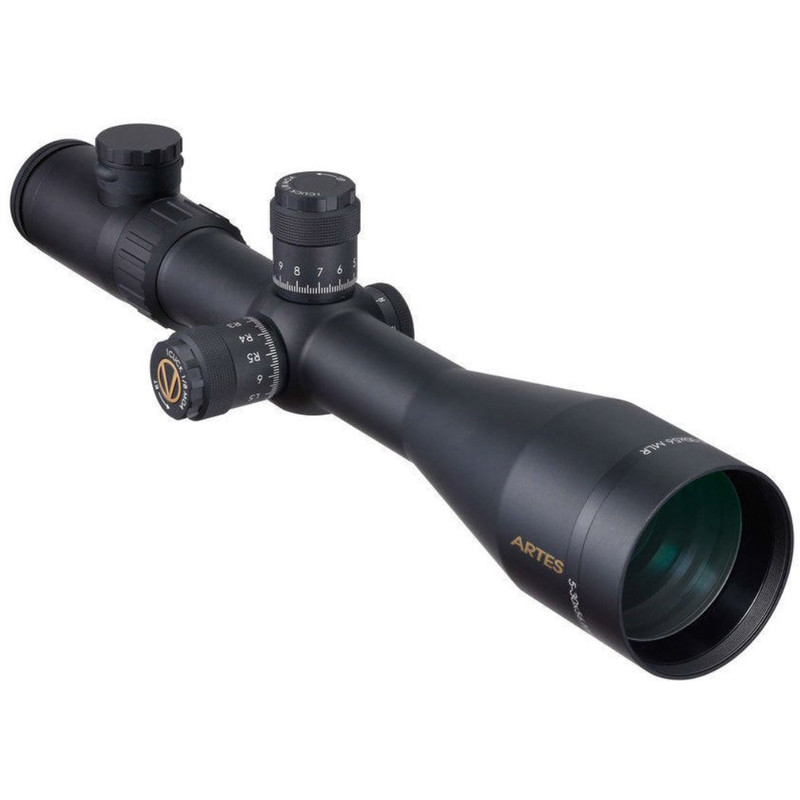

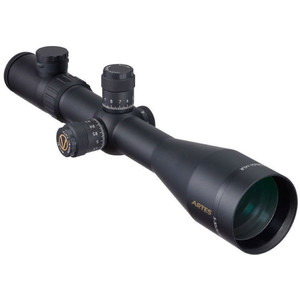

ARTES 5-30x56 ED 34mm

Vixen took up the challenge to design a riflescope for hunters in the vast plains of Africa and have come up with the ARTES 5-30x56 ED.

The ARTES 5-30x56 ED is a specialist for targets at distances of 1,000m and beyond. Vixen decided to construct the ARTES 5-30x56 ED with a 34mm central tube diameter in order to ensure sufficient space for a large adjustment range (100 MOA for height and lateral adjustment). The height and lateral adjustment may be zeroed without a tool and have an internal zero stop. They also feature a very solid but quiet click which helps you to make accurate adjustments without distraction. Special attention has been paid here to usability with gloves. Parallax compensation is absolutely necessary at the long distances and high magnification for which the ARTES 5-30x56 ED has been developed. This ensures that there is no parallax error, and the target is always sharp and clear.

Vixen uses two ED (extra-low dispersion) lenses in order to reduce the system’s chromatic aberration to a minimum and to obtain a very sharp and bright image (maximum light transmission 88%).

Shooting in the desert often means that you are operating in a beige- and red-tone dominated environment. Here, the excellent Vixen Red Dot, as it is known, is not necessarily the best solution. Vixen has solved this problem by enabling the dot (MLR20 0,5MOA) and cross (EDL20) of the ARTES 5-30x56 to be switched between red and green. In both models the illumination switches off automatically after 2 hours. Both sights are MOA based, as are the elevation turrets.

Specificaties

Capaciteit


Ontwerp
variabele vergroting
Minimum vergroting
5
Maximum vergroting
30
Frontlens diameter (mm)
56
Exit pupil bij min. vergroting (mm)
11,2
Exit pupil bij max. vergroting (mm)
1,9
Eye relief (mm)
97
Diopter compensation
+/- 2
Glas materiaal
ED-glas
Lens coating
volledig, meervoudig
Type montage
Montering niet inbegrepen
Centrale buisdiameter (mm)
34

Gezichtsveld


Gezichtsveld bij min. vergroting (m)
7,1
Gezichtsveld bij max. vergroting (m)
1,2
Twilight factor bij min. vergroting
16,7
Twilight factor bij max. vergroting
40,9
Geen parallax over (m)
9 - ∞
Kruisdraad
ISC20
Reticle plane
2e fotovlak
Gebruik dradenkruis
Sporting shooters
100m verstelling per klik
1/8 MOA

Bijzonderheden


Verlicht kruisdraad
ja
Automatische uitschakeling
ja
Hoogteregeling
ja
Laterale regeling
ja
Parallax regeling
ja
Bullet drop compensator
ja
Geïntegreerde afstandsmeter
-
Waterdicht
ja
Dauwvrij
ja
Waterdicht
ja
Beschermkap
ja
Lenskap
-

Algemeen


Kleur
mat zwart
Lengte (mm)
364
Gewicht (g)
978
Lens buitendiameter (mm)
65
Serie
Artes

Toepassing


Pirsch
midden
Raised hide
goed
Drijfjacht
-
Magnum caliber
erg goed
Lange afstand
erg goed
Airgun (< 7,5 Joule)
ja
Airgun (> 7,5 Joule)
-
Handgun
-

Productveiligheid

Fabrikant: Vixen Co. Ltd., 5-17-3 Higashi-Tokorozawa Tokorozawa-shi, 359-0021 Saitama, JP, www.vixen.co.jp
Verantwoordelijke persoon: NIMAX GmbH, Otto-Lilienthal-Str. 9, 86899 Landsberg am Lech, DE, info@nimax.de

Aanbevolen accessoires

Onderhoud > Lens cleaners (4)

Zoomion reinigingssysteem

$ 7,90*
Onderhoud > Andere (2)

Omegon microvezel reinigingsdoekje 20cm x 20cm

$ 5,90*

*Alle prijzen zijn inclusief BTW + verzendkosten.

Vixen Richtkijker 5-30x56 Artes ED, SF, ISC20

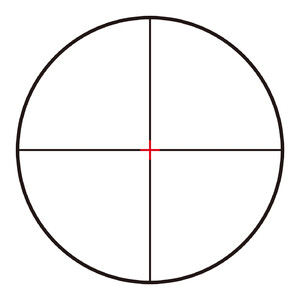

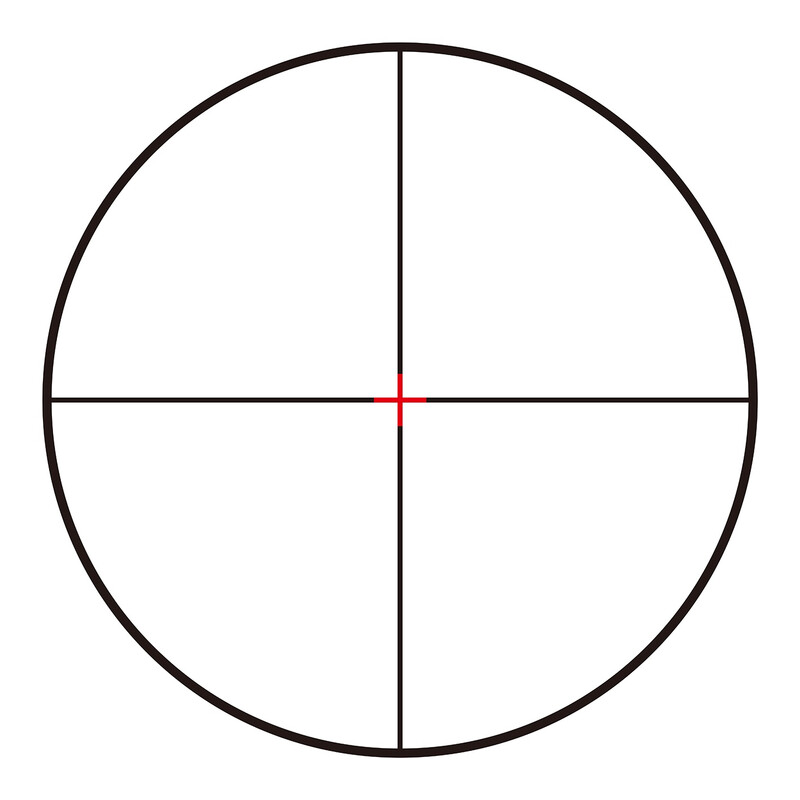

Afbeelding van het dradenkruis
