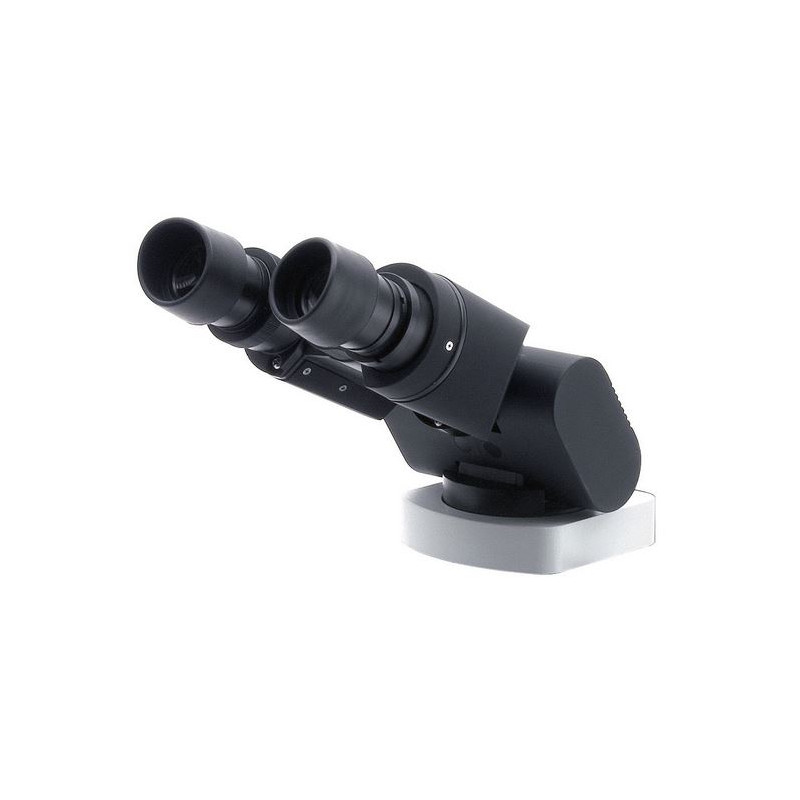

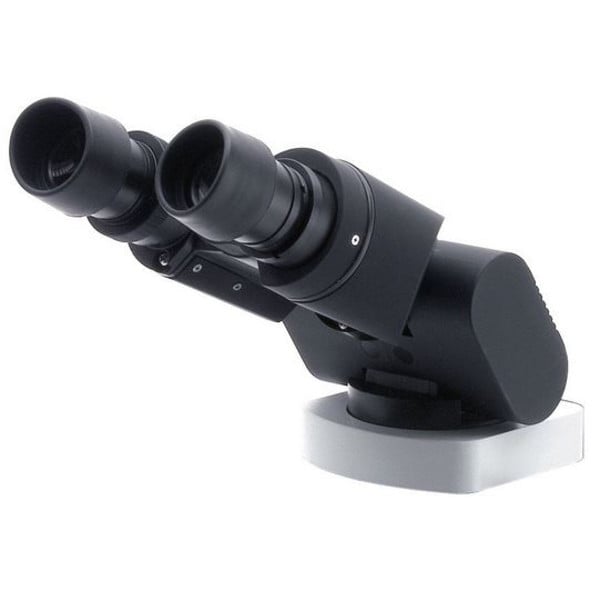

M-1012 ergonomic binocular microscope head

M-1012 ergonomic binocular microscope head

M-1010 - M-1011 - M-1012 - M-1013

Model: Observation heads

Description: Optical observation heads for B-800 and B-1000

Output ports Models available:

- Trinocular head with 2 positions (ratios 100/0, 50/50) (M-1010)

- Trinocular head with 3 positions (ratios 100/0, 50/50, 0/100) (M-1011)

- Binocular ergonomic head (M-1012)

- Trinocular ergonomic head (ratios 100/0, 50/50) (M-1013)

Inclination:

Trinocular head: 30°

Binocular ERGO head: 30°- 60°

Trinocular ERGO head: 5° - 35°

Rotation Heads: can be rotated by 360°

Interpupillary adjustment: 50 mm - 75 mm

Diopter adjustment +- 5 diopter adjustment

Notes Photo tube (internal diameter 23mm) included in Trinocular ERGO head.

Eyepieces NOT included with heads.
