Mirini > Instrumenti > Meopta > ZD > Meopta Mirino ZD 6-24x56 RD, reticolo Mil Dot 2
Prodotto n.: 46905

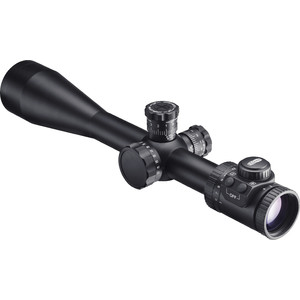

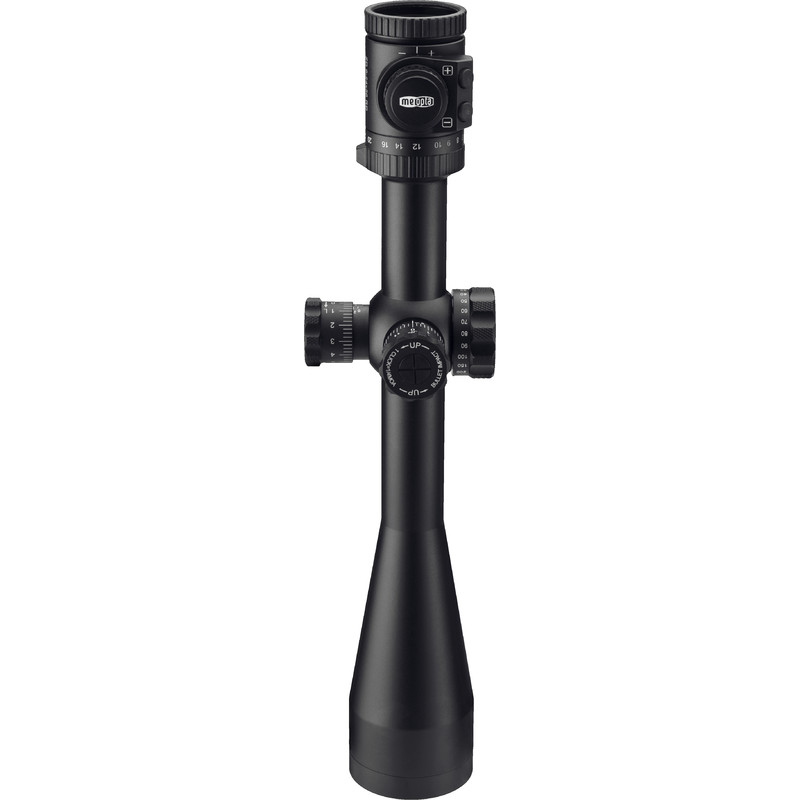

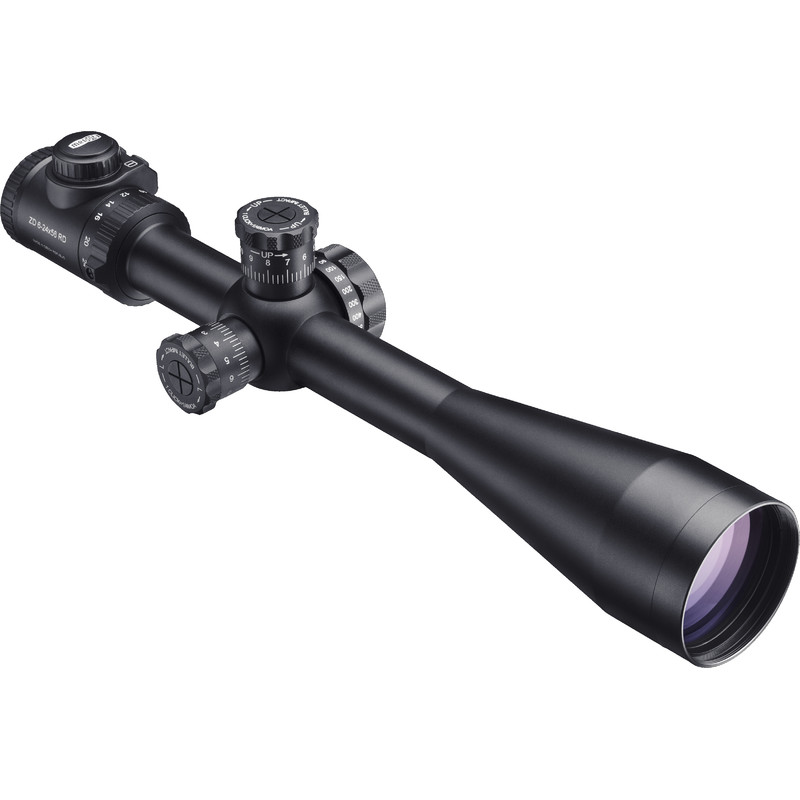

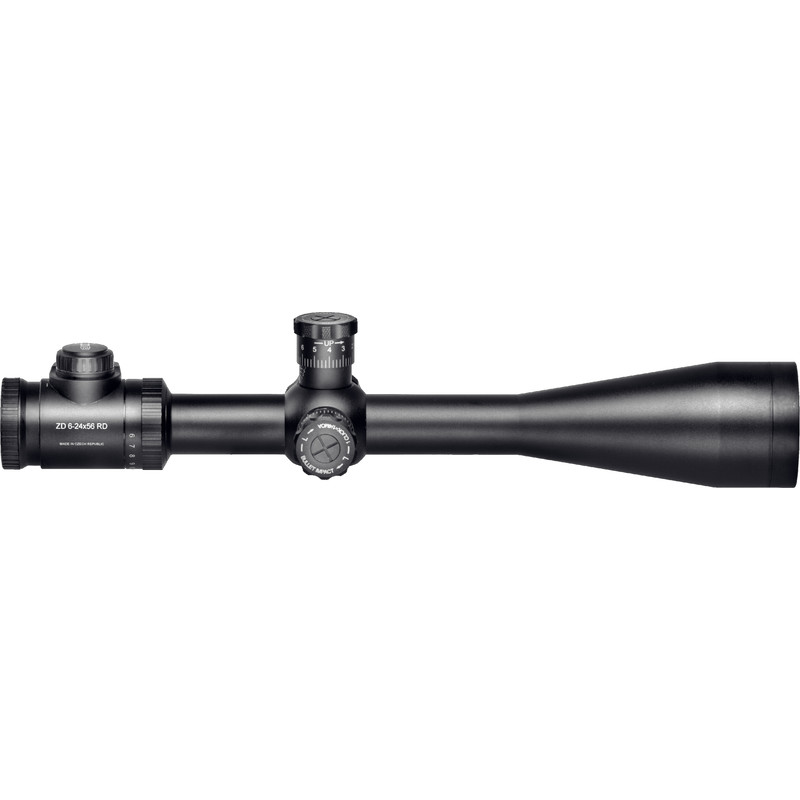

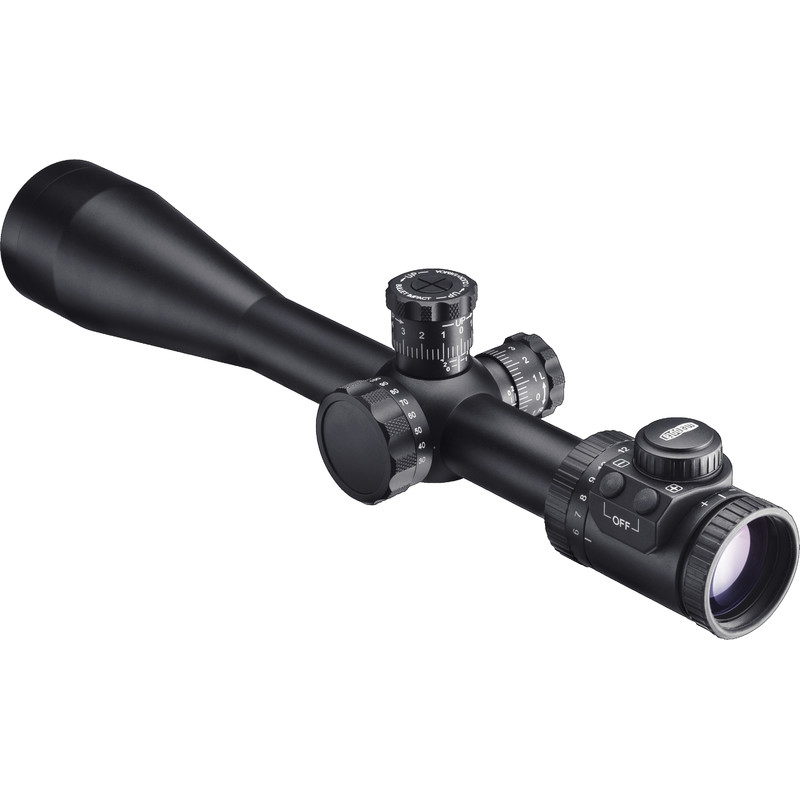

Mirino ZD 6-24x56 RD, reticolo Mil Dot 2

Prezzo di vendita consigliato: $ 1.820,00 Il nostro prezzo:
$ 1.640,00 IVA incl. più spese di spedizione
troppo caro?
a lungo termine
Prodotto non più disponibile + Tempo di trasporto

Descrizione prodotto

Per saperne di più sulla serie ZD...

Purtroppo, questa descrizione non è stato tradotto in italiano, in modo da trovare a questo punto una descrizione inglese.

ZD Tactic Riflescope Series

Victory over darkness. Designed and engineered for absolute optical performance and a clear tactical advantage our new ZD Tactic riflescopes are utilized by military, special forces units, tactical squads and law enforcement agencies around the globe. ZD Tactic scopes feature a rugged, uncompromising construction designed to take the punishment of combat as well as the rigors of competition and serious precision shooting. Built around a 30mm main tube platform ZD Tactic riflescopes deliver the superior resolution, low light performance and quick handling needed to prevail when everything is placed on the line.

ZD 6-24x56 RD - Long range riflescope developed for sniper rifles.

The ZD 6-24x56 RD is a precision long range riflescope developed for sniper rifles in order to achieve deadly-accurate shot placement at extreme distances. The new Mil Dot 2 illuminated reticle with integrated range-finding markers is calibrated for accurate target estimation in standard calibers 7.62x51 NATO, .308, .338 WM and 12.7 mm. Third turret parallax adjustment ranges from 25 m to infinity, guaranteeing precision aiming at any desired range. Advanced illumination system situated on the ocular offers pushbutton control of the illumination with 256 settings for bright and adverse lighting conditions.

ZD Tactic Riflescope - Features:

  • RD Illuminated Reticle System - RD equipped riflescopes feature a highly defined illuminated red dot reticle. A third turret controller allows the user to choose between a minimum of seven reticle intensity settings for extremely low-light to bright daylight conditions. Intermediate off positions between every setting allows the user find their preferred illumination setting quickly.
  • MeoBright 5501 - A proprietary ion-assisted lens multi-coating applied to all air-to-glass optical surfaces. Developed by Meopta, MeoBright 5501 ion- assisted multi-coatings eliminate glare and reflections and delivers an industry leading 99.8% light transmission per lens surface.
  • MeoShield - MeoShield ion-assisted coating protects external lens surfaces and delivers enhanced resistance to scratching or abrasion in extreme conditions. MeoShield meets military specifications for durability and surface hardness.
  • MeoTrak II Elevation and Windage Control - MeoTrak II posi-click finger adjustable windage and elevation turrets deliver precise, ¼ MOA (0,7cm / 100m) click adjustment with superior repeatability, unparalleled tracking capability and ultimate accuracy. Positive tactile and audible clicks ensure accurate zeroing and adjustability in the field.
  • MeoQuick - MeoQuick fast-focus eyepiece rapidly brings your target into sharp focus and provides extra diopter travel to accommodate a wider range of visual acuity variations.
  • Lens Components - Individual lens components are meticulously ground and polished in-house and precisely matched for superior performance.
  • Etched Glass Reticle - Precision etched glass reticle delivers exceptional target definition for all shooting applications.
  • Erector System - Developed to provide maximum holding force to withstand heavy caliber recoil.
  • 30mm Main Tube Construction - One piece, aircraft grade aluminum 30mm main tube is “ELOX” hard anodized for an incredibly durable, scratch resistant, non-reflective matte black finish.
  • Waterproof - All riflescopes are 100% guaranteed waterproof, submersible and are fully protected against humidity, rain and snow.
  • Fogproof - All riflescopes are purged and sealed with inert Nitrogen gas to provide 100% guaranteed fogproof performance.
  • Shockproof - All riflescopes are 100% guaranteed shockproof to withstand impacts and heavy caliber recoil.
  • 10 Years Transferable Warranty - All tactical riflescopes carry Meopta’s 10 Years Transferable Warranty (after registration).

Specifiche

Prestazioni


Tecnica di fabbricazione
Ingrandimento variabile
Ingrandimento minimo
6
Massimo ingrandimento
24
Diametro della lente frontale (mm)
56
Estrazione pupillare (mm)
89-80
Compensazione diottrica
+/- 3
Rivestimento lente
completo, multiplo
Tipo di montatura
Montaggio non compreso
Diametro del tubo al centro (mm)
30
Pupilla d'uscita all'ingrandimento massimo (mm)
2,3
Pupilla d'uscita all'ingrandimento minimo (mm)
9,1

Campo visivo


Regolazione per clic a 100m
0,7 cm
Reticolo
Mil Dot 2
Piano reticolo
secondo piano d'immagine
Fattore crepuscolare all'ingrandimento minimo
18,3
Fattore crepuscolare all'ingrandimento massimo
36,7
Campo visivo all'ingrandimento minimo (m)
5,6
Campo visivo all'ingrandimento massimo (m)
1,5
utilizzo del reticolo
Tiratori sportivi

Particolarità


Reticolo illuminato
si
Regolazione dell'altezza
si
Regolazione laterale
si
Regolazione parallasse
si (Correttore di parallasse laterale)
Tappo di protezione
si
Paraluce
-
Impermeabile
si
Anticondensa
si
Impermeabile
si
Misuratore di distanza integrato
-
Spegnimento automatico
-
Regolazione rapida del reticolo
si

Generale


Colore
nero opaco
Lunghezza (mm)
386
Peso (g)
865
Serie
ZD
Diametro esterno dell'oculare (mm)
62
Diametro esterno dell'oculare (mm)
44,5
Lunghezza del tubo centrale (mm)
170

Campi di utilizzo


Caccia
-
Posta
buono
Caccia in battuta
-
Calibro magnum
buono
grande distanza
ottimo
Fucile ad aria compressa (< 7,5 Joule)
-
Fucile ad aria compressa (> 7,5 Joule)
-
Pistola
-

Varie


Tipo di batteria
CR 2354 1x

Sicurezza del prodotto

Produttore: Meopta s.r.o., Kabelíkova 1, 750 02 Přerov, CZ, www.meopta.com/en/sport-lifestyle/
Persona responsabile: Frankonia Handels GmbH & Co. KG, Schießhausstr. 10, 97228 Rottendorf, DE, info@frankonia-b2b.de

Accessori raccomandati

Cura & Pulizia > Liquidi e kit per pulizia (4)

Zoomion sistema di pulizia

$ 7,90*
Cura & Pulizia > Altro (2)

Omegon Panno in microfibra 20cm x 20cm

$ 5,90*

*Tutti i prezzi includono IVA e costi di spedizione.

Meopta Mirino ZD 6-24x56 RD, reticolo Mil Dot 2

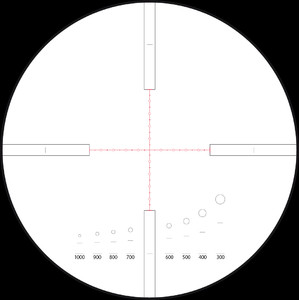

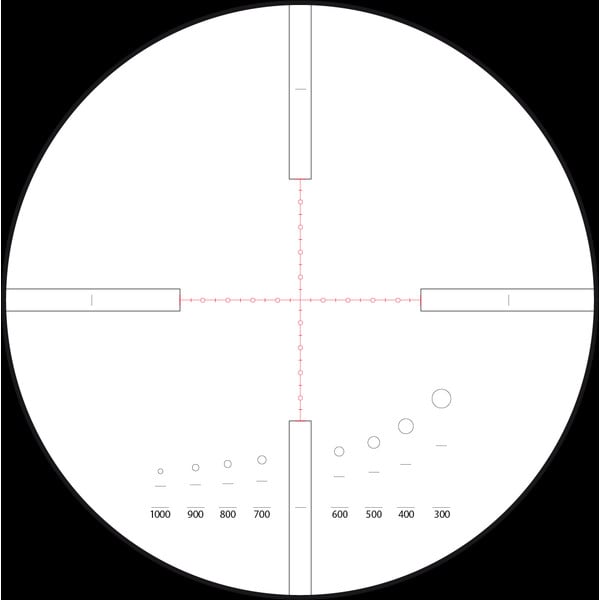

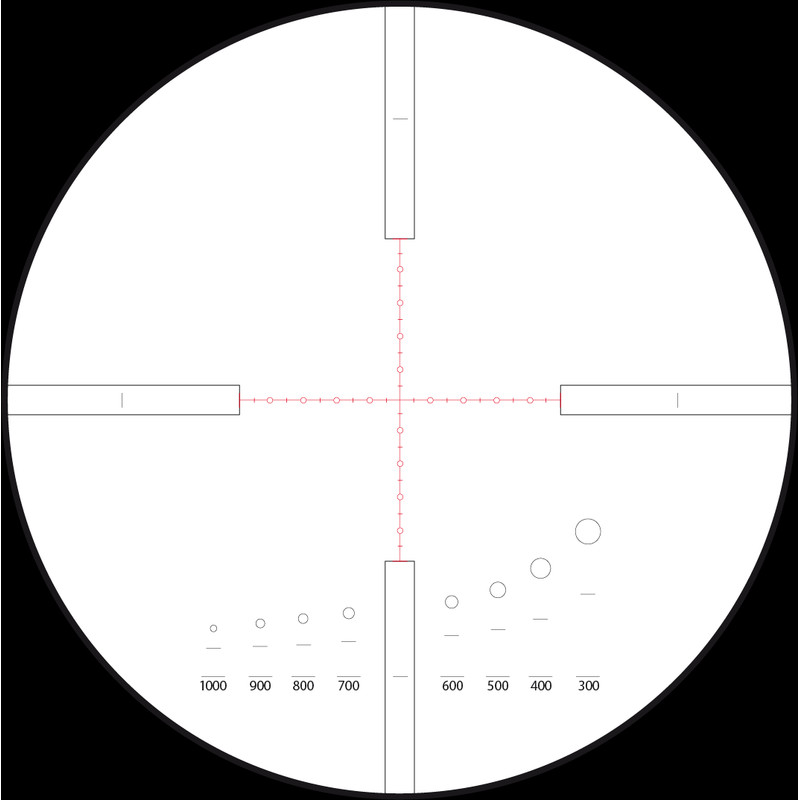

Immagine del reticolo
