Microscopy > Microscopes > Inverted microscopes > Motic > AE2000 MET > Motic Inverted microscope AE2000 MET, trino, 50x-500x, LM, Darkfield, 100W
Product no.: 45023

Inverted microscope AE2000 MET, trino, 50x-500x, LM, Darkfield, 100W

$ 8,500.00 incl. VAT plus shipping costs
too expensive?
short-term
ready for shipping in 1-2 weeks + lead time

No delivery possible before Christmas. Order a voucher coupon!


Product questions?
advice for Microscopy

Product description

More about the series AE2000 MET...

AE2000MET

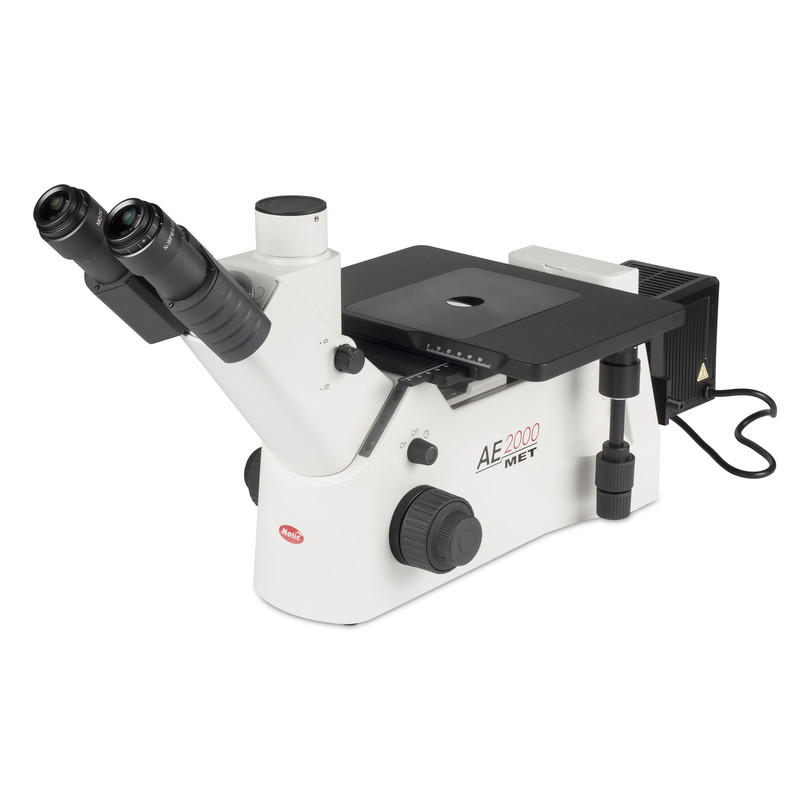

Inverted Metallurgical Microscope

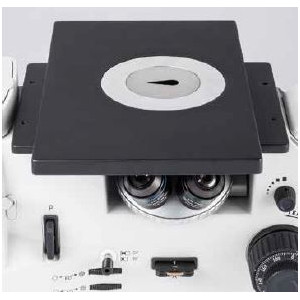

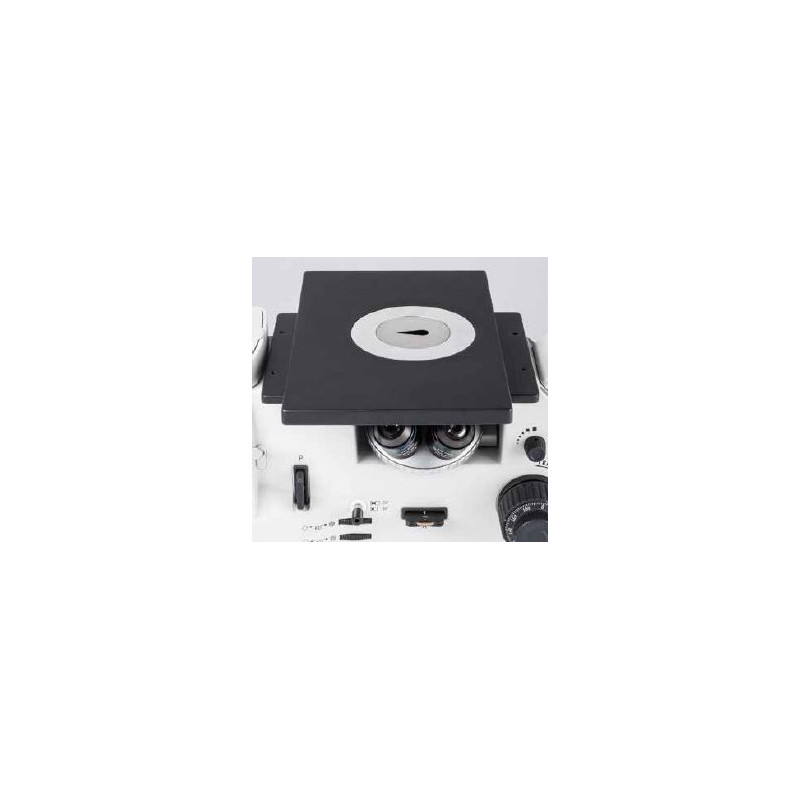

The AE2000-MET Inverted metallurgical microscope is especially designed for large, opaque samples in industrial inspection. Heavy specimen from automotive industry can perfectly be treated, as focusing of the sample is done by the 5-fold nosepiece. The smooth movement of the 3-plate stage allows a

precise positioning. Highlight of this microscope system is a complete series of LM Plan Achromatic objectives. This set delivers excellent images with high contrast and resolution in Bright field as well as in Dark field use.

All BF objectives from BA310-MET series can also be used without restrictions in optical performance. The powerful 50W Halogen light source gives plenty of resources for light consuming methods like Darkfield and POL contrast. An implemented “AUTO-OFF” mode turns off the illumination after 15 minutes.

An exemplary manufacturing quality guarantees a long lifetime of the instrument even under rough conditions of an industrial manufacturing process.

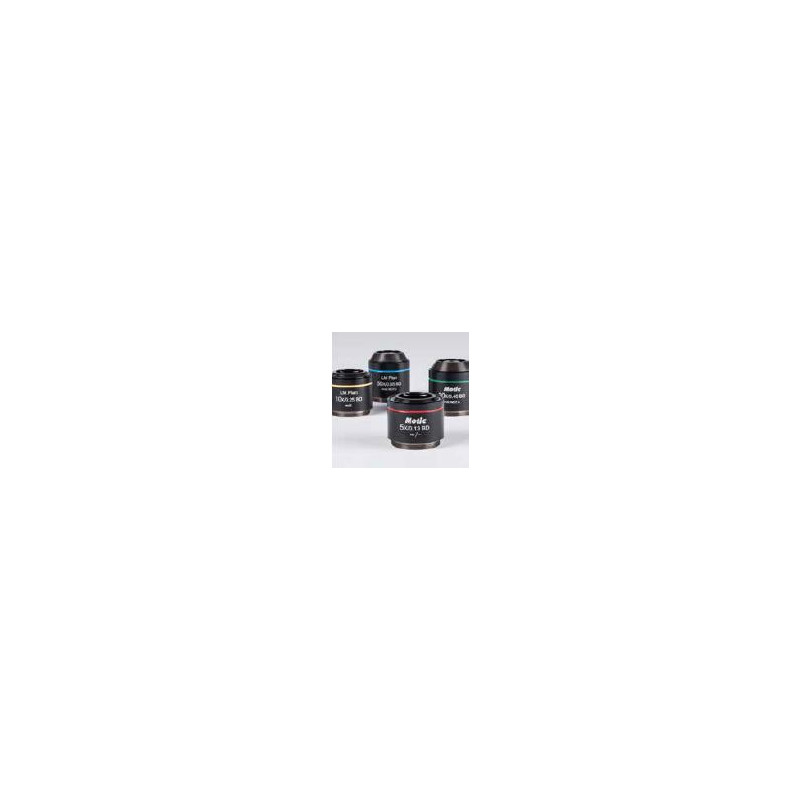

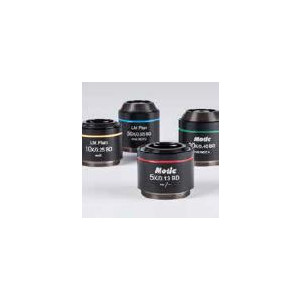

Highlight of this microscope system is a complete series of LM Plan Achromatic BF/DF objectives.

Specifications

Optics

Magnification
500
Eyepiece
10
Lens type
Plan, achromatic (Infinity corrected, CCIS LM plan achromatic, DIN 45mm; 5X/013 (WD 20.3mm), 10X/0.25 (WD 17.5mm), 20X/0.4 (WD 8.1mm), 50X/0.55 (WD 8.4mm))
Lighting
Incident light
Lamp type
Halogen

Capacity

brightfield
yes
Dark field
yes
Contrast methods
Dark field

Mechanics

Type of build
Trinocular
Focusing
Coarse and fine movement (coaxial, with 0.002 mm division)
Viewing posture (°)
45° angled eyepiece, 360° rotatable
Specimen stage
Cross table

Special features

Centering stage
-
Dust cover bag
yes
Filter holder
-
Wide-angle eyepiece
yes

General

Colour
grey/black
Weight (g)
13000
Length (mm)
673
Width (mm)
280
Height (mm)
345
Series
AE2000 MET

Field of application

Industry
yes

Area of application

Interference contrast
-
Metallurgy
yes
Mineralogy
yes
Semiconductor technology
-
Materials technology
yes
show more...

Product safety

manufacturer: Motic Deutschland GmbH, Christian-Kremp-Straße 11, 35578 Wetzlar, DE, http://www.moticeurope.com/
