Binoculars > Instruments > Newcon Optik > AN > Newcon Optik Binoculars AN 7x50, Reticle M22
Product no.: 54527

Binoculars AN 7x50, Reticle M22

$ 770.00 incl. VAT plus shipping costs
too expensive?
long-term
Product not available anymore + lead time

No delivery possible before christmas
Check alternatives on stock or order a voucher!


Product description

Newcon-Optik Binoculars
All optical parts in high-end Newcon Optik devices are made of fully multi-coated glass using precise machinery of well-known brands. The main distinguishing feature of our daytime optics is the usage of fast glass lenses. Our professional binoculars are in service with many militaries throughout the world. All binocular models are very durable and can work when competing brands fail. Optional lenses, that are sold separately extend the functionality of our devices. Spotting scopes and telescopes delight nature lovers.

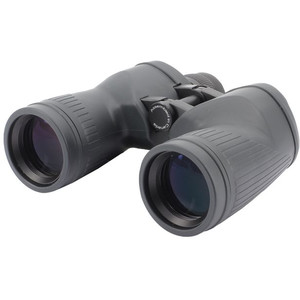

AN 7x50M22
The AN 7x50M22 incorporates BAK-4 Porro prisms and multi-coated lenses, delivering impressive light transmission and resolution for brilliantly clear vision. Non-slip UV-resistant rubber armouring makes this unit comfortable to operate even in cold weather. The AN 7x50M22 incorporates M22 reticles and is built to meet the needs of the most demanding professional operators. It is waterproof and shockproof and adheres to the latest military standards while remaining light and compact.

Specifications

Capacity


Type of build
Porro prisms
Magnification
7
Front lens diameter (mm)
50
Exit pupil (mm)
7,1
Eye relief (mm)
23
Eyepiece cups
folding
Diopter compensation
+/- 5
Diopter-adjustment side
on both sides (Single eyepiece focusing)
Interpupillar distance (mm)
56-74
Glass material
BaK-4
Lens coating
fully, multiple
Focusing system
Single focusing

Special features


Zoom function
-
Eyepieces for spectacle wearers
yes
Image stabilizer
-
Compass
-
Rangefinder
yes (<p>Reticle for estimating distance<p>)
Splash-proof
yes
Watertight
yes
Protection bag
yes
Threaded tripod connector
yes
Lens cover
yes
eyepiece cap
yes
Strap fitting
Loops connector, wide

Field of view


True field of view (°)
8
Field of view at 1,000 m (m)
140
Close focus limit (m)
5
Light intensity
51,0
Twilight factor
18,7

General


Surface material
Rubber armouring
Colour
grey/black
Length (mm)
195
Width (mm)
200
Height (mm)
70
Weight (g)
1550
Series
AN

Area of application


Astronomy
middle
Bird watching
middle
Hunting
good (Raised hide)
Travel and sports
not recommended
Sailing
good
Theatre
not recommended
