Capacity

Minimum magnification

1

Maximum magnification

6

Front lens diameter (mm)

24

Eye relief (mm)

96

Central tube diameter (mm)

30

Lens coating

fully, multiple

Type of mounting

Mounts not included in delivery

Type of build

zoomable magnification

Exit pupil at max. enlargement (mm)

4,0

Exit pupil at min. enlargement (mm)

24,0

Field of view

100 m adjustment per clic

1 cm

Reticle usage

Hunting

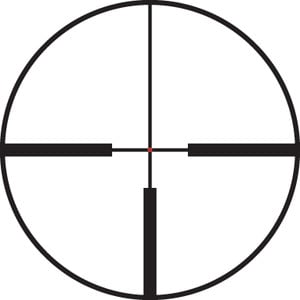

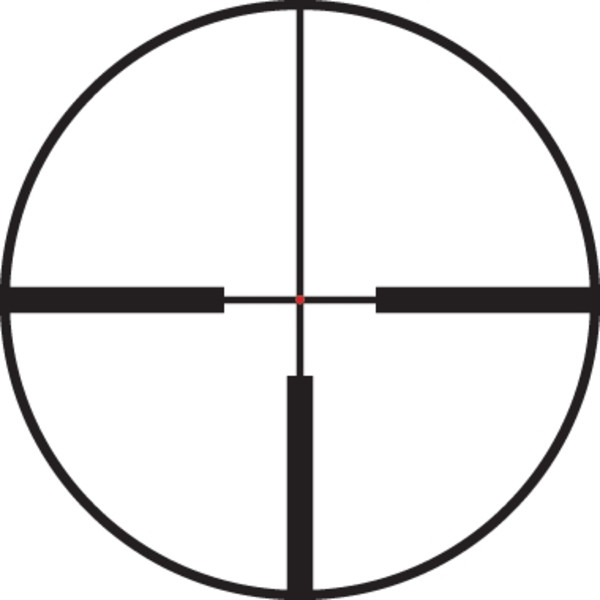

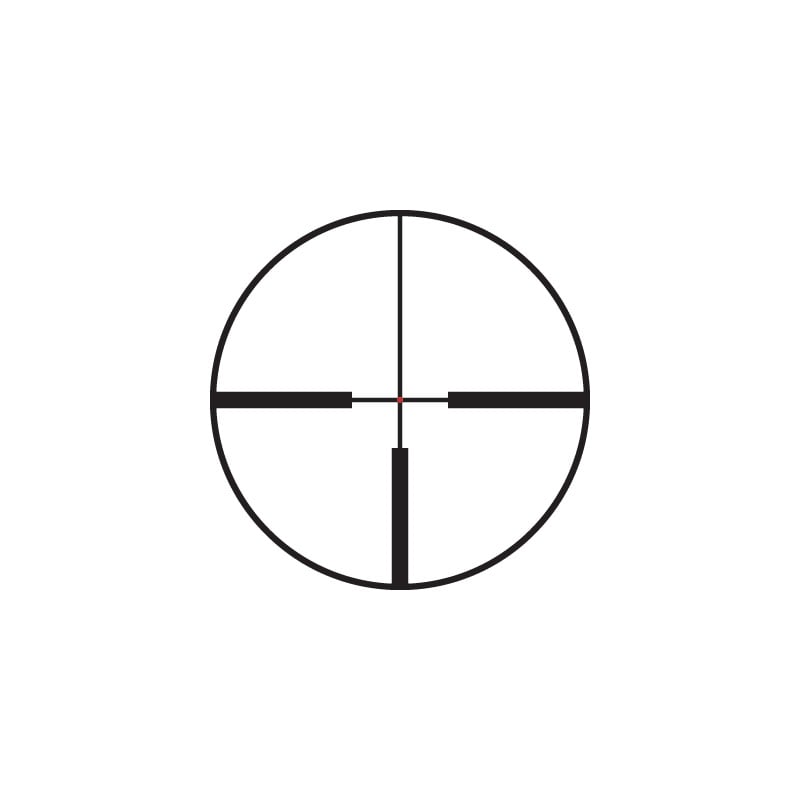

Reticle

Fire Dot 4

Reticle plane

2. focal plane (SFP)

Twilight factor at min. enlargement

4,9

Twilight factor at max. enlargement

12,0

Field of view at min. enlargement (m)

38,6

Field of view at max. enlargement (m)

6,3

Special features

Water-proof

yes

Dew protected

yes

Height adjustment

yes

Lateral adjustment

yes

Automatic switch-off

-

Parallax adjustment

-

Bullet drop compensator

-

Integrated rangefinder

-

Protection cap

yes

Lens hood

-

Watertight

yes

Illuminated reticle

yes

General

Series

VX-6

Length (mm)

272

Weight (g)

380

objective lens outside diameter (mm)

30

eyepiece outer diameter (mm)

46

Central tube length (mm)

188

Colour

matt black

Area of application

Raised hide

middle

Drive hunting

very good

Stalk hunting

very good

Magnum caliber

very good

long distance

-

Airgun (< 7,5 Joule)

-

Airgun (> 7,5 Joule)

-

handgun

-

Miscellaneous

Battery type

CR2032

supplier product number

112320

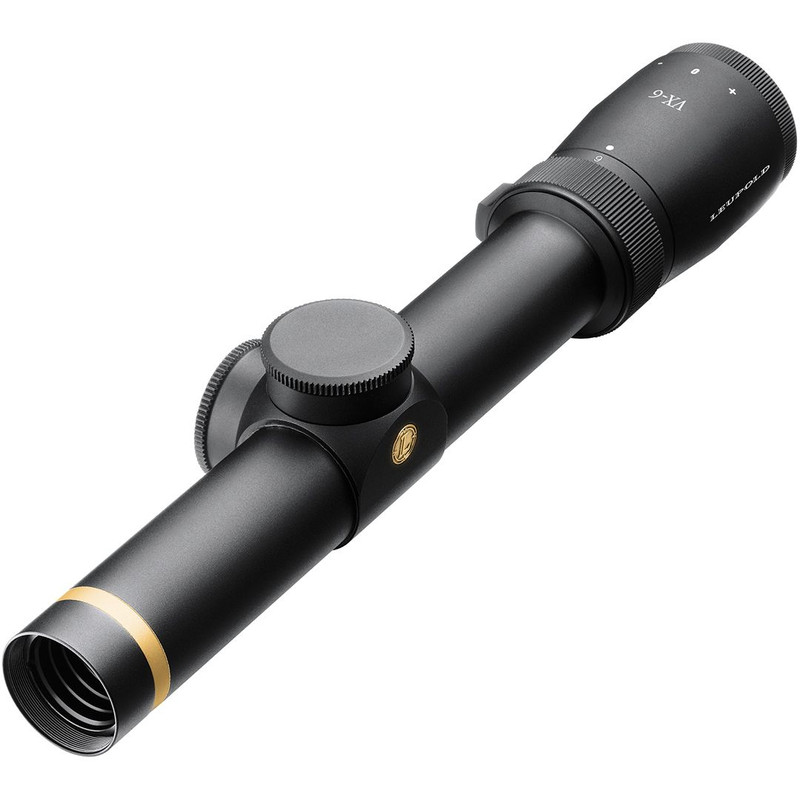

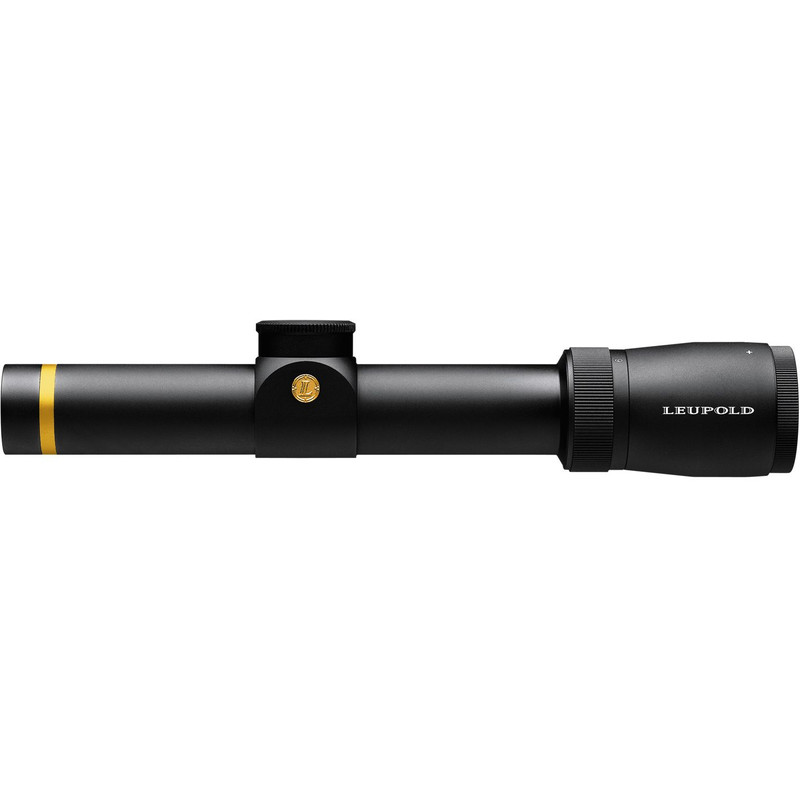

Riflescope VX-6 1-6x24, Fire Dot 4, CDS
