Capacity

Maximum magnification

10

Front lens diameter (mm)

40

Eye relief (mm)

86 - 119

Lens coating

fully, multiple

Type of mounting

Mounts not included in delivery

Central tube diameter (mm)

30

Type of build

zoomable magnification

Minimum magnification

3,5

Exit pupil at min. enlargement (mm)

11,4

Exit pupil at max. enlargement (mm)

4,0

Field of view

100 m adjustment per clic

1/4 M.O.A.

Reticle plane

2. focal plane (SFP)

Twilight factor at min. enlargement

11,8

Twilight factor at max. enlargement

20,0

Field of view at max. enlargement (m)

3,7

Field of view at min. enlargement (m)

10,0

Reticle usage

Sporting shooters

Reticle

TMR, beleuchtet

Special features

Height adjustment

yes

Lateral adjustment

yes

Parallax adjustment

yes (75y - infinity)

Protection cap

yes

Lens hood

-

Water-proof

yes

Dew protected

yes

Integrated rangefinder

-

Bullet drop compensator

yes

Watertight

yes

Illuminated reticle

yes

General

Colour

matt black

Length (mm)

343

Weight (g)

553

Series

Mark-4 LR-T

objective lens outside diameter (mm)

46

eyepiece outer diameter (mm)

41

Central tube length (mm)

157

Area of application

Stalk hunting

middle

Raised hide

middle

Drive hunting

-

Magnum caliber

very good

long distance

good

Airgun (< 7,5 Joule)

-

Airgun (> 7,5 Joule)

-

handgun

-

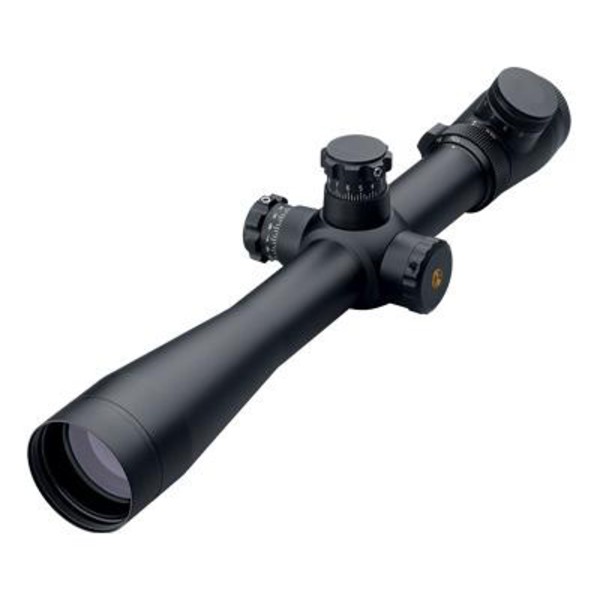

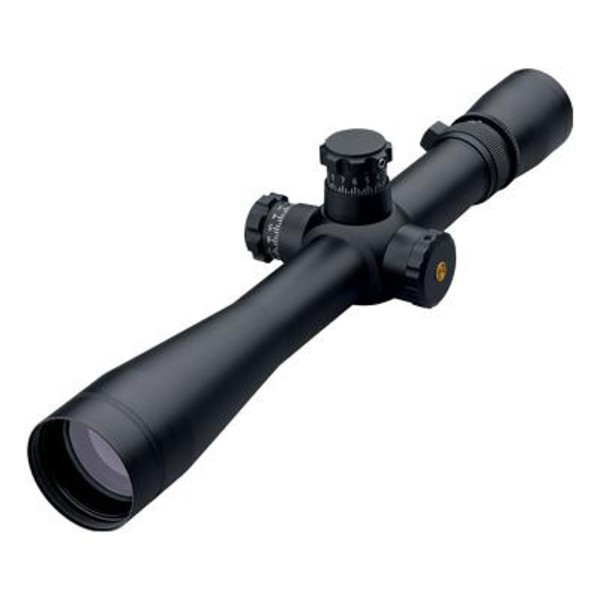

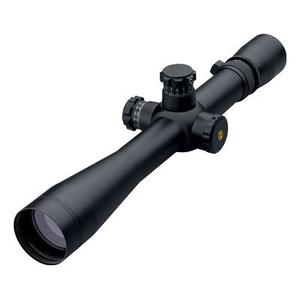

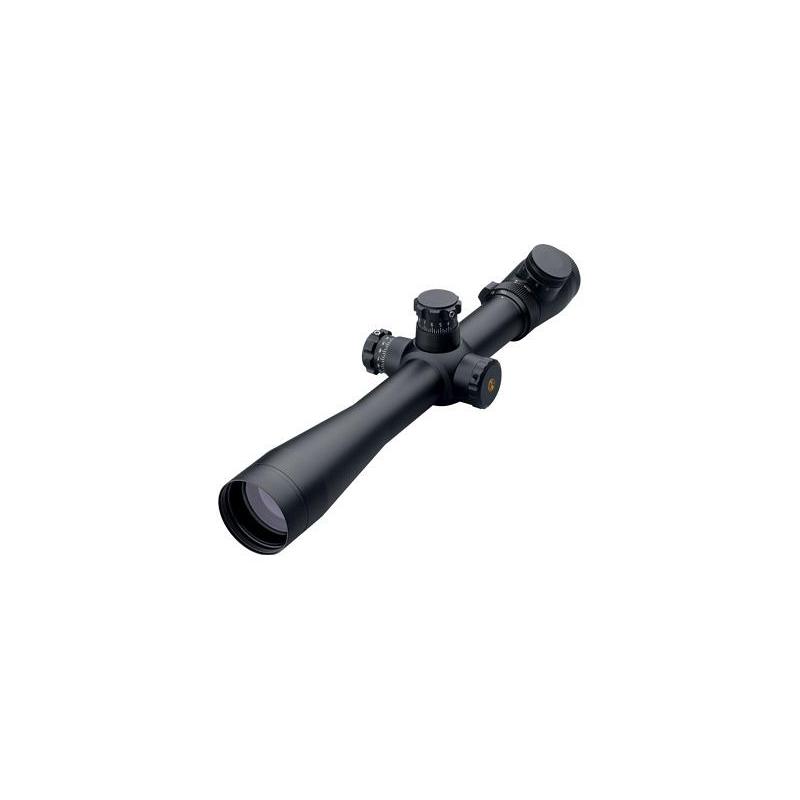

Riflescope Mark-4 3,5-10x40 LR/T M1
