Riflescopes > Instruments > Kahles > K328i > Kahles Riflescope K328i 3.5-28x50 SKMR4+, ccw, left
Product no.: 81961

Riflescope K328i 3.5-28x50 SKMR4+, ccw, left

$ 4,680.00 incl. VAT, plus shipping costs
too expensive?
long-term
ready for shipping in 6-10 weeks + lead time

Product description

Kahles K328i 3,5-28x50i
THE GAME-CHANGER

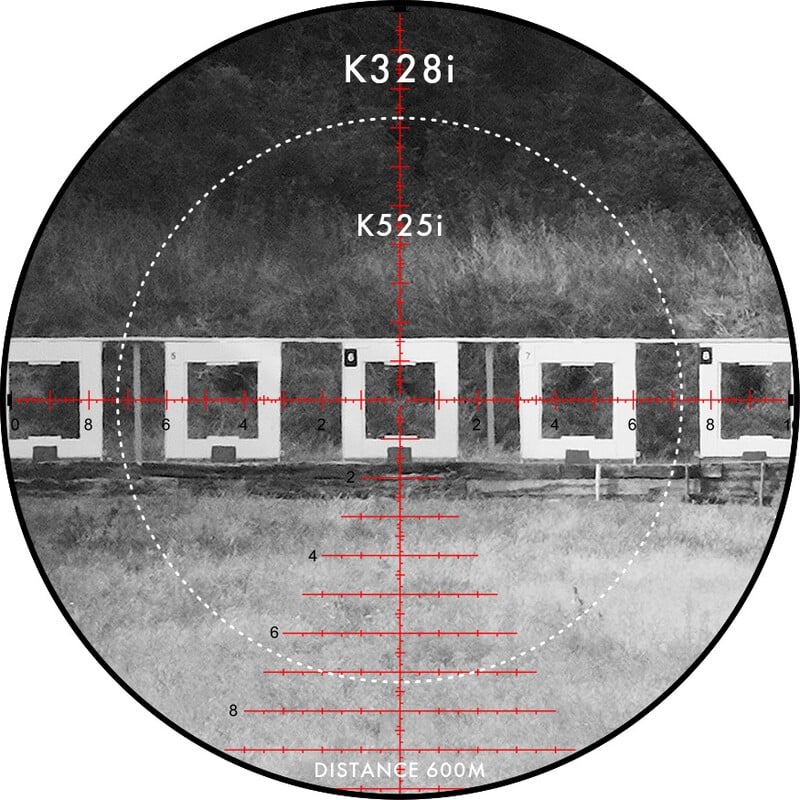

The groundbreaking K328i sets new performance standards with a pioneering new-generation optical design. It offers a 40 % wider field of view*, an exceptionally comfortable eyebox and 8x zoom with perfect optical performance across the entire adjustment range.
*) Based on comparison with the K525i at 25x magnification.

Absolute precision, repeat accuracy and unique handling for maximum performance.

PRODUCT HIGHLIGHTS K328i

  • Revolutionary optical design with a 40 % wider field of view* and an exceptional eyebox
  • 8x zoom with perfect optical performance across the entire adjustment range
  • Windage adjustment on the left or right with TWIST GUARD rotation protection

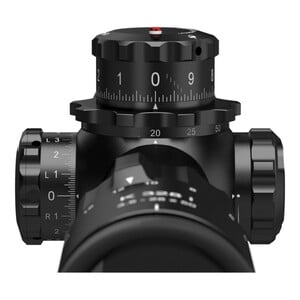

  • Patented parallax adjustment integrated in the elevation turret (20 m to ∞)
  • Absolutely reliable repeat accuracy and clearly defined clicks
  • Precise illuminated reticles in 1st focal plane

1st focal plane
When viewing the reticle in the first image plane, the reticle size also changes when the magnification is changed. The bar spacing and the coverage range remain the same.

Adjustment direction CW or CCW
Depending on the model, elevation and windage are working clockwise (= cw) or counter-clockwise (= ccw).

Height and windage adjustment in MRAD
Clicks in MRAD. 0.1 MRAD correspond to a shift of the point of impact of 1 cm/100 m.

Windage left or right
Superior handling and ergonomics thanks to the unique arrangement of operating elements

Due to the unique arrangement, all operating elements can easily and comfortably be operated with the intuitively preferred hand. Without having to reach over the riflescope or having to move out of the shooting position, all relevant information is always in the visual field. All riflescopes of the K-series have the parallax wheel integrated into the elevation turret. The patented central arrangement on top of the riflescope makes right and left-handed operation equally comfortable. Ergonomically the windage is perfectly placed on the left side for right-handed shooters and on the right side for left-hand shooters.

Zero Stop
The Zero Stop or mechanical stopping point is 3 or 4 clicks below the zero indicator and can be activated after having zeroed the scope. This feature allows to find intuitively and quickly the zero indicator (e.g. in bad light conditions) and to adapt perfectly to special circumstances, such as e.g. high temperatures or very close targets.

Unique TWIST GUARD windage (patented)
The innovative TWIST GUARD windage with it’s freely rotating end cover, reliably prevents accidental movement of the windage. This simple solution not only protects the windage from accidental movement, it also allows the shooter fast and unhindered handling of the windage without the need for cumbersome “locking” and “unlocking”.

Main tube 36 mm
The main tube has a diameter of 36 mm.

Specifications

Capacity


Type of build
zoomable magnification
Minimum magnification
3,5
Maximum magnification
28
Front lens diameter (mm)
50
Exit pupil at min. enlargement (mm)
7,4
Exit pupil at max. enlargement (mm)
1,8
Eye relief (mm)
92
Diopter compensation
+2/-3
Lens coating
fully, multiple
Type of mounting
Mounts not included in delivery
Central tube diameter (mm)
36

Field of view


No parallax over (m)
20 - ∞
100 m adjustment per clic
1 cm
Twilight factor at min. enlargement
13,2
Twilight factor at max. enlargement
37,4
Field of view at min. enlargement (m)
14,3
Field of view at max. enlargement (m)
1,8

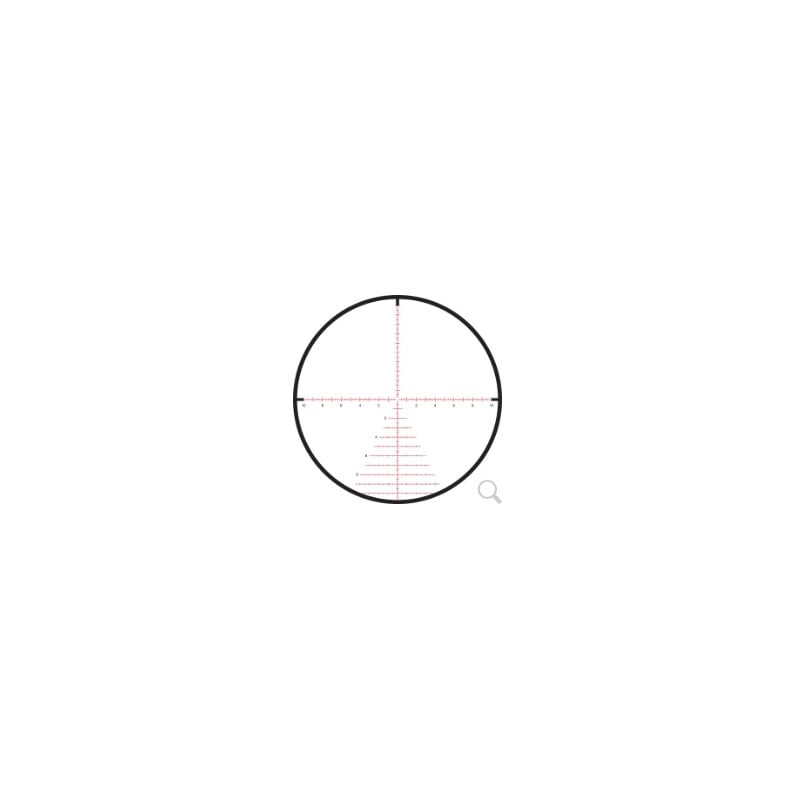

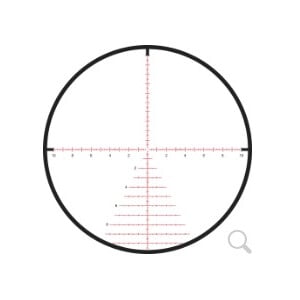

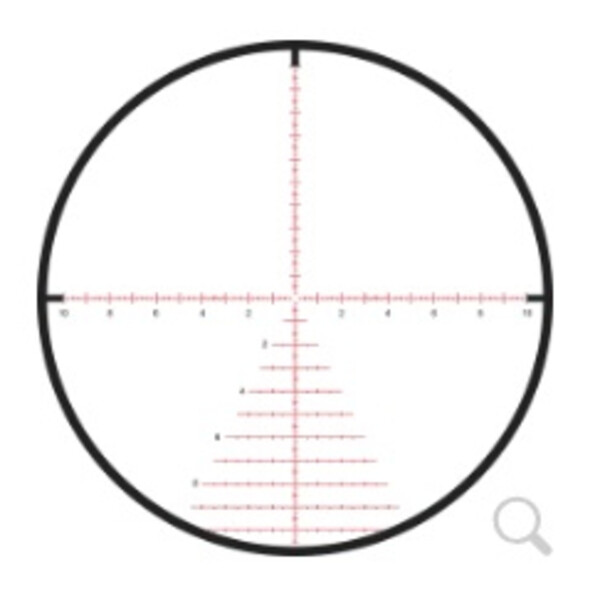

Reticle
SKMR4+
Reticle plane
1st focal plane (FFP)
Reticle usage
Sporting shooters

Special features


Illuminated reticle
yes
Automatic switch-off
-
Height adjustment
yes
Lateral adjustment
yes
Parallax adjustment
yes
Bullet drop compensator
yes
Integrated rangefinder
-
Protection cap
yes
Lens hood
-
Water-proof
yes
Dew protected
yes
Watertight
yes

General


Colour
matt black
Length (mm)
362
Central tube length (mm)
167
Weight (g)
1040
objective lens outside diameter (mm)
56
eyepiece outer diameter (mm)
52
Series
K328i

Area of application


Stalk hunting
middle
Raised hide
good
Drive hunting
-
Magnum caliber
very good
long distance
very good
Airgun (< 7,5 Joule)
-
Airgun (> 7,5 Joule)
-
handgun
-

Miscellaneous


Battery type
CR2032

Recommended accessories

Riflescopes > Accessories (3)

Kahles Parallax Spinner K328i

$ 109.00*
Outdoor (1)

Thermacell Proactive mosquito repellent

$ 38.90*
Maintenance & Cleaning > Lens cleaners (3)

Omegon 7-in-1 lens cleaning set

$ 19.90*
Maintenance & Cleaning > Other (2)

Omegon microfibre cleaning cloth 20cm x 20cm

$ 4.90*
Miscellaneous (1)

Varta CR2032 lithium battery

$ 6.90*

*All prices include VAT plus shipping costs.

Kahles Riflescope K328i 3.5-28x50 SKMR4+, ccw, left

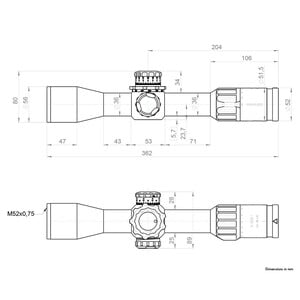

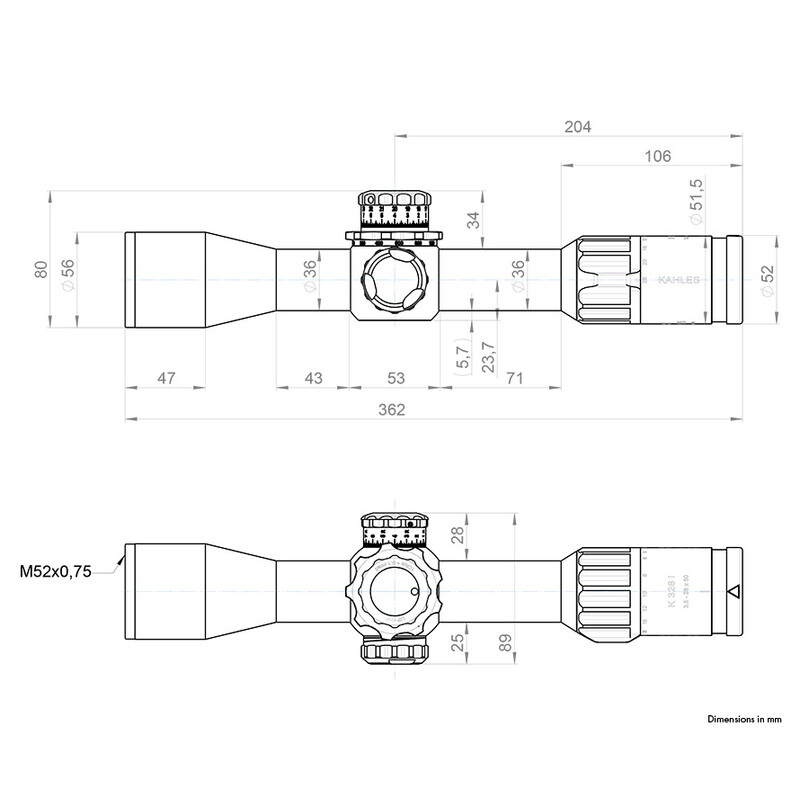

Dimensions
