Capacity

Type of build

zoomable magnification

Minimum magnification

2,5

Maximum magnification

10

Front lens diameter (mm)

50

Exit pupil at min. enlargement (mm)

20

Exit pupil at max. enlargement (mm)

5

Eye relief (mm)

90

Lens coating

fully, multiple

Type of mounting

Mounts not included in delivery

Central tube diameter (mm)

30

Field of view

No parallax over (m)

91

100 m adjustment per clic

1/4 MOA

Twilight factor at min. enlargement

11,1

Twilight factor at max. enlargement

22,3

Field of view at min. enlargement (m)

16,8

Field of view at max. enlargement (m)

4,2

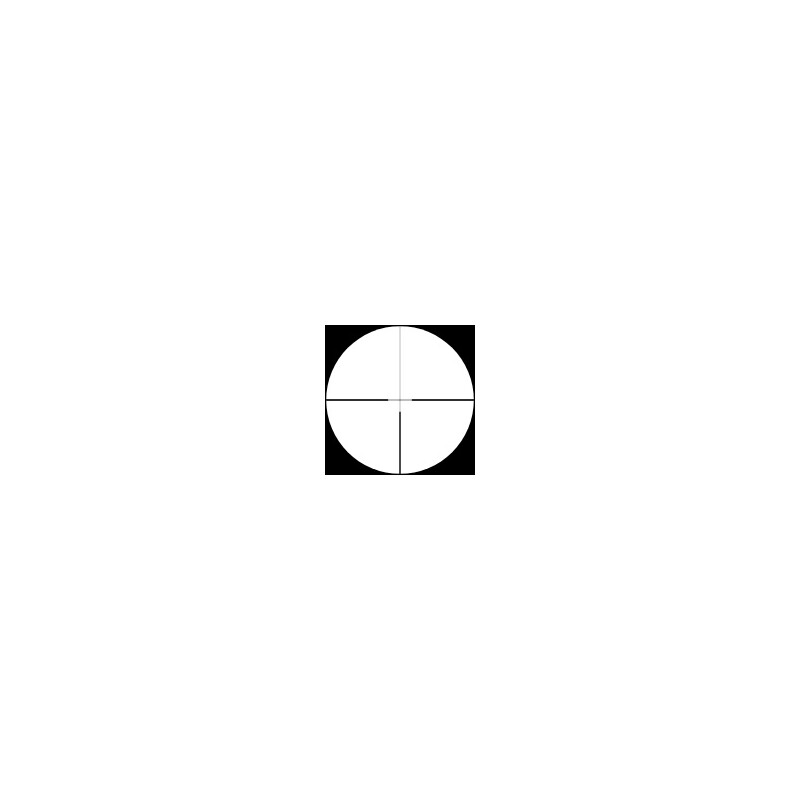

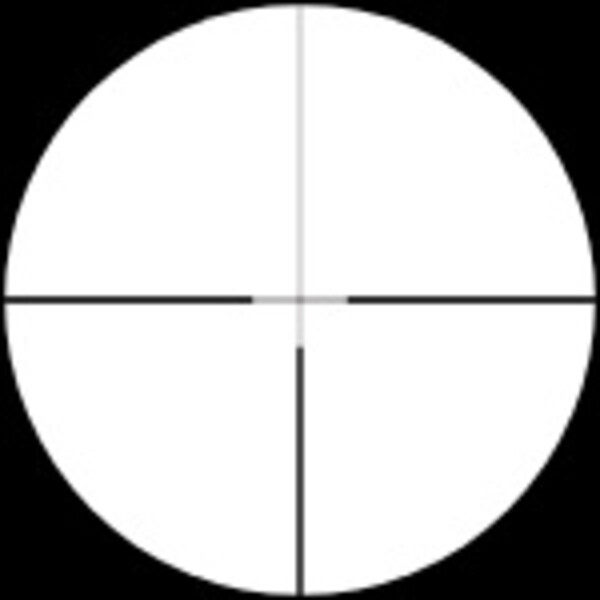

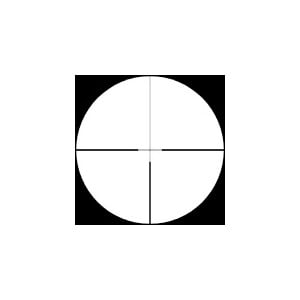

Reticle

L4A FD

Reticle plane

2. focal plane (SFP)

Reticle usage

Hunting

Special features

Illuminated reticle

yes

Automatic switch-off

-

Height adjustment

yes

Lateral adjustment

yes

Parallax adjustment

-

Bullet drop compensator

-

Integrated rangefinder

-

Protection cap

yes

Lens hood

-

Water-proof

yes

Dew protected

yes

Watertight

yes

General

Colour

matt black

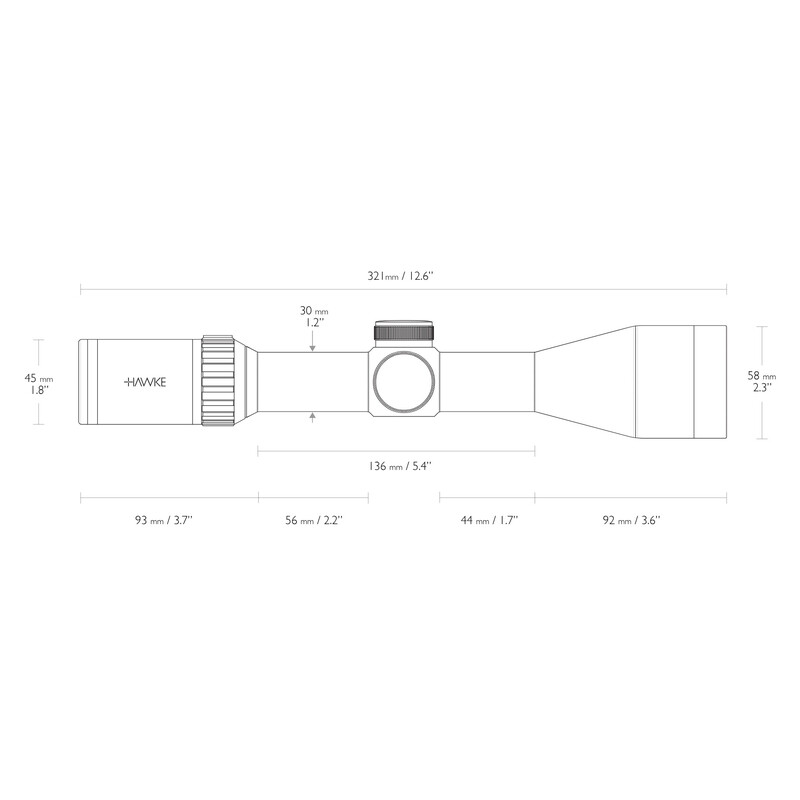

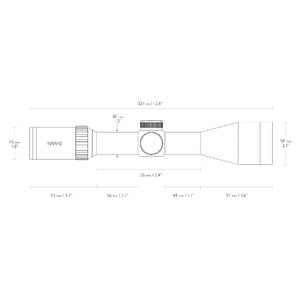

Length (mm)

321

Weight (g)

580

objective lens outside diameter (mm)

58

eyepiece outer diameter (mm)

45

Series

Vantage

Area of application

Stalk hunting

good

Raised hide

very good

Drive hunting

middle

Magnum caliber

good

long distance

good

Airgun (< 7,5 Joule)

-

Airgun (> 7,5 Joule)

-

handgun

-

Miscellaneous

Battery type

CR2032

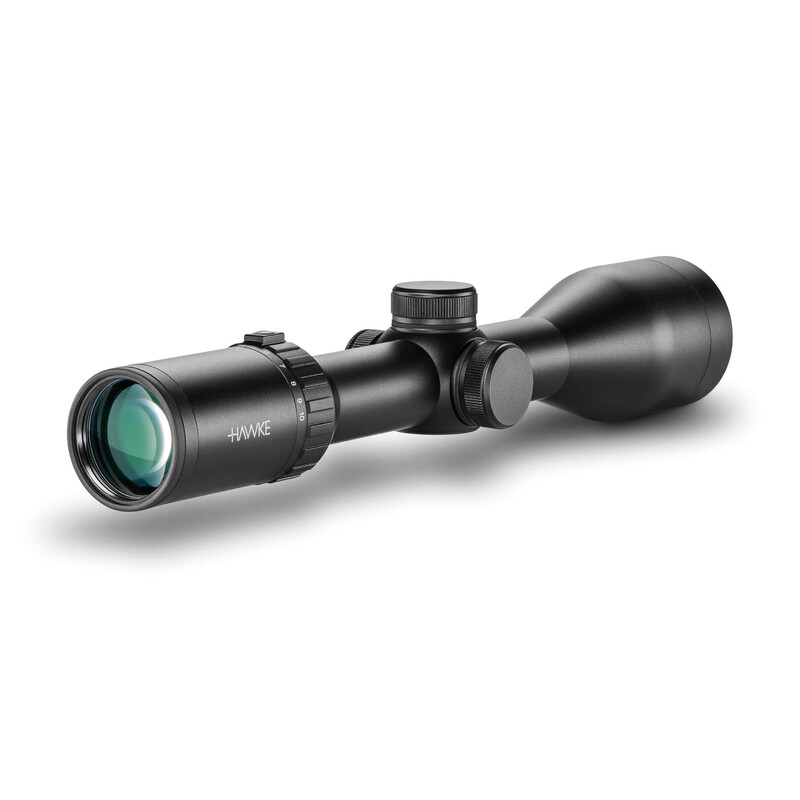

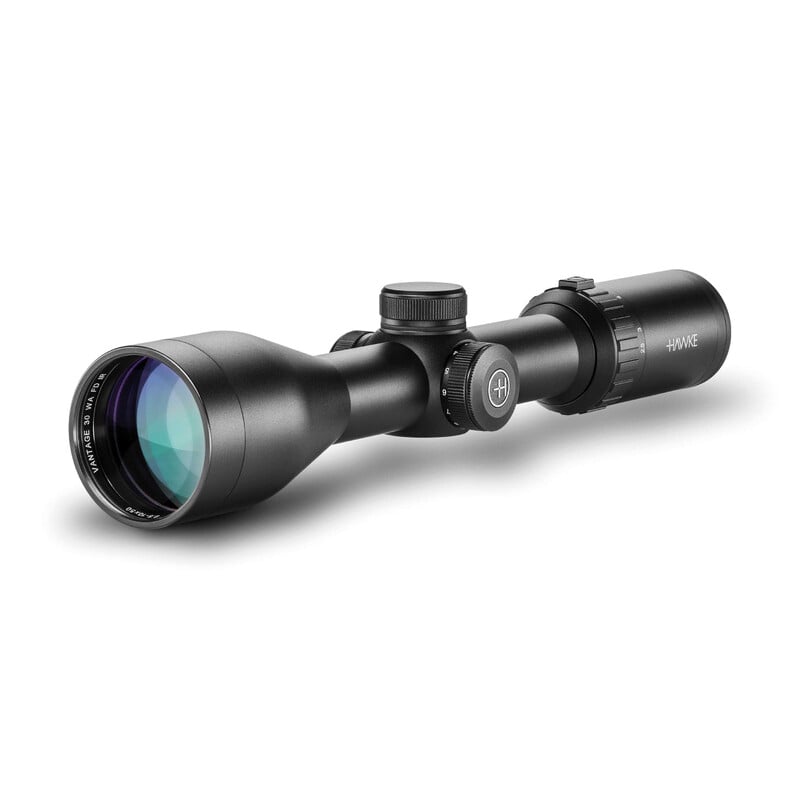

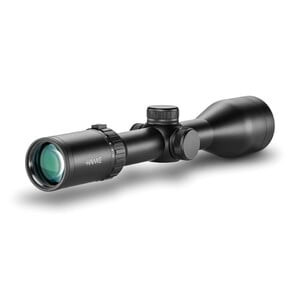

Riflescope Vantage 30 WA FD IR 2.5-10x50
