Riflescopes > Instruments > HAWKE > Airmax > HAWKE Riflescope AIRMAX 1" 4-12x40 AO, AMX
Product no.: 52602

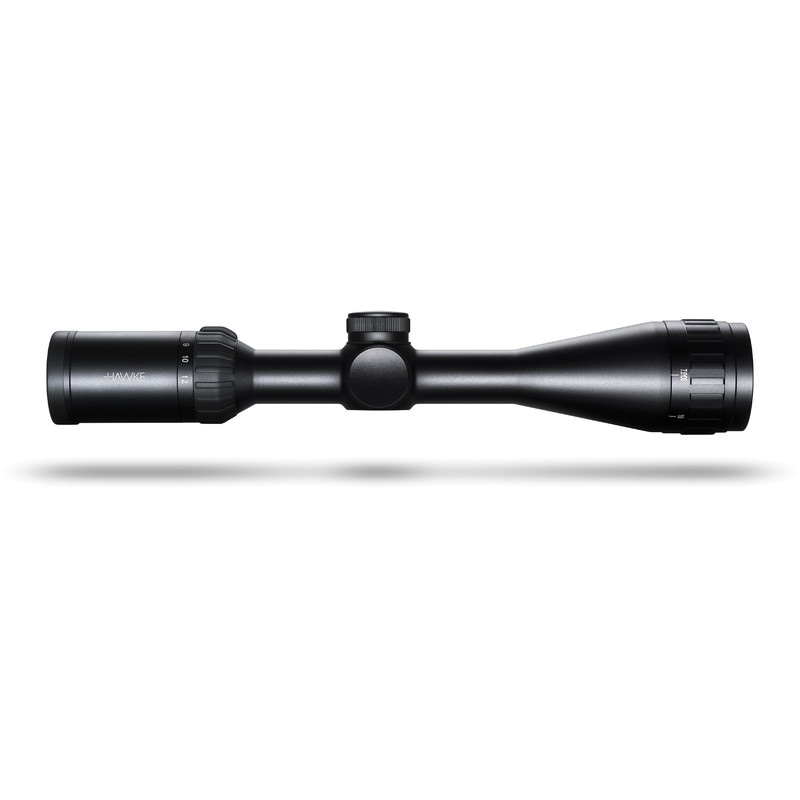

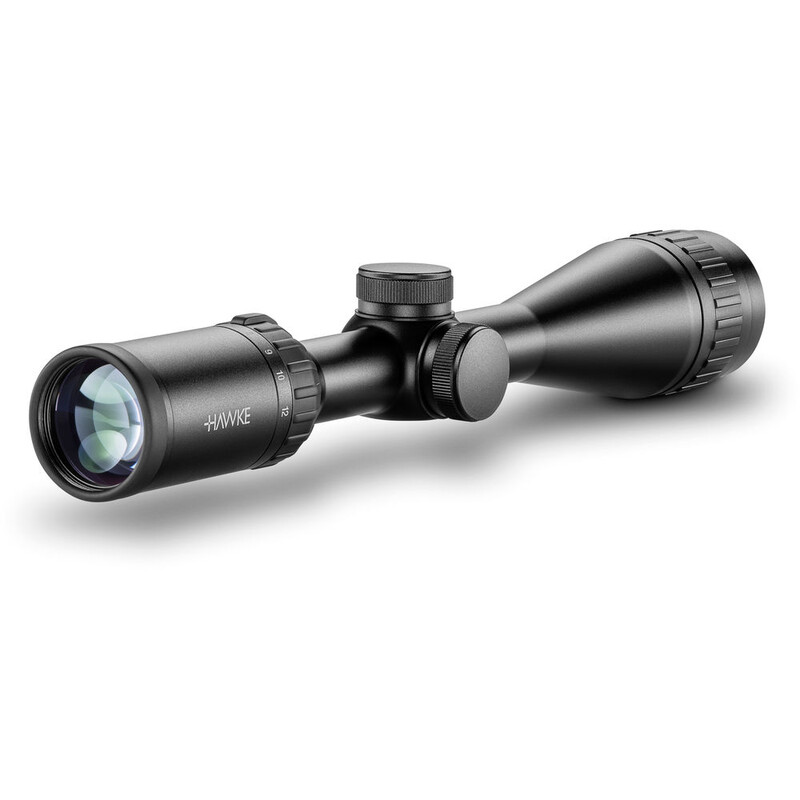

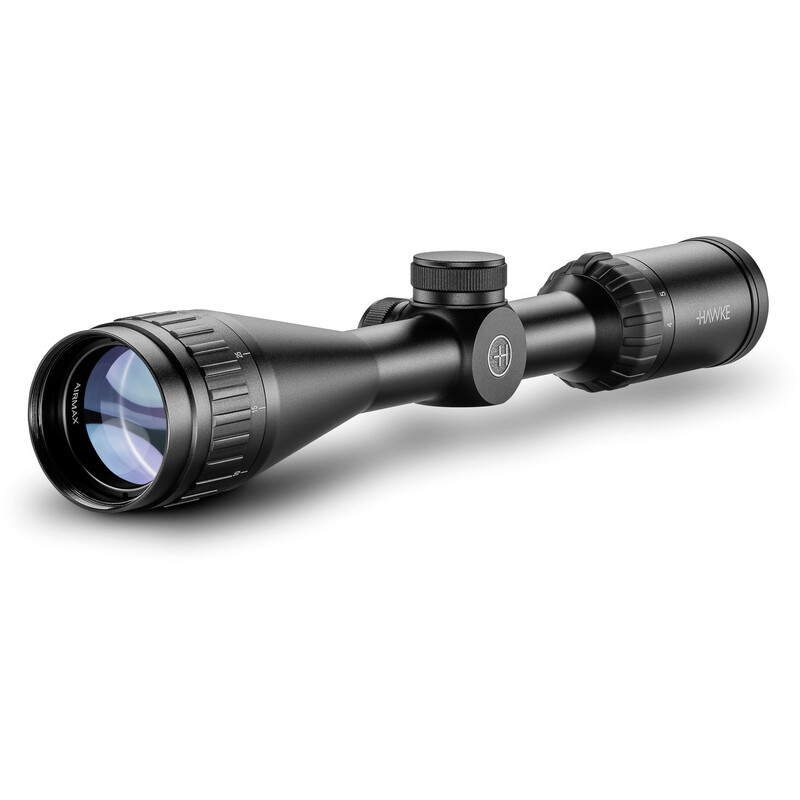

Riflescope AIRMAX 1" 4-12x40 AO, AMX

RRP: $ 335.00 Our price:
$ 302.00 incl. VAT plus shipping costs
too expensive?
short-term
ready for shipping in 3-7 days + lead time

Delivery not guaranteed until Christmas.
Show alternatives
Right of return up to January 31 2025!


Product description

More about the series Airmax...

AIRMAX - SERIOUS AIRGUN OPTICS FOR SERIOUS AIRGUN SHOOTERS.
Airguns can have a devastating effect on optics if the right products aren’t used. Hawke is an industry leader in developing specialised optics for serious airgun shooters and hunters. Airmax scopes are available in either 1 inch or 30mm chassis designs. The Airmax 30 offers the illuminated AMX reticle, designed with serious airgun shooters in mind. Additionally, the Airmax 30 uses a side focus parallax adjustment that can focus down to 10 yards. Exposed turrets allow for easy adjustments without the need to remove a turret cap.

The Airmax 1 inch family has three magnification ranges to suit the needs of almost any shooter. Built in an adjustable objective chassis, the Airmax uses the non-illuminated AMX reticle to improve downrange accuracy of any airgun shooter. A more traditional scope design, the Airmax is a great option for the serious airgun hunter that wants to keep the weight of their rifle down.

  • Adjustable Objective:

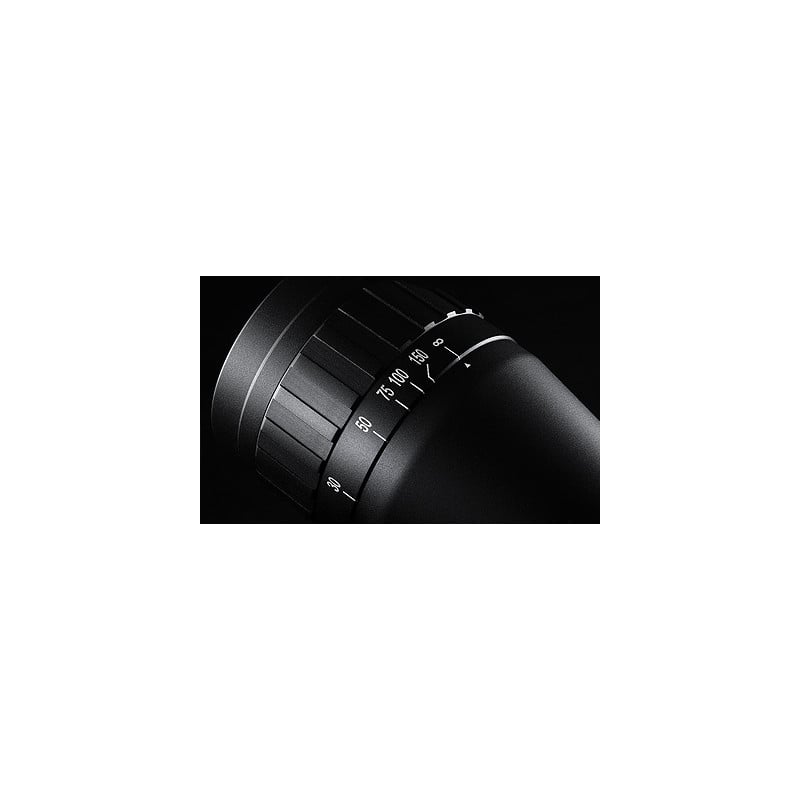

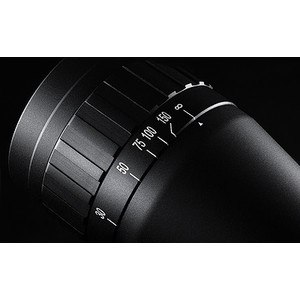

    For accurate focus and the elimination of parallax error the integrated Adjustable Objective (AO models) operates with precision and ease. By integrating, the low profile design allows for the riflescope to be mounted lower and ensures the optional metal flip-up covers remain stationary during adjustment.

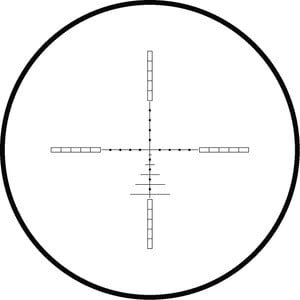

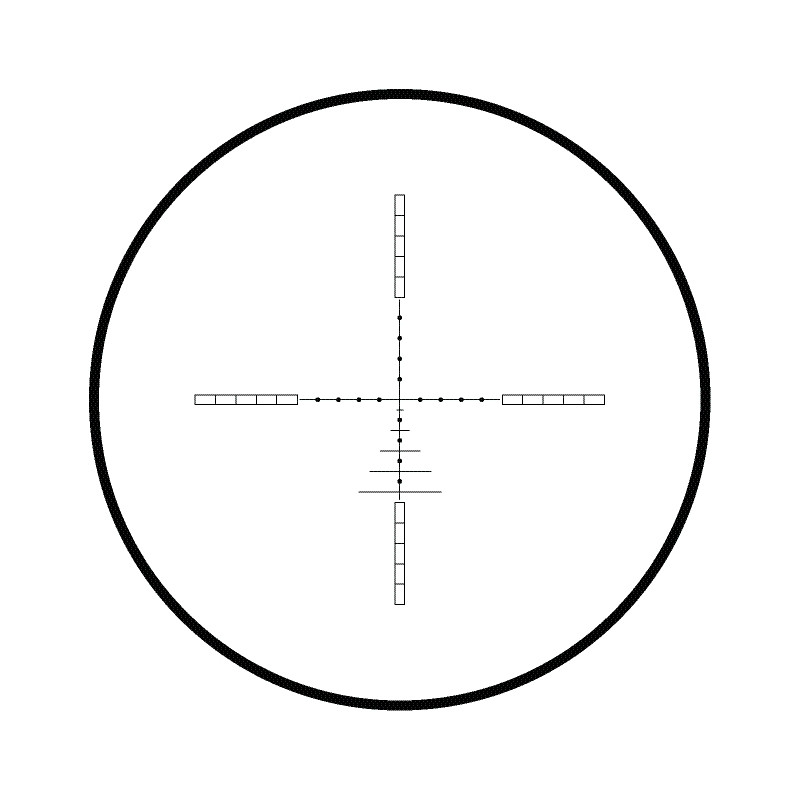

  • AMX - Reticle
    Both the AMX and AMX IR glass etched reticles are based on the spacing of a 10x Mil Dot. The AMX offers multiple aim points, useful when shooting air guns with loopy trajectories. Half Mil Dot spacing on the lower post provides increased aim points for long shots. The horizontal bars are calculated at 0.5, 1.5, 2.5, 3.5 and 4.5 mil spacing. Hollow posts are segmented into mil spacing and can be used for bracketing.

Specifications

Capacity


Type of build
zoomable magnification
Minimum magnification
4
Maximum magnification
12
Front lens diameter (mm)
40
Exit pupil at min. enlargement (mm)
10,0
Exit pupil at max. enlargement (mm)
3,3
Eye relief (mm)
89
Lens coating
multiple
Type of mounting
Mounts not included in delivery
Central tube diameter (mm)
25,4

Field of view


No parallax over (m)
9,1-∞
100 m adjustment per clic
1/4 MOA
Twilight factor at min. enlargement
12,6
Twilight factor at max. enlargement
21,9
Field of view at min. enlargement (m)
10,0
Field of view at max. enlargement (m)
3,7
Reticle
AMX
Reticle plane
2. focal plane (SFP)
Reticle usage
Sporting shooters

Special features


Illuminated reticle
-
Height adjustment
yes
Lateral adjustment
yes
Parallax adjustment
yes
Bullet drop compensator
-
Integrated rangefinder
-
Protection cap
yes
Lens hood
-
Water-proof
yes
Dew protected
yes
Watertight
yes

General


Colour
matt black
Length (mm)
322
Central tube length (mm)
115
Weight (g)
522
objective lens outside diameter (mm)
54
eyepiece outer diameter (mm)
44
Series
Airmax

Area of application


Stalk hunting
-
Raised hide
-
Drive hunting
-
Magnum caliber
-
long distance
good
Airgun (< 7,5 Joule)
yes
Airgun (> 7,5 Joule)
yes
handgun
-
