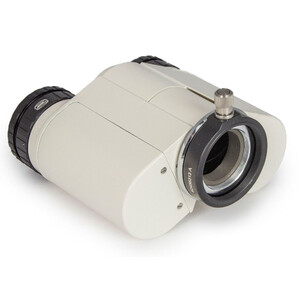

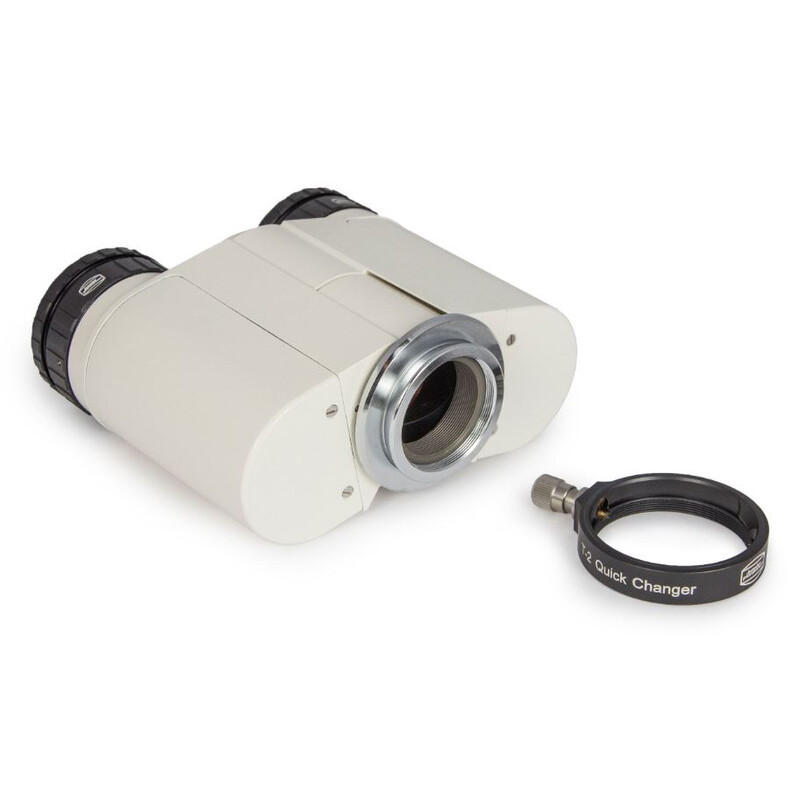

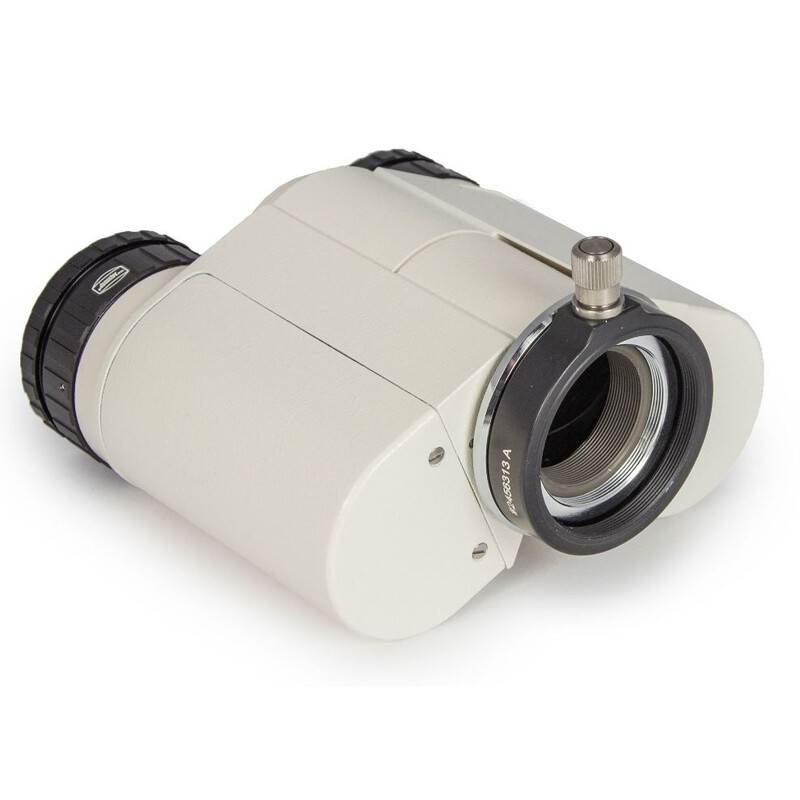

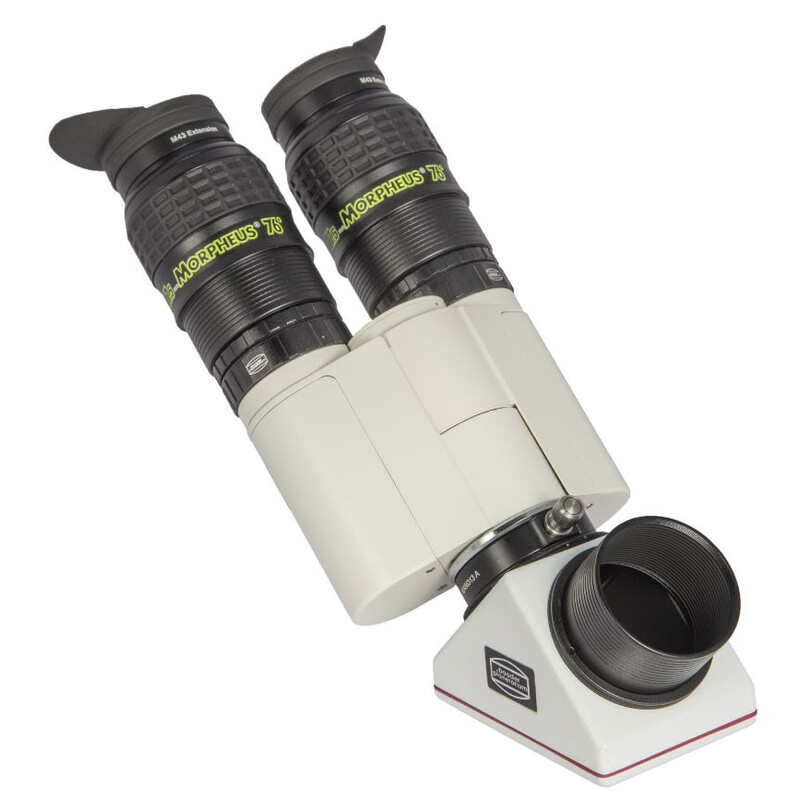

Binocular head Mark V

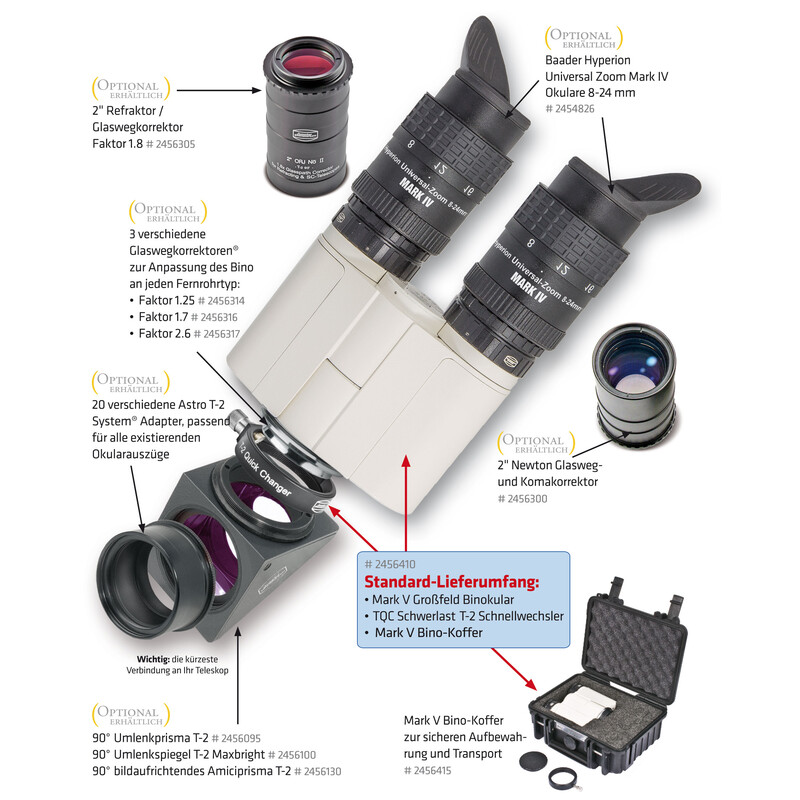

Baader Giant Mark V bino-viewers

This is the fifth new version of the earlier Carl ZEISS wide-field bino-viewer version with 30mm prisms. New innovations range from the newly designed, 7-layer multi-coatings on all glass/air boundaries, new high-performance beam splitter with dielectric coating, completely newly designed eyepiece clamps (without locking screws!) equipped with self-centring ClickLock ® clamp, as is known from the mechanical engineering sector with the tool holders used in CNC milling machines.

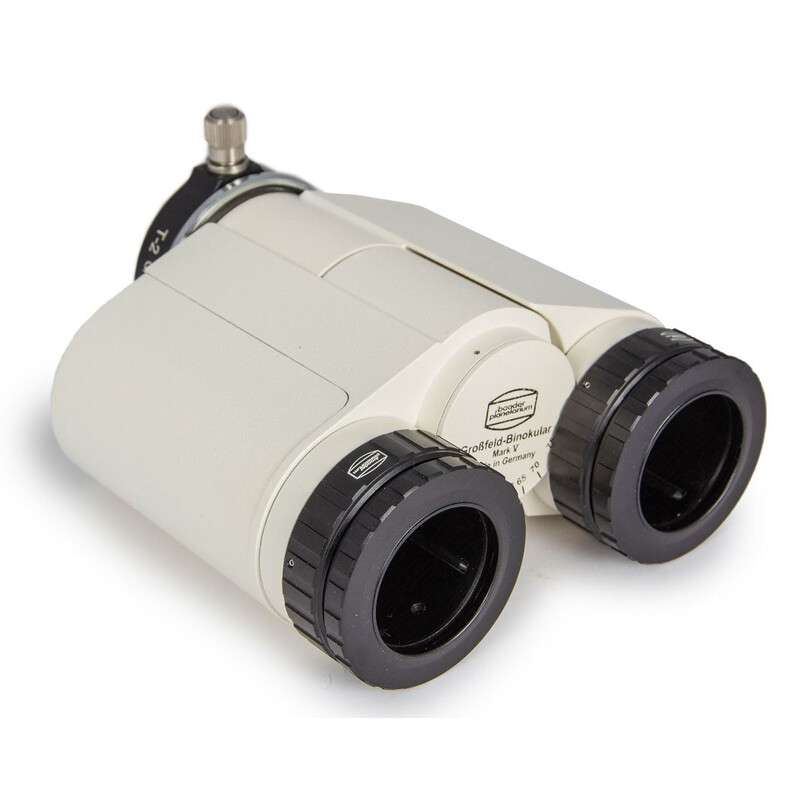

Microfocusing collars on both eyepiece holders also allow sensitive dioptre adjustment for each eye.

Thanks to the high 1:10 gear ratio, all 1¼" eyepieces can be attached securely in place by lightly rotating the ClickLock® locking ring by 20° - and just as easily removed. Even this light rotation is sufficient to provide the same power as otherwise having to forcibly tighten a locking screw.
