Binoculars > Instruments > APM > APM-Bino > APM Binoculars 23x100 SD APO UF24 90°
Product no.: 84773

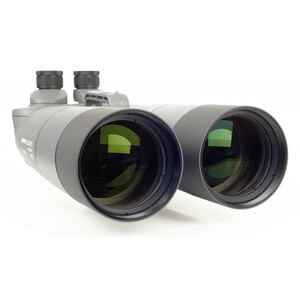

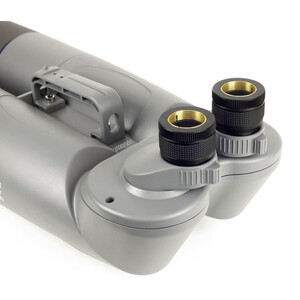

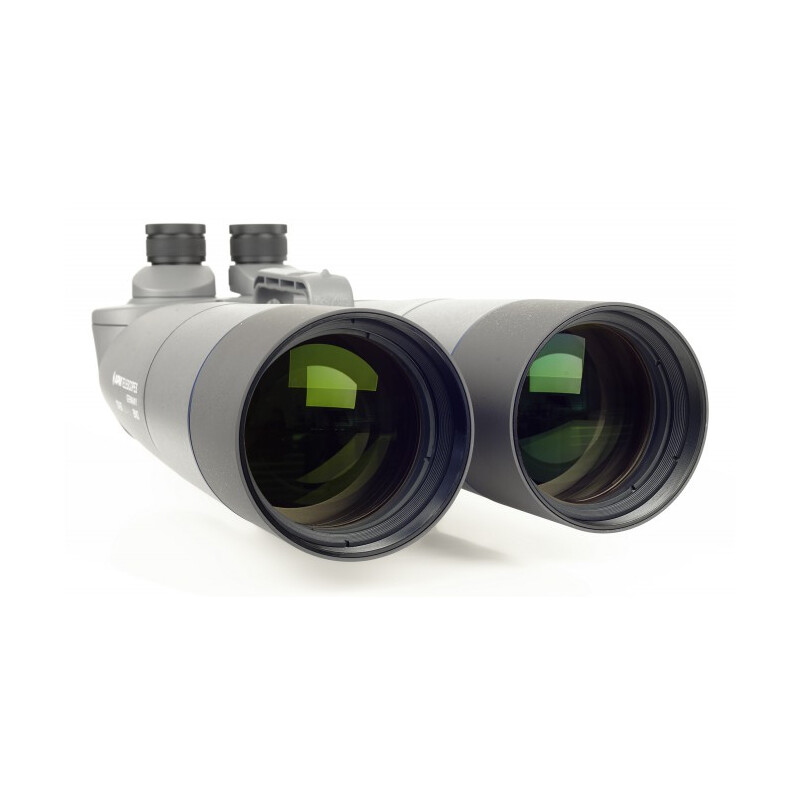

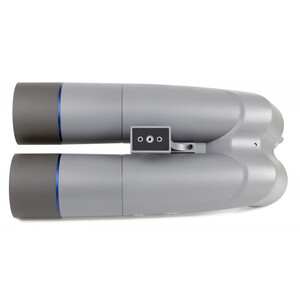

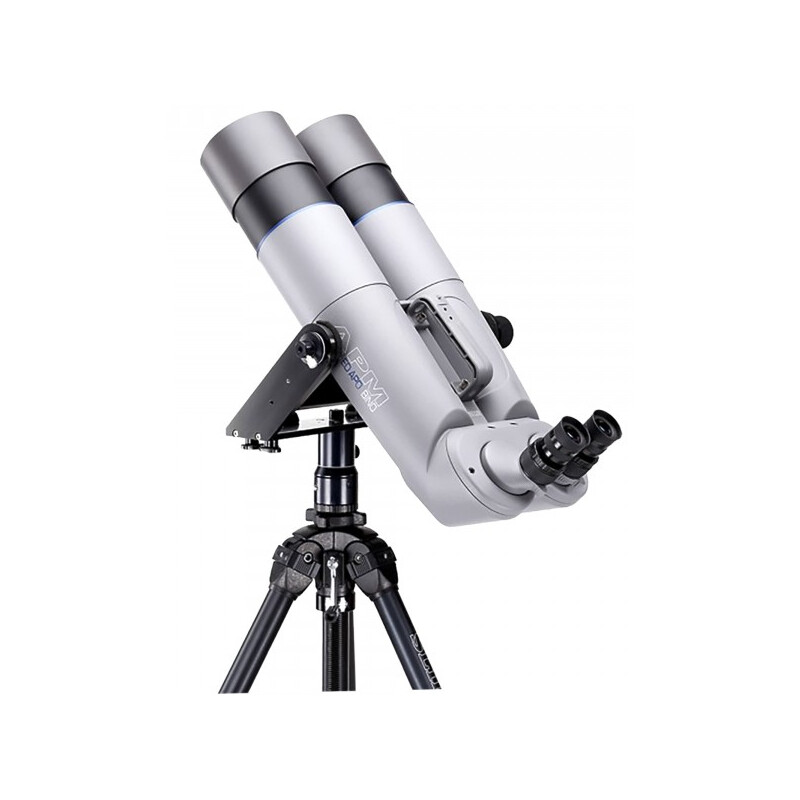

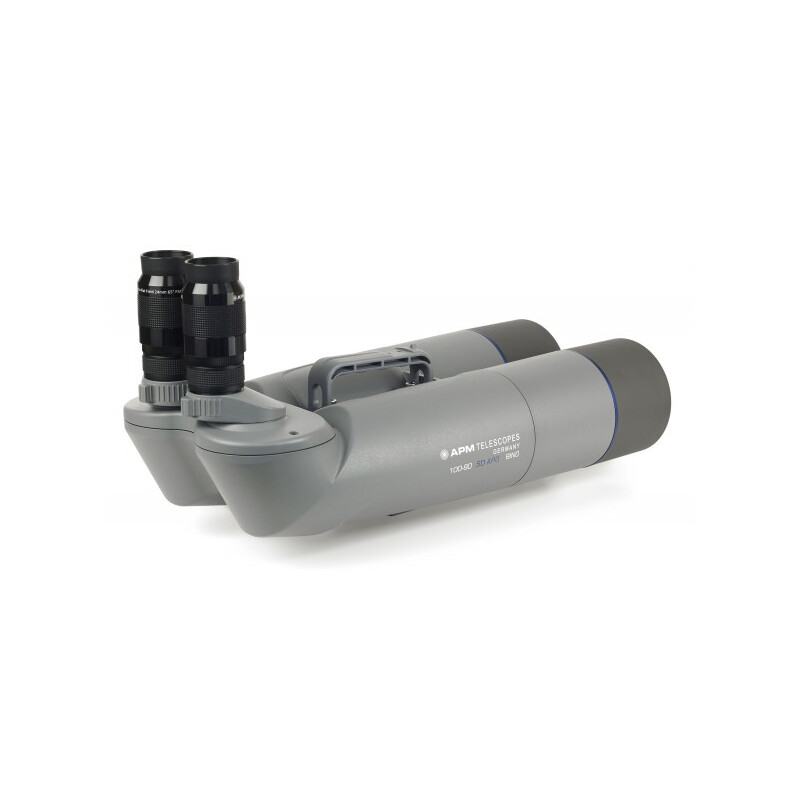

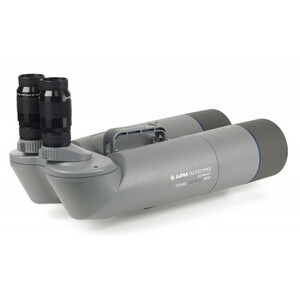

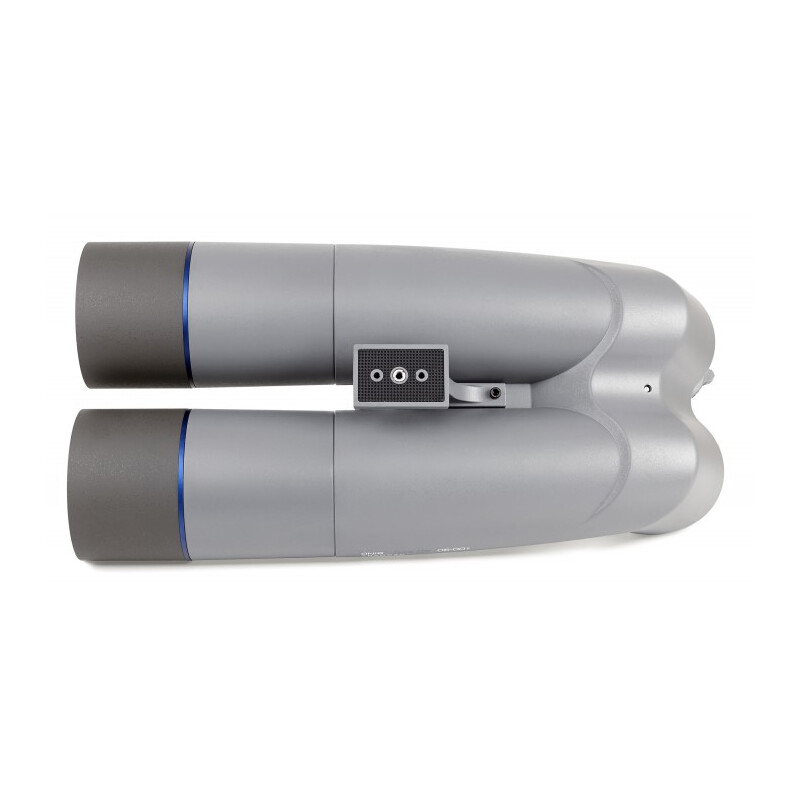

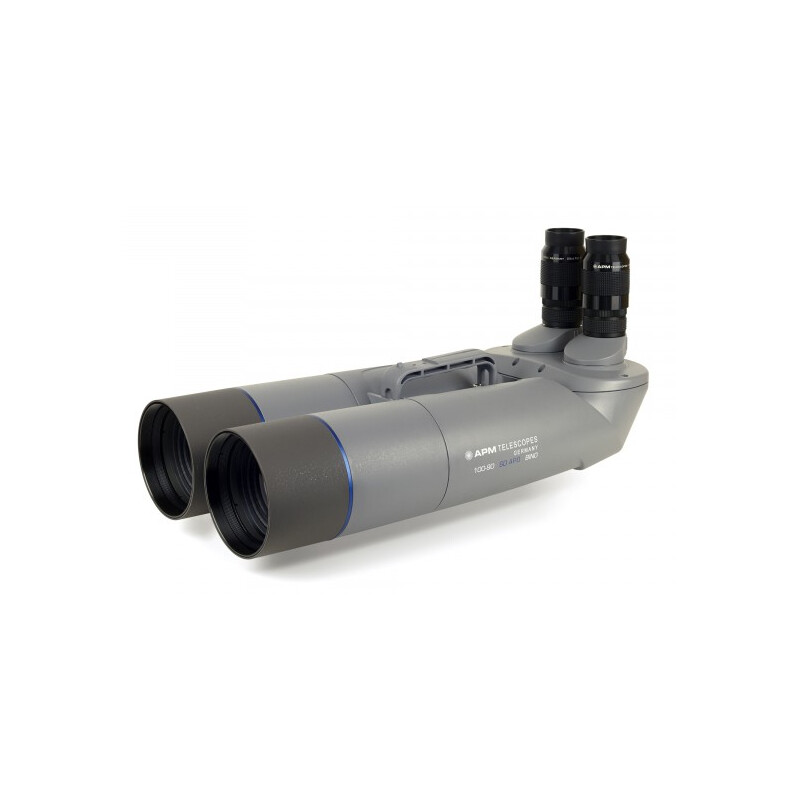

Binoculars 23x100 SD APO UF24 90°

$ 2,900.00 incl. VAT plus shipping costs
too expensive?
long-term
Product can be shipped as of 01.02.2025 + lead time

No delivery possible before Christmas. Order a voucher coupon!


Product description

More about the series APM-Bino...

The "UltraFlat Field Eyepiece features a high quality standard and a very compact design, which is designed to remove the field curvature at the edge, resulting in a flat, distortion-free image up to the edge of the visible field of view, even in very fast telesocpes.

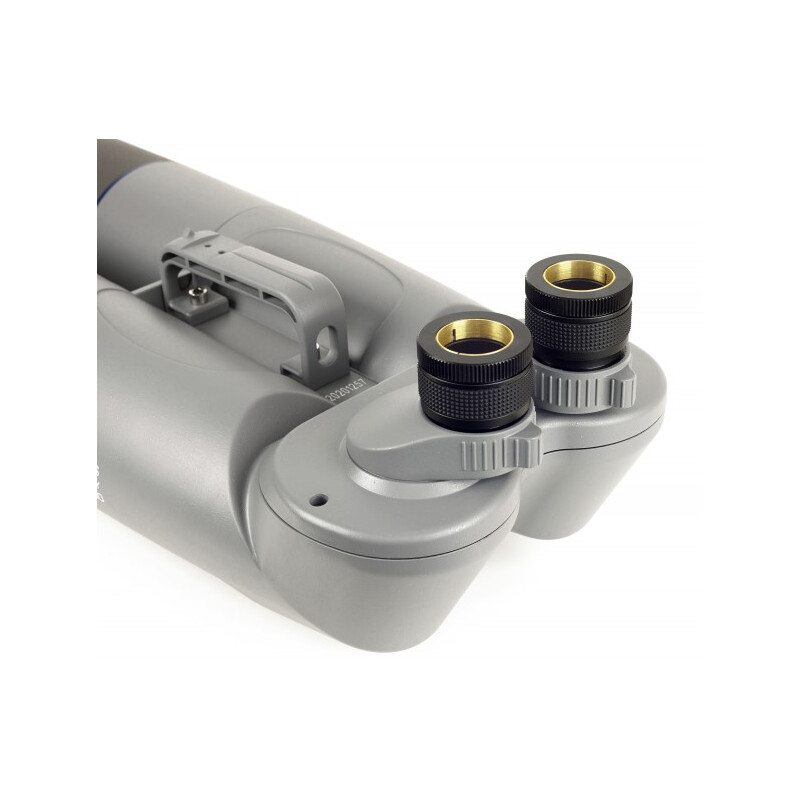

The eyepiece has over - sized eyepiece lenses for the largest possible field of view and a high eyerelief - also suitable for spectacle wearers, the eye-rubber allow a comfortable view.

All lenses have a braod-band-multicoating (FMC) and blackened lens edges. The plug-in sleeve is equipped with a thread for "filters.

Specifications

Capacity


Type of build
Roof
Magnification
23
Front lens diameter (mm)
100
Focal length (mm)
550
Exit pupil (mm)
4,3
Eyepiece cups
folding
Diopter-adjustment side
on both sides (Single eyepiece focusing)
Interpupillar distance (mm)
54-75
Glass material
BaK-4
Lens coating
fully, multiple
Focusing system
Single focusing
Handle
yes

Special features


Eyepieces for spectacle wearers
yes
Splash-proof
yes
Watertight
no
Threaded tripod connector
yes
Lens cover
yes
eyepiece cap
yes
Rangefinder
no
Compass
no
ED
yes
inert gas charge
yes
Transport cases
no
Splash-proof
yes

Field of view


True field of view (°)
2,8

General


Series
APM-Bino
Length (mm)
540
Width (mm)
270
Height (mm)
160
Weight (g)
7450

Area of application


Astronomy
very good
Bird watching
very good
Hunting
not recommended
Travel and sports
not recommended
Sailing
not recommended
Theatre
not recommended

Product safety

manufacturer: APM Telescopes - Markus Ludes, Quierschieder Weg 38, 66280 Sulzbach, DE, www.apm-telescopes.de

Recommended accessories

Binoculars > Accessories (8)
Mount

Omegon Pro Kolossus mount bundle with half-pier and tripod

$ 1,099.00*
Photo Tripods (1)
Aluminium tripod

Omegon Titania 800 tripod

$ 179.00*
Outdoor (3)

K+R TRAMP hiking compass

$ 19.90*
Camouflage > Camouflage Equipment (4)

Avery Leaves camouflage net

$ 41.90*
Maintenance & Cleaning > Lens cleaners (3)

Omegon 7-in-1 lens cleaning set

$ 19.90*
Maintenance & Cleaning > Other (2)

Omegon SPUDZ microfaser cleaning cloth

$ 14.90*

*All prices include VAT plus shipping costs.

APM Binoculars 23x100 SD APO UF24 90°

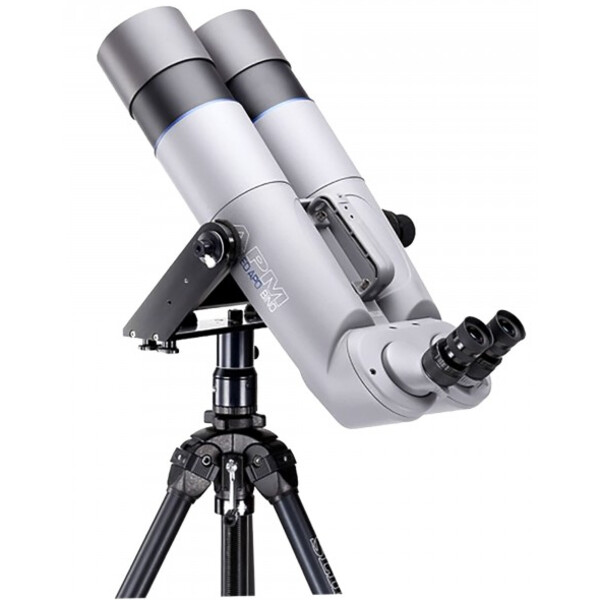

Example of use
