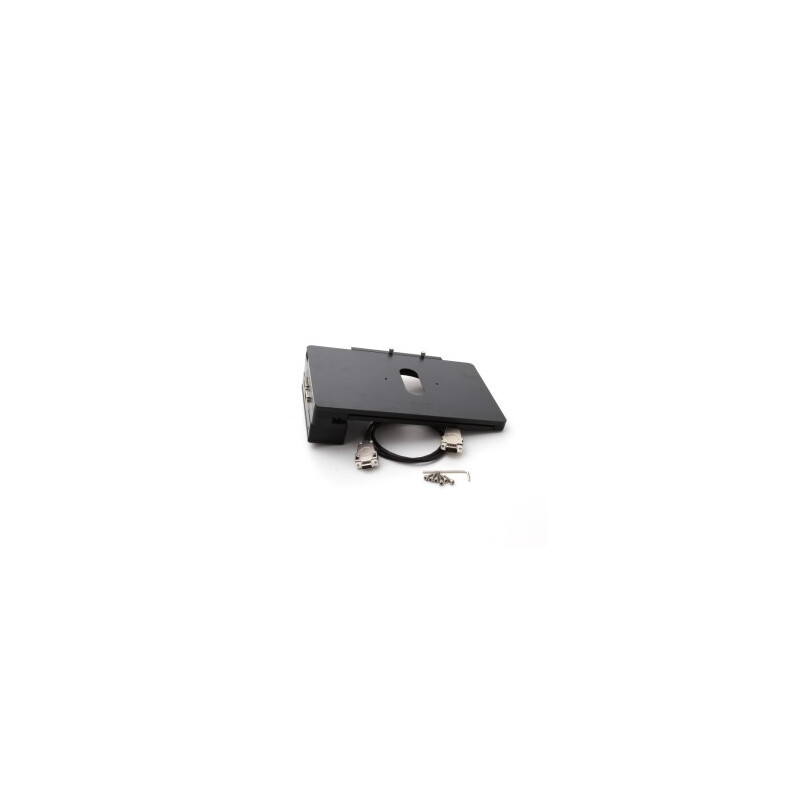

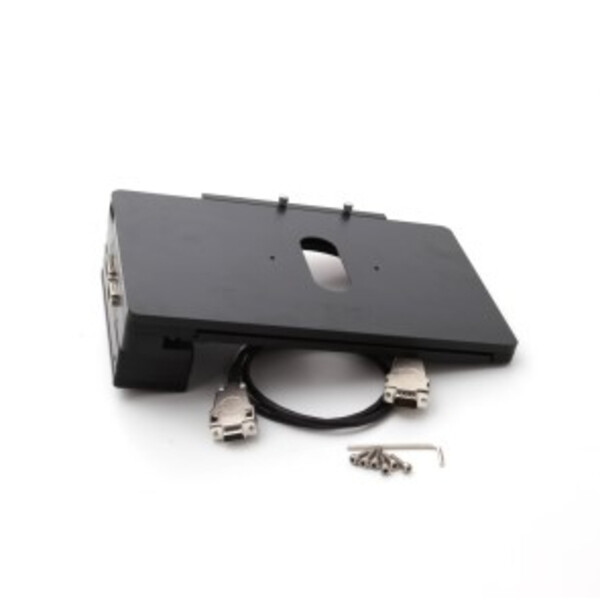

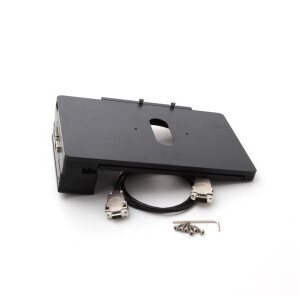

Cross table 75x50 mot standard; CAN (D)

Mechanical stage 75x50 mot standard; CAN (D) for Axio Scope, Axio Examiner, Axio Imager and SteREO - with hardcoat anodized surface - stepper motor drive with integrated controller - connection via CAN bus - stage plate 292 x 187 x 18 mm - travel range 75 mm x 50 mm - max speed 100 mm/s - resolution: 0.5 µm - reproducibility: +/- 5 µm - absolute accuracy: +/- 30 µm - max sample weight: 1 kg - incl. CAN cable
