Microscopy > Microscopy accessories > Lenses > For microscopes > Evident Olympus > PLN > Evident Olympus Objective PLN40X/0.65 Plan Achromatic
Product no.: 49927

Objective PLN40X/0.65 Plan Achromatic

$ 1,010.00 incl. VAT, plus shipping costs
too expensive?
short-term
ready for shipping in 3-5 weeks + lead time

No delivery possible before christmas
Check alternatives on stock or order a voucher!


Product questions?
advice for Microscopy

Product description

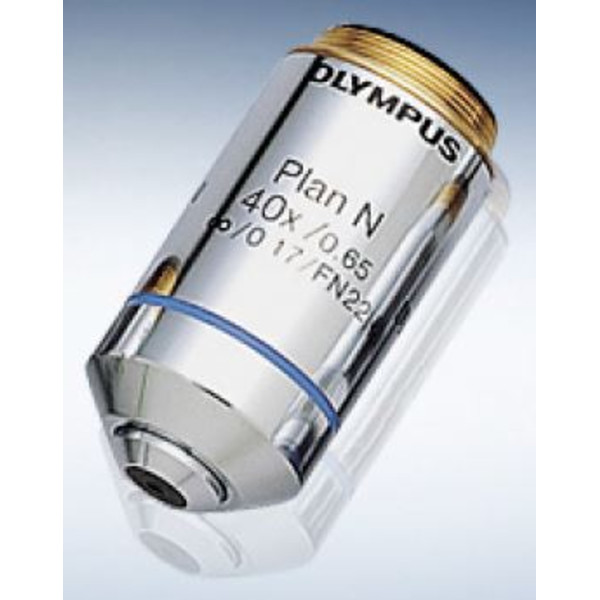

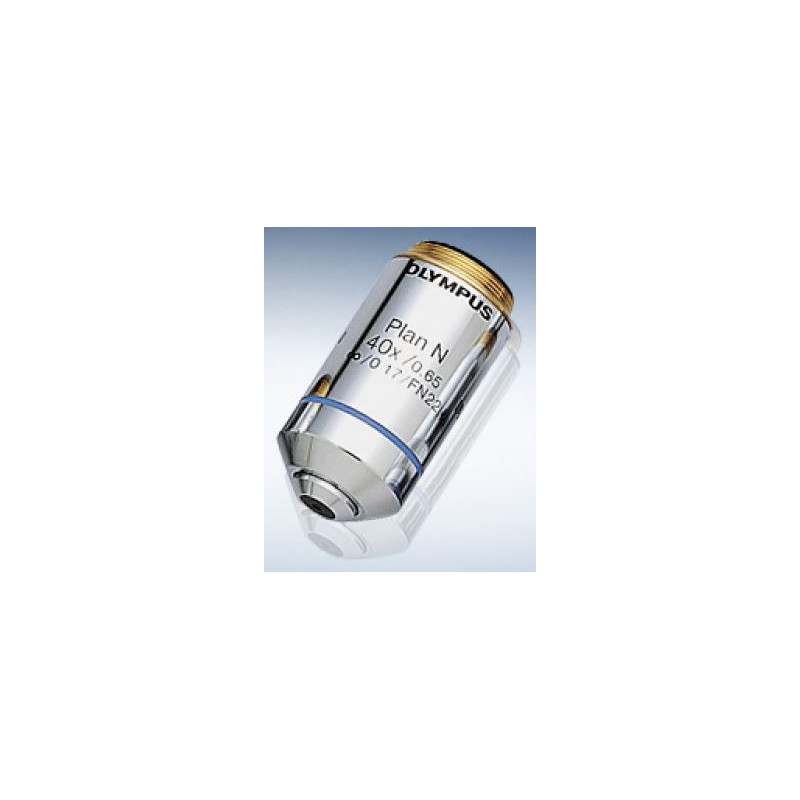

Objective PLN40X/0.65 Plan Achromatic

The PLN-CY standard objectives ensure superb field flatness. These objectives, equipped with ND filters, provide the same level of brightness even if the magnification is changed, thereby removing the need for brightness adjustment. These objectives are suited to clinical laboratory and examination work.

This PLN standard objective ensure superb field flatness with fluorescence, darkfield and brightfield observation in transmitted light.

Spezifikation:

  • Magnification; 40x
  • Plan achromatic Objective
  • Working distance: 0.6 mm
  • Numerical apertur: 0.65
  • FN: 22
  • Correction for cover slides: 1.7mm
  • Spring: yes

Specifications

Optics

Image scale
40x
Field curvature
Plan
Cover glass correction
yes (0-1.00)
Colour correction
achromatic
Suspension
yes
Immersion lens
no
infinity corrected
yes
Optical system
infinity

Capacity

Field of view value
22
Numerical aperture
0.65
Image scale
40
Magnification
40x

Mechanics

Working distance (mm)
0.6

General

Series
PLN
Diameter (mm)
24
Length (mm)
50

Miscellaneous

supplier product number
N1216000
