Microscopy > Microscopes > Upright microscopes > Fluorescence microscopes > ZEISS > Axiolab 5 > ZEISS Microscope , Axiolab 5 for LED Incident light Fluorescence, trino, 10x/22, infinity, plan, 5x, 10x, 40x, 100x, DL, 10W, incl. Camera
Product no.: 79515

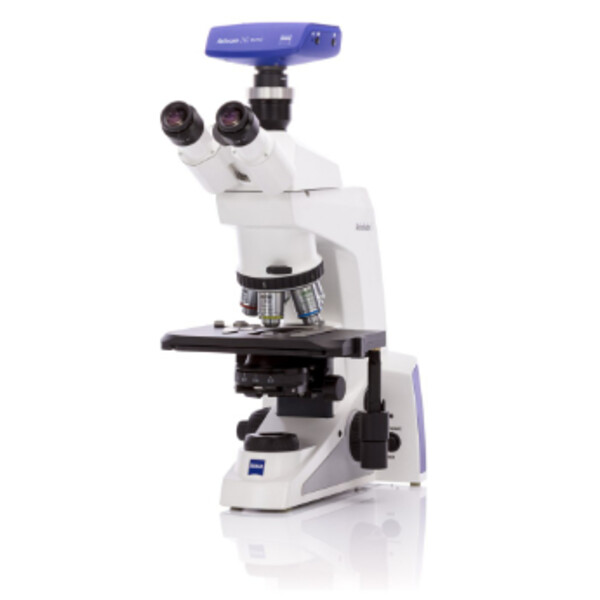

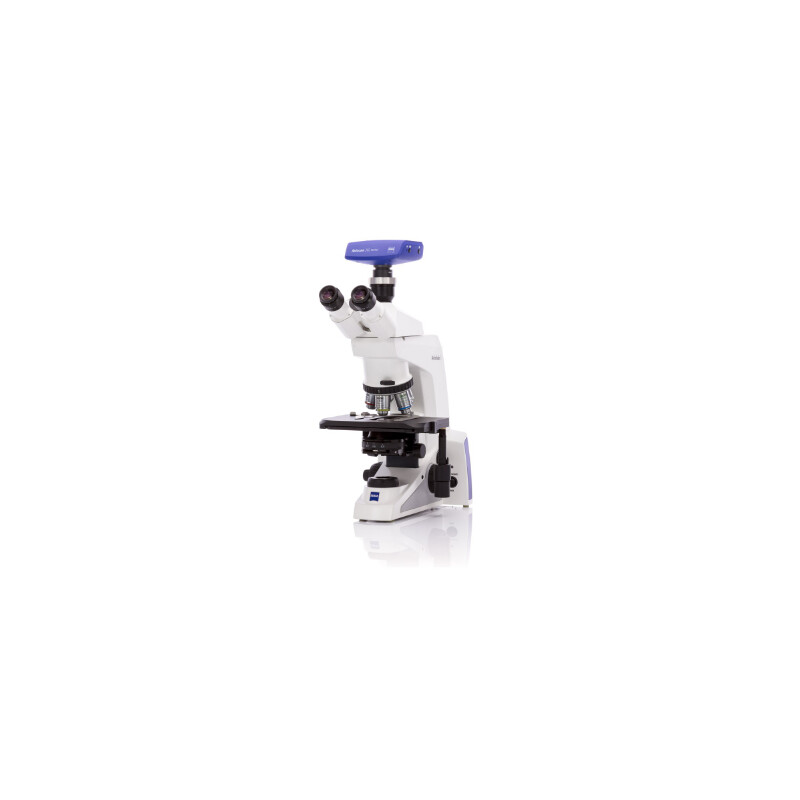

Microscope , Axiolab 5 for LED Incident light Fluorescence, trino, 10x/22, infinity, plan, 5x, 10x, 40x, 100x, DL, 10W, incl. Camera

$ 21,700.00 incl. VAT, plus shipping costs
too expensive?
short-term
ready for shipping in 1-2 weeks + lead time

Product description

More about the series Axiolab 5...

Axiolab 5 is made for the routine microscopy work that goes on every day in your lab. Its compact and ergonomic design saves space and makes for easy handling. Axiolab 5 is a real team player. Combine it with Axiocam 208 color and take full advantage of the Smart Microscopy concept: you'll be experiencing digital documentation in a completely new way. Just focus your sample and press a single button for crisp images in true color. The digital image will look like you see it through the eyepieces, with all the details and subtle color differences clearly visible. Plus, Axiolab 5 automatically adds the correct scaling information to your images. You get all of this in a standalone operation, without needing a PC or any additional software. Save time, money and valuable lab space with Axiolab 5. Digital documentation has never been easier.

Specifications

Optics


Image scale
5-40
Condensor
NA 0.9 (Full Köhler)
Lens type
Plan, achromatic (infinity corrected)
Eyepiece
10/22
Power supply
100-240 V
Magnification
50-1000
Lighting
Incident light and transmitted light
infinity corrected
yes
Lamp type
LED
Optical system
infinity
Objective 1
5x/0,15
Objective 2
10x/0,25
Objective 3
40x/0,65
Objective 4
100x/1,25 Oil

Capacity


Brightness control
adjustable
Lamp type
LED
Coating of optical system
Plan
Transmitted light
ja
brightfield
yes
Contrast methods
Fluorescence

Mechanics


Type of build
Trinocular
Focusing
Coarse and fine movement
Specimen stage
Cross table (75 x 30 mm)
Revolver
5

Special features


Rechargeable battery operation
-
Built-in digital camera
yes
Filter holder
yes
Luminous field diaphragm
yes
Dust cover bag
yes

Camera


Megapixel
2
Interface
HDMI, USB-3, Mikro-D
Size of chip (″)
1/1.23"
frame rate (fps)
30
Pixel size
5.86 µm x 5.86 µm
Resolution Photograph (Pixel)
1920 x 1080

General


Colour
white / blue
Weight (g)
8200
Width (mm)
210
Length (mm)
357
Height (mm)
304
Series
Axiolab 5

Contrast methods


Phase contrast
no

Field of application


Medicine
yes
Biology
yes

Area of application


University
yes
Internal medicine
yes
Central laboratories
yes
Botany
yes
Microbiology
yes
Cytology & Pathology
yes
Biochemistry
yes
Marine Biology
yes

Miscellaneous


supplier product number
490980-0003-000
