Microscopy > Microscopes > Upright microscopes > Fluorescence microscopes > Evident Olympus > CX43 > Evident Olympus Microscope Olympus CX43 FL, trino, infinity, LED, w.o. objectives!
Product no.: 53990

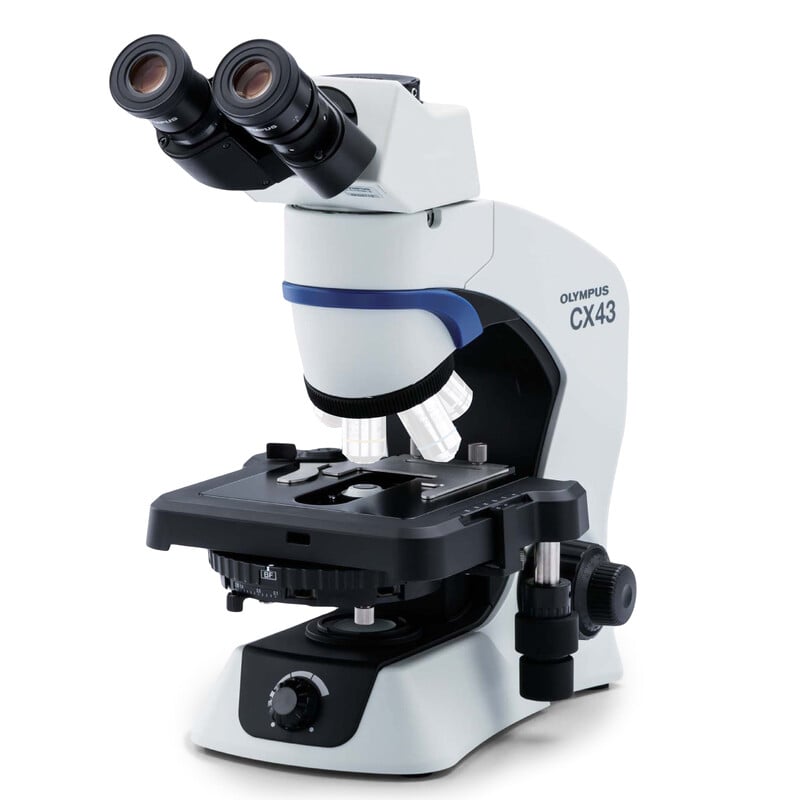

Microscope Olympus CX43 FL, trino, infinity, LED, w.o. objectives!

$ 9,400.00 incl. VAT plus shipping costs
too expensive?
short-term
ready for shipping in 3-5 weeks + lead time

No delivery possible before Christmas. Order a voucher coupon!


Product questions?
advice for Microscopy

Product description

More about the series CX43...

Olympus CX43 Fluorescence (E07MIS0052)

Comfortable, High-Throughput Routine Microscopy

The CX43 microscope enable users to remain comfortable during long periods of routine microscopy observations. The microscope frame conforms to the user’s hands and the location of the control knobs maximize ergonomics to improve work efficiency. Users can quickly set a specimen with one hand, while adjusting the focus and operating the stage with the other hand with minimal movement. The microscope also features an optional camera port for digital imaging.

Upright fluorescence microscope set for transmitted and reflected light observations

  • integrated LED illumination
  • low-positioned quintuple nosepiece
  • mechanical stage (211 x 154 mm, travelling range 76 x 52 mm) with right handle, low drive control, stage lock pin and specimen holder for one slide
  • Abbe condenser, NA 1.25
  • 7 position turret: BF(4X - 100X), 2X, DF, Ph1, Ph2, Ph3, FL with shutter
  • Coaxial/fine focus, complete stroke 15 mm, fine stroke 300 µm/rotation, graduation 2.5 μm
  • Reflected fluorescence illuminator with built-in LED light source for blue excitation (470 nm) and manual light intensity control
  • trinocular tube with two widefield eyepieces for FN20

Included components:

  1. Trinocular phototube U-CTR30-2-2 (N1468400)
  2. Eyepiece: WHB10X-H (N1130000) (dioptric compensation)
  3. Eyepiece: WHB10X-2 (N1129900)
  4. Fluorescence condenser: CX43-RFAB (N5730900)
  5. Tripod: CX43RF (N5731700)
  6. Dust cover (038159)
  7. 2x connection cable UYCP (035425)

Without objectives!!

Please choose your objectives from the accessories!

Specifications

Optics

Number of objectives
0
Lighting
Transmitted light
Condensor
Abbe (7-Positions HF(4X - 100X), 2X, DF, Ph1, Ph2, Ph3, Fluo)
Lamp type
LED
infinity corrected
yes
Optical system
infinity
Eyepiece
10x/20

Capacity

Phase contrast
yes
Fluorescence
yes
Dark field
no
Polarization
yes
brightfield
yes
Contrast methods
Fluorescence

Mechanics

Type of build
Trinocular
Focusing
Coarse and fine movement
Specimen stage
Cross table (211 x 154 mm)
Revolver
5

Special features

Luminous field diaphragm
yes
Wide-angle eyepiece
yes (10x/22)

General

Width (mm)
211
Length (mm)
397
Height (mm)
393
Series
CX43
Weight (g)
7,3

Contrast methods

Fluorescence
yes

Field of application

Medicine
yes
Biology
yes

Area of application

University
yes
Internal medicine
yes
Central laboratories
yes
Botany
yes
Microbiology
yes
Cytology & Pathology
yes
Biochemistry
yes
Marine Biology
yes

Miscellaneous

supplier product number
E0460052 (E07MIS0052)
show more...

Product safety

manufacturer: Evident Europe GmbH, Caffamacherreihe 8–10, 20355 Hamburg, DE, https://www.evidentscientific.com/
Product safety

Recommended accessories

Microscopy > Microscopy accessories (36)
Camera adaptor

Evident Olympus Camera adaptor TV Adapter U-TV0.5XC-3-8, C-Mount Adapter

$ 1,030.00*
+ Show more accessories in this category: 35
Microscopy > Microscopy supplies (3)

Bresser Immersion oil, 5ml, refractive index=1.515

$ 10.90*
Baseprice: $ 2,180.00/L
+ Show more accessories in this category: 2
Microscopy > Other (1)
Stereo zoom head

Evident Olympus Binocular Head U-CBI30-2-2, for CX41

$ 830.00*
Maintenance & Cleaning > Cleaning towelettes (3)

Omegon microfibre cleaning cloth 20cm x 20cm

$ 4.90*
+ Show more accessories in this category: 2
Maintenance & Cleaning > Lens cleaners (3)

Omegon 7-in-1 lens cleaning set

$ 19.90*
+ Show more accessories in this category: 2

*All prices include VAT plus shipping costs.

show more...
Evident Olympus Microscope Olympus CX43 FL, trino, infinity, LED, w.o. objectives!
Brightfield (Leukocyte)
Evident Olympus Microscope Olympus CX43 FL, trino, infinity, LED, w.o. objectives!
Brightfield (urinary cast)
Evident Olympus Microscope Olympus CX43 FL, trino, infinity, LED, w.o. objectives!
Phase contrast (Hela cells)
Evident Olympus Microscope Olympus CX43 FL, trino, infinity, LED, w.o. objectives!
Fluorescence (renal glomerulus)
