Astronomy > Filters > Filter wheels & Filter sliders > SBIG > STT > SBIG self-guiding Filter Wheel FW8G-STT
Product no.: 61750

self-guiding Filter Wheel FW8G-STT

$ 2,780.00 incl. VAT plus shipping costs
too expensive?
in stock
ready for shipping in 24 h + lead time

No delivery possible before Christmas. Order a voucher coupon!


Product description

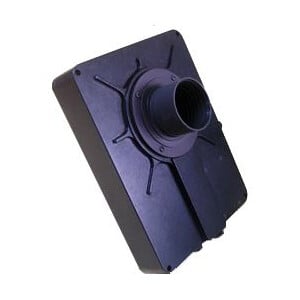

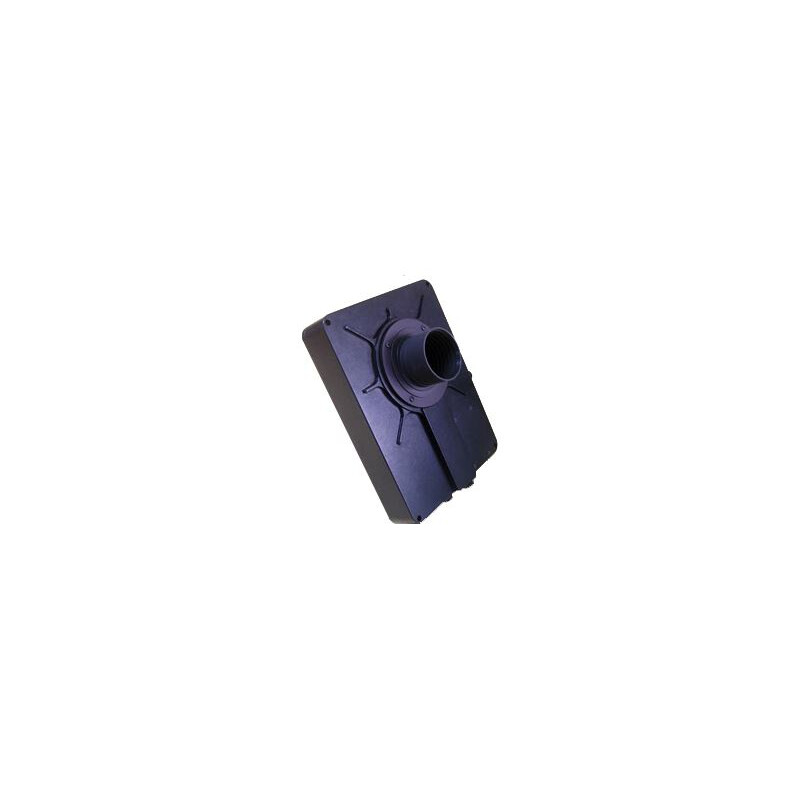

SBIG FW8G-STT is a self-guiding 8-position 36mm filter wheel for the STT Series cameras.

This wheel has a guiding CCD and associated optics built into the front cover of the filter wheel, so that the guider picks off light from the guide stars before passing through the filters.

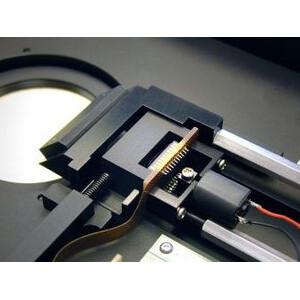

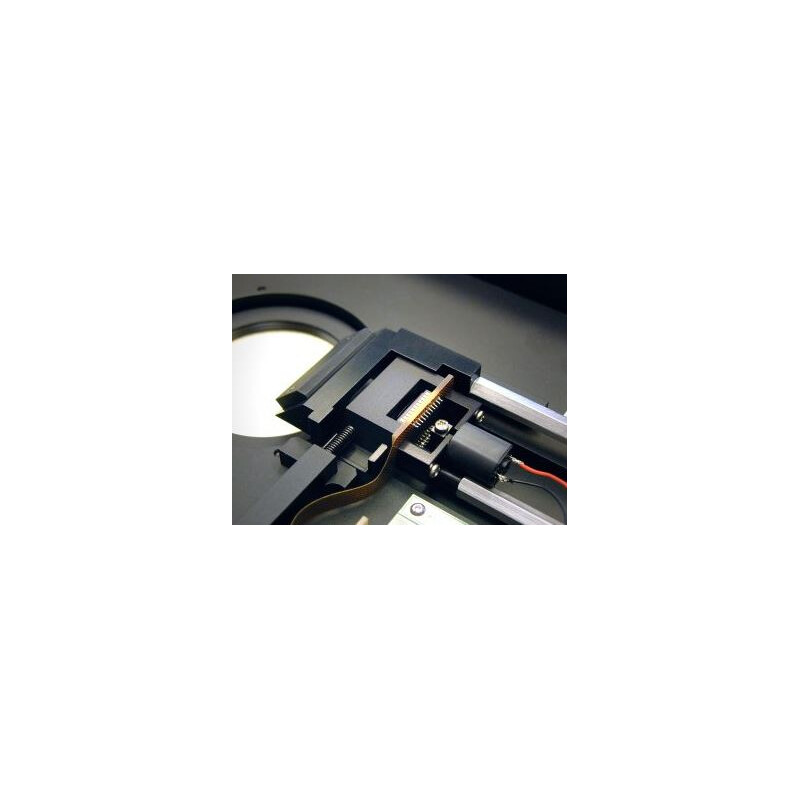

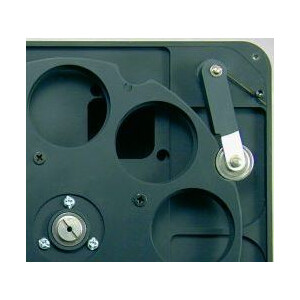

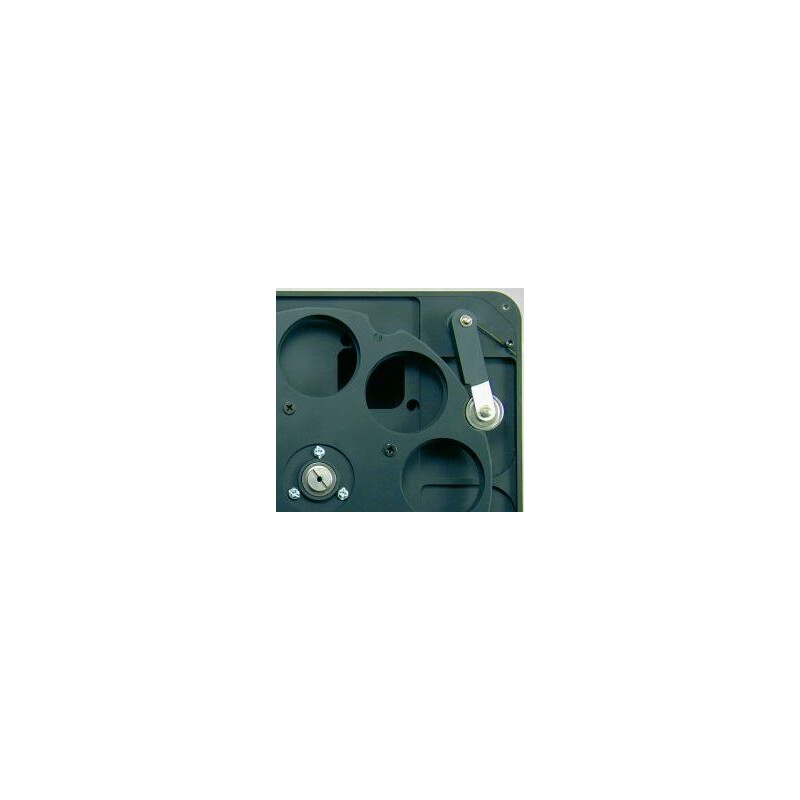

Another unique feature of the STT filter wheel is a positive centering mechanism that precisely re-positions and firmly holds filters in exactly the same position over the CCD every time, regardless of a loss of power or intervening movement of the filter wheel. In our tests, using an STT-8300, the re-positioning of the filters was accurate to better than 5.4 microns after several complete rotations of the filter carousel. This degree of precision means that flat fields taken after the filter has moved and returned are accurate to a single pixel.

The self-guiding filter wheel fits only on the SBIG STT Series of cameras. The wheel has an optical length of 37.3 mm. Together with an STT camera, this results in an optical backfocus of 53.5mm.

Specifications

Capacity


Sensor type
CCD-chip (KAI-0340)
Resolution Photograph (Pixel)
648 x 486
Pixel size
7,4
Size of chip (mm)
4,8 x 3,6
Active cooling
no
Colour camera
no
Connection (to the telescope)
2" & T2
Max. exposure time (min)
60
Min. exposure time
1/1000
Chip - Diagonal (mm)
6
Megapixel
0,3
Filter slot
unmounted
Max. number of filter slots (piece)
8
Optical length (mm)
37.3
Filter Size (mm)
36 mm

Equipment


Filter wheel
yes

General


Series
STT

Area of application


Autoguider
yes
