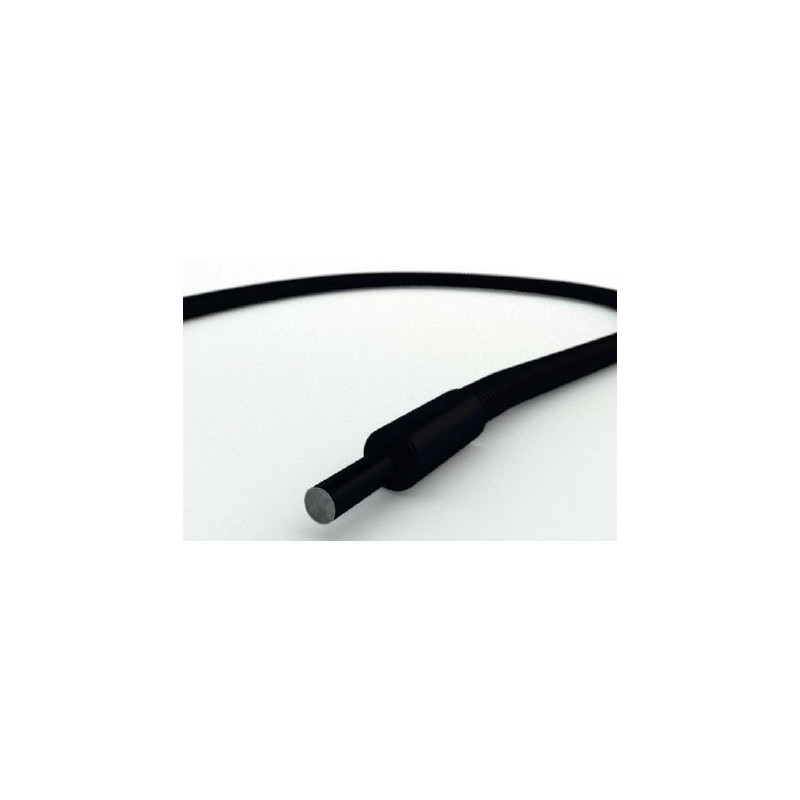

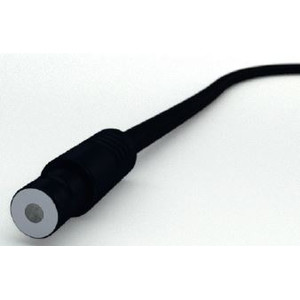

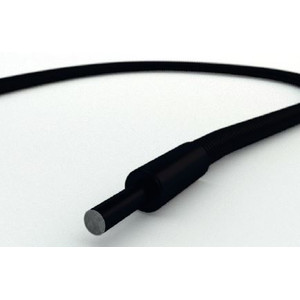

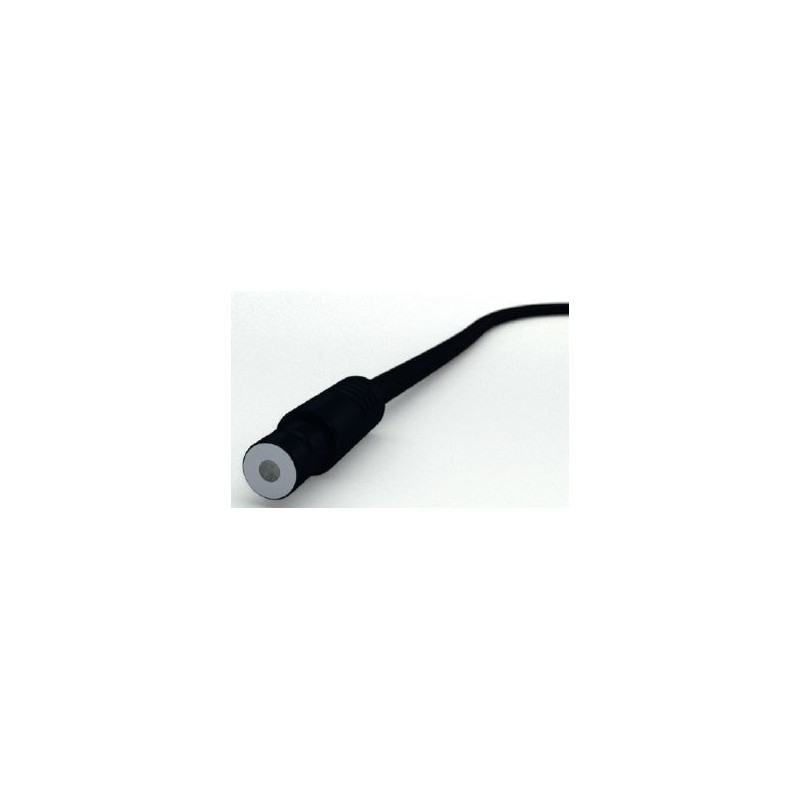

GLF1-1000-9.0, 1 brazo, longitud del brazo 1000 mm, diámetro activo 9 mm

Fiber Optical Light Guide

• For halogen and LED cold light sources
• Low head generation on object
• Versions with several flexible arms
• Best transmission
• High flexibility and luminous efficiency
• Spot illumination
• Adaptable to cold light sources from all manufacturers
• Adaptable to customer needs

Technical Data

• Number of arms 1
• Diameter active light guide 9 mm
• Length 1000 mm
• Light guide access Standard 15 mm
• Diameter light output 13 mm
• Diameter light input 15 mm
• Outer tube diameter 10 mm
• Illumination point-like
• Beam angle 70°
• Temperature input (light source) max. 240°C
• Ambient temperature max. 80°C
• Material tube Steel spiral, PVC
