Astronomy > Mounts & accessories > Mounts > Equatorial with GoTo > WarpAstron > WarpAstron WD-20 Harmonic Mount
Product no.: 83945

WD-20 Harmonic Mount

$ 4,160.00 incl. VAT plus shipping costs
too expensive?
long-term
ready for shipping in 6-10 weeks + lead time

No delivery possible before Christmas. Order a voucher coupon!


Product description

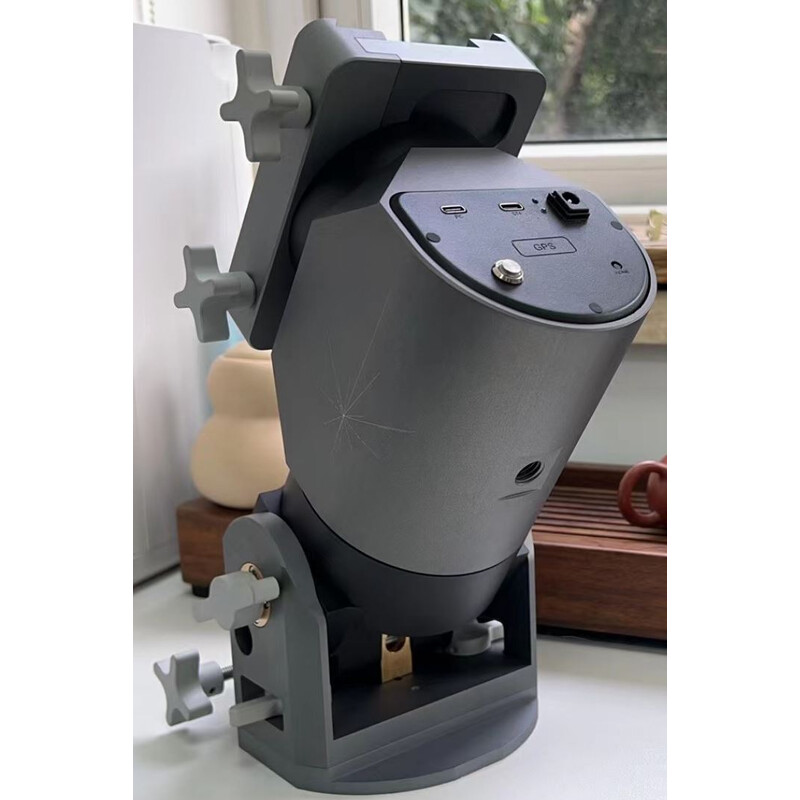

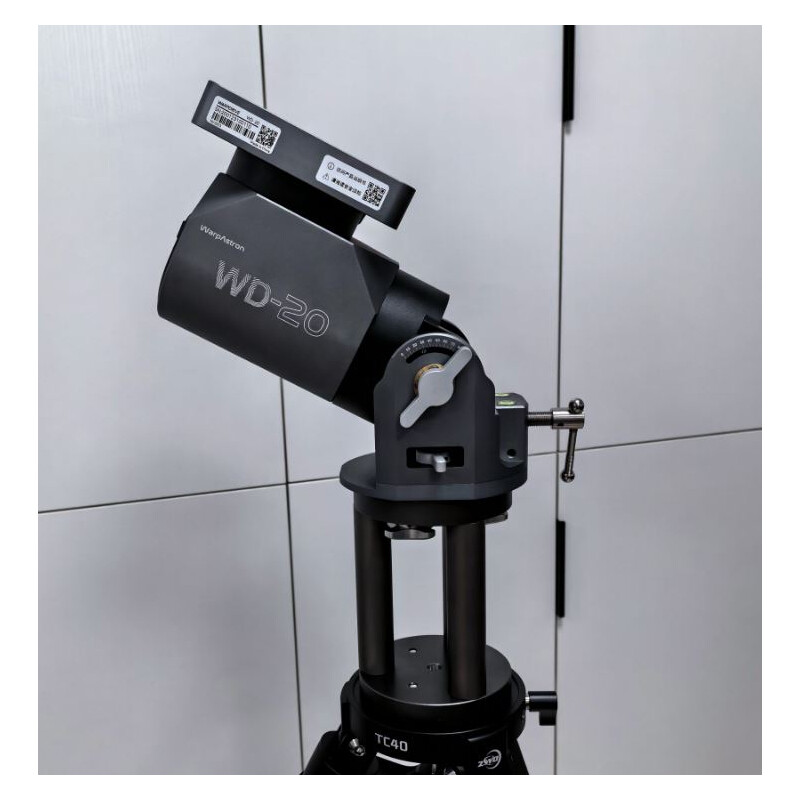

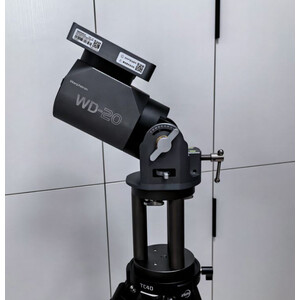

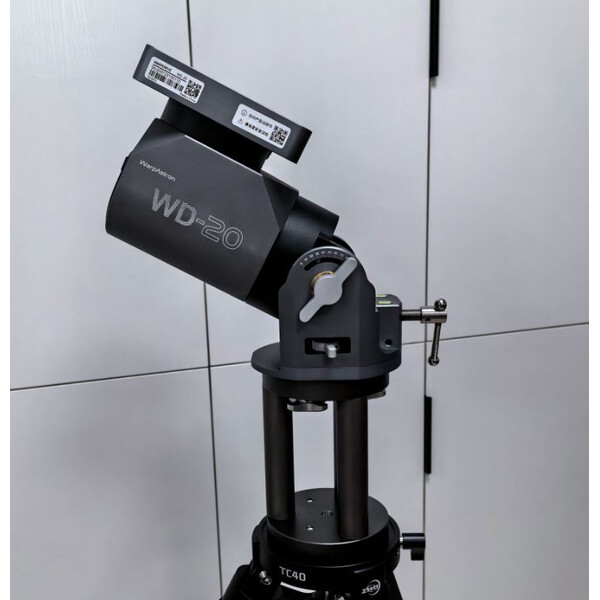

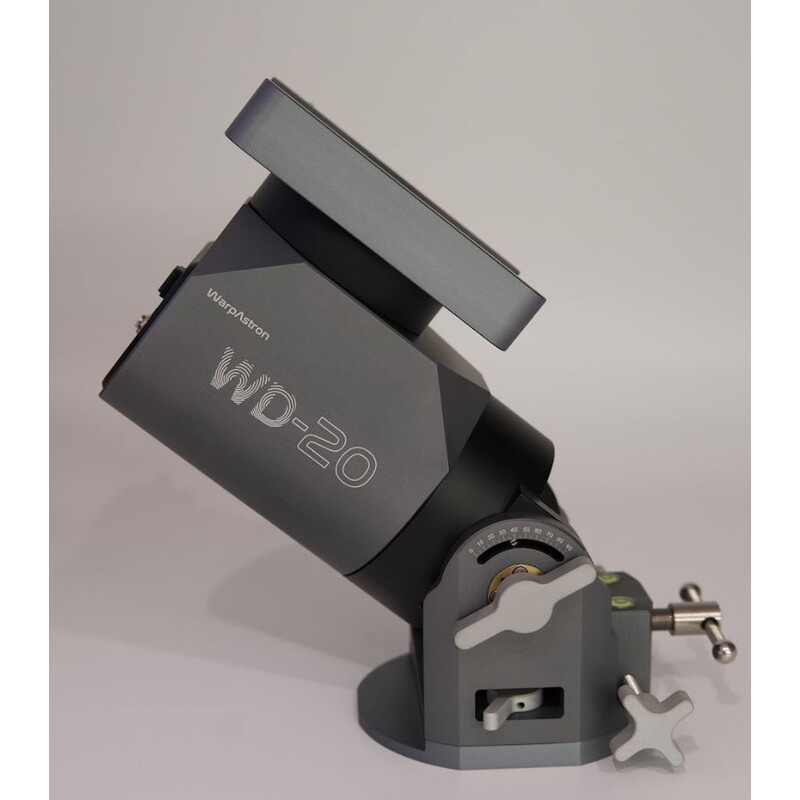

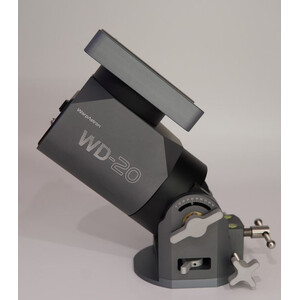

WD-20 is a High-Load harmonic gear mount based on Servo Direct Drive. It provide standard load capacity up to 22kg without using a counterweight. Most heavy equipments like a 150 APO or C11 can be easily handled by it with ideal guiding performance. New designed main body with high power density servo motor, significantly boosting load capacity while keeping its weight at only 5.4kg. Both axises have a home sensor, which makes astrophotography more convenient for remote control/observatory.

Specifications

Capacity


Max. additional load capacity (kg)
22
Input voltage
12

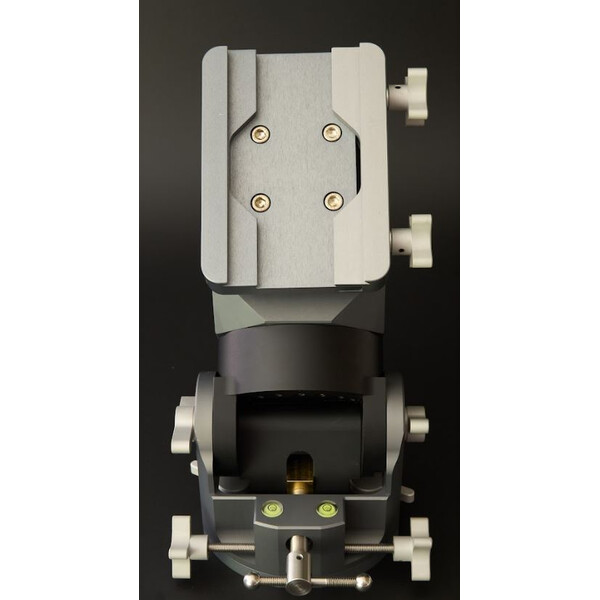

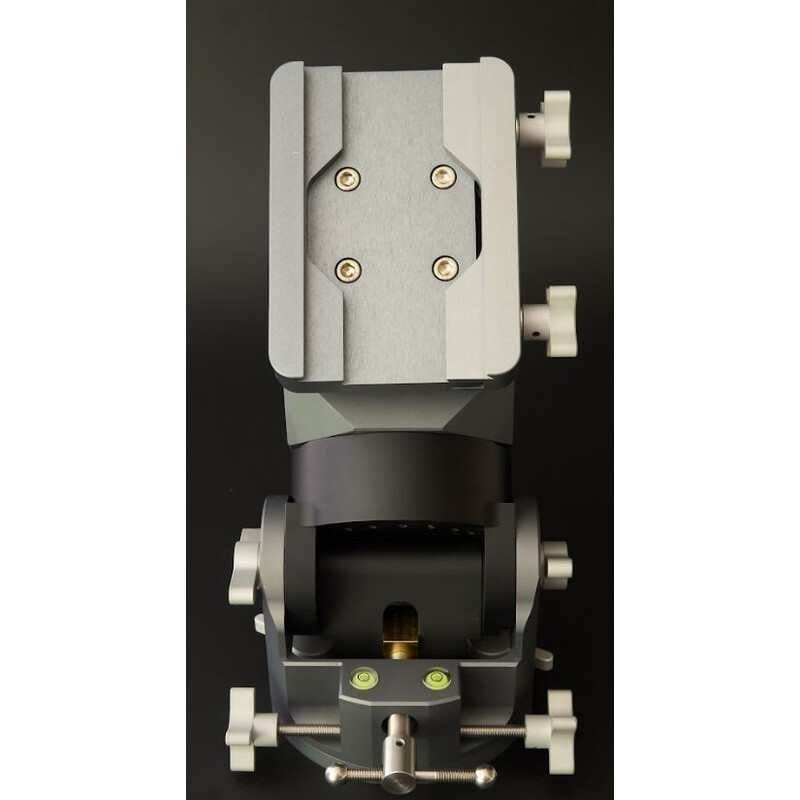

Mounting saddle
Losmandy & Vixen
Polar elevation setting (°)
0-90
Cable-guide
internal
Drive type
Harmonic / Strainwave
Counterweight(s) (piece)
0 (Optional)
Encoder
yes

Special features


Handcontroller
yes
Polar axis scale
yes
Autoguider interface
yes
GoTo system
yes
GPS
yes

Equipment


Pole finder
no
Tripod
without tripod

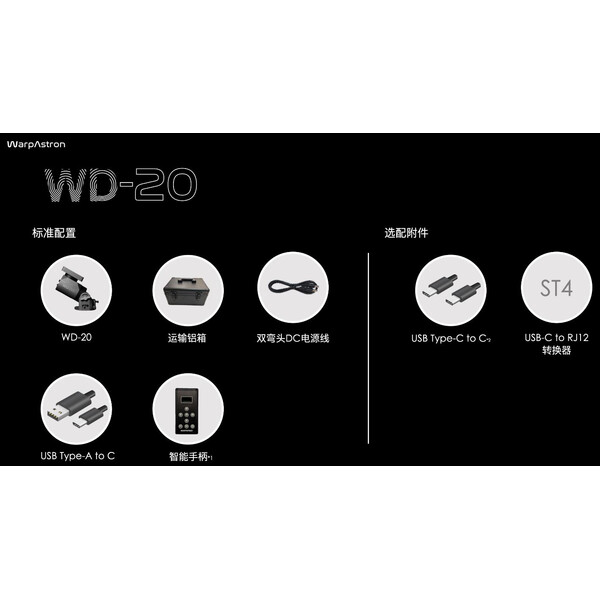

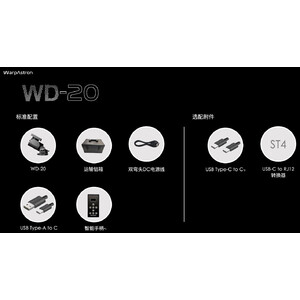

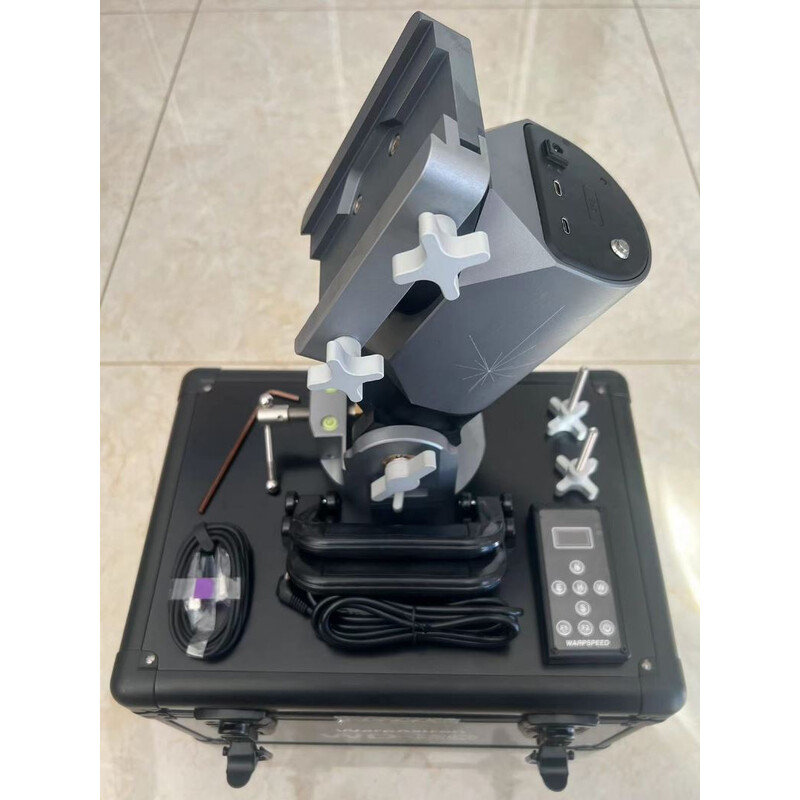

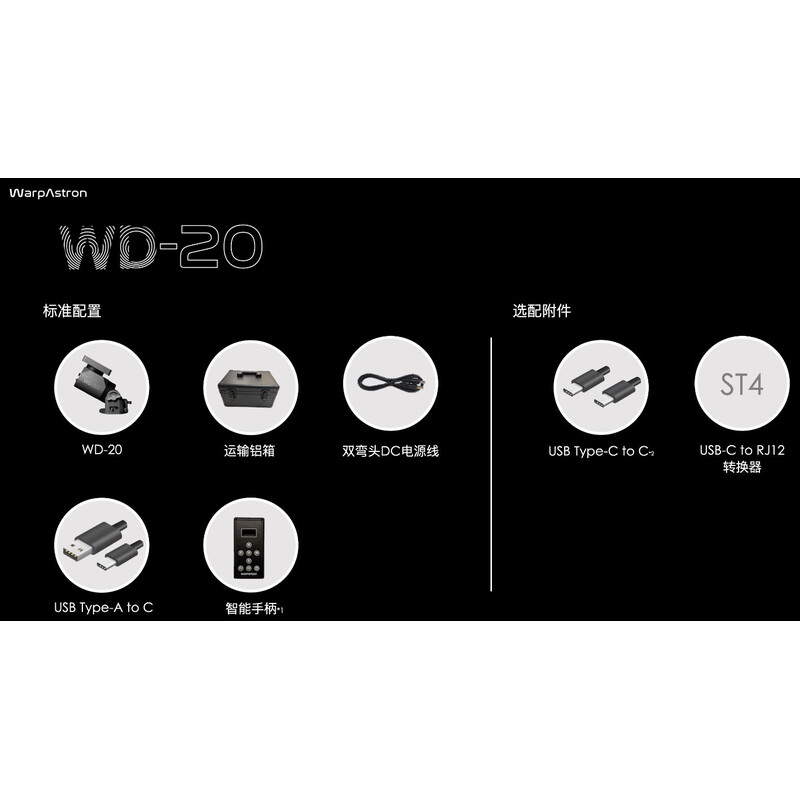

Other contents
USB & ST4 cable
Transport cases
yes

General


Total weight (kg)
5,4
Type
Mount
Type of build
Equatorial

GoTo control


Autoguiding
yes

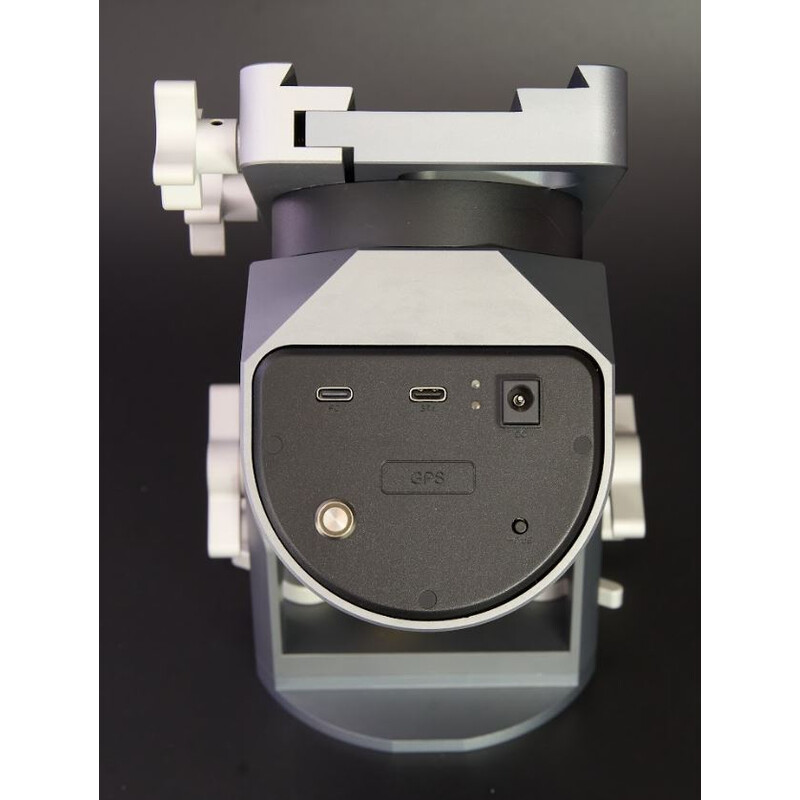

Interfaces
Autoguider ST-4
WIFI
no

Product safety

manufacturer: WarpAstron Optical Co., Ltd., Building No. 2 / Wanzhen Road, Jiading District, 201800 Shanghai, DE, [email protected]
resp_person: NIMAX GmbH, Otto-Lilienthal-Str. 9, 86899 Landsberg am Lech, DE, [email protected]
