Astronomy > Mounts & accessories > Mounts > Equatorial with GoTo > Skywatcher > EQ-AL55i > Skywatcher Mount EQ-AL55i Pro SynScan GoTo WiFi
Product no.: 81066

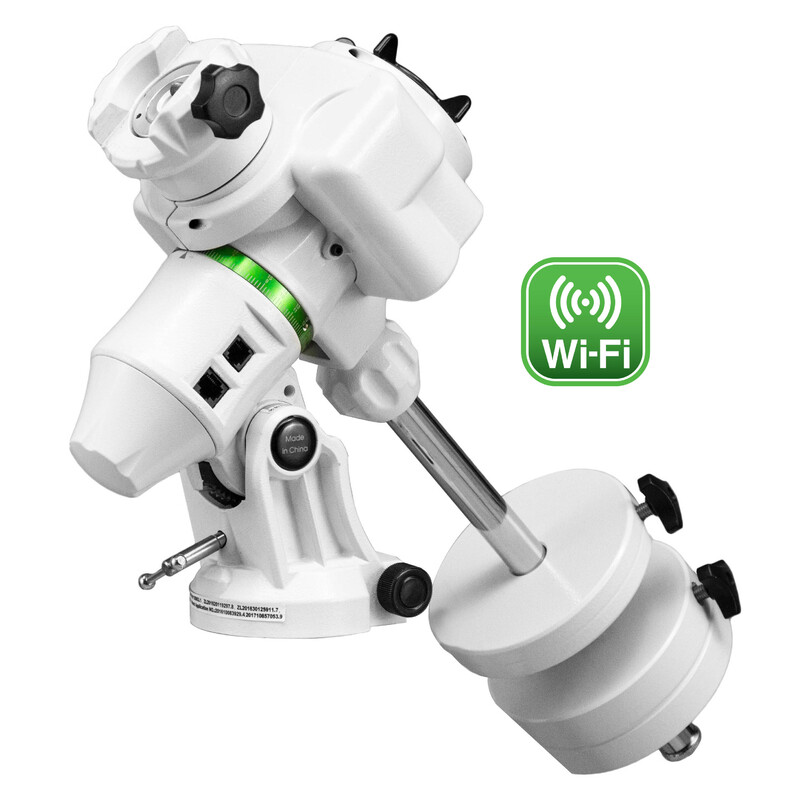

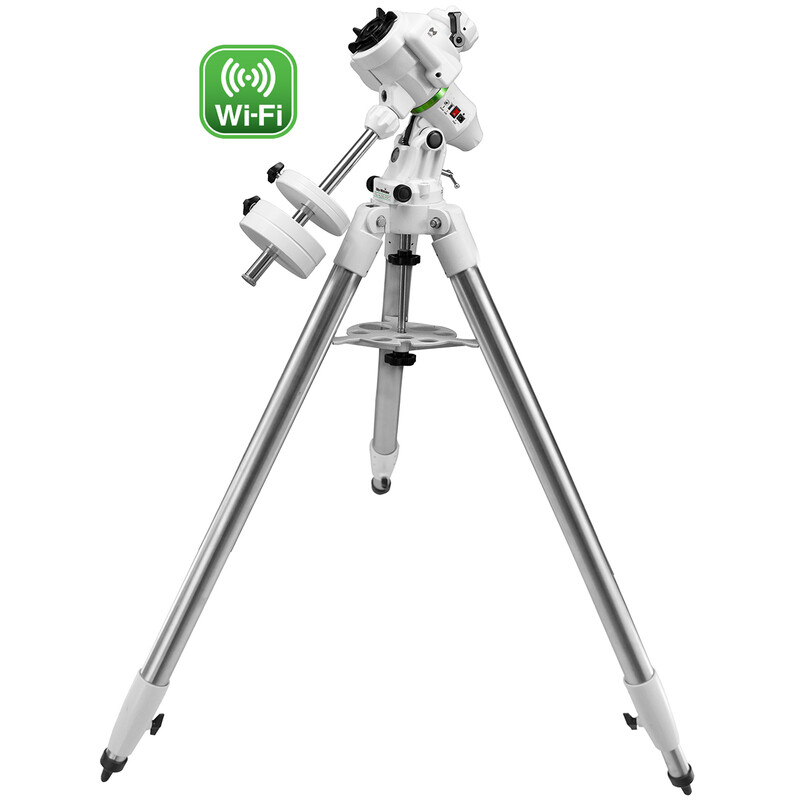

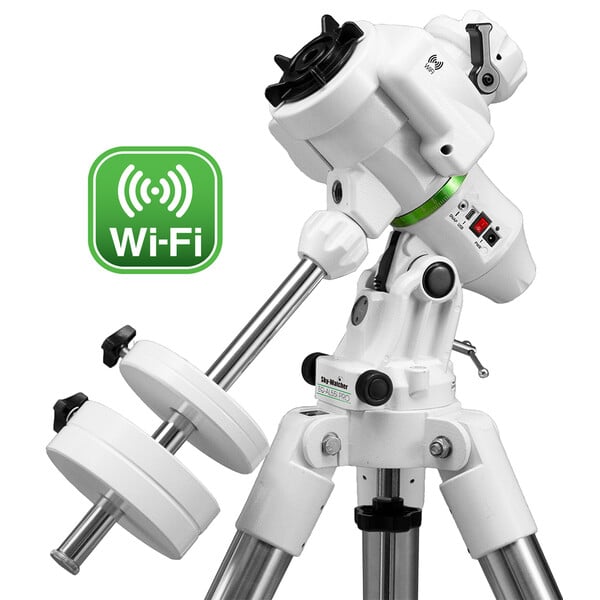

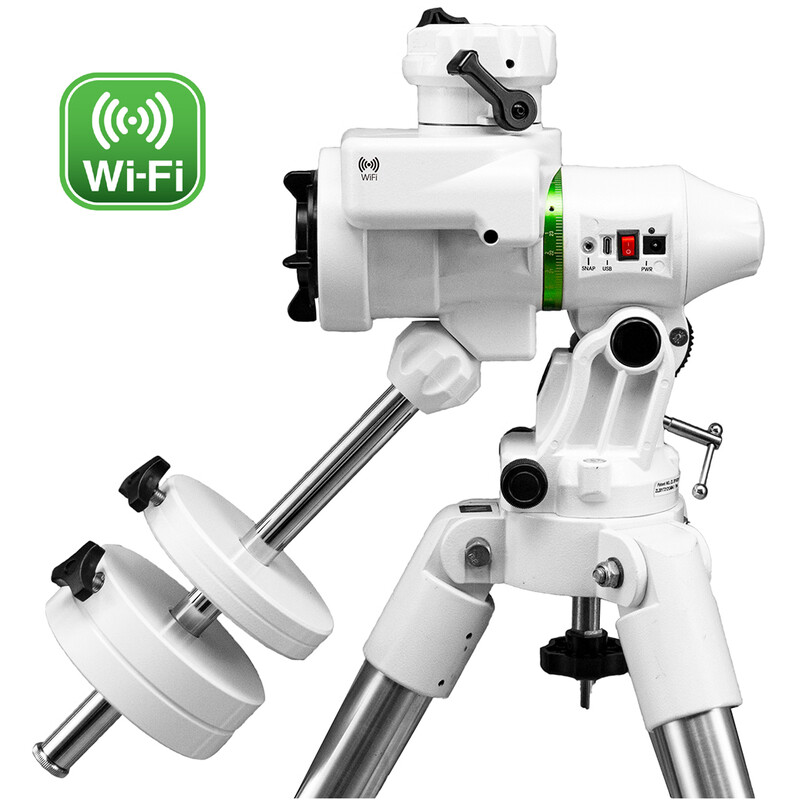

Mount EQ-AL55i Pro SynScan GoTo WiFi

$ 970.00 incl. VAT plus shipping costs
too expensive?
in stock
ready for shipping in 24 h + lead time
  • Load capacity: 10 kilogrammes
  • Remote control via WLAN
  • Sturdy stainless steel tripod

Product description

This versatile mount is equipped with a two-position adjustable counterweight bar, allowing it to be used at all latitudes from 0° to 90° and thus avoiding the problems that arise with most other mounts at extreme polar altitudes. It is therefore an ideal travelling mount!

The EQ-AL55i is fully controlled with a smartphone via the built-in WLAN module and the free SynScan Pro app software. This app is available for iOS and Android.The EQ-AL55i Pro mount is equipped with an illuminated polar finder scope for precise alignment to the celestial pole.

It offers connections for USB-C, autoguider and an optionally available SynScan hand control box. It also has a socket for triggering a DSLR camera.

The EQ-AL55i Pro is a very portable mount for mobile astrophotographers, but also for visual observers.

Specifications

Capacity


Max. additional load capacity (kg)
10
Mounting saddle
Vixen-Style
Polar elevation setting (°)
0-90
Precision of tracking
0,32
Worm gear teeth (RA) (piece)
144
Worm gear teeth (DEC) (piece)
100
DEC worm gear diameter (mm)
51,6
RA worm gear diameter (mm)
73,4
DEC worm shaft diameter (mm)
11
RA worm shaft diameter (mm)
11
Diameter of counterweight bar (mm)
20
Interfaces
USB, SNAP, Power, ST-4 & Synscan Hand Controller
Input voltage
12
Amperage (A)
2
Toothed belt drive<p>
no
Weight mount head only (kg)
3,8
Drive type
Worm wheel

Special features


GoTo system
yes
Traveling mount
yes

Equipment


Accessory plate
yes
cigarette lighter socket
yes
Power pack
no
Pole finder
yes
Motor-powered
yes
Counterweights (piece)
2

Tripod


Tripod material
Steel
Tripod leg diameter (mm)
44

General


Type
Mount
Type of build
Equatorial
Series
EQ-AL55i
Total weight (kg)
14,8
Height (mm)
1100

GoTo control


with hand paddle
no
Tracking modes
parallactic - North-South
Tracking speeds
sideral, solar and lunar
WIFI
yes
GoTo Language
multilingual
Software
SynScan

Product safety

manufacturer: Pacific Telescope Corp, 160-11880 Hammersmith Way, V7A 5C8 Richmond BC, CA, www.skywatcher.com
resp_person: NIMAX GmbH, Otto-Lilienthal-Str. 9, 86899 Landsberg am Lech, DE, [email protected]
