Astronomy > Mounts & accessories > Mounts > Equatorial with GoTo > Losmandy > G11 > Losmandy Mount G11T Titan Gemini 2 GoTo FHD-MA
Product no.: 62545

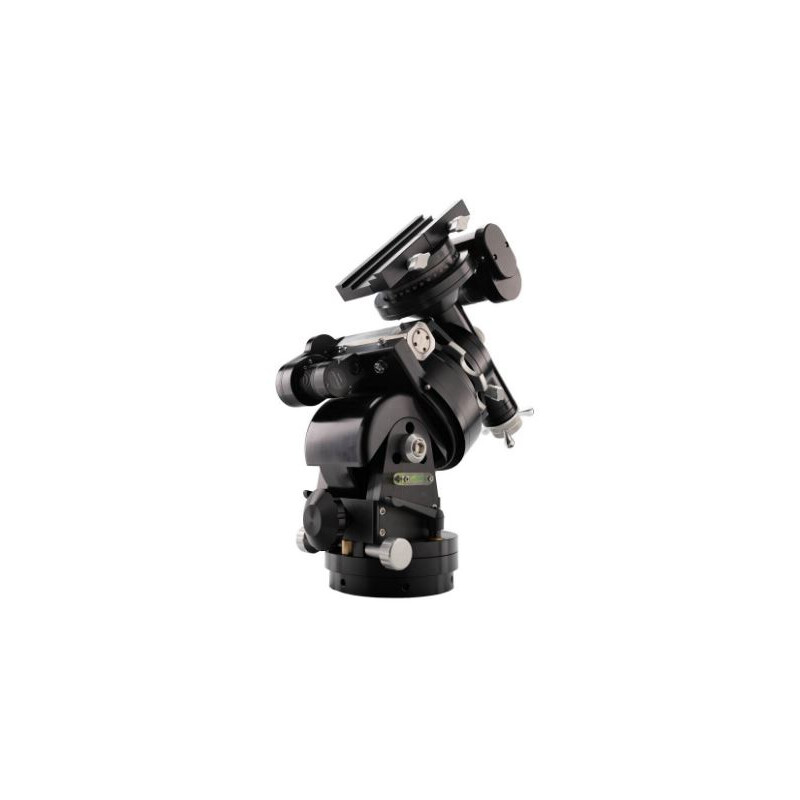

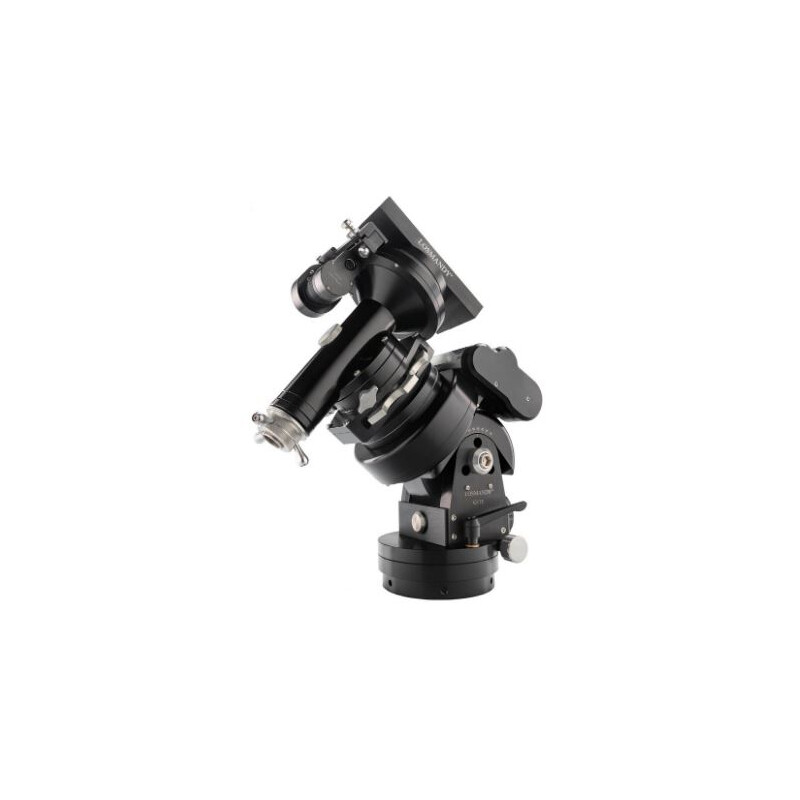

Mount G11T Titan Gemini 2 GoTo FHD-MA

RRP: $ 8,400.00 Our price:
$ 6,700.00 incl. VAT plus shipping costs
too expensive?
long-term
ready for shipping in 6-10 weeks + lead time

No delivery possible before Christmas. Order a voucher coupon!


Product description

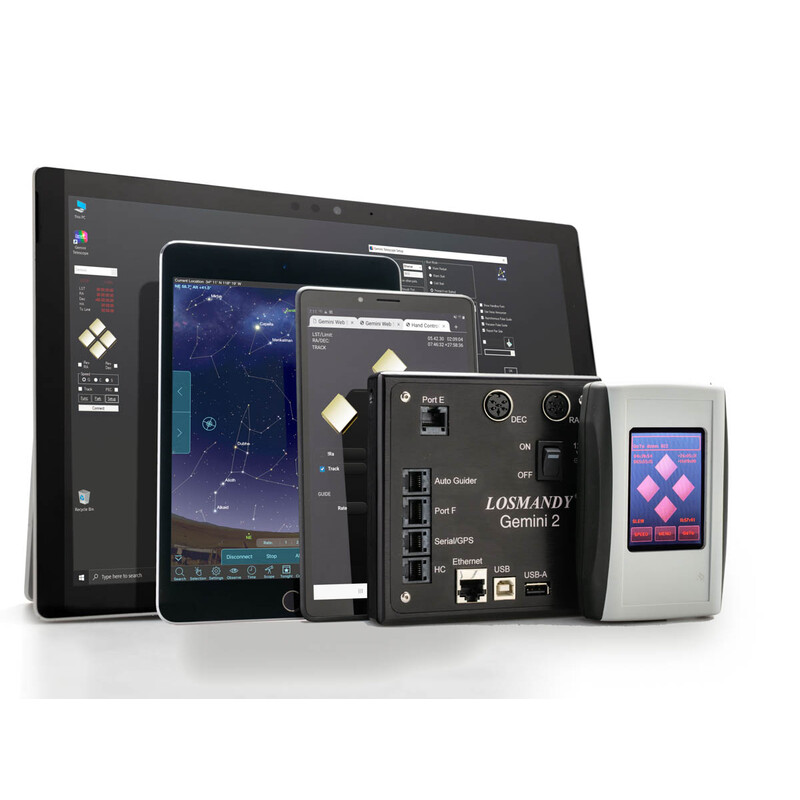

The mount is equipped with the GoTo system Gemini 2:

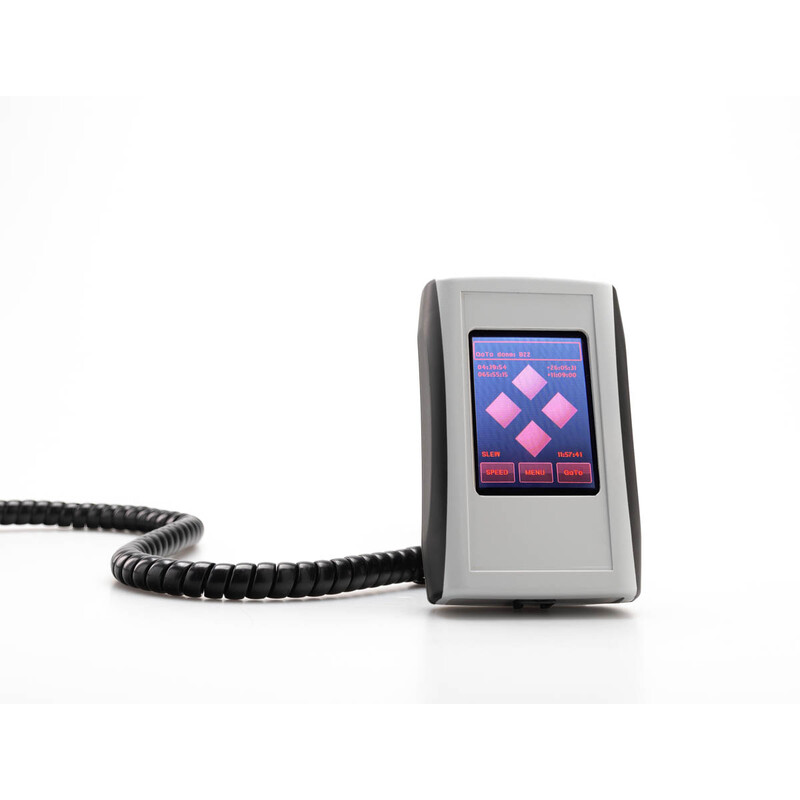

  • Full Color Graphic Touch Screen clearly displays all functions, with auto color change from dawn to dusk

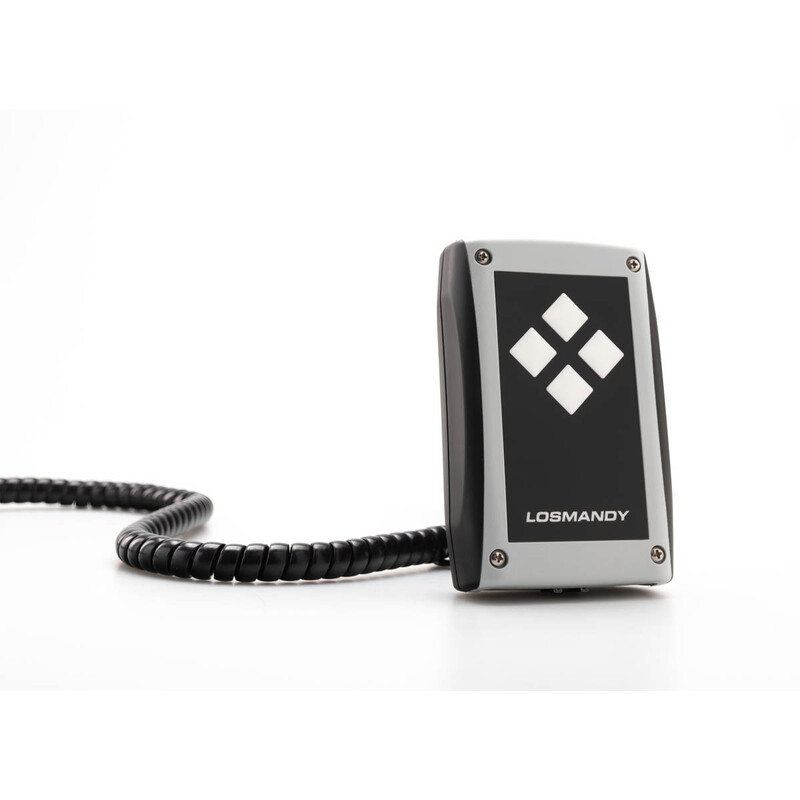

  • Classic four-button pattern for guiding, centering, moving and slewing on both the touch screen and a tactile membrane on the rear
  • Selectable GOTO, Slewing, Centering and Guiding Rate
  • Stand-alone system. No PC required!
  • Ethernet 10/100 with full IP function permits operation from anywhere using a browser, ASCOM, or APP over the web or serial port
  • Non-Volatile Memory and Real-Time Clock, internal Battery keeps settings and preferences stored between uses, user define Park function
  • English, French, Spanish & German displays
  • Two USB ports; Virtual COM to PC, ASCOM or planetarium program
  • Port F - multi-function serial; A/D I/O
  • Auto switch tracking rates
  • Search function
  • Identify function
  • Polar Align Assist, Polar Axis Correction
  • User define limit stops
  • Permanent Dec Backlash compensation
  • Electronic Balance Graph
  • Sidereal, King, Lunar, Solar, Terrestrial, Closed loop and Comet/user defined tracking rates
  • Synchronize function
  • Coordinate input
  • Bookmark set for your favorite objects

Our expert comment:

The Gemini 2 computer now includes "Level 6".

(Jan Stroeher)

Specifications

Capacity


Max. additional load capacity (kg)
34
Power supply
12-18
Amperage (A)
3
Worm gear teeth (DEC) (piece)
360
Worm gear teeth (RA) (piece)
270
Axle bearings
Needle
Material of worm wheel
Aluminium
Material of worm gear
Brass
DEC worm gear diameter (mm)
143
RA worm gear diameter (mm)
171
Weight mount head only (kg)
28
Counterweight(s) (piece)
1 (10kg)
Diameter of counterweight bar (mm)
32
Mounting saddle
Losmandy & Vixen
Polar elevation setting (°)
12 - 70
Slow-motion azimuth adjustment (°)
+/- 10
Built-in clock
yes
Motor type
Servomotors
Precision of tracking
+/- 5
DEC axis diameter (mm)
32
RA axis diameter (mm)
50
Drive type
Worm wheel

Special features


PEC correction
yes
GoTo system
yes
Controllable via PC
yes
Updateable via web
yes
Polar axis scale
yes
Level
yes

Equipment


Tripod
Tripod
Pole finder
no

Tripod


Tripod material
Aluminium
Min. tripod height (cm)
84
Max. tripod height (cm)
122
Tripod weight (kg)
16

General


Total weight (kg)
33
Series
G11
Type
Mount
Type of build
Equatorial

GoTo control


Database
40.000
GoTo Language
English, German, French, Spanish
Interfaces
Autoguider, USB
Software
Gemini 2
Autoguiding
yes
PEC correction
yes

Product safety

manufacturer: Hollywood General Machining, Inc., 416 N. Varney St., CA 91502 Burbank, US, www.losmandy.com
resp_person: NIMAX GmbH, Otto-Lilienthal-Str. 9, 86899 Landsberg am Lech, DE, [email protected]

Recommended accessories

Astronomy > Telescope accessories (4)
Power pack

Losmandy Gemini System Power Supply

$ 176.00*
Astronomy > Mounts & accessories (6)

Losmandy Garmin GPS module for Gemini 2 Goto mount

$ 290.00*

*All prices include VAT plus shipping costs.

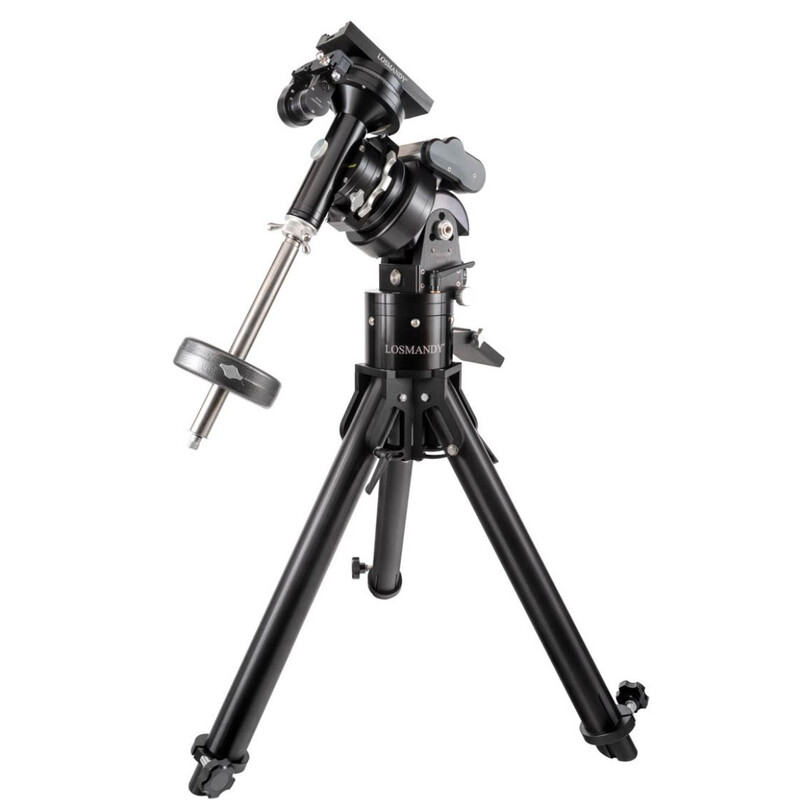

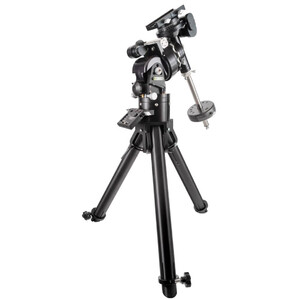

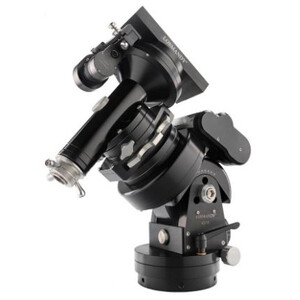

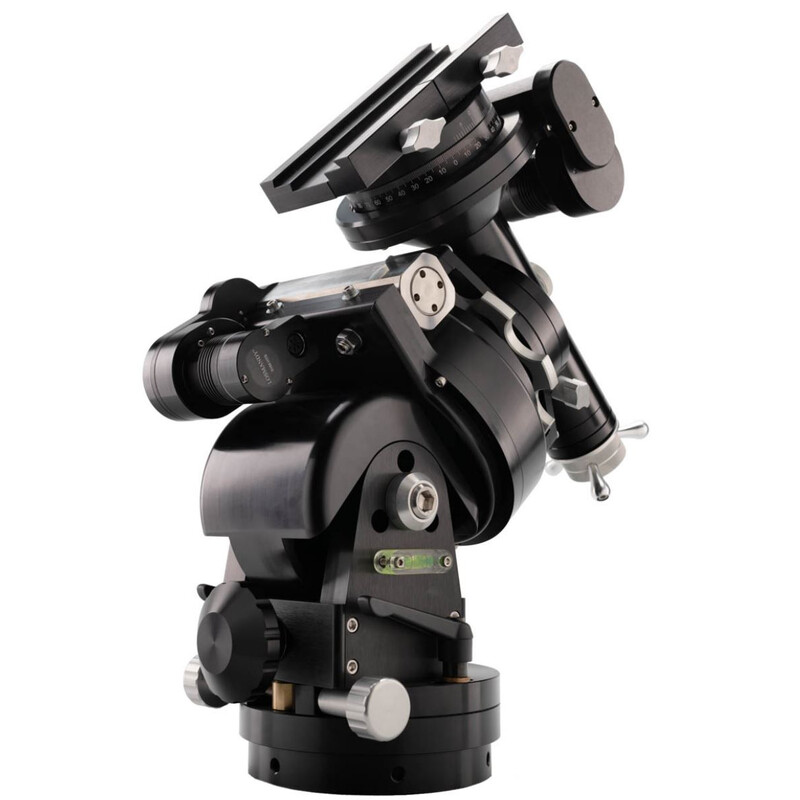

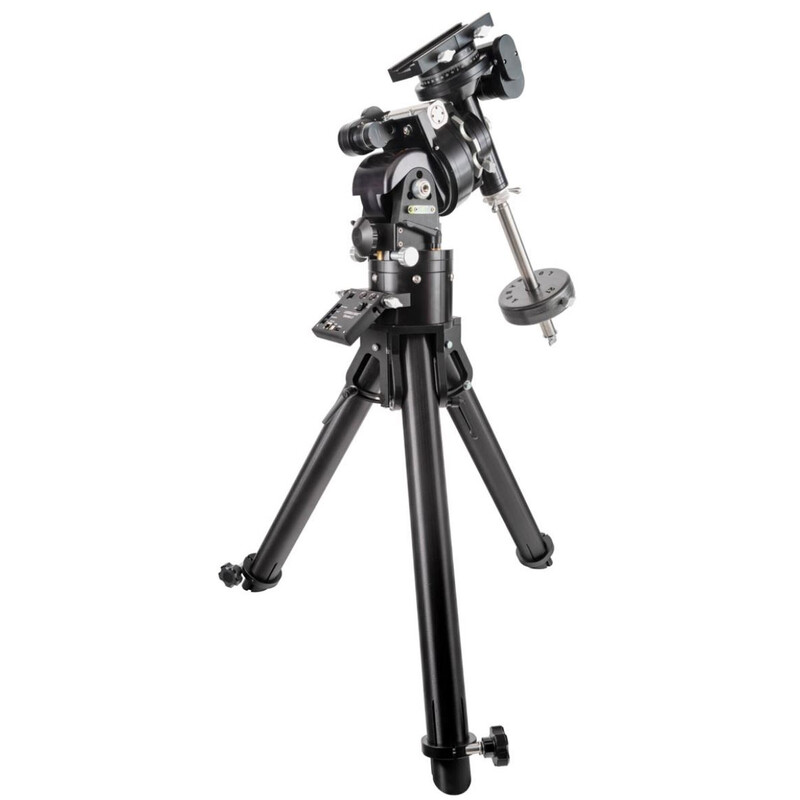

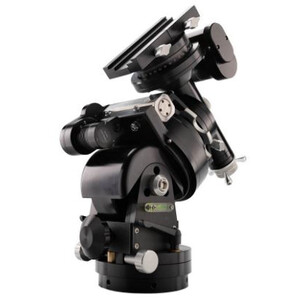

Losmandy Mount G11T Titan Gemini 2 GoTo FHD-MA
