Astronomy > Mounts & accessories > Mounts > Equatorial with GoTo > Losmandy > G11 > Losmandy Mount G11GT Gemini 2 GoTo with HD-Tripod
Product no.: 54336

Mount G11GT Gemini 2 GoTo with HD-Tripod

$ 6,100.00 incl. VAT plus shipping costs
too expensive?
long-term
Product not available anymore + lead time

Product description

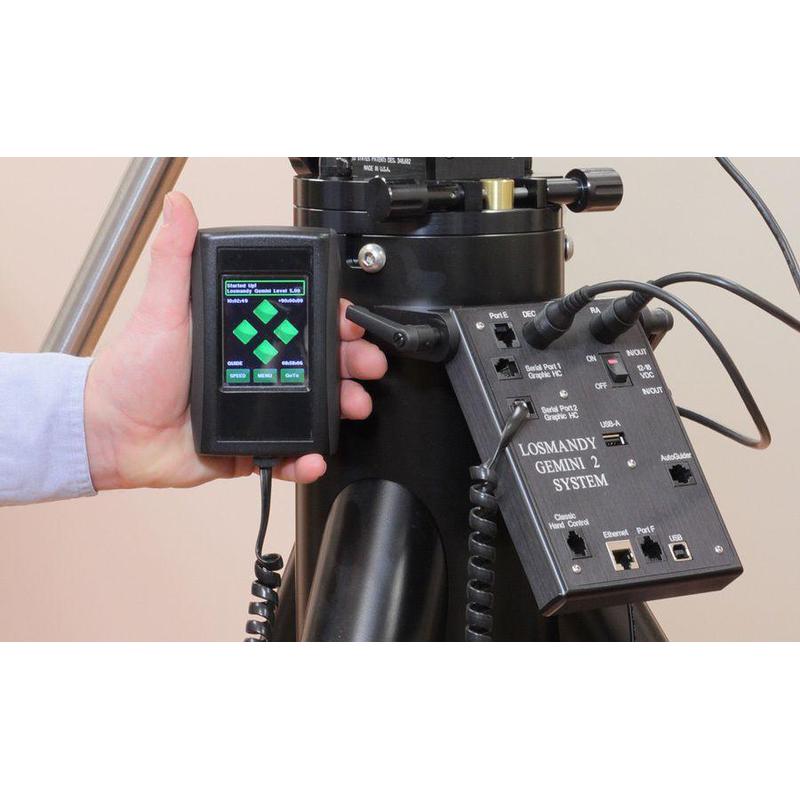

The mount is equipped with the GoTo system Gemini 2:

  • Full Color Graphic Touch Screen clearly displays all functions, with auto color change from dawn to dusk
  • Classic four-button pattern for guiding, centering, moving and slewing on both the touch screen and a tactile membrane on the rear
  • Selectable GOTO, Slewing, Centering and Guiding Rate
  • Stand-alone system. No PC required!
  • Ethernet 10/100 with full IP function permits operation from anywhere using a browser, ASCOM, or APP over the web or serial port
  • Non-Volatile Memory and Real-Time Clock, internal Battery keeps settings and preferences stored between uses, user define Park function
  • English, French, Spanish & German displays
  • Two USB ports; Virtual COM to PC, ASCOM or planetarium program
  • Port F - multi-function serial; A/D I/O
  • Auto switch tracking rates
  • Search function
  • Identify function
  • Polar Align Assist, Polar Axis Correction
  • User define limit stops
  • Permanent Dec Backlash compensation
  • Electronic Balance Graph
  • Sidereal, King, Lunar, Solar, Terrestrial, Closed loop and Comet/user defined tracking rates
  • Synchronize function
  • Coordinate input
  • Bookmark set for your favorite objects

Specifications

Capacity


Max. additional load capacity (kg)
35
Power supply
12
Power consumption in open circuit (mA)
500
Worm gear teeth (RA) (piece)
270
Material of worm wheel
Aluminium
Material of worm gear
Brass
Worm gear teeth (DEC) (piece)
360
Axle bearings
Needle
DEC worm gear diameter (mm)
143
RA worm gear diameter (mm)
172
RA axis diameter (mm)
50
Slow-motion azimuth adjustment (°)
+/- 10
DEC axis diameter (mm)
32
Mounting saddle
Losmandy & Vixen
Motor type
Servomotors
Counterweight(s) (piece)
1 (9,5kg)
Weight (g)
2800

Special features


Graduated circles
yes
PEC correction
yes
GoTo system
yes
Controllable via PC
yes
Updateable via web
yes
Polar axis scale
yes

Equipment


Power pack
no
Tripod
Tripod
Motor-powered
yes

Tripod


Tripod material
Aluminium
Tripod weight (kg)
16
Max. tripod height (cm)
122
Min. tripod height (cm)
84

General


Total weight (kg)
53,5
Series
G11

Area of application


Useful for photographs
yes (very good)

GoTo control


Database
40.000
Hand Controller
Gemini 2
GPS
no
Precision
30
Interfaces
Autoguider, USB
GoTo Language
multilingual

Product safety

Manufacturer: Hollywood General Machining, Inc., 416 N. Varney St., CA 91502 Burbank, US, www.losmandy.com
Responsible person: NIMAX GmbH, Otto-Lilienthal-Str. 9, 86899 Landsberg am Lech, DE, [email protected]

Recommended accessories

Astronomy > Telescope accessories (4)
Power pack

Losmandy Gemini System Power Supply

$ 176.00*
Astronomy > Mounts & accessories (15)

Losmandy Garmin GPS module for Gemini 2 Goto mount

$ 291.00*

*All prices include VAT plus shipping costs.

Losmandy Mount G11GT Gemini 2 GoTo with HD-Tripod

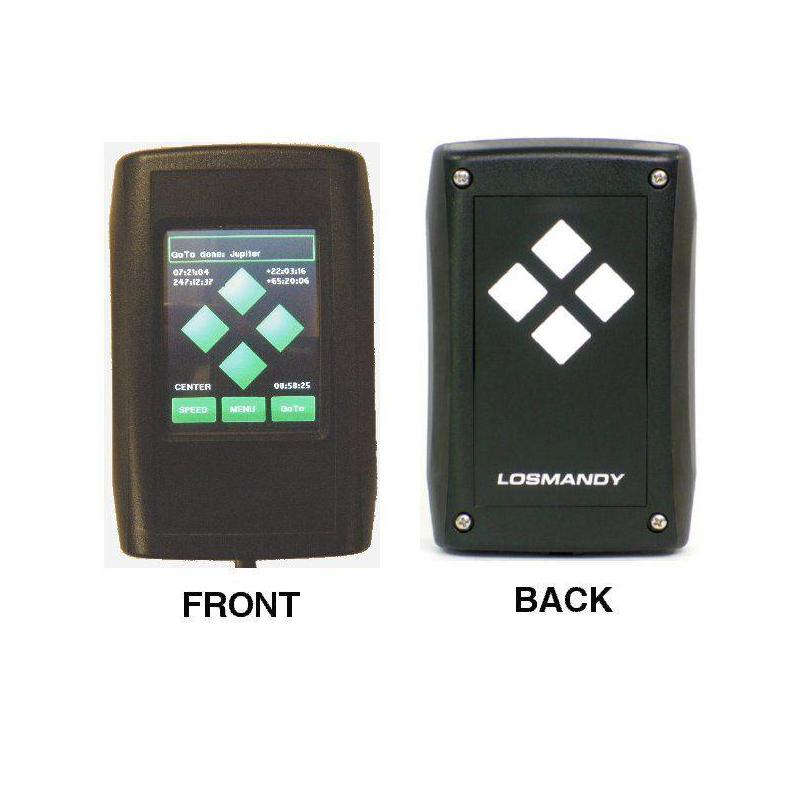

Controller

Losmandy Mount G11GT Gemini 2 GoTo with HD-Tripod

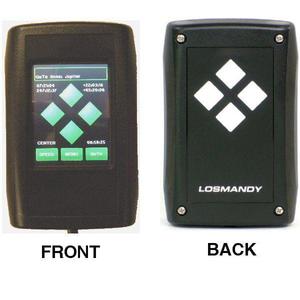

Controller
Losmandy Mount G11GT Gemini 2 GoTo with HD-Tripod

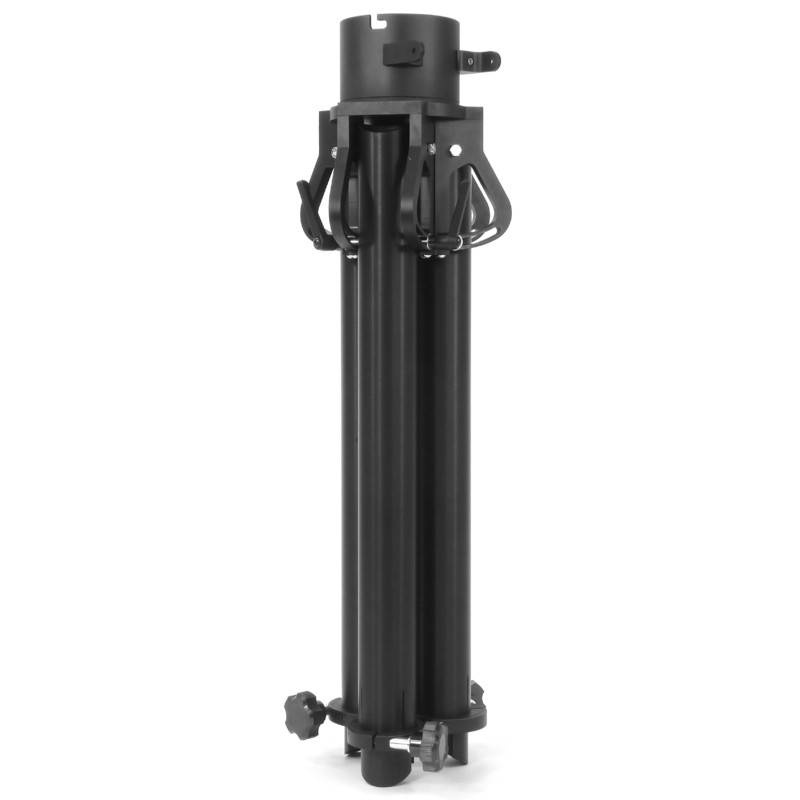

Tripod, foldable

Losmandy Mount G11GT Gemini 2 GoTo with HD-Tripod

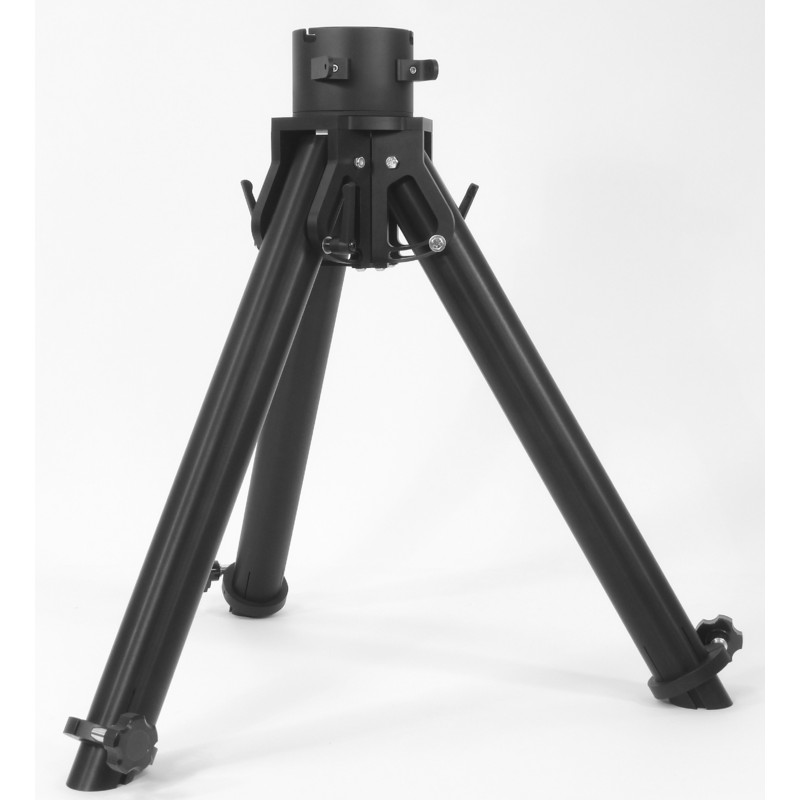

Tripod
