Astronomy > Mounts & accessories > Mounts > Equatorial with GoTo > Losmandy > G11 > Losmandy Mount G11G Gemini 2 GoTo FHD-MA
Product no.: 62543

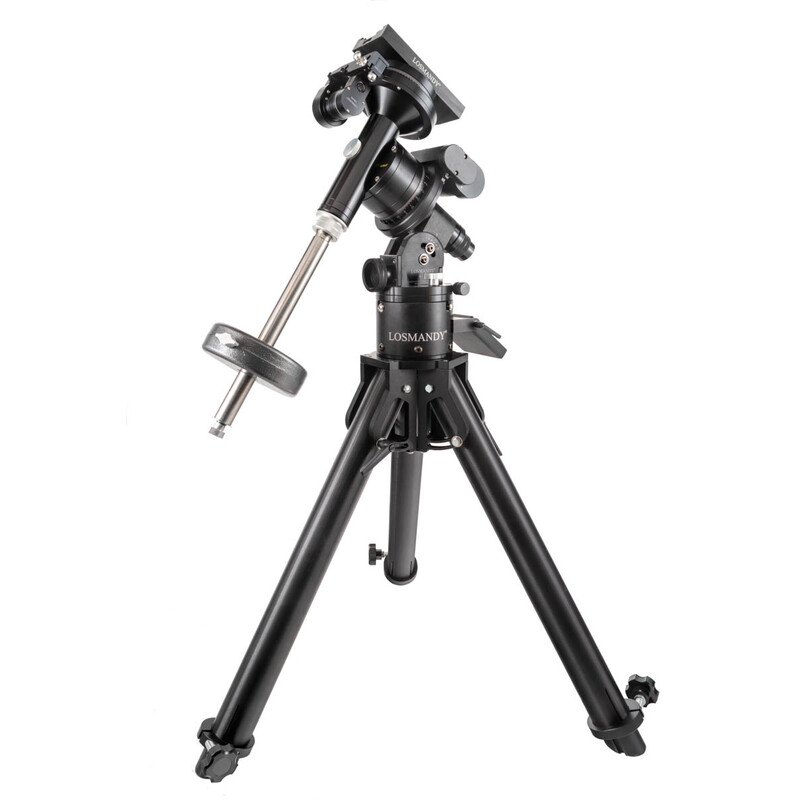

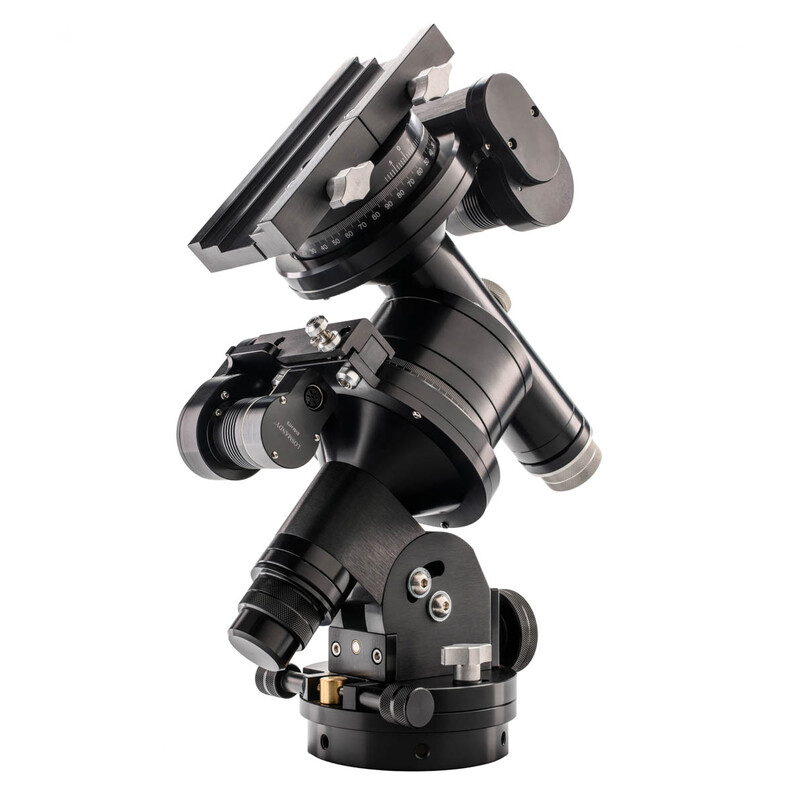

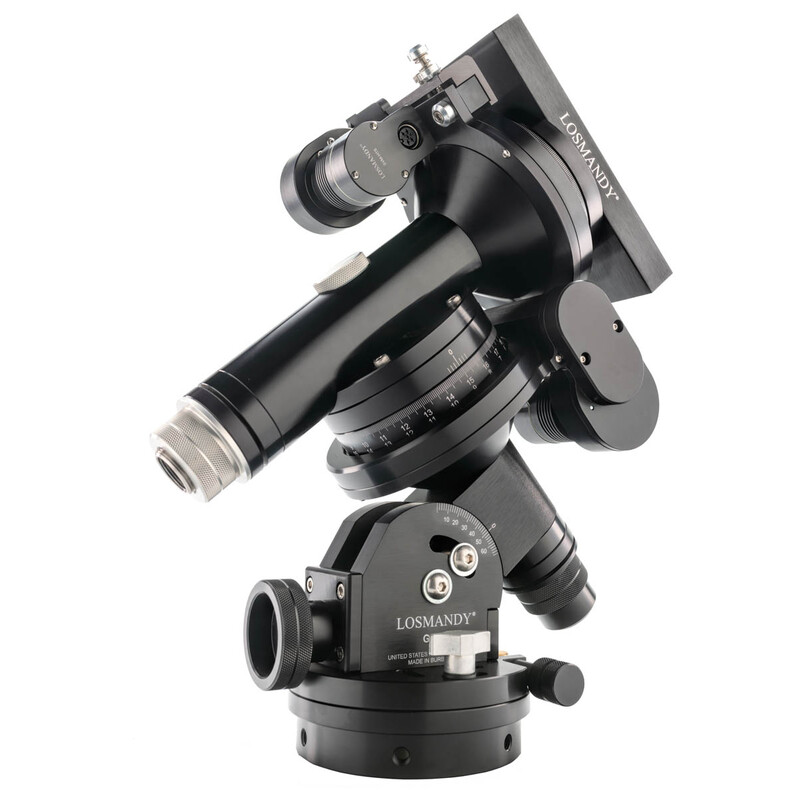

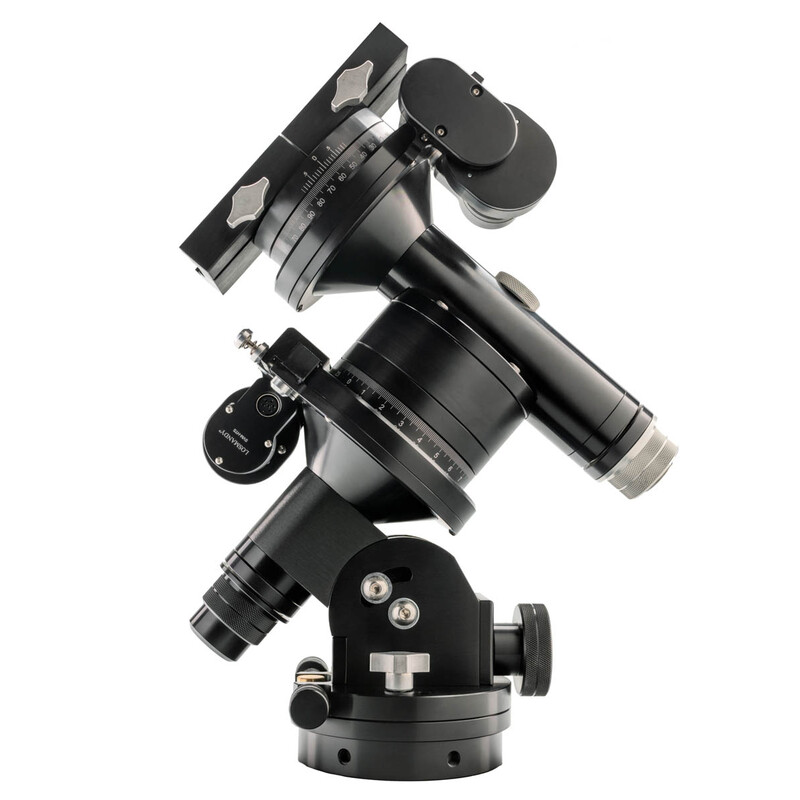

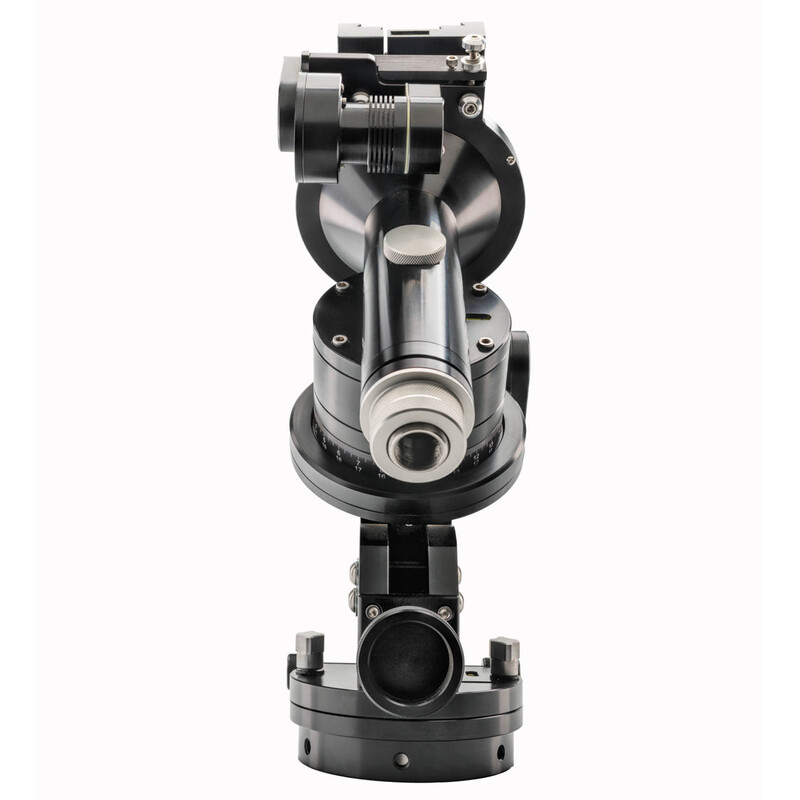

Mount G11G Gemini 2 GoTo FHD-MA

$ 7,700.00 Sale price:
$ 6,929.73 incl. VAT, plus shipping costs
too expensive?
in stock
ready for shipping in 24 h + lead time
Express shipment possible for delivery tomorrow, 22.11.2024!

Delivery possible before Christmas (European destinations) - when you order by 18.12.!
Right of return up to January 31 2025!


Product description

The mount is equipped with the GoTo system Gemini 2:

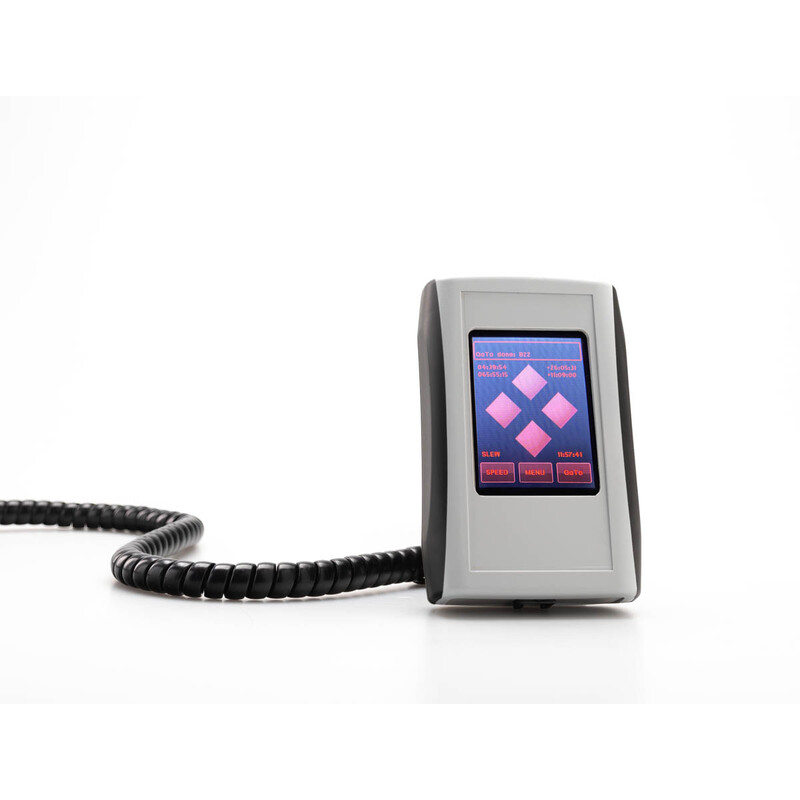

  • Full Color Graphic Touch Screen clearly displays all functions, with auto color change from dawn to dusk

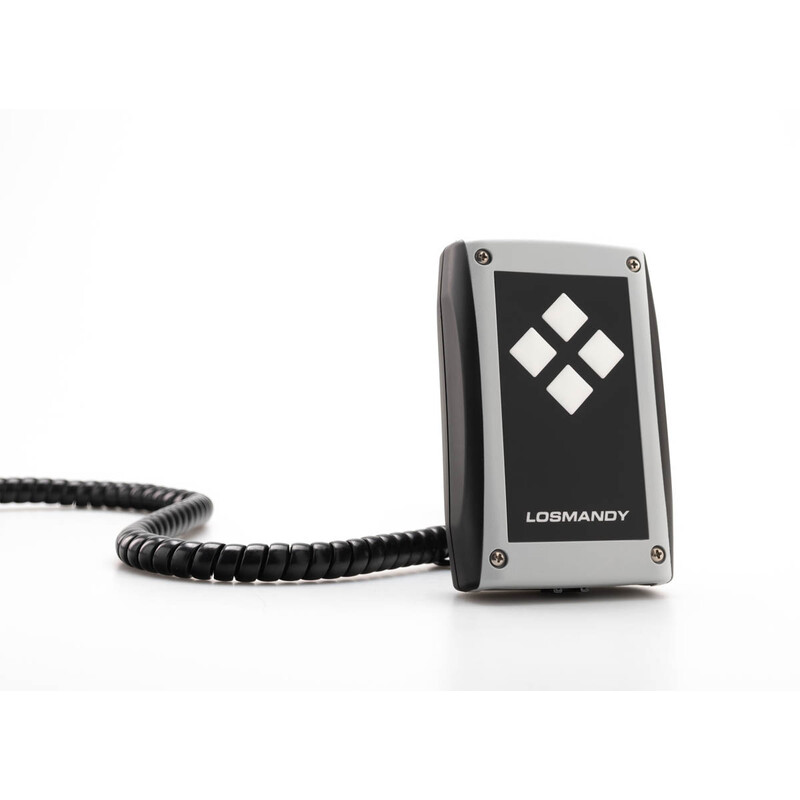

  • Classic four-button pattern for guiding, centering, moving and slewing on both the touch screen and a tactile membrane on the rear
  • Selectable GOTO, Slewing, Centering and Guiding Rate
  • Stand-alone system. No PC required!

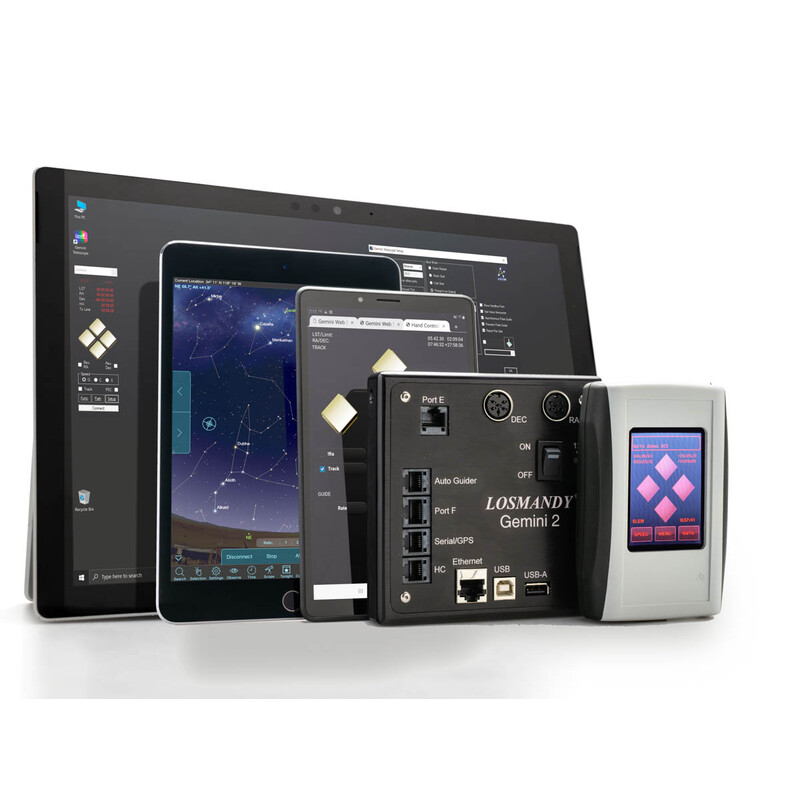

  • Ethernet 10/100 with full IP function permits operation from anywhere using a browser, ASCOM, or APP over the web or serial port
  • Non-Volatile Memory and Real-Time Clock, internal Battery keeps settings and preferences stored between uses, user define Park function
  • English, French, Spanish & German displays
  • Two USB ports; Virtual COM to PC, ASCOM or planetarium program
  • Port F - multi-function serial; A/D I/O
  • Auto switch tracking rates
  • Search function
  • Identify function
  • Polar Align Assist, Polar Axis Correction
  • User define limit stops
  • Permanent Dec Backlash compensation
  • Electronic Balance Graph
  • Sidereal, King, Lunar, Solar, Terrestrial, Closed loop and Comet/user defined tracking rates
  • Synchronize function
  • Coordinate input
  • Bookmark set for your favorite objects

Our expert comment:

The Gemini 2 computer now includes "Level 6".

(Jan Stroeher)

Specifications

Capacity


Max. additional load capacity (kg)
27
Power supply
12-18
Amperage (A)
3
Worm gear teeth (DEC) (piece)
180
Worm gear teeth (RA) (piece)
360
Axle bearings
Needle
Material of worm wheel
Aluminium
Material of worm gear
Brass
DEC worm gear diameter (mm)
143
RA worm gear diameter (mm)
143
Weight mount head only (kg)
15
Counterweight(s) (piece)
1 (10kg)
Diameter of counterweight bar (mm)
32
Mounting saddle
Losmandy & Vixen
Polar elevation setting (°)
0 - 68
Slow-motion azimuth adjustment (°)
+/- 8,5
Built-in clock
yes
Motor type
Servomotors
Drive type
Worm wheel

Special features


PEC correction
yes
GoTo system
yes
Controllable via PC
yes
Updateable via web
yes
Polar axis scale
yes
Level
yes

Equipment


Tripod
Tripod
Pole finder
no

Tripod


Tripod material
Aluminium
Min. tripod height (cm)
84
Max. tripod height (cm)
122
Tripod weight (kg)
16

General


Total weight (kg)
33
Series
G11
Type
Mount
Type of build
Equatorial

GoTo control


Database
40.000
GoTo Language
English, German, French, Spanish
Interfaces
Autoguider, USB
Software
Gemini 2
Autoguiding
yes
PEC correction
yes

Recommended accessories

Astronomy > Telescope accessories (4)
Power pack

Losmandy Gemini System Power Supply

$ 179.00*
Astronomy > Mounts & accessories (10)

Losmandy Garmin GPS module for Gemini 2 Goto mount

$ 295.00*

*All prices include VAT plus shipping costs.

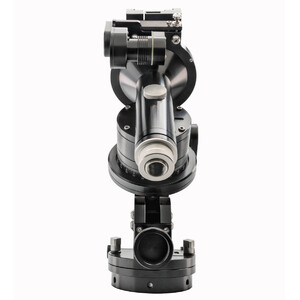

Losmandy Mount G11G Gemini 2 GoTo FHD-MA
Controller

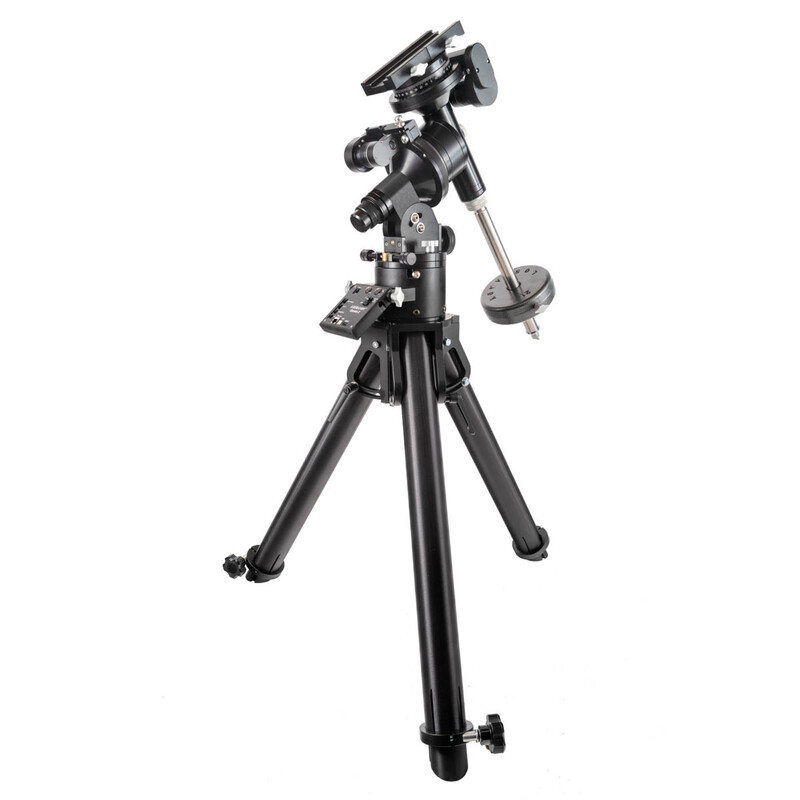

Losmandy Mount G11G Gemini 2 GoTo FHD-MA
