Product no.: 25168

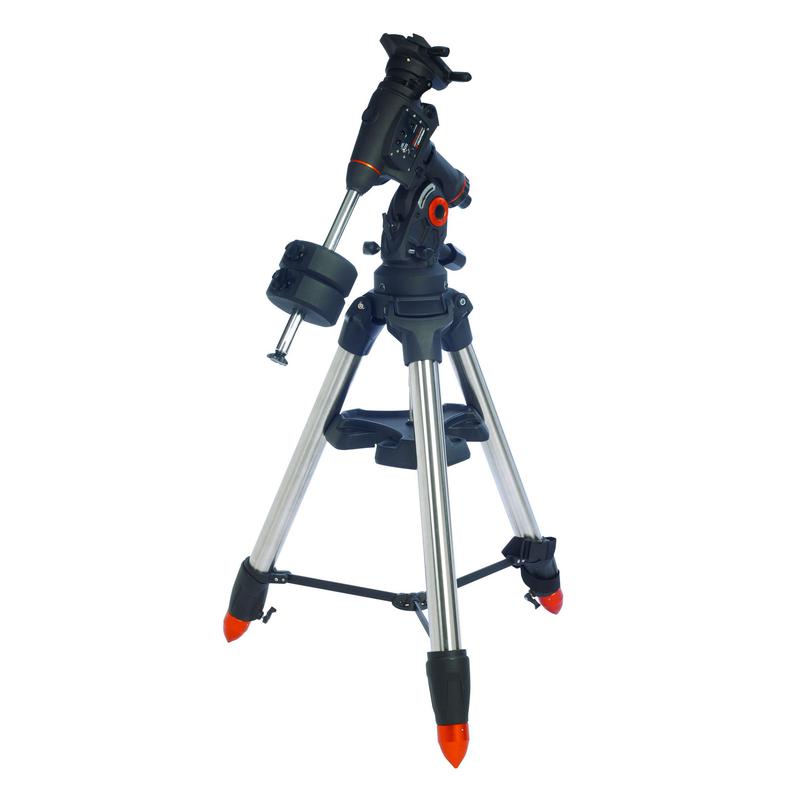

CGEM-DX mount

$ 2,700.00 incl. VAT plus shipping costs
too expensive?
long-term
Product not available anymore + lead time

No delivery possible before Christmas. Order a voucher coupon!


Product description

The CGEM mount has a fresh, attractive, bold appearance and is capable of carrying Celestron's higher-end SCT optical tubes (up to 11") securely and vibration free, which is ideal for both imaging and visual observing. Capable of holding over 40 lbs of payload and slewing at 5 per second, you will be able to instantly point to any of the celestial objects in the database.

Ergonomic Design - CGEM was designed to be ergonomically friendly with large Altitude and Azimuth adjustment knobs for quick and easy polar alignment adjustment. The internal RA and DEC motor wiring provides a clean look and an easy and trouble free set up.

Innovation - The CGEM series has a new innovative Polar alignment procedure called All-Star. All-Star allows users to choose any bright star, while the software calculates and assists with polar alignment. Another great feature of the CGEM sure to please astroimagers, is the Permanent Periodic Error Correction (PEC) which will allow users to train out the worm gears periodic errors, while the mount retains the PEC recordings.

Performance - For objects near the Meridian (imaginary line passing from North to South), the CGEM will track well past the Meridian for uninterrupted imaging through the most ideal part of the sky. The CGEM mount has a robust database with over 40,000 objects, 100 user defined programmable objects and enhanced information on over 200 objects.

Celestron's CGEM mount is the perfect fit between the Advanced Series and CGE Series. Offering the portability of the Advanced Series and the precision of the CGE.

Specifications

Capacity


Designation
CGEM-DX
Max. additional load capacity (kg)
22
Motor speeds
5°/sek, 2°/sek, 1°/sek, 64, 16, 8, 4, 1, 0.5
Material of worm gear
Brass
Material of worm wheel
Steel
Counterweight(s) (piece)
1 (10kg)
Software
NexRemote
Positioning
automatic, 2-star and fast alignment
Database
40000
Freely definable
400
Interfaces
Aux, Autoguider, RS-232
Power supply
12
Language
german, english, french, spanish, italian, russian

Special features


GoTo system
yes
GPS
-
Controllable via PC
yes
Updateable via web
yes
Traveling mount
-
Size suitable for hand luggage
-

Equipment


Tripod
Tripod

Tripod


Stand column
-
Tripod weight (kg)
20,4
Tripod material
Stahl

General


Total weight (kg)
39
Series
CGEM-DX

Product safety

manufacturer: Celestron, LLC., 2835 Columbia St, 90503 Torrance, California, US, www.celestron.com
resp_person: Baader Planetarium GmbH, Zur Sternwarte, 82291 Mammendorf, DE, [email protected]
