Product no.: 58698

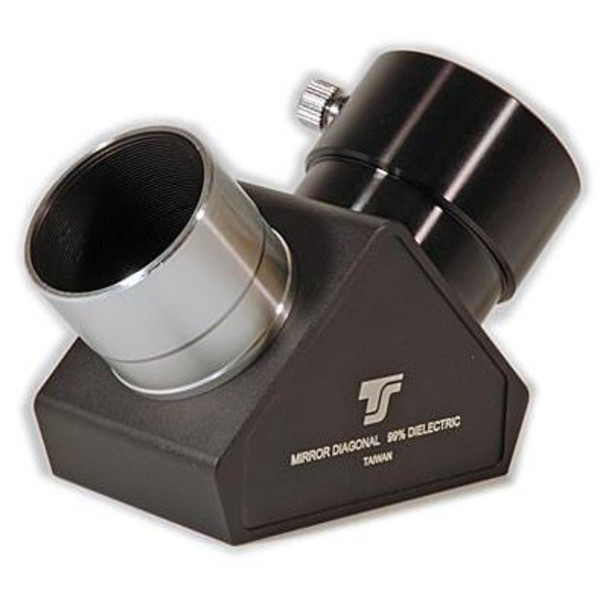

Diagonal mirror 90° 1.25"

$ 122.00 incl. VAT, plus shipping costs
too expensive?
in stock
ready for shipping in 24 h + lead time

Product description

1.25" diagonal mirror - 99% reflectivity - 1/12 Lambda - CNC metal body

A deluxe 1.25" star diagonal for high image quality - with brass compression ring

There are many 1.25" star diagonals on the market. Many of them have a mediocre mirror quality with 90% reflectivity (10% loss) and a plastic body. The 1.25" diagonal by TS optics stands for a high-quality alternative to those cheap parts. It offers excellent image and mechanical quality. There's no vignetting over the full 1.25" field. Another advantage is the locking screw which does not sits near the top (often 3 or 3.5 mm), but a bit (9 mm) down the receptacle. This position avoids jamming if eyepieces with a thick body are used.

Technical details:

Field illumination: full 1.25" without vignetting

  • Reflectivity: dielectric 99% coating for bright images
  • Optical surface quality: 1/12 Lambda
  • Mirror substrate: BK7 optical glass
  • Body: completely CNC machined
  • Telescope side connection: 1.25" barrel with filter thread for 1.25" filters
  • Eyepiece side connection: 1.25" barrel with locking screw and compression ring
  • Effective optical Length: 85mm

Specifications

Capacity


Viewing posture
90°
Connection (to the telescope)
1,25"
Coating of optical system
dielectric
Surface reflection
99

Special features


Correction of vertically reversed image
yes
Correction of horizontally reversed image
-
Ring clamp
yes

General


Type
Deviating optics
Type of build
Diagonal mirror
TS Optics Diagonal mirror 90° 1.25"
