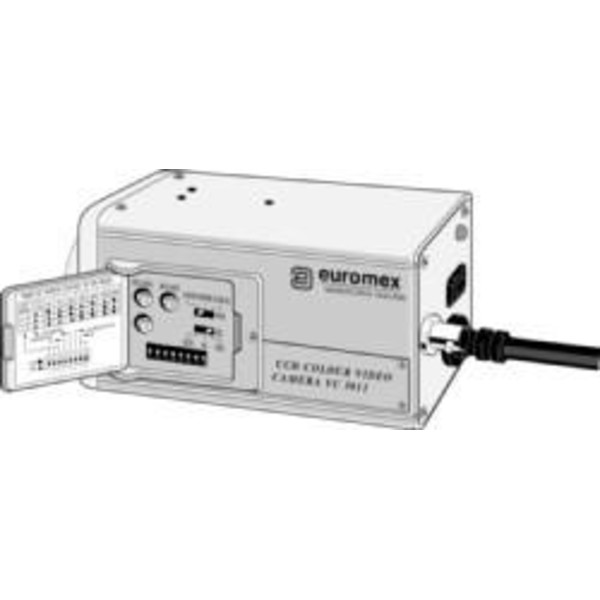

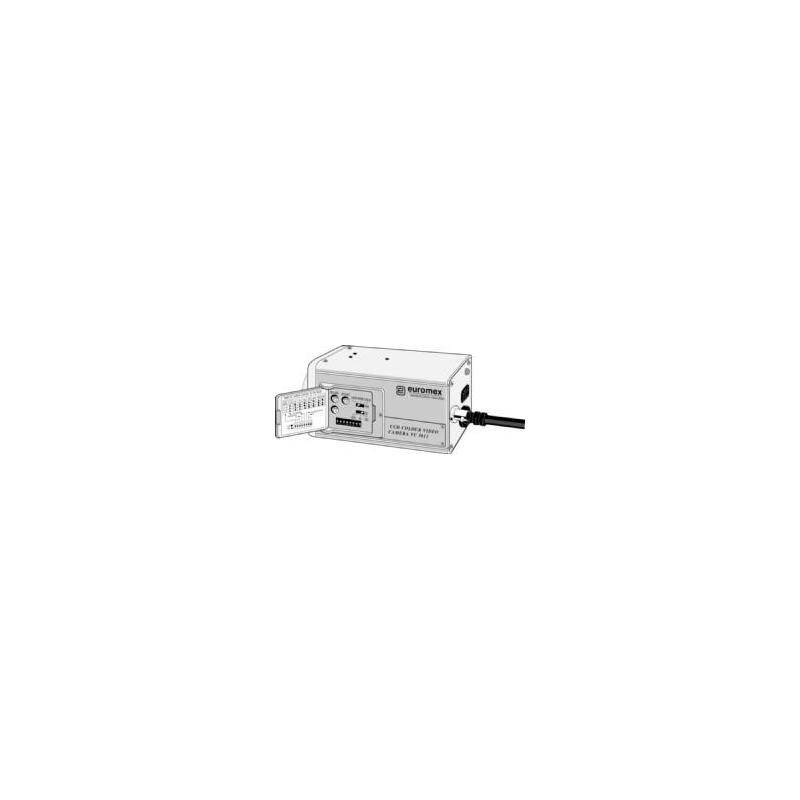

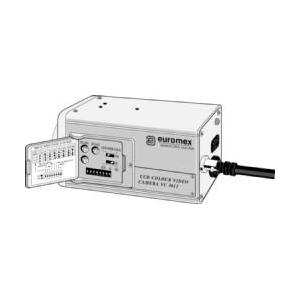

CCD color camera VC.3011,(1/3 " - 330 lines)

This Euromex CCD cameras are equipped with composite and / or S-video outputs and can therefore view images on a monitor, television or projector. With a small video-grabber, these images can be digitized. The following models are equipped with 1 / 3- or 1/2 inch CCD sensors and one or two video outputs. The cameras come with the necessary cables.

EUROMEX DSP color video camera:

• High-resolution CCD camera with digital signal processor (DSP)
• Receiving element: 1/3 "Sony Super HAD sensor
• 752 (H) x 582 (V) line. PAL system.
• Resolution: 480 TV lines horizontal, 440,000 pixels
• Light sensitivity: 0.11 Lux at 1.4 / 3200 ° K.
• Lens Mount: C / CS thread with 'Back focus adjustment'
• White Balance: Auto (2750 ° - 7000 ° K)
• Shutter Control: Auto 1/50 - 1 / 100,000 seconds
• Backlight Compensation: On / Off switch for AES
• Video Output: Composite (BNC) and S-Video (YC)
• Power supply: 90 - 260 Volt AC operation, 5 Watt
• Packed in a plastic case with 3 meter long cables BNC / BNC, BNC / SCART and YC / YC
