Microscopy > Microscopy accessories > Cameras > Cameras > ToupTek > WUCAM > ToupTek Camera ToupCam WUCAM 720PA, colour, CMOS, 1/2.5", 2.2 µm, 30 fps, 720 P, WiFi/USB
Product no.: 77265

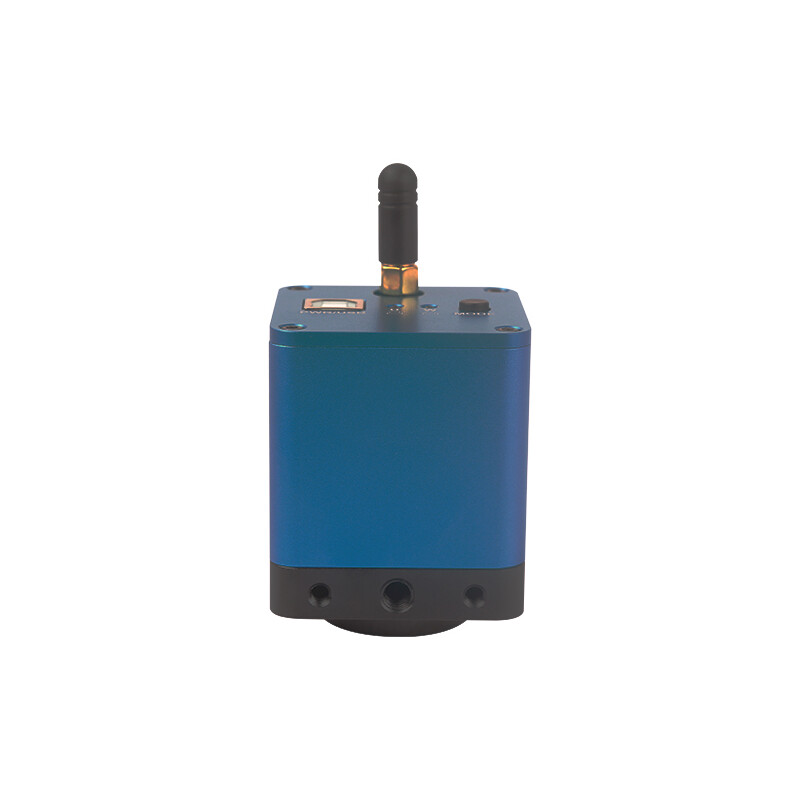

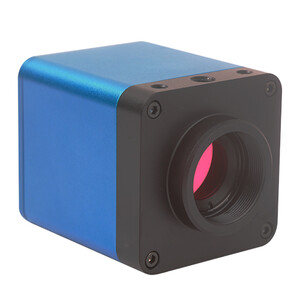

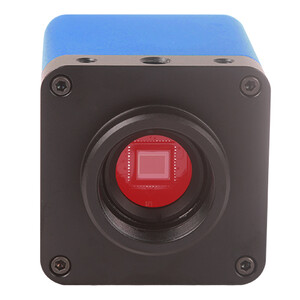

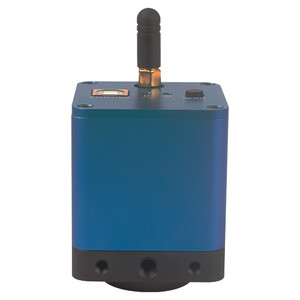

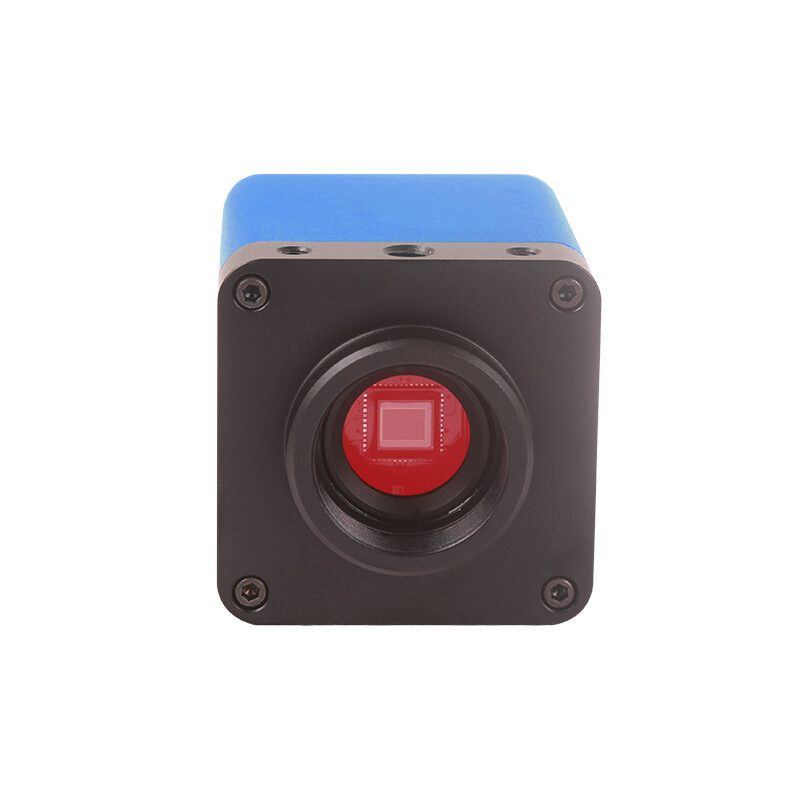

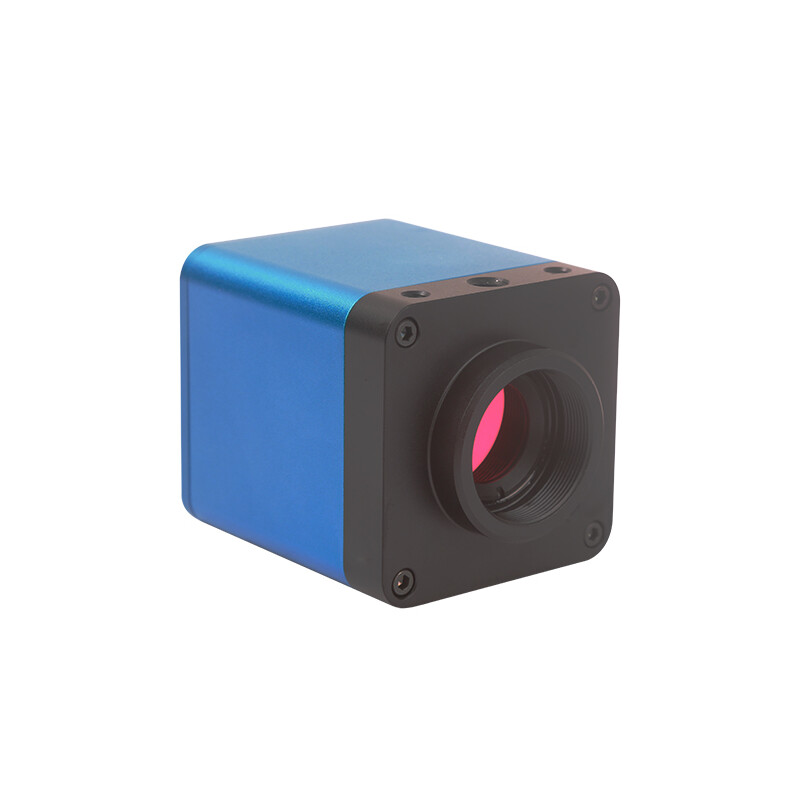

Camera ToupCam WUCAM 720PA, colour, CMOS, 1/2.5", 2.2 µm, 30 fps, 720 P, WiFi/USB

$ 194.00 incl. VAT plus shipping costs
too expensive?
short-term
ready for shipping in 3-5 weeks + lead time

No delivery possible before christmas
Check alternatives on stock or order a voucher!


Product description

More about the series WUCAM...

In brief:

  • 720P colour camera with Aptina CMOS sensor
  • Wifi and USB video outputs
  • Ideal for use with mobile devices such as smartphones and tablets (iOS and Andoird compatible)
  • Images can be transmitted to up to 6 devices simultaneously
  • Sturdy and valuable housing made of aluminium alloy

WUCAM cameras

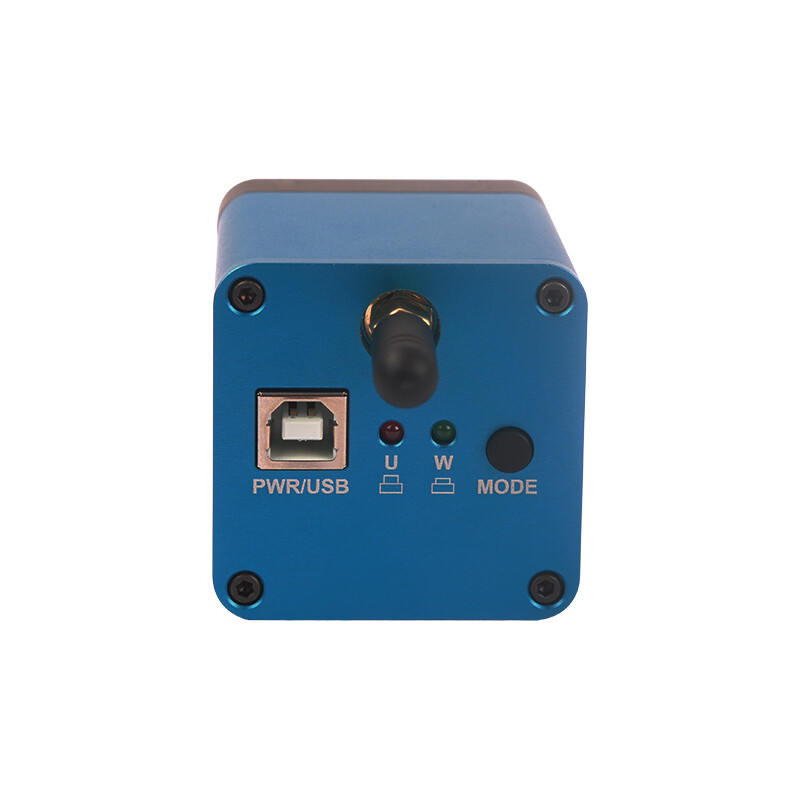

The ToupTek WUCAM cameras are cameras that have the WiFi output and USB output. An on-camera switch is used to switch between the WiFi output and USB output.

When WiFi output is available, this camera is used as a WiFi camera and could be connected to mobile devices, such as smart phones, pads and computers. It could work with ToupView app on iOS, Android and windows platform. 6 users could connect the camera simultaneously by WiFi connection.

When USB output is available, this camera is used as a USB camera and could support UVC standard. The camera could be used with ToupView or other 3rd part software which could support UVC camera. Furthermore, they are compatible with C/C++, C#VB.Net, Python, Java, DirectShow, Twain, etc.

Specifications

Camera


Pixel size
2.2
Resolution Photograph (Pixel)
1280x720
Resolution video (Pixel)
1280x720
adapter required
0.4x, 0.5x c-mount
frame rate (fps)
30
Image transmission
WiFi
Size of chip (″)
1/2.5
Extendable storage
no
Colour camera
yes
Shutter
Rolling Shutter
Peltier cooling
no
Interface
Wifi, USB
sensor
CMOS (Aptina)
Software
ToupView/ToupLite; iOS/Android App
Supported operating systems
Microsoft Windows XP/Vista/7/8/10 (32 & 64 bit), iOS, Android
Video function
yes
Spectral Range (nm)
380-650
Sensitivity (mV/s)
530

General


Width (mm)
57
Height (mm)
50
Length (mm)
50
Series
WUCAM

Field of application


Medicine
yes
Hobby
yes
Industry
yes
Education
yes

Area of application


Secondary school
yes
High School
yes

Miscellaneous


supplier product number
WUCAM0720PA

Product safety

manufacturer: ToupTek Photonics Co., Ltd., 15F, Aoqiang Building 1, No. 6, Xiyuan 5th Rd., Hangzhou, 310030 Zhejiang, CN, www.touptek.com
resp_person: NIMAX GmbH, Otto-Lilienthal-Str. 9, 86899 Landsberg am Lech, DE, [email protected]

Recommended accessories

Microscopy > Microscopy accessories (3)

ToupTek stage micrometer, lines (X) 1mm/100 Div.x0.01mm

$ 25.00*

*All prices include VAT plus shipping costs.

ToupTek Camera ToupCam WUCAM 720PA, colour, CMOS, 1/2.5", 2.2 µm, 30 fps, 720 P, WiFi/USB

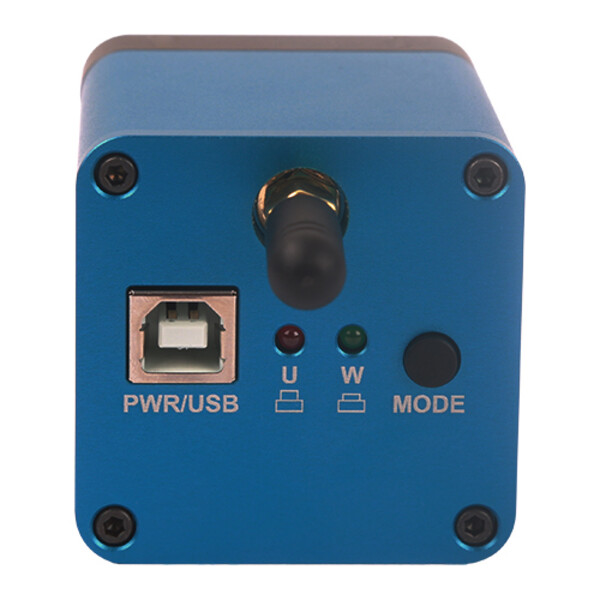

Connections
