Microscopy > Microscopy accessories > Cameras > Cameras > ToupTek > SCAM4K > ToupTek Camera ToupCam SCAM4K 8MPA, colour, CMOS, 1/1.8", 2 µm, 30/30/30 fps, 8 MP, HDMI/Wifi/USB 3.0
Product no.: 78347

Camera ToupCam SCAM4K 8MPA, colour, CMOS, 1/1.8", 2 µm, 30/30/30 fps, 8 MP, HDMI/Wifi/USB 3.0

$ 635.00 incl. VAT, plus shipping costs
too expensive?
short-term
ready for shipping in 3-5 weeks + lead time
  • 8 MP colour camera with Sony CMOS sensor

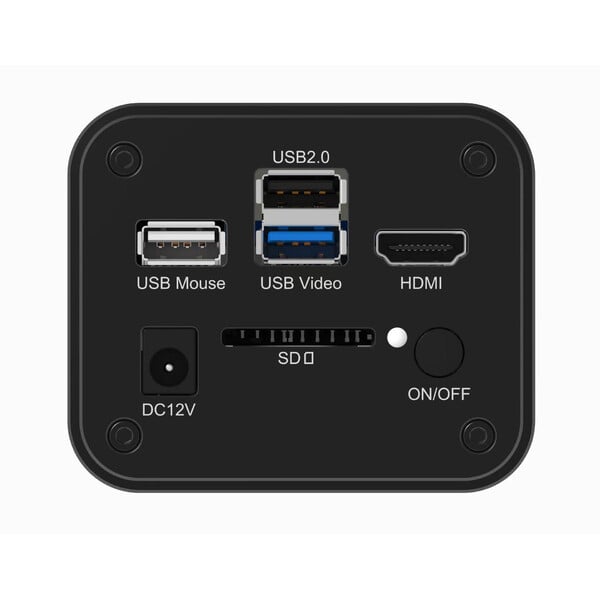

  • HDMI, WiFi (WLAN), USB3.0
  • Integrated XCAMView for camera control (HDMI) (stand alone system)
  • High sensitivity, low noise and no smearing effects
  • Sturdy and valuable aluminium alloy housing

Product description

More about the series SCAM4K...

SCAM4K camera series

The SCAM4K series cameras are the next-generation live-view imaging-system with 4K resolution (video) at 30 FPS. They feature a Sony Exmor CMOS sensor with high sensitivity, low dark current and no smear, achieved through the use of R, G and B primary colour mosaic filters.

A standard c-mount interface ensures maximum compatibility with various microscope systems. The cameras can be used as a stand-alone system without a PC in conjunction with an HDMI monitor or TV or the data can be streamed live to a PC via WiFi (Wlan)/ USB 3.0 for image and video recording. Hardware functions for 3D denoising, sharpness and tone mapping control significantly improve the picture and video quality.

The included Windows software offers image development and measurement tools as well as advanced compositing features such as image stitching and advanced depth of field. With the ability to calibrate scales at multiple magnifications, the software can be used for multi-level inspections.

For Mac and Linux, there is a lite version of the software that can capture video and still images and includes limited editing functions.

The SCAM4K series cameras are designed for capturing digital images from stereo microscopes, biological microscopes or for interactive online teaching.

All cameras in the series come with the advanced video and image processing application ToupView/ToupLite. This is compatible with Windows/Linux/macOS/Android (Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc).

Scope of delivery:

camera, power adapter, USB mouse, HDMI 2.0 cable, USB 3.0 cable, CD (driver & software)

Specifications

Capacity


Megapixel
8 MP

Camera


Pixel size
2
Resolution Photograph (Pixel)
3840x2160
Resolution video (Pixel)
3840x2160
adapter required
0.5x, 0.55x, 0.6x c-mount
frame rate (fps)
30
Image transmission
HDMI
Size of chip (″)
1/1.8
Extendable storage
yes
Colour camera
yes
Megapixel
16
Peltier cooling
no
Interface
HDMI, USB 3.0, Wifi (Wlan), SD-Karte
sensor
CMOS (Sony Exmor)
Software
ToupView/ToupLite
Supported operating systems
Windows, Linux, macOS, iOS, Android
Video function
yes
Sensitivity (mV/s)
1364

General


Width (mm)
88
Height (mm)
78
Length (mm)
65
Weight (g)
470
Series
SCAM4K

Field of application


Medicine
yes
Hobby
yes
Industry
yes
Education
yes

Miscellaneous


supplier product number
SCAM4K8MPA
