Microscopy > Microscopy accessories > Cameras > Cameras > Optika > C-HE > Optika Camera C-HP4, colour, CMOS, 1/1.8 inch, 2.0x2.0µm, 30fps, 4K, HDMI, 8Mp
Product no.: 75698

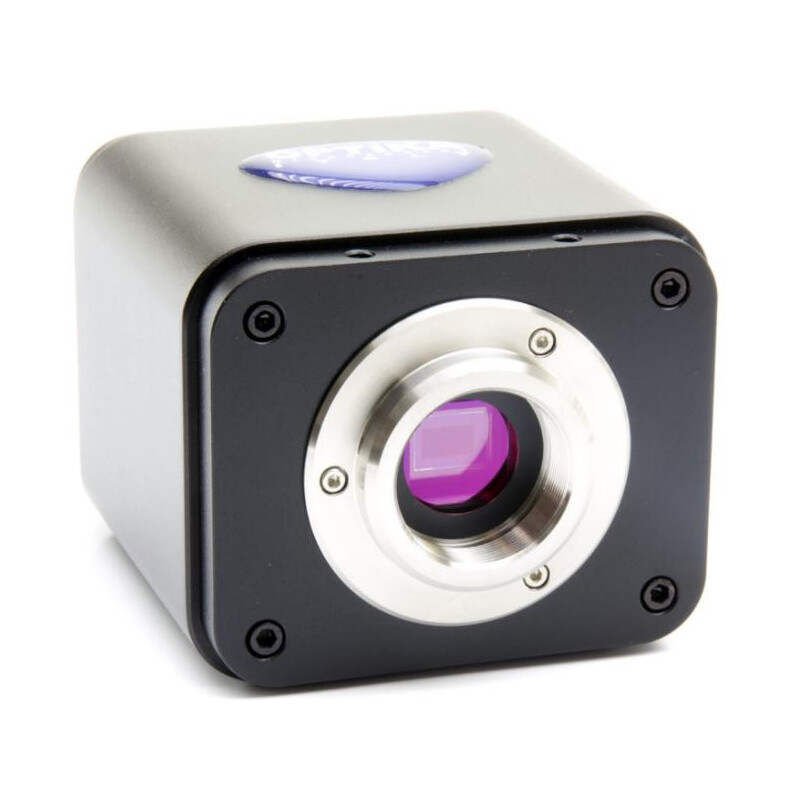

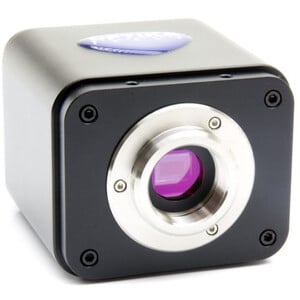

Camera C-HP4, colour, CMOS, 1/1.8 inch, 2.0x2.0µm, 30fps, 4K, HDMI, 8Mp

RRP: $ 1,170.00 Our price:
$ 1,060.00 incl. VAT plus shipping costs
too expensive?
long-term
ready for shipping in 6-10 weeks + lead time

No delivery possible before Christmas. Order a voucher coupon!


Product questions?
advice for Microscopy

Product description

C-HP4

8MP 4K Full HD C-mount Microscope Camera

CMOS sensor and HDMI connection to clearly reveal the sample’s finest details on-screen and perform measurements. No software installation is required with image and video capturing on SD card when in HDMI mode. At any time, it can be connected to PC and used via the downloadable, free of charge software (Windows), which is always available to enable the latest updates.

The compact and elegantly designed housing conceals the very latest in camera technology. Images will be of the highest quality and rich in contrast and detail with the top-class SONY sensors, worldwide recognized, ensuring beautiful true-to-life color and delivering incredibly accurate colors just as you see them.

Ideal to be connected to all the trinocular tube of different brands using the focusable C-Mount adapter (to be purchased separately). Wireless mouse, SD card and built-in software included.

Highlights

  • Simple operation, built-in software
  • Universal connection to any microscope brand
  • Ultra HD 4K 2160p images and videos

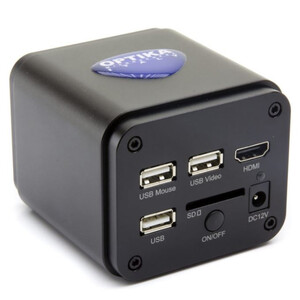

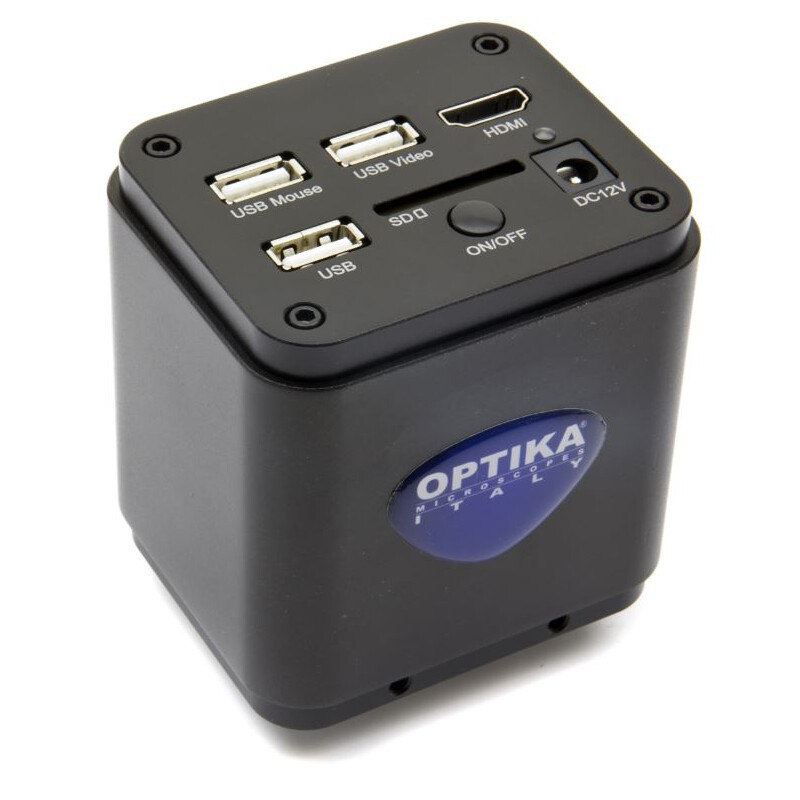

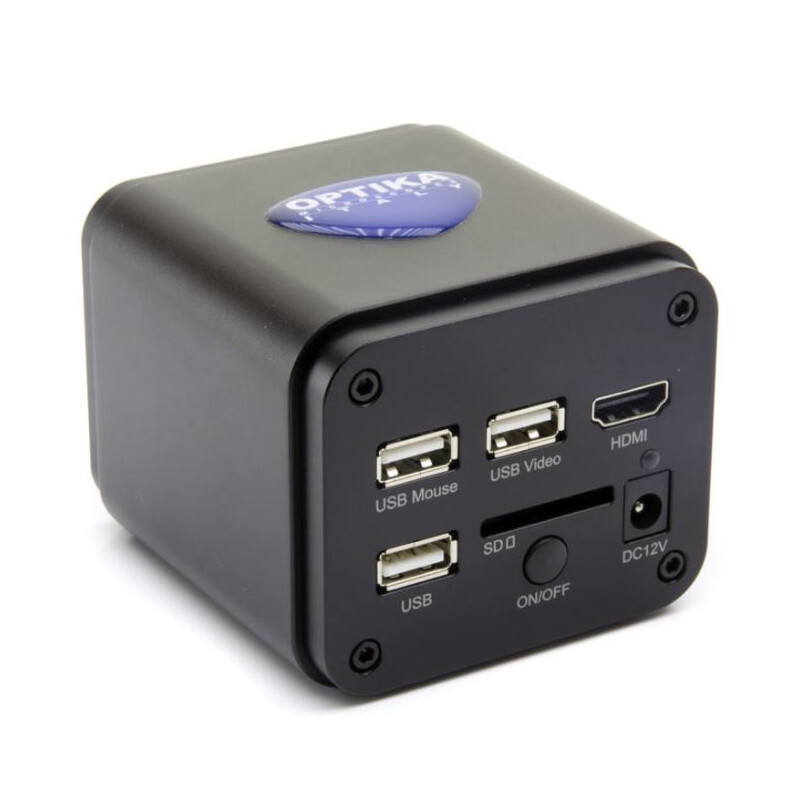

  • Dual output mode (HDMI/USB)
  • High frame rate
  • Reliable color fidelity
  • C-mount connection (via dedicated adapter, on any microscope)

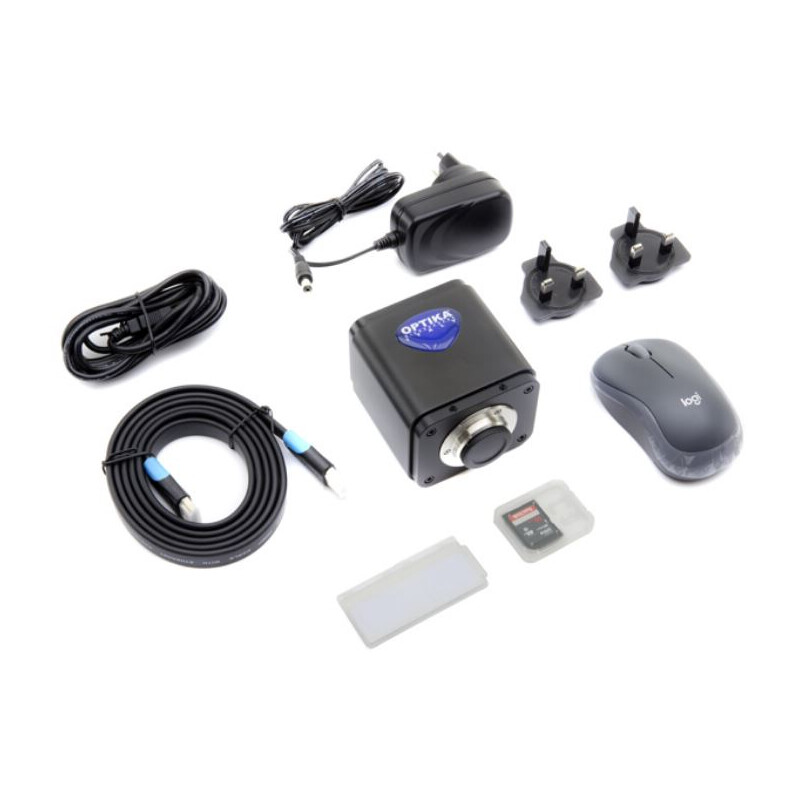

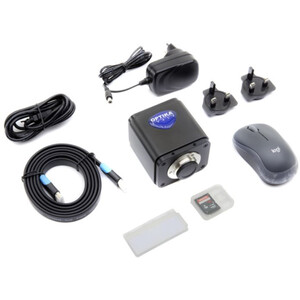

  • HDMI cable, mouse and SD card included
  • Downloadable, free of charge software
  • OPTIKA ProView for Windows

Specifications

Capacity

Size of chip (mm)
1/1.8"
Megapixel
8
Sensitivity to light (Lux)
1,2
Resolution Photograph (Pixel)
3400x2160
Internal memory (Megabyte)
-
TV output
yes
Interface
HDMI, USB 3.0, Wi-Fi
Video function
yes

Camera

Megapixel
2
Peltier cooling
no
Colour camera
yes
Pixel size
2,0
Image transmission
HDMI
Size of chip (″)
1/1.8
sensor
CMOS
Resolution Photograph (Pixel)
3400x2160
frame rate (fps)
20
Shutter
Rolling Shutter
Max. exposure time (ms)
2000
Min. exposure time (ms)
0.04
Sensitivity (mV/s)
505mV at 1/30s
adapter required
0.5x
Software
HDMILITE

General

Colour
grey/black
Length (mm)
65
Width (mm)
78
Height (mm)
88
Weight (g)
500
Series
C-HE

Miscellaneous

supplier product number
C-HA
